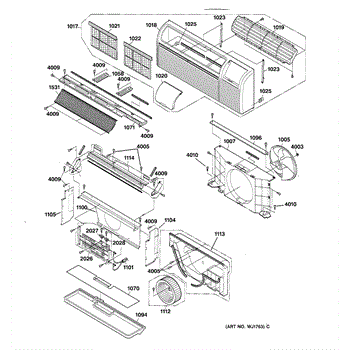

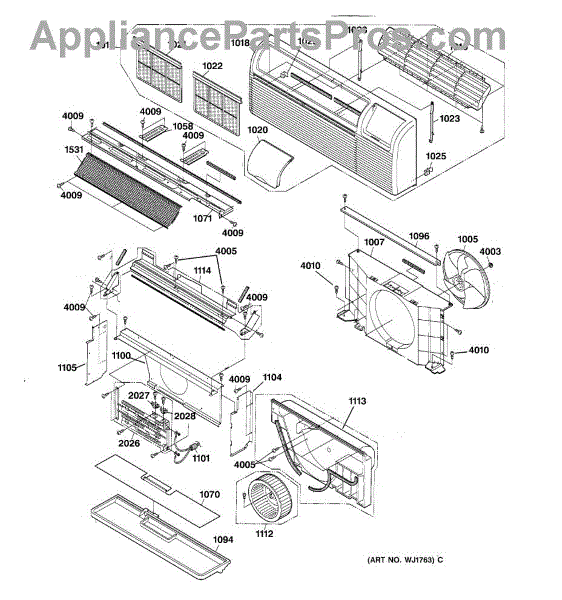

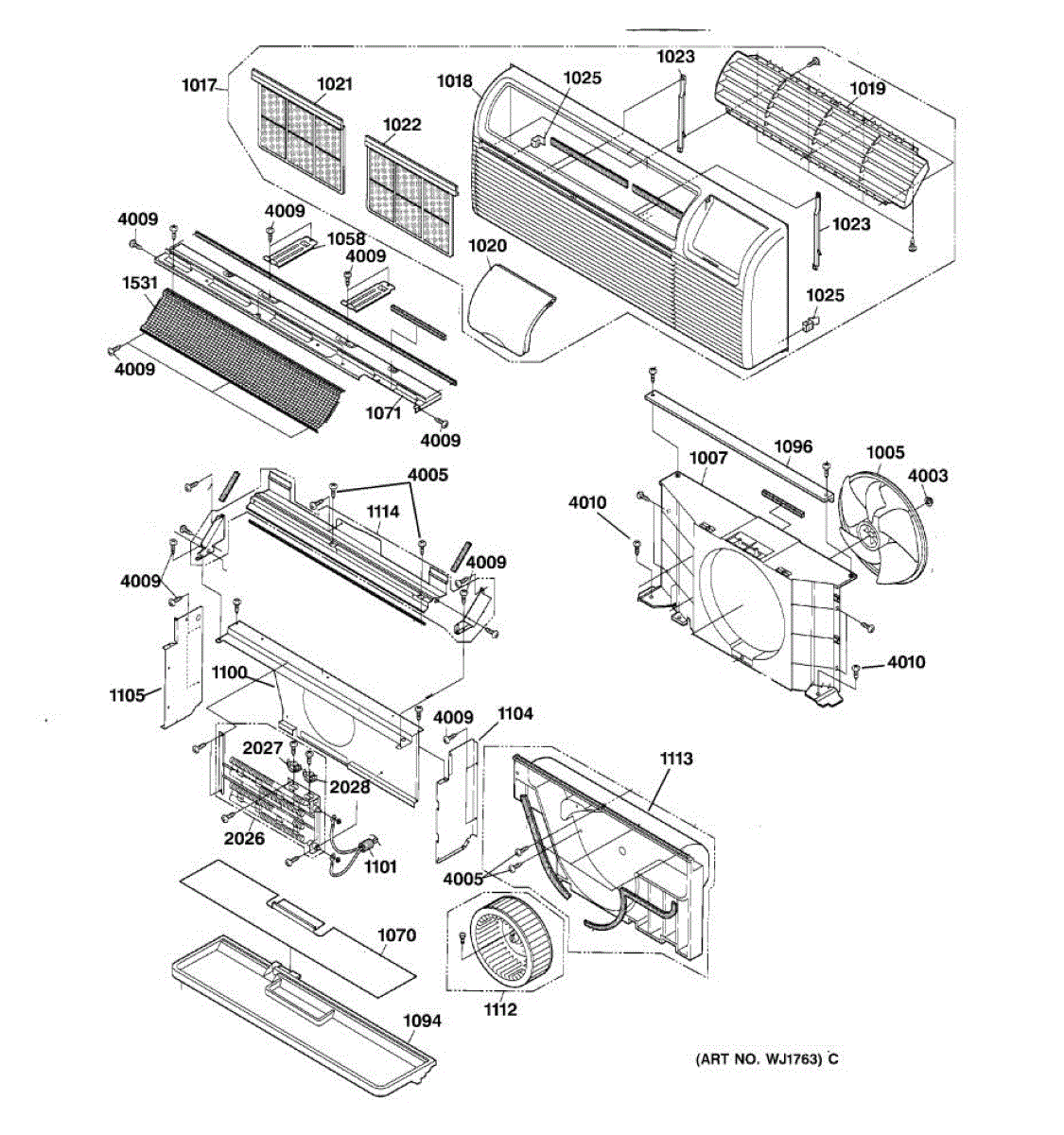

Parts for Ge AZ22E09E3BM1: 02 - Section2 Parts

This replacement propeller is used on the outdoor fan of room air conditioners. It mounts to the condenser fan motor shaft to move air across the condenser coil, restoring heat rejection and airflow when the original blade is damaged or unbalanced. What it does:

• Moves outdoor air through the condenser coil to expel heat
• Helps address poor cooling caused by weak or no condenser airflow
• Replaces cracked, warped, or loose blades that cause vibration or scraping noises
• Symptom check: outdoor fan not spinning, weak airflow, rattling, or visible blade damage

• Includes: 1 propeller

• Disconnect power before servicing; wear gloves—blade edges can be sharp
• Note blade orientation and hub depth on the motor shaft before removal
• Remove the fastener/set screw and pull the old blade straight off; avoid bending coil fins
• Install the new blade in the same orientation, secure firmly, then test run

This control panel cover is used on many General Electric Zoneline air conditioners. Color: cream. It measures about 7-1/2 inches wide by 5-1/2 inches high.

This General Electric air conditioner air filter is used on the left hand side. For the right hand side order WP85X10002.

This General Electric air conditioner air filter is used on the right hand side. Color: beige. It measures about 15 inches wide by 10 inches deep. For the left hand side order WP85X10001.

This thermal overload protector safeguards the motor/compressor circuit by opening when temperature or current rises too high. Replacing a failed protector helps prevent damage and restore reliable operation when the unit won't stay running.

• Opens the circuit on over-temperature/over-current to protect windings
• Helps address symptoms like: hums then clicks off, won't start, or shuts down shortly after starting
• Often resets when cool; repeated tripping indicates a failing protector or a related issue
• Mounts against the component for accurate thermal sensing

• Disconnect power at the breaker before servicing; capacitors can retain a charge
• Note wire locations and transfer one at a time; terminals should fit snugly
• Seat/clip the protector firmly as designed for proper heat transfer
• If the old protector shows heat damage, also inspect the start relay/capacitor, wiring, and the motor/compressor

This protector heater is a small heating element used with the overload/thermal protector in the motor or compressor circuit. It provides calibrated warmth so the protector trips correctly under heavy load, helping prevent overheating and protecting the unit. What it does:

• Works with the overload/thermal protector to ensure proper trip timing
• Helps prevent overheating and potential damage to the motor/compressor
• Common signs include repeated clicking near the compressor area or frequent overload trips

• 1 protector heater

• Disconnect power and safely discharge the run capacitor before servicing
• Photograph or label wiring and component orientation for accurate reassembly
• Install in the same position/orientation as the original with secure, insulated connections and proper wire routing
• Inspect the overload, start device, and terminals; replace any burnt or loose connectors to prevent repeat failures
