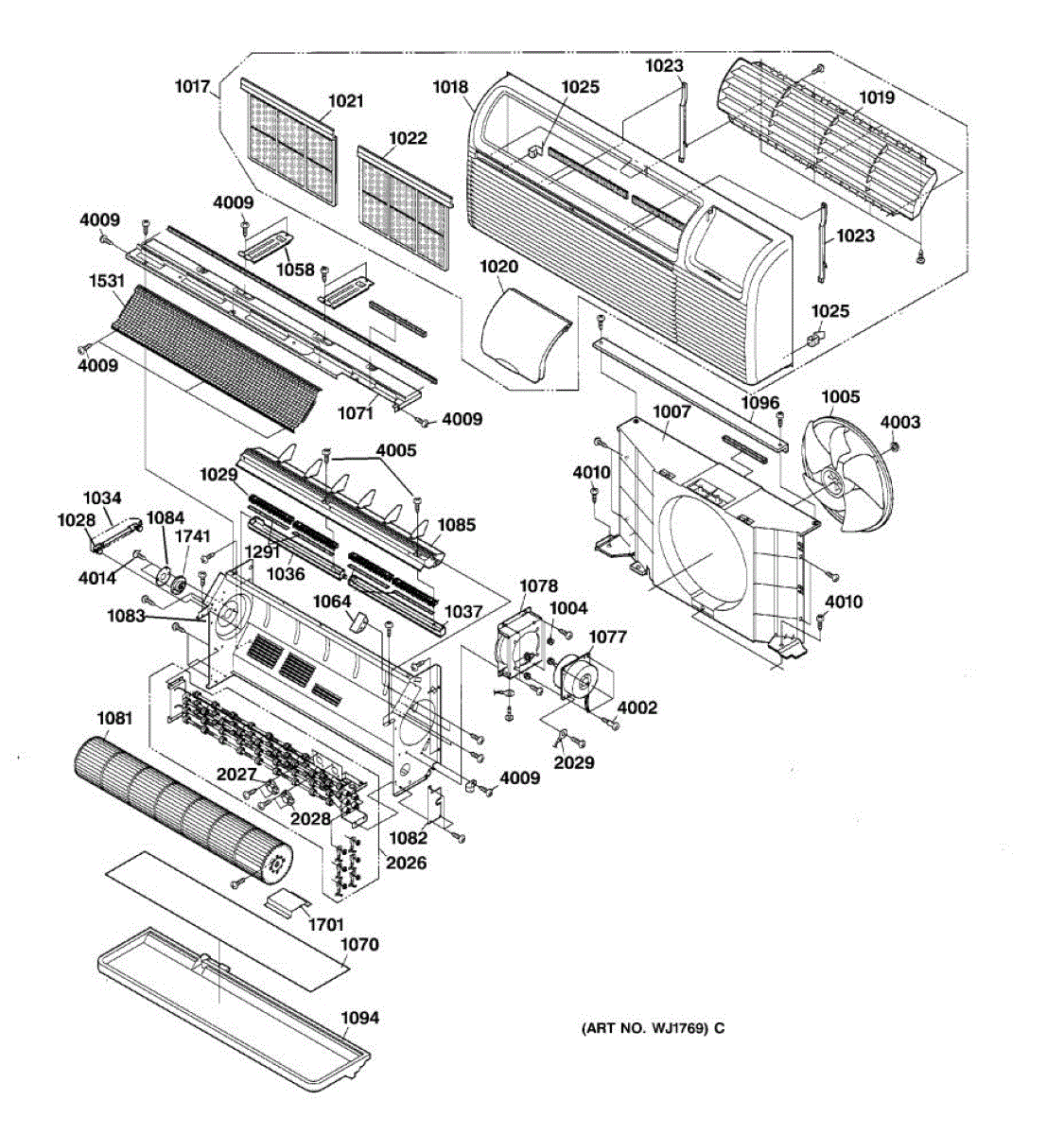

Parts for Ge AZ52H09EADM1: 02 - Section2 Parts

This replacement propeller is used on the outdoor fan of room air conditioners. It mounts to the condenser fan motor shaft to move air across the condenser coil, restoring heat rejection and airflow when the original blade is damaged or unbalanced. What it does:

• Moves outdoor air through the condenser coil to expel heat
• Helps address poor cooling caused by weak or no condenser airflow
• Replaces cracked, warped, or loose blades that cause vibration or scraping noises
• Symptom check: outdoor fan not spinning, weak airflow, rattling, or visible blade damage

• Includes: 1 propeller

• Disconnect power before servicing; wear gloves—blade edges can be sharp
• Note blade orientation and hub depth on the motor shaft before removal
• Remove the fastener/set screw and pull the old blade straight off; avoid bending coil fins
• Install the new blade in the same orientation, secure firmly, then test run

This control panel cover is used on many General Electric Zoneline air conditioners. Color: cream. It measures about 7-1/2 inches wide by 5-1/2 inches high.

This General Electric air conditioner air filter is used on the left hand side. For the right hand side order WP85X10002.

This General Electric air conditioner air filter is used on the right hand side. Color: beige. It measures about 15 inches wide by 10 inches deep. For the left hand side order WP85X10001.

This bearing assembly supports the dryer drum and helps the drum rotate smoothly for quiet, even drying. Replacing a worn bearing restores stable drum movement and reduces noise and vibration. What it does:

• Provides a low-friction support surface for the dryer drum, helping it spin properly
• Prevents drum wobble and off-center rotation that can wear belts and rollers
• Reduces squealing, grinding, or rumbling noises caused by a failing bearing
• Helps maintain even drying by keeping the drum aligned

• Disconnect power and fuel (gas) supply before starting any repair
• Access typically requires removing the dryer front or rear panel and drum; refer to a model-specific repair guide
• Use proper tools and support the drum during removal to avoid damage
• Inspect adjacent parts (shaft, seal, rollers) for wear and replace if visibly damaged

This safety device protects the compressor by interrupting power if it overheats or draws excessive current. Replacing a weak or failed protector restores reliable starts and helps prevent nuisance shutdowns and compressor damage.

• Opens the compressor circuit during overheat/overload to prevent motor damage
• Common symptoms include: compressor won't start, clicks and briefly hums, or starts then quickly shuts off
• Can contribute to poor cooling while fans or controls still operate
• Visual clues may include heat discoloration or damaged terminals at the protector

• Disconnect power before servicing; capacitors in the system can retain a charge—discharge safely
• Access the compressor terminal cover; note wire locations and remove the old protector
• Inspect terminals/connectors; replace any burnt or loose spade connectors for a secure fit
• Fully seat the new protector on the compressor terminal and reconnect wires firmly; check any companion start relay or capacitor if symptoms persist
