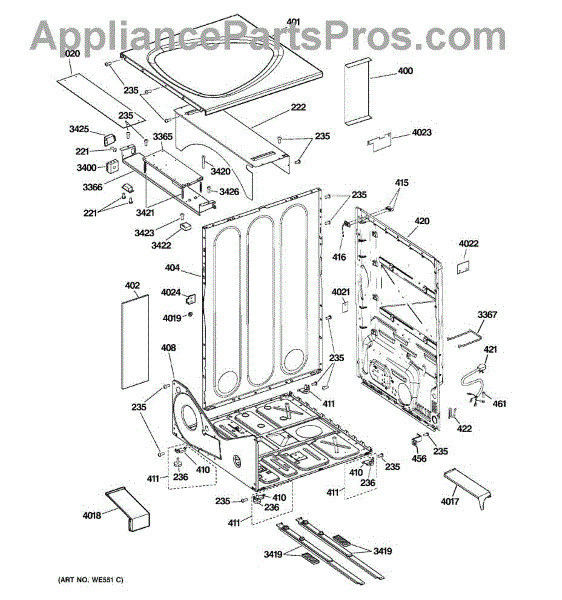

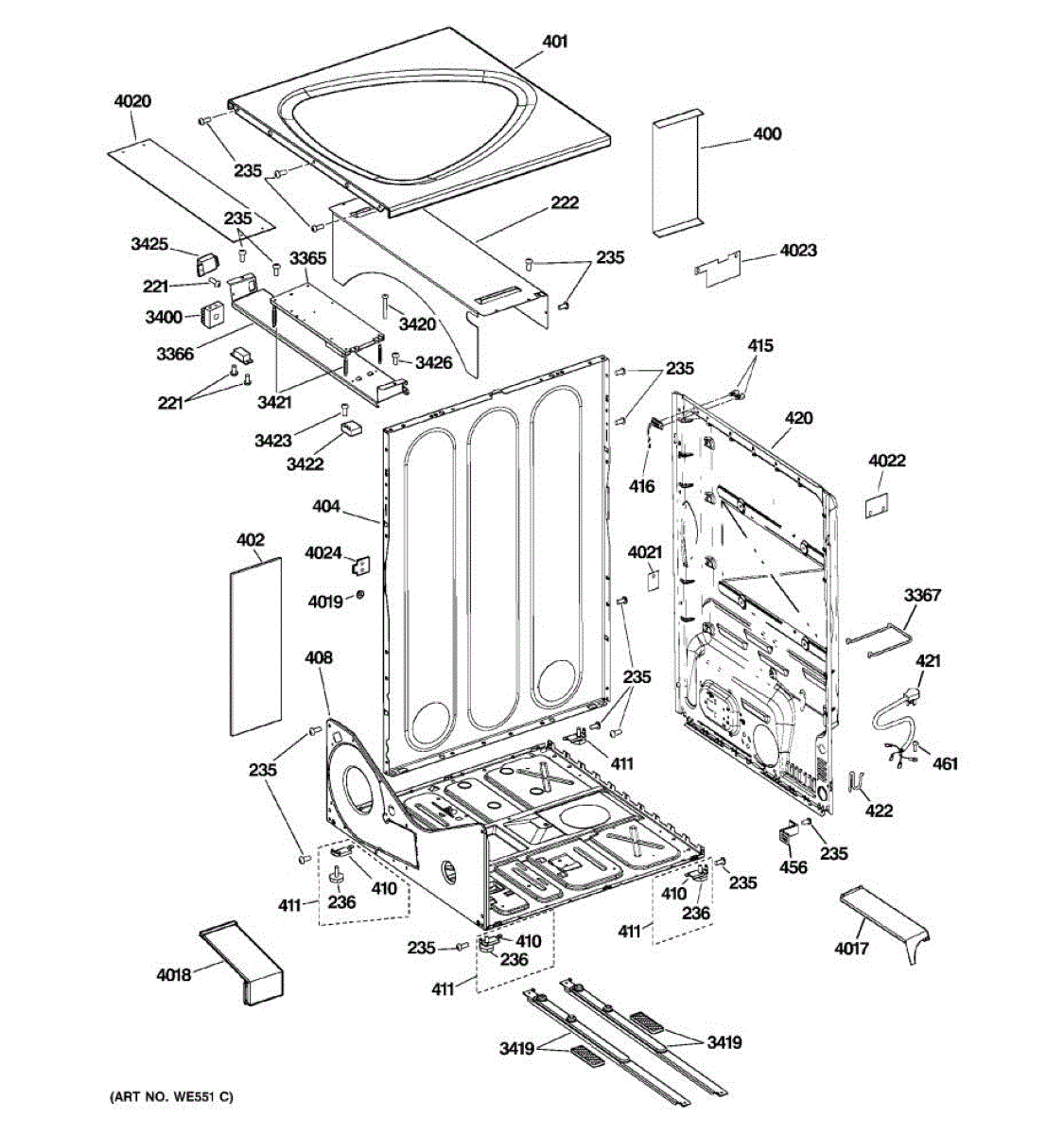

Parts for Ge DPVH890GJ2MV: 04 - Cabinet Parts

Package of 12

Adjustable

This gold top cover provides the appliance's finished upper surface and protects internal components while restoring the original appearance. Durable painted finish helps conceal wear and maintain a uniform look. What it does:

• Replaces a damaged, cracked, or faded upper exterior cover to restore the appliance's appearance
• Shields controls and internal components from dust, spills, and everyday wear
• Matches the original gold finish for a consistent cosmetic repair
• Common issue addressed: chipped or discolored top trim or cover

• One gold top cover

• Disconnect power to the appliance before starting any repair
• Removal typically requires removing mounting screws and any adjacent trim pieces; keep hardware for reassembly
• Handle painted surfaces carefully to avoid scratching; use gloves or a soft cloth during installation

This rear level leg bracket replaces the rear mounting bracket that secures a leveling leg to the appliance frame, restoring proper support and helping keep the appliance stable and level for safe, quiet operation. What it does:

• Secures the rear leveling leg to the appliance frame so the cabinet sits evenly
• Restores proper height and prevents the appliance from tilting backward
• Reduces rocking, wobbling, and vibration caused by a damaged or loose bracket
• Helps maintain safe, stable operation under normal load conditions

• Disconnect power (and gas supply if applicable) and move the appliance to a safe, accessible area before starting.
• Support the appliance cabinet so it cannot tip when the rear leg or bracket is removed.
• Use basic hand tools to remove and install the bracket; follow the appliance manufacturer's instructions.
• Inspect the leveling leg and front mounts while servicing; replace any worn or damaged hardware.

Rear bracket and leveling screw assembly.

This 120V replacement power cord restores household current to gas ranges and ovens that use a corded connection for clocks, lights, igniters and controls. It provides a straightforward way to replace a damaged or worn cord and regain safe power to the appliance. What it does

• Supplies 120-volt power from the wall outlet to the range/oven's control system, clock and lights.
• Restores ignition and control functions when a frayed or broken cord prevents the appliance from receiving power.
• Replaces cords that show signs of burning, cracking, loose connections, or exposed wiring.
• Reduces risk of electrical faults caused by damaged insulation or terminals.

• One 120V power cord

• Disconnect power at the circuit breaker or unplug the appliance before starting; ensure the appliance is de-energized.
• Route and secure the cord to avoid pinching; tighten terminal screws to manufacturer torque recommendations.

Size: 8-32 t. Includes 12 screws.

This main power board assembly supplies and regulates the appliance's primary electrical power and controls core functions for reliable operation. Replacing a failed board restores power distribution and control response. What it does

• Distributes and regulates incoming power to control circuits and major components.
• Provides the control signals that enable start/stop cycles and user interface responsiveness.
• Failsafe symptoms include no power to the appliance, unlit display or controls, or complete failure to start.
• Intermittent power, unexpected shutdowns, or certain error codes can indicate a faulty board.
• Works in conjunction with door switches, thermal fuses, and other safety devices.

• Disconnect electrical power before servicing to avoid shock or damage.
• Observe ESD precautions; handle the board by its edges and avoid touching components.

A small plastic spacer that positions and main control board away from the cabinet to prevent shorts and reduce vibration. Keeps the control board secure so electrical connections stay stable and components avoid contact with metal. What it does

• Separates and insulates the main control (MC) board from the chassis to prevent electrical shorts.
• Holds the control board at the correct height and alignment for connectors and mounting hardware.
• Dampens vibration and reduces board movement that can cause intermittent electrical issues.
• Common symptom: loose or sagging control board, board contacting metal, or intermittent control/module behavior.

• Always unplug the appliance or disconnect power before accessing the control board.
• Handle the control board by its edges and avoid touching components or connector pins.
• Remove existing spacer(s) and install the replacement in the same location and orientation; secure board with original fasteners.
• If the board shows damage or mounting hardware is missing, inspect further or replace damaged parts as needed.
