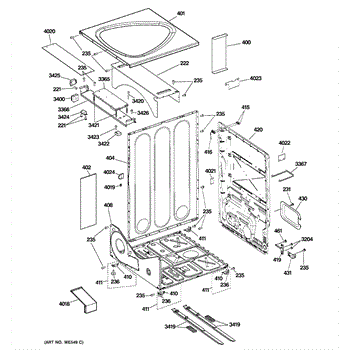

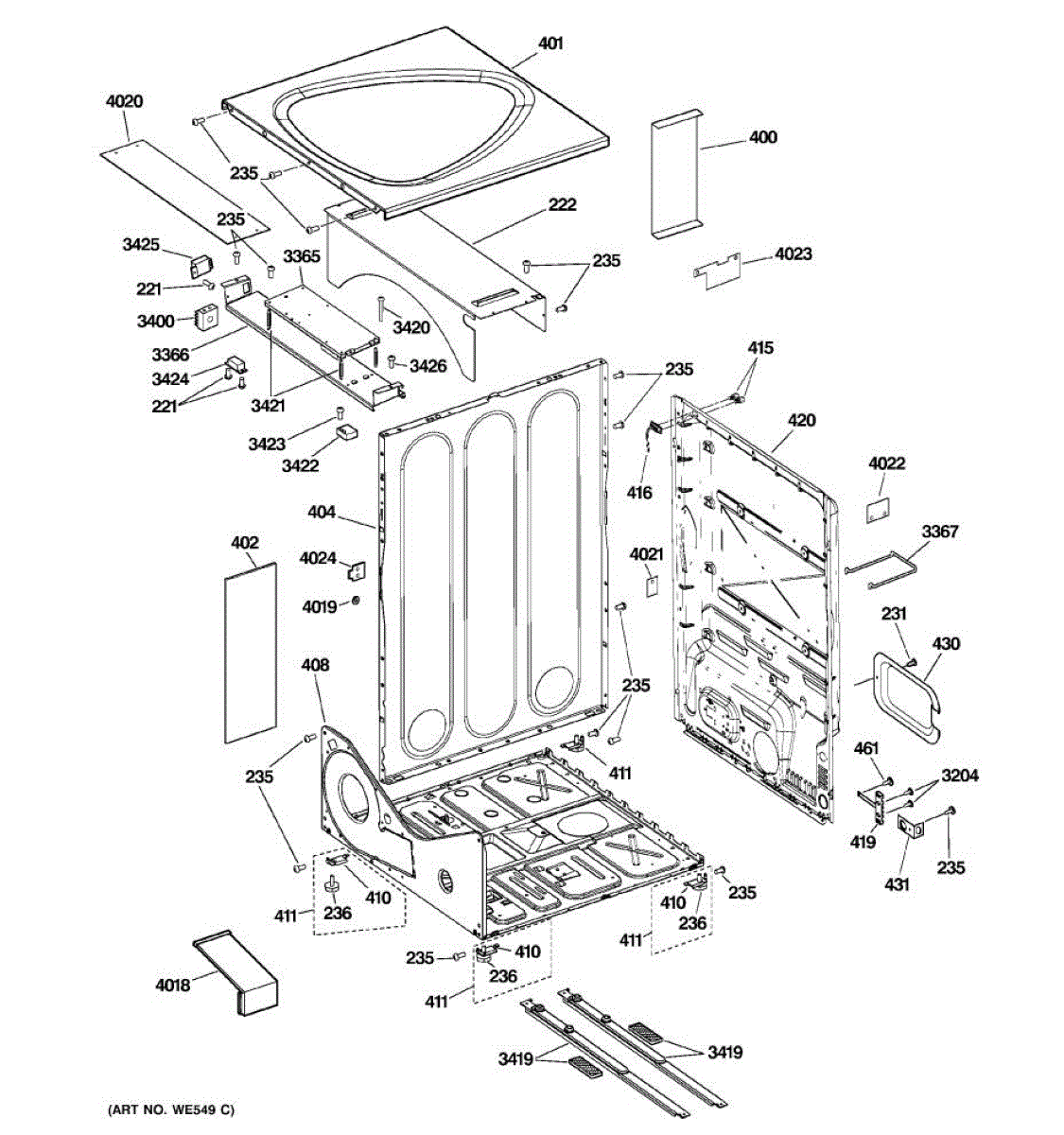

Parts for Ge DPVH891EK0WW: 05 - Cabinet Parts

This hex washer-head screw secures dishwasher components like brackets, shields, and panels. Replacing a stripped or missing screw restores a tight fit and helps prevent vibration, rattling, and loose parts during operation.

• Fastens parts where a #10-16 x 1/2-inch hex washer-head screw is specified
• Secures brackets, panels, and assemblies to the tub or frame
• Helps resolve symptoms like loose panels, vibration, or rattling noises
• Restores proper hold when the original screw is stripped, missing, or damaged

• Disconnect power and shut off water to the dishwasher before servicing
• Match length and thread to the original; replace screws one at a time to maintain alignment
• Start threading by hand to avoid cross-threading; tighten snugly—do not overtighten, especially into plastic
• Verify no wires or hoses are pinched before reassembly

• Size: #10-16 x 1/2 inch
• Head: hex washer-head
• Type: AB tapping screw

Mounting screw for dryer drum support and internal components. Replaces lost, stripped, or damaged screws during repairs. Package of 12 screws included.

This adjustable gray foot supports and levels your dryer, allowing you to compensate for uneven floors. It screws into the dryer's base and can be raised or lowered to ensure the appliance sits level and stable. Replace this part if your dryer rocks, vibrates excessively, or appears tilted.

Replaces the rear mounting bracket that secures a leveling leg to your dryer frame. Needed when the original bracket is cracked, broken, or missing.

Rear bracket and leveling screw assembly.

Dryer won't start or keeps tripping the breaker? A damaged terminal block disrupts power distribution. DIY repair typically takes 30-45 minutes.

Protective cover that shields the rear power connection terminals on your dryer. Replace if cracked, broken, or missing to prevent lint buildup and accidental contact with electrical connections.

Replacement strain relief bracket that secures the power cord at entry point. Needed when bracket is cracked, broken, or missing to restore safe cord routing.

Size: 8-32 t. Includes 12 screws.

Includes 12 screws. Size: 8-18 ab.

A small plastic spacer that positions and main control board away from the cabinet to prevent shorts and reduce vibration. Keeps the control board secure so electrical connections stay stable and components avoid contact with metal. What it does

• Separates and insulates the main control (MC) board from the chassis to prevent electrical shorts.
• Holds the control board at the correct height and alignment for connectors and mounting hardware.
• Dampens vibration and reduces board movement that can cause intermittent electrical issues.
• Common symptom: loose or sagging control board, board contacting metal, or intermittent control/module behavior.

• Always unplug the appliance or disconnect power before accessing the control board.
• Handle the control board by its edges and avoid touching components or connector pins.
• Remove existing spacer(s) and install the replacement in the same location and orientation; secure board with original fasteners.
• If the board shows damage or mounting hardware is missing, inspect further or replace damaged parts as needed.

Fix a dryer that won't start rack dry cycle or shows error codes with this interlock relay. Direct replacement part restores proper rack drying function.

Mounting screw for dryer assembly. Secures panels, brackets, or internal components. Replace if stripped, missing, or damaged during repairs.
