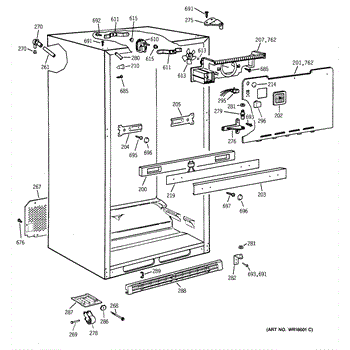

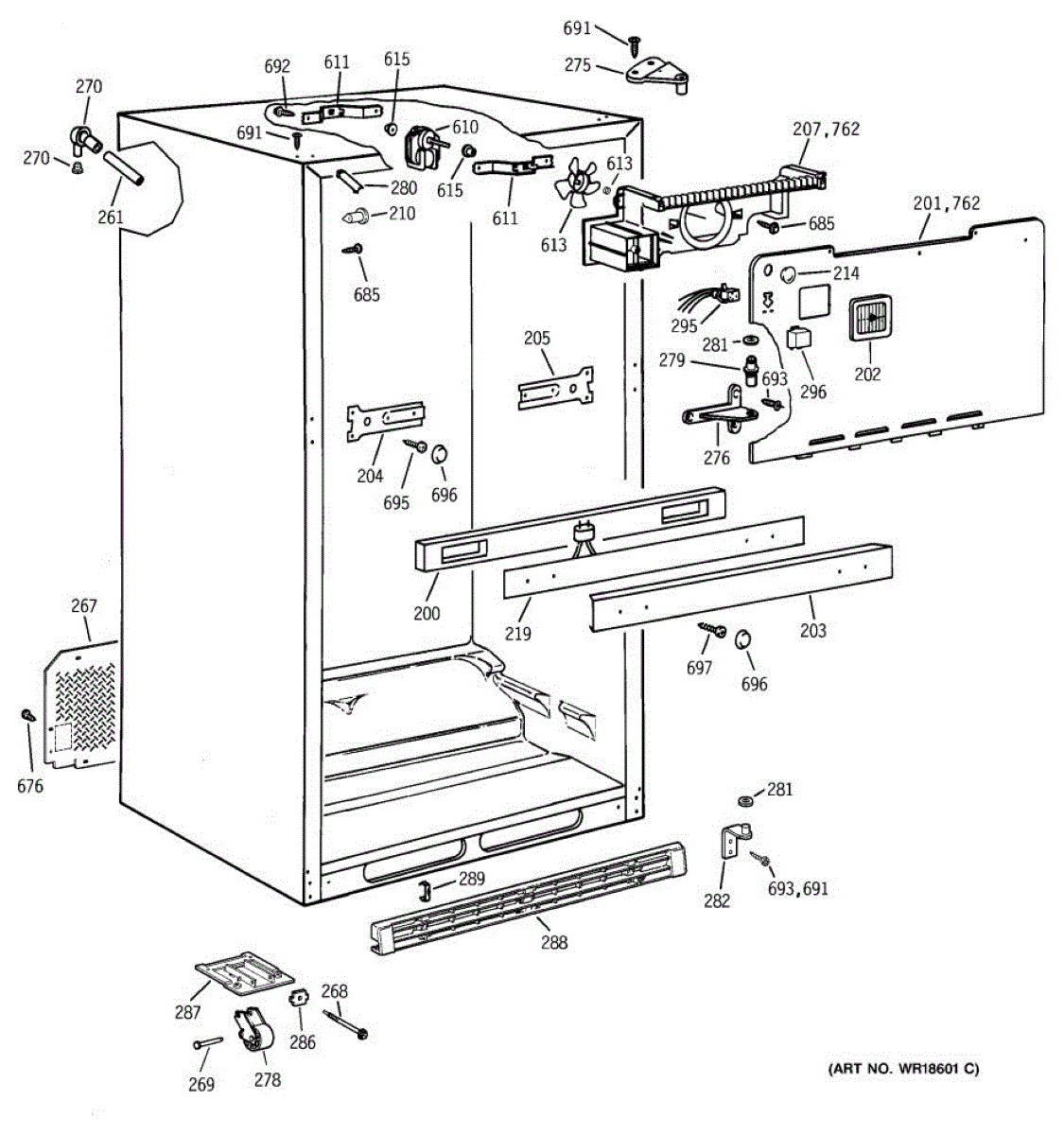

Parts for Ge ERT2018DBRBB: 03 - Cabinet Parts

The Ice Maker Fill Tube Grommet is an OEM part for GE refrigerators. This grommet creates a seal between the ice maker fill tube and the refrigerator, preventing leaks and ensuring that water is properly directed into the ice maker during the filling process.

Causes of a bad grommet can include regular wear and tear, damage from exposure to freezing and thawing cycles, or degradation from exposure to water and moisture.

Symptoms of a bad ice maker fill tube grommet include:

• Water leaks around the ice maker fill tube area
• Ice maker not producing ice properly
• Visible cracks or deformation in the grommet
• Water pooling inside or around the refrigerator

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Hinge Washer is an OEM replacement part for GE refrigerators. It is located on the hinge between the refrigerator door and cabinet. The refrigerator door hinge washer works to evenly distribute weight and reduce stress and friction, enabling smooth and durable door operation.

Causes of a bad hinge washer are generally normal wear and tear. However, damage may also occur from unusually heavy loads being placed on the door, or accidents that impact the door and hinge assembly.

Symptoms of a bad refrigerator door hinge washer include:

• Increased resistance when opening or closing the door
• Excessive noise from the hinge area
• Visible wear marks on the hinge
• Over time and with heavy use, the washer can break down, resulting in improper balance and alignment of the door.

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Evaporator Fan Motor Kit is an OEM part compatible with GE refrigerators. It is a critical component responsible for circulating air and maintaining proper airflow within the refrigerator's evaporator system, ensuring efficient cooling and temperature regulation. It features a shaft that measures 3/8 of an inch and two right-side terminals. Notably, the motor no longer comes with harness wires, which must be obtained separately for installation.

Symptoms of a faulty evaporator fan motor include:

• Inconsistent or inadequate cooling in the refrigerator or freezer compartments
• Warm spots or temperature fluctuations within the refrigerator
• Excessive frost buildup or ice accumulation in the freezer

Causes of a bad evaporator fan motor can include wear and tear over time, electrical issues or short circuits, or physical damage from foreign objects or improper maintenance.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

This evaporator fan blade mounts on the freezer fan motor and circulates air across the evaporator coils. Replacing a cracked or warped blade restores proper airflow for even cooling and more consistent temperatures throughout the refrigerator.

• Moves chilled air from the evaporator through the ducts to both compartments
• Helps maintain uniform temperatures and overall cooling performance
• Common symptoms of a faulty blade: weak airflow, poor cooling or warm spots, rattling/scraping noises from the freezer, longer run times
• Visual signs include a cracked hub, loose fit on the shaft, or broken/missing vanes

• Disconnect power before servicing
• Remove freezer shelves/ice bin and the rear panel to access the fan assembly
• Pull the old blade straight off the motor shaft; align the hub and press the new blade on until fully seated
• Verify blade orientation and free rotation inside the shroud before reassembly

The Evaporator Fan Blade is an OEM component for GE freezers and bottom-mount refrigerator designs. Located inside the freezer compartment, this fan blade spins to circulate cold air evenly throughout the storage space.

Causes of a faulty evaporator fan blade include natural fatigue from running year-round. Freezers exposed to humid environments may experience faster corrosion.

Symptoms include:

• Abnormal sounds like knocking or clunking from inside the walls
• cold spots developing in certain freezer areas
• Higher power bills from inefficient temperature regulation
• Frost or ice patches forming on evaporator coils

This part is also compatible with some brands like Hotpoint, RCA, and Kenmore.

The Fan Blade Grommet is an OEM replacement part for GE brand refrigerators. Located behind the evaporator fan blade where its central shaft passes through, this rubber sealing piece creates a protective barrier isolating the fan assembly.

Causes of a potentially problematic fan blade grommet include cracks or deterioration that develop from continuous vibration and impacts over extended use. Exposure to temperature fluctuations can also cause the rubber to harden and lose elasticity.

Symptoms of a faulty fan blade grommet include:

• Airflow obstructions within the duct
• Noisy vibrations from the fan assembly
• Rubber debris collecting on components

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore model refrigerators.

Size: 10-16 ab.

8-18 CA HX 1/2 S

Replacement screw that secures panels, trim and internal brackets to keep appliance components stable and rattle-free. Use when originals are missing, stripped, or broken to restore proper fit and safe operation. What it does:

• Secures panels, control housings, trim and small brackets so parts stay aligned and stable.
• Replaces missing or damaged fasteners that cause rattling, vibration, or loose assemblies.
• Keeps electrical and mechanical components properly positioned for reliable operation.
• Intended as a direct replacement where the OEM screw specified for the application is required.

• Disconnect power and unplug the appliance before starting any repair.
• Use the correct screwdriver or bit and seat the screw squarely to avoid stripping the head or threads.
• Do not overtighten—stop when snug to prevent damage to panels or plastic components.
• Keep removed screws organized; replace only with the identical OEM screw for proper fit.
