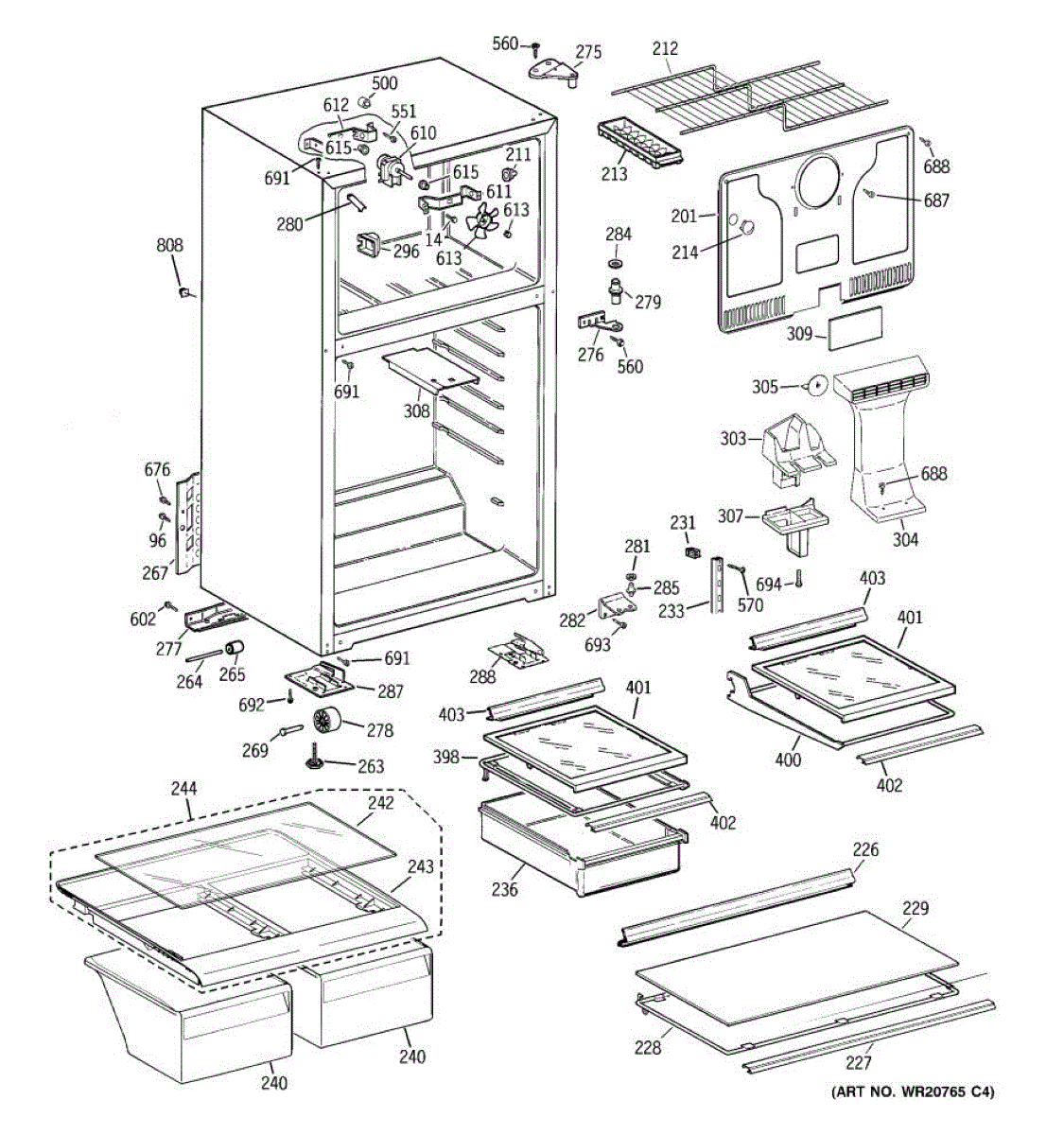

Parts for Ge GTH18HBB2RBB: 02 - Cabinet Parts

This OEM-style support secures internal components to restore proper alignment and stability. Use it to replace a cracked or worn support so shelves, drawers, and mounted parts stay in place and stop shifting or rattling. What it does:

• Stabilizes and supports internal appliance components to maintain proper alignment.
• Replaces cracked, broken, or worn supports that cause sagging, shifting, or rattling.
• Restores mounting points so shelves, drawers or panels sit and operate correctly.

• Disconnect power to the appliance before servicing to avoid shock or injury.
• Basic hand tools are typically required; you may need to remove adjacent trim or shelves for access.
• Inspect surrounding mounting points and clips; replace any additional damaged hardware.

The Freezer Shelf is an OEM replacement part for GE freezers. This shelf provides storage throughout the freezer compartment. It measures approximately. 25" x 12".

Causes of a bad freezer shelf can include cracked or broken steel from overloading, corrosion from moisture exposure over years of use, or damage from impact.

Symptoms of a faulty shelf include:

• Visible cracks, breaks, or fractures in the steel
• Shelves that cannot adequately bear the weight of frozen items
• Missing or detached shelf mounting fasteners
• Sharp edges or projections creating a safety concern

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Refrigerator meat pan drawer for the fresh food section. It replaces a cracked or missing drawer to restore organized storage and smooth, gliding access to meat items. What it does:

• Provides a dedicated storage bin in the fresh food compartment
• Slides into the existing shelf rails for easy access
• Replaces cracked, broken, or warped pans to restore smooth operation
• Common symptoms: drawer cracked, broken tabs, falls off rails, or won't slide smoothly

• 1 meat pan drawer

• Empty the old pan and pull it straight out of the rails
• Align the new pan with the rails and push straight in until fully seated
• If clearance is limited, lift or remove the shelf above before installing

The Lower Crisper Drawer is an OEM part for GE refrigerators. It is designed to provide a dedicated space for fruits and vegetables. This drawer helps in maintaining the right humidity levels to extend the freshness and life of your produce. With its clear design, it allows for easy visibility of its contents, enabling quick access without the need to open the drawer fully.

A malfunctioning or damaged crisper drawer can result from several factors, including overloading the drawer beyond its capacity, which can lead to cracks or breaks, or regular wear and tear over time. Additionally, mishandling during cleaning or storage adjustments can also cause damage.

Symptoms of a bad Lower Crisper Drawer include:

• Difficulty in sliding the drawer in or out
• Cracks or damage that can lead to improper sealing or difficulty in maintaining humidity levels
• Visible warping that affects the drawer's fit within the refrigerator

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This refrigerator glass shelf is the replacement glass panel that creates a flat, stable storage surface. Swap in this panel to restore lost space, improve organization, and help contain spills when the original glass is cracked or missing.

• Provides a stable, level surface for organizing food and containers
• Helps contain spills so liquids don't drip onto lower shelves
• Replaces cracked, chipped, or shattered shelf glass
• Common symptoms: broken or missing glass, unstable shelf, items tipping

• Unplug the refrigerator and wear cut-resistant gloves when handling glass
• Remove food, lift out the damaged glass from the frame or rails, and clean the seating area
• Set the new glass fully into the frame/slots; confirm it is fully seated before reloading items
• Avoid applying heavy pressure to an unseated panel

The Vegetable Pan Cover is an OEM replacement part for GE refrigerators. This transparent cover fits over the vegetable/crisper drawers, helping to maintain the ideal humidity levels and keep produce fresh for longer periods. The pan measures approximately 24 inches wide by 19 inches deep.

Symptoms of a bad vegetable pan cover include:

• Crisper drawers drying out too quickly, causing produce to wilt or spoil prematurely
• Inability to properly control humidity levels within the crisper compartment
• Cracks or damage to the cover, preventing an airtight seal

Causes of needing to replace the vegetable pan cover can range from physical damage due to impact or mishandling, to general wear and tear over time that can cause warping or degradation of the plastic material.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: white. Measures about 26 inches wide by 20 inches deep.

This leveling leg supports and stabilizes the refrigerator cabinet. Adjusting it keeps the unit level so doors align and seal correctly, helping reduce vibration and noise for smoother, more reliable performance.

• Threads into the base to support and level the appliance
• Allows height adjustment for proper door alignment and gasket contact
• Helps reduce rocking, vibration, and rattling noises
• Resolve issues like doors not closing fully, uneven gaps, or a wobbly cabinet

• Disconnect power and move the appliance carefully to access the leg
• Use a helper and protect flooring; tip the unit slightly and support it securely
• Unthread the old leg; hand-thread the new leg, then adjust as needed with a wrench
• Level front-to-back and side-to-side; avoid cross-threading or overtightening

This rear mobility wheel replaces a worn or broken wheel on the back of your refrigerator, restoring smooth rolling movement so you can pull the unit out safely for cleaning, servicing, or leveling without dragging or floor damage.

• Mounts to the rear base/roller bracket to support and roll the refrigerator for positioning or service
• Replace if the wheel is cracked, missing, flat-spotted, or seized
• Common symptoms: unit is hard to move, scrapes the floor, sits unevenly, or makes grinding noises when moved
• Helps maintain proper cabinet support during movement

• Disconnect power and turn off the water supply before servicing
• Protect flooring and use a helper—appliances are heavy and can tip
• Access the rear base area; remove the old wheel and install the new wheel using the existing hardware
• After re-positioning, re-level the refrigerator per the owner's manual

The GE access cover is an OEM replacement part responsible for covering the compressor area on a refrigerator. This panel is located on the rear or bottom of the refrigerator and provides easy access to the compressor and condenser coils and prevents dirt and debris from entering the compressor area. When this part becomes damaged, it can lead to issues such as poor cooling performance, excessive noise from the compressor area, or even compressor overheating.

Symptoms of a bad access cover include:

• Visible cracks, breaks, or deformation in the cover
• Difficulty in securing the cover properly in place
• Increased dust or debris buildup inside the refrigerator
• Exposed internal components

Causes of a bad access cover can include accidental impacts, wear and tear from frequent removal and reinstallation, and environmental factors like temperature fluctuations or moisture exposure.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This top hinge and pin assembly secures the refrigerator door to the cabinet and provides a durable pivot point for smooth opening and closing. Replacing a worn hinge restores proper door alignment and sealing. What it does:

• Supports the top of the door and transfers weight to the cabinet frame
• Provides the pivot pin for consistent, smooth door movement
• Helps maintain proper door alignment and a tight seal to prevent cool-air loss
• Can resolve symptoms such as door sagging, uneven gaps, rubbing, or noisy hinge operation

• Disconnect power and remove food from door area before starting repair
• Support the door to prevent dropping or damage during hinge removal
• Keep track of mounting hardware and orientation for correct reinstallation; follow the appliance manufacturer's service instructions
• Do not force or overtighten fasteners; check door alignment and operation after installation

This outer corner cap replaces a broken or missing plastic trim piece on the appliance door, restoring a finished look and protecting the edge from further damage. Designed as a direct-fit cosmetic/trim component. What it does:

• Covers and protects the appliance door corner from chips, dings, and everyday wear.
• Restores a flush, finished appearance where the original corner trim is cracked or missing.
• Helps prevent moisture and debris from collecting in the corner joint.
• Common symptom: visible cracked, loose, or missing corner trim on the door edge.

• High-level replacement — usually snaps into place or secures with a small screw; remove any old, damaged trim before installing.
• Disconnect power or follow manufacturer safety guidance if working near electrical components.
• Use a non-marring tool to avoid scratching adjacent surfaces when prying out the old cap.
• Warming the new cap slightly can ease installation; do not force parts.

This white corner cap is a small plastic cover that snaps onto a refrigerator door corner to protect the hinge area, conceal fasteners, and restore a finished appearance. Simple replacement for visible damage or missing trim. What it does:

• Covers and protects the door corner and hinge area from dirt and damage
• Hides exposed screws and hardware for a cleaner look
• Prevents sharp edges or gaps that can catch clothing or fingers
• Commonly replaced when cracked, broken, or missing after impact or wear

• Snaps into place
• No wiring; no disassembly beyond removing the damaged cap in most installs
• Disconnect power only if you must remove nearby electrical components; otherwise work with the appliance idle
• Handle plastic parts carefully to avoid cracking; do not force into place

The Hinge Washer is an OEM replacement part for GE refrigerators. It is located on the hinge between the refrigerator door and cabinet. The refrigerator door hinge washer works to evenly distribute weight and reduce stress and friction, enabling smooth and durable door operation.

Causes of a bad hinge washer are generally normal wear and tear. However, damage may also occur from unusually heavy loads being placed on the door, or accidents that impact the door and hinge assembly.

Symptoms of a bad refrigerator door hinge washer include:

• Increased resistance when opening or closing the door
• Excessive noise from the hinge area
• Visible wear marks on the hinge
• Over time and with heavy use, the washer can break down, resulting in improper balance and alignment of the door.

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This bottom door hinge replaces a worn or damaged hinge to restore proper door support and alignment for refrigerators. It provides a solid pivot point for smooth opening and reliable door sealing. What it does:

• Supports the bottom of the refrigerator door and provides a pivot point for opening and closing
• Maintains door alignment to help ensure an even seal and consistent cooling
• Replaces cracked, bent, or excessively worn hinges that cause door sag or rubbing
• Reduces squeaks and binding caused by damaged hinge surfaces

• Unplug the appliance or turn off power to avoid electrical hazard before beginning
• Use proper tools and support the door while removing/installing the hinge to prevent dropping or damage
• Check door alignment after installation and tighten fasteners evenly; adjust strike or top hinge if needed
• If screws or mounting hardware are corroded or damaged, replace them with OEM-equivalent hardware

A factory-style bottom hinge that supports and pivots the refrigerator door for smooth opening and consistent sealing. Restores proper door alignment and helps prevent sagging or uneven gaps. What it does:

• Provides a durable pivot point for the bottom of the refrigerator door
• Restores correct door alignment to improve sealing and cooling efficiency
• Stops door sagging, rubbing, or uneven gaps that can cause airflow issues
• Works with the door to enable smooth opening and closing

• Unplug the appliance or shut off power before starting any repair
• Support the door while removing and installing the hinge to prevent injury or damage
• Use existing fasteners or follow OEM torque recommendations; verify hardware fit during installation

This Door Spacer positions the refrigerator door components with the correct clearance so the door swings smoothly and sits level. Replacing a worn spacer can restore alignment, reduce rubbing or squeaks, and help maintain proper gasket contact.

• Maintains proper spacing and alignment of the door assembly
• Helps the door open and close smoothly, reducing friction and wear
• Can address issues like door rubbing, squeaking, or not sitting level
• Supports consistent gasket contact for a reliable seal

• Unplug the refrigerator before servicing
• Support the door and remove the necessary hardware to access the spacer location
• Note spacer orientation; install the new spacer and reassemble
• Adjust hinges if needed

The Bottom Hinge Pin is an OEM replacement part for GE refrigerators. It facilitates the smooth and secure opening and closing of the refrigerator door. Positioned at the base of the door, this hinge pin ensures that the door is firmly attached, allowing it to swing open or closed with ease.

Causes of a bad Bottom Hinge Pin include wear and tear from regular use, corrosion, or mechanical damage that affects its structural integrity.

Symptoms of a bad Bottom Hinge Pin include:

• The refrigerator door not aligning properly
• Difficulty in opening or closing the door
• Unusual noises during the door’s operation
• Visible wear or damage to the hinge pin

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This right-hand gusset is a small structural bracket that supports and stabilizes a refrigerator door or drawer assembly, restoring proper alignment and smooth operation when the original bracket is cracked or worn. What it does:

• Reinforces the door/drawer frame to prevent sagging or misalignment
• Restores proper hinge alignment for smooth opening and closing
• Helps eliminate rubbing, catching, or uneven gaps around the door/drawer
• Commonly replaced when visible cracks, breaks, or loose mounting points are present

• Installation requires basic hand tools; remove power to appliance and open door/drawer as needed for access
• Retain and reuse existing fasteners unless replacements are specified by the manufacturer
• Inspect adjacent hinges and mounting points for wear; replace if damaged

The Foam Duct is an OEM replacment part for GE refrigerators. It is an insulating conduit located within the fresh food compartment that helps direct chilled air circulation from evaporator coils throughout interior shelves and bins. The foam duct plays an important temperature regulation role by strategically venting cool air where needed.

Causes can involve cracks in rigid duct walls, compressed insulation, or obstructions within the airflow pathway restricting proper circulation

Symptoms of a defective duct include:

• Inconsistent temperatures with warmer/colder spots within the fridge
• Frost or ice buildup on interior surfaces away from coils
• Higher energy bills from the compressor overworking to maintain temps

Compatible with some Hotpoint, RCA, and some Kenmore models.

This freezer air duct channels cold air from the evaporator fan through the freezer compartment, helping maintain consistent airflow and temperature. Replacing a cracked or missing duct restores a proper seal and reliable circulation. What it does:

• Directs and contains airflow from the evaporator fan within the freezer
• Helps maintain even cooling and reduces warm-air leaks
• A damaged duct may contribute to weak airflow, frost/ice around the vent, temperature swings, or vibration/rattling
• Restores proper alignment and fit with adjoining air tower/panel components

• 1 freezer air duct

• Disconnect power before servicing; wear cut-resistant gloves
• Access is typically from inside the freezer; remove shelves/ice bin and interior air tower or cover as needed
• Save and transfer any screws, clips, gaskets, or insulation from the original part
• Ensure panels and seals seat tightly after installation to prevent air leaks

This cantilever glass shelf half provides a stable, easy-to-clean surface that restores storage space and organization inside the refrigerator. Designed to replace a damaged or missing half-glass shelf and keep items secure. What it does:

• Replaces a broken, chipped, or missing refrigerator shelf half to restore usable storage area
• Supports food containers and small items while allowing cold air circulation
• Prevents items from falling into lower compartments when properly seated
• Restores interior appearance with a clean, intact glass surface

• Handle the glass carefully; wear cut-resistant gloves to avoid injury
• Remove food and other shelves before installing to prevent damage
• Seat the shelf into the existing cantilever supports until it locks in place
• Replace or secure supports if damaged or loose before installing the new glass

This is a replacement glass shelf designed to restore a refrigerator's shelving surface so food and containers sit level and stable. Durable glass lets you organize items and clean up spills easily. What it does:

• Replaces a damaged or missing refrigerator shelf to restore usable storage space
• Provides a flat, easy-to-clean surface that helps contain spills
• Supports food containers and small appliances stored on the shelf
• Addresses symptoms such as cracked, chipped, or broken glass and unstable shelving

• Remove food and containers before removing the old shelf
• Wear cut-resistant gloves when handling broken or cracked glass
• Slide shelf out of rails or lift straight up depending on shelf support style
• Inspect support rails and trim for damage before installing the new shelf

The Lid Bumper is an OEM part for GE refrigerators. It is designed to provide cushioning and protection for the refrigerator lid, preventing damage and ensuring smooth, quiet closing.

Causes of a bad Lid Bumper can include deterioration over time due to frequent use, exposure to temperature variations, or damage from accidental impacts. A worn or damaged bumper may no longer provide adequate cushioning, leading to potential damage to the lid or the refrigerator itself.

Symptoms of a bad Lid Bumper include:

• The refrigerator lid closing too hard
• Unusual noises when closing the lid
• Visible wear or cracks on the bumper

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This screw is a genuine General Electric part, sold individually. This screw can be used as a replacement part for a refrigerator. A screw can suffer damage in the lifespan of a refrigerator. It can also be easily lost or misplaced. Screws are small parts and are usually installed in multiples to ensure components are reliably attached, so one screw loosening or going missing might not necessarily affect the operability of the refrigerator. However, if the components loosen or the screw suffers damage that strips the part, such as punctures or erosion to the metal material from general wear and tear or from a direct impact, the screw should be removed and replaced with this genuine OEM replacement part. This is an OEM part sourced directly from the manufacturer, and it is sold individually. This screw is compatible with the following appliance brands: General Electric, Hotpoint, RCA, and Americana.

The Evaporator Fan Motor is an OEM replacement part for GE refrigerators. It is a crucial component responsible for circulating air and maintaining proper airflow within the refrigerator compartments.,This evaporator fan motor is designed to power the fan blades that draw air over the evaporator coils.

Symptoms of a faulty Evaporator Fan Motor include:

• Insufficient cooling or uneven temperature distribution within the refrigerator
• Excessive frost buildup or ice formation in the freezer compartment
• Loud or unusual noises coming from the fan area
• Complete failure of the fan to operate or turn on

Causes of a bad evaporator fan motor can include normal wear and tear over time, bearing failure, electrical malfunctions, or physical damage from foreign objects or debris.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

The Evaporator fan front bracket is an OEM replacement part for GE refrigerators. Located inside the freezer compartment, this bracket securely mounts and supports the evaporator fan assembly.

Causes of a bad front bracket include breakage from repeated fan motion, cracking from temperature fluctuations over many years, or loosening of mounting points.

Symptoms of a bad evaporator fan front bracket include:

• Abnormal rattling or vibrational noises coming from inside the refrigerator
• Reduced airflow circulation leading to ineffective cooling
• Potential shifting or misalignment of other evaporator components

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Evaporator Fan Rear Bracket is an OEM part for GE refrigerators. It supports and secures the evaporator fan at the rear of the refrigerator, ensuring it operates correctly to circulate air throughout the appliance.

Causes of a bad evaporator fan rear bracket can include physical damage due to impact, wear and tear from prolonged use, or corrosion from exposure to moisture.

Symptoms of a bad evaporator fan rear bracket include:

• Unusual noises coming from the rear of the refrigerator
• Reduced cooling efficiency
• The evaporator fan becoming loose or detached
• Vibrations or rattling noises during operation

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is the evaporator fan blade that mounts on the freezer fan motor. It circulates cold air across the evaporator coils and throughout the compartments to maintain even, reliable temperatures. What it does:

• Moves air across the evaporator to cool and circulate airflow between freezer and fresh food sections
• Helps prevent warm spots and temperature swings inside the refrigerator
• Common failure signs include rattling/scraping noises from the freezer area
• Needed if the fan isn't moving air, the blade is cracked/loose, or cooling is weak despite the compressor running

• 1 evaporator fan blade

• Disconnect power before servicing; wear cut-resistant gloves around sharp sheet metal
• Remove shelves/drawers and the rear freezer panel to access the fan
• Pull the old blade straight off the motor shaft; transfer any clip/retainer if present
• Press the new blade fully onto the shaft; it spins freely without contacting the shroud before reassembly

The Fan Motor Grommet is an OEM replacement part for GE refrigerators. This small but essential component serves as a seal and insulator around the area where the fan motor shaft protrudes from the appliance body.

Causes of needing to replace the fan motor grommet can include normal wear and tear over time, exposure to extreme temperatures or moisture, or physical damage due to impact or improper installation.

Symptoms of a faulty or missing grommet include:

• Air leaks or drafts around the fan motor area
• Condensation buildup or frost formation near the motor shaft
• Increased noise or vibration from the fan motor assembly
• Reduced cooling efficiency due to air leakage

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

Size: 10-16 ab.

This Hi-Lo truss-head screw secures plastic and sheet-metal components in your refrigerator. Replacing stripped or missing fasteners restores a tight, rattle-free fit and keeps brackets, trim, and covers properly aligned.

• Fastens brackets, panels, trim, covers, and other components to the cabinet or liner
• Hi-Lo thread design grips plastic or thin metal for a strong, reliable hold
• Helps address loose or vibrating parts, rattling noises, and misaligned covers
• Direct replacement for a missing, worn, or damaged mounting screw

• Disconnect power before servicing any appliance
• Support the part being secured to avoid stress or misalignment
• Start the screw by hand to prevent cross-threading; use the correct driver
• Snug firmly but do not overtighten, especially when threading into plastic

This 8-18 x 3/4 machine screw fastens appliance panels and small brackets to keep components secure and stable. It's a direct-fit replacement screw used where the original hardware has stripped, broken, or gone missing. What it does:

• Secures access panels, mounting brackets, and small assemblies
• Restores proper alignment and reduces rattling or vibration
• Replaces stripped or damaged fasteners
• Keeps wiring and components held in place for safe operation

• Unplug the appliance or disconnect power before starting work
• Use the correct driver and size to avoid stripping the head
• Do not overtighten; snug until secure to prevent damage to parts
• Replace corroded or damaged fasteners for best results

This small hardware clamp is used on select refrigerators to secure tubing or wiring to the cabinet or frame. Replaces a missing or damaged clamp to keep lines stable, reduce vibration, and help prevent rubbing or leaks.

• Secures small water tubing or electrical harnesses along the cabinet/frame
• Helps prevent vibration, rattling, and abrasion of lines
• Maintains correct routing to keep lines clear of moving or hot components
• Common clues: loose or noisy lines, chafing marks, or moisture near tubing connections

• Unplug the appliance and shut off the water supply before servicing
• Note the original location and routing; take a photo for reference
• Reuse the existing mounting screw/fastener if required; tighten only enough to hold without crushing tubing
• Restore power and water, then run and inspect for vibration and leaks
