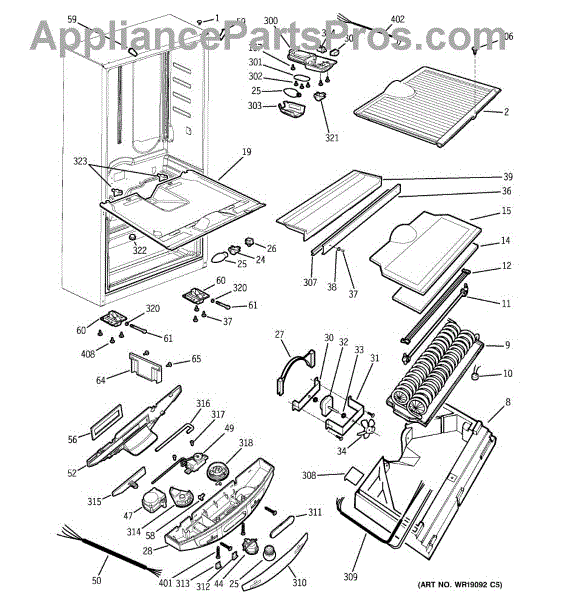

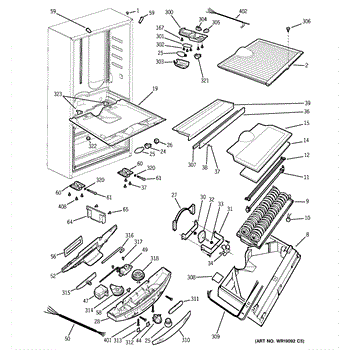

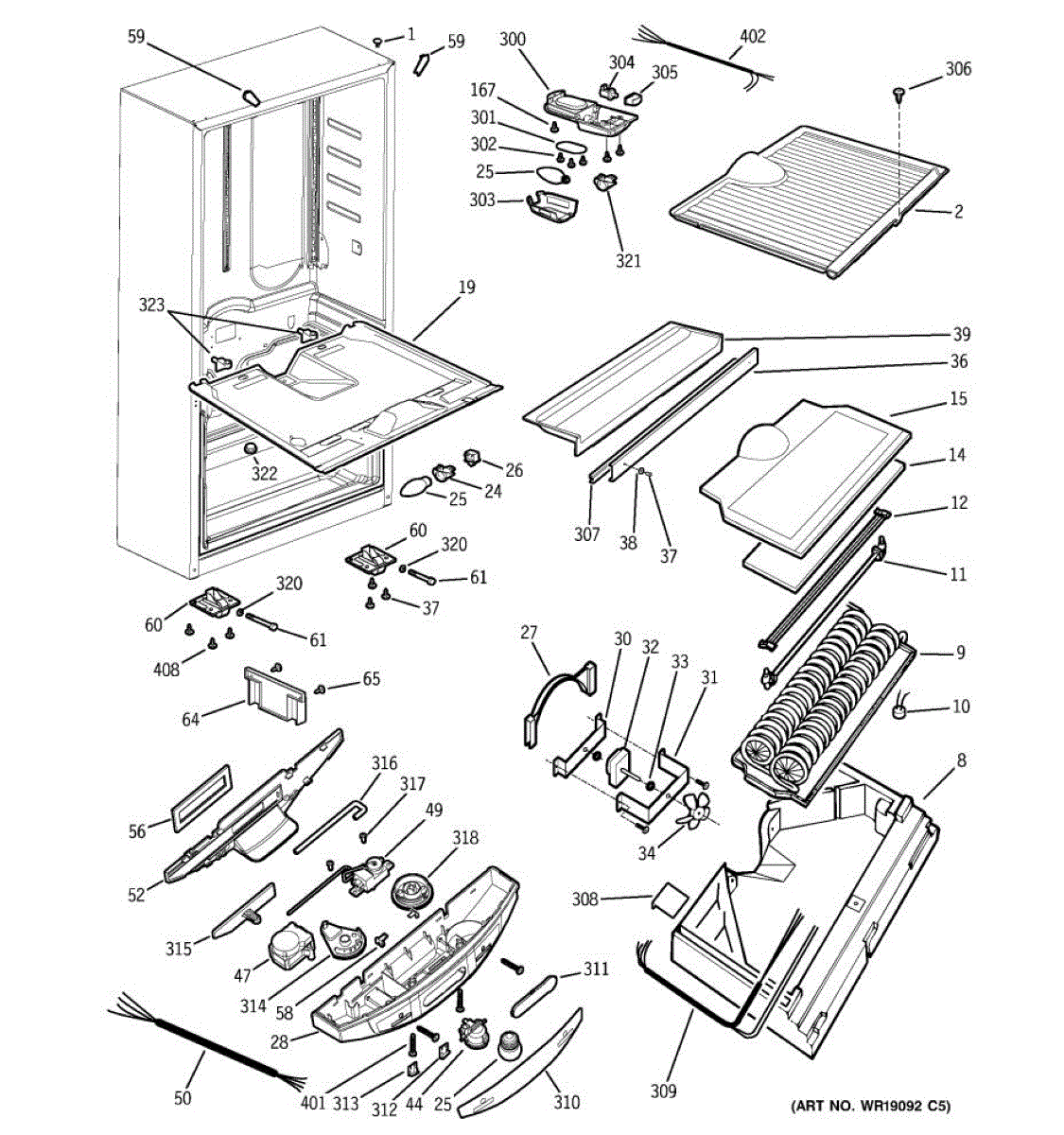

Parts for Ge PDS18SBMALBS: 03 - Cabinet Parts

This defrost thermostat is a clip-on, bi-metal safety control for the freezer evaporator. Replacing a failed thermostat restores proper automatic defrost, helping prevent heavy frost buildup and temperature swings in the fresh food section.

• Monitors evaporator coil temperature and opens the defrost circuit when the coil warms to the cutoff point
• Helps prevent excessive frost that restricts airflow and reduces cooling performance
• Common failure symptoms: persistent frost on the evaporator, poor cooling/warm fridge, unit running longer than normal, or defrost heater staying on too long
• Mounts on the evaporator tubing; closes when cold and opens as the coil warms during defrost

• Disconnect power before servicing; use proper PPE
• Access the evaporator by removing the rear freezer panel
• Note wiring positions; make secure, insulated connections per appliance service guidelines
• Clip the thermostat firmly to the same coil location/orientation for accurate sensing and reassemble panels before restoring power

The Light Socket is an OEM part for GE refrigerators. It is responsible for holding the refrigerator's light bulb and ensuring it receives power to illuminate the interior when the door is opened.

You should replace the light socket if it becomes faulty. Causes of a bad light socket can include wear and tear from regular use, electrical issues such as short circuits or power surges, and corrosion from moisture exposure.

Symptoms of a bad light socket include:

• The refrigerator light not turning on when the door is opened
• Flickering or intermittent light operation
• Visible damage or corrosion on the socket
• The light bulb not fitting securely or falling out

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

This evaporator fan motor kit powers the fan that moves air across the evaporator coils and through your refrigerator. Replacing a worn motor restores proper airflow to help maintain stable temperatures and dependable cooling performance.

• Drives the evaporator circulation fan to distribute chilled air through the compartments
• Helps keep temperatures even and reduces hot or cold spots
• Common failure signs: no fan sound or airflow, intermittent operation, or loud squealing/grinding
• Indicated by frost or ice buildup on the rear panel around the evaporator

• Disconnect power to the refrigerator before servicing
• Access the evaporator compartment; remove the rear cover and carefully clear any ice as needed
• Transfer the existing fan blade and any reusable mounting parts as required by your model; note fan orientation
• Make secure electrical connections, then reassemble and restore power

This fan-mount grommet fits the evaporator or condenser fan assembly to isolate vibration and keep the motor aligned. Replacing a worn grommet can quiet rattles and prevent the fan blade from rubbing the housing. What it does:

• Isolates the fan motor from its bracket to reduce vibration and operating noise
• Helps maintain proper fan motor and blade alignment/clearance
• Replaces cracked, flattened, hardened, or missing grommets
• Typical symptoms: rattling, buzzing, or vibration sounds from the freezer or rear machine compartment

• 1 fan motor grommet

• Disconnect power before servicing; pull the refrigerator forward for rear access if needed
• Evaporator fan: remove the freezer's rear panel; condenser fan: remove the rear service panel
• Support the motor, remove the fan blade and mounting hardware as needed, replace the grommet, and reassemble
• Ensure the fan spins freely and does not contact the shroud before restoring power

The Defrost Timer is an OEM replacement part for GE refrigerators. It regulates the automatic defrost cycle, which helps maintain optimal cooling and preserving food freshness inside the fridge. The defrost timer controls when the refrigerator exits cooling mode to enter a brief defrost period, preventing the buildup of ice on cooling coils. 10hr/35min timer.

Causes of a bad defrost timer can be normal wear and tear over time, exposure to wet environments, or accidental damage.

Symptoms of a bad defrost timer include:

• Inefficient or inconsistent cooling inside the fridge
• Ice accumulation on refrigerator walls or coils
• Condensation or water pooling in compartments or drawers
• Loud buzzing or clicking noises emitting from the back of the fridge

This is a genuine OEM part that works for some models of GE, and Hotpoint models.

This replacement screw secures appliance panels and internal components per your model's hardware list. Replace lost or stripped screws to keep assemblies tight, reduce vibration and rattles, and maintain proper alignment.

• Fastens brackets, covers, and sheet-metal panels as specified in the parts diagram
• Restores proper fit when an original screw is missing, stripped, or damaged
• Helps eliminate rattling or vibration from loose hardware
• Keeps components safely in place during operation

• Disconnect power to the appliance before servicing
• Match length, head style, and thread to the original; install in the same location/quantity
• Start threads by hand to avoid cross-threading; tighten with the correct driver
• Do not overtighten, especially into plastic or thin sheet metal

Includes 12 screws. Size: 8-18 ab.
