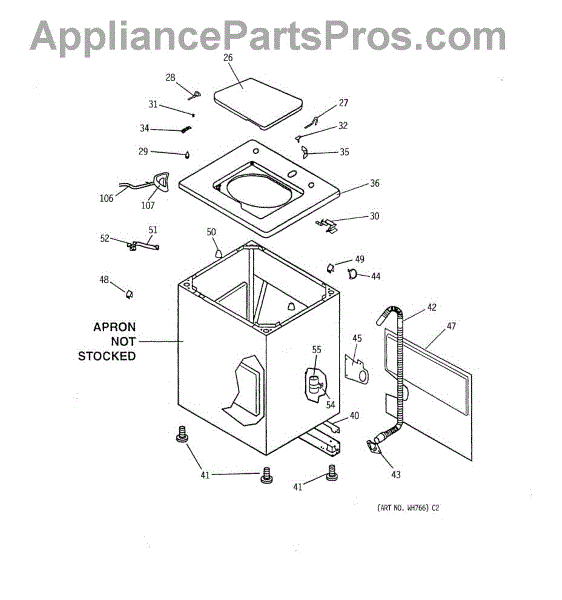

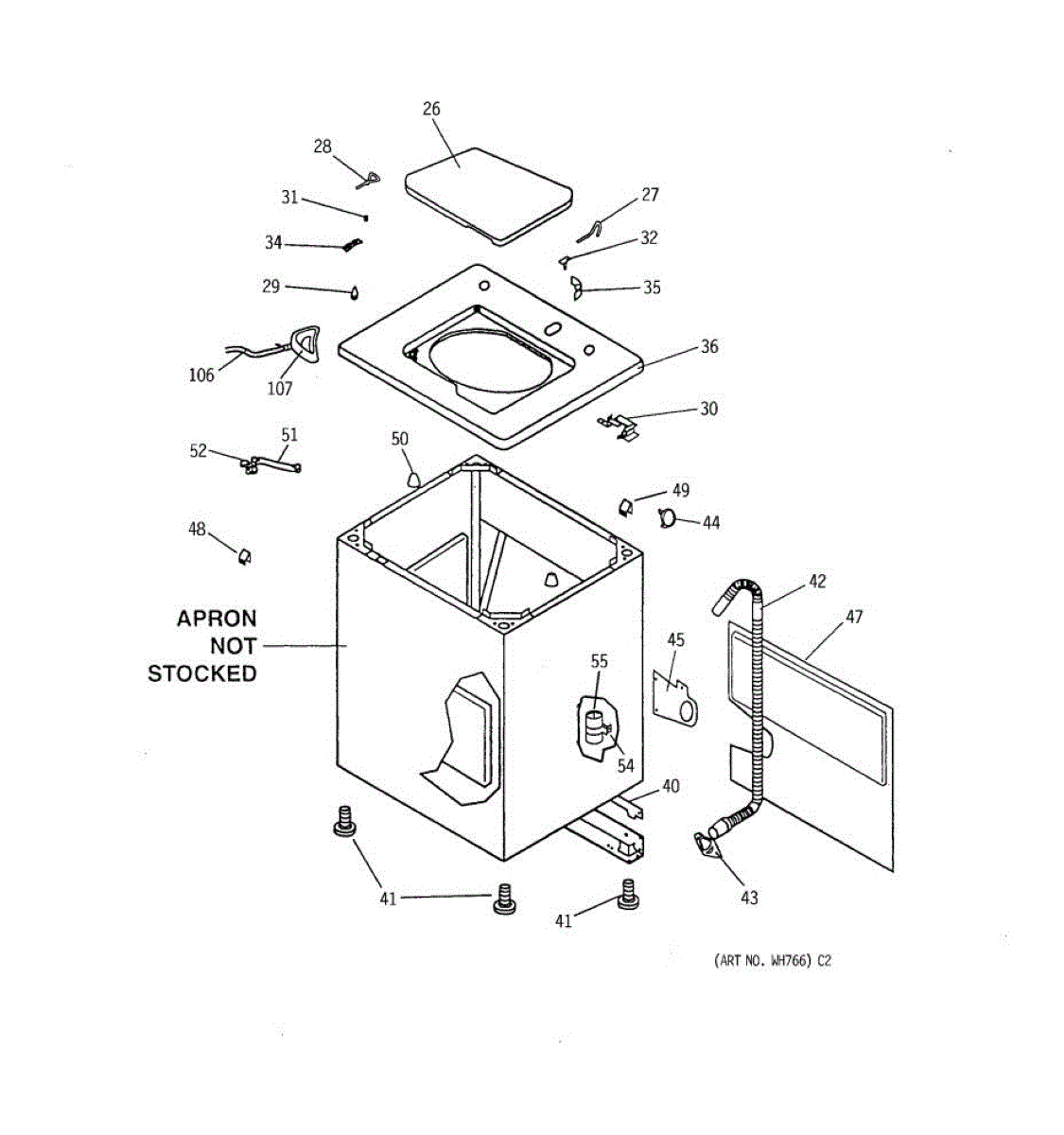

Parts for Ge WWLR3100VWW: 02 - Cabinet Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This short wireform hinge secures and guides a door or panel so it opens and closes smoothly. It restores proper alignment and reduces binding or sag that can prevent a door from seating correctly. What it does:

• Provides pivot support for a door or access panel to maintain correct motion and alignment
• Replaces bent, worn, or broken hinge hardware that causes uneven closing or door sag
• Reduces noise and binding during opening/closing when the original hinge has lost shape
• Works with existing hinge mounts and fasteners when in good condition

• One short wireform hinge

• Designed for straightforward replacement; verify correct hinge orientation before removing the old part
• Use appropriate hand tools and keep fasteners organized for reassembly
• Disconnect power or gas and follow appliance safety instructions when replacing hinges on powered appliances
• Address those issues before installing the new hinge

This lid bumper cushions your washer lid where it meets the top panel, softening closure and protecting the finish. Replacing worn or missing bumpers reduces slamming and rattles for a quieter, smoother close.

• Cushions contact between the lid and top panel to reduce slamming noise
• Protects painted/enamel surfaces from chips and scratches at contact points
• Helps the lid sit level and minimizes vibration or rattling
• Replace if the bumper is missing, cracked, flattened, or hardened

• Disconnect power to the washer before servicing.
• Open the lid and locate the bumper(s) at the front corners (on the lid underside or top panel lip).
• Pull the old bumper straight out; clean the mounting hole.
• Press the new bumper firmly into the hole until fully seated and flush; test lid closure.

This double-style hinge bushing supports the washer lid hinge pin and provides a smooth bearing surface. Replacing a worn bushing restores quiet, even lid movement and helps keep the lid properly aligned over time.

• Supports and centers the lid at the hinge
• Provides a low-friction bearing surface for the hinge pin/rod
• Helps reduce squeaking, looseness, and metal-on-metal wear
• Can help resolve a wobbly, misaligned, or scraping lid

• Disconnect power before servicing; support the lid to prevent dropping
• Remove the hinge pin/rod or screws as your model requires to access the bushing
• Pry out the worn bushing and press the new bushing fully into the hinge opening
• Reassemble and check lid operation; consider replacing the opposite-side bushing if worn

This small bushing fits the washer's lid hinge to provide a smooth, stable pivot. Replacing a worn hinge bushing restores proper lid alignment and helps reduce squeaks, rubbing, or excessive play when opening and closing the lid. What it does:

• Acts as a low-friction sleeve between the hinge pin and bracket
• Supports smooth lid movement and helps maintain alignment
• Reduces metal-on-metal wear and hinge noise
• Symptoms of wear can include squeaking, binding, scraping, or a loose/wobbly lid

• 1 hinge bushing

• Disconnect power before servicing
• Support the lid to prevent it from dropping when the hinge is loosened
• Remove hinge hardware to access and swap the bushing; reassemble and check lid alignment
• Many models use a bushing on each hinge—inspect both sides and replace as needed

This leveling leg threads into the base of your washer to set height and keep the cabinet stable on uneven floors. Replacing worn or missing legs reduces vibration, walking, and noise for smoother, safer operation.

• Provides an adjustable foot to level and support the washer
• Helps reduce vibration, rocking, and "walking" during spin
• Replaces stripped, cracked, or missing leveling feet
• Helps with excessive shaking, rattling noises, or out-of-balance conditions

• Disconnect power and water; pull the washer forward for access.
• Support the appliance to prevent tipping; unscrew the old leg by hand or with pliers.
• Thread the new leg into the base; adjust all feet until level front-to-back and side-to-side.
• Ensure each foot contacts the floor firmly and the cabinet is stable before use.

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

The Drain Hose Clip is an OEM part for GE washing machines. It secures the drain hose to the back of the washer, preventing it from becoming dislodged during operation. This ensures that water is properly directed out of the washer and into the household drain system, preventing leaks and water damage.

Causes of a bad drain hose clip can include wear and tear from regular use, damage from improper handling during installation or maintenance, or breakage due to repeated stress and movement of the washer.

Symptoms of a bad drain hose clip include:

• Water leaking from the back of the washer
• Drain hose detaching or becoming loose during operation
• Difficulty securing the drain hose in place
• Visible damage or cracking on the clip

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Note: For the entire drain hose, use part number WH41X10096.

The anti-siphon clip secures the washer's drain hose to a standpipe or laundry tub, maintaining the proper air gap to prevent siphoning and backflow. It keeps the hose stable so the washer fills and drains as intended.

• Maintains an air break at the drain to help stop unintended siphoning
• Holds the drain hose securely to a standpipe or sink/tub
• Helps prevent "filling and draining at the same time" or low water levels
• Helps keep the hose from vibrating loose or popping out during cycles

• Unplug the appliance and shut off water before starting
• Route the drain hose per the installation manual; avoid kinks or submerging the hose end
• Snap the clip onto the hose and fasten it to the standpipe or tub edge
• Run a quick test to verify no leaks and correct hose position

This tub dampening strap stabilizes the washer's inner tub during agitation and spin to control vibration and sway. Replacing worn straps restores proper suspension control for smoother, quieter operation and helps prevent the tub from impacting the cabinet. What it does:

• Connects the tub to the cabinet to limit excessive movement during spin
• Controls vibration and helps prevent the tub from striking the cabinet
• Replace if a strap is broken, stretched, or missing
• Symptoms can include loud banging, severe shaking, or the washer "walking"

• Two tub dampening straps

• Unplug the washer and turn off water supply before servicing
• Support the tub to relieve tension, then unhook the old straps from the cabinet and tub ring
• Install new straps on the original mounting points; replace in pairs to keep the tub balanced
• Run a test spin and verify smooth, stable operation

The Tub Dampening Strap Retainer is an OEM part for GE washing machines. This part holds the tub dampening straps in place, which help to stabilize the washing machine tub during operation.

Causes of a bad retainer can include regular wear and tear, physical damage from heavy loads or impacts, and degradation over time.

Symptoms of a bad tub dampening strap retainer include:

• Excessive vibration or shaking during wash cycles
• Increased noise levels during operation
• The washing machine moving or becoming unbalanced during use
• Visible damage or wear on the retainer or straps

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.
