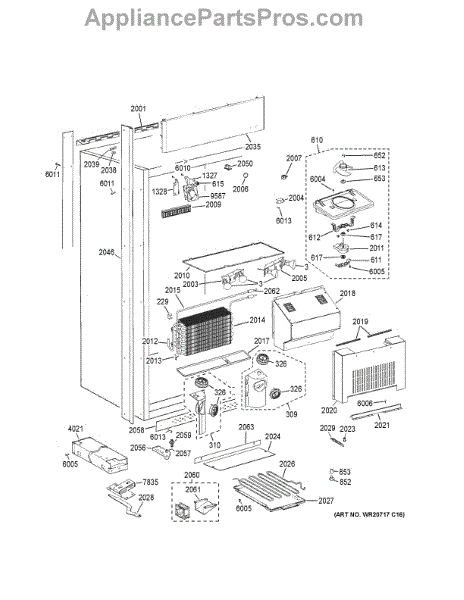

Parts for Ge ZIR360NNBLH: Cabinet Parts

This halogen light bulb restores interior lighting so you can clearly see inside your appliance while cooking and cleaning. It replaces a burned-out or dim halogen lamp to improve visibility and safe operation. What it does:

• Provides bright, focused light for appliance interiors so you can check food and settings.
• Replaces a burned-out or flickering halogen lamp that leaves the oven or cooktop dimly lit.
• Matches the OEM part style for direct replacement when this part number is specified.
• Helps restore normal lighting without modifying the fixture or wiring.

• One halogen light bulb.

• Allow the appliance to cool and disconnect power before replacing the bulb.
• Handle the bulb by the base or wear clean gloves; oils from skin can shorten halogen bulb life.
• Test the light after installation and dispose of the old bulb properly.

This right-side bottom light assembly replaces the damaged or burned-out light housing in the refrigerator fresh-food section, restoring interior illumination and a finished appearance. Fits in the lower right area where the original light assembly mounts. What it does:

• Houses and protects the refrigerator interior light bulb so the fresh-food area stays illuminated
• Restores secure mounting and proper light direction when the original housing is cracked, loose, or missing
• Helps prevent moisture and debris from contacting the bulb or socket
• Resolves symptoms such as dim or no light in the lower/right compartment, rattling or a loose lens

• One right-side bottom light assembly

• Disconnect power to the appliance before servicing to avoid electrical shock
• Remove only the fasteners or clips specified by the appliance design; handle the lens and bulb carefully to avoid damage
• If replacing the bulb, use the correct replacement bulb type and do not overtighten

This left-hand bottom light assembly restores illumination to the lower compartment, making it easier to see food and controls. It replaces a damaged or non-working lower light housing for improved visibility and safe use. What it does:

• Provides interior lighting for the refrigerator's lower/bottom left area
• Replaces a cracked lens, damaged housing, or faulty light assembly that causes no light or flickering
• Secures into the factory left-hand mounting location and connects to the existing wiring harness
• Helps you locate items and read controls in the lower compartment

• Disconnect power to the appliance before starting any repair
• Remove shelves/drawers as needed to access the lower left light housing
• Handle lens and bulb/socket carefully to avoid damage; replace bulb if necessary
• Secure assembly with factory screws and restore power; test operation before reassembling

This QC halogen lamp assembly provides the oven or range interior light so you can check cooking progress without opening the door. It replaces a worn or burnt-out halogen lamp to restore interior illumination. What it does:

• Replaces a failed halogen oven/range interior lamp to restore lighting
• Helps you see food clearly through the oven window for safer, easier monitoring
• Fits into the existing lamp housing and connects to the factory lamp socket
• Common symptom: no interior light or intermittent lighting when the oven light is turned on

• Disconnect power to the appliance before replacing the lamp to avoid electric shock
• Allow the old lamp and interior surfaces to cool completely before handling
• Handle the new bulb by the base; avoid touching the glass with bare hands to prevent oil contamination and premature failure

Secures the evaporator fan assembly behind the rear freezer panel. Replace if cracked, rusted, or missing to restore proper fan mounting and clearance.

Secures the evaporator fan shroud to the rear compartment frame. Replace if rusted, cracked, or broken to properly support the fan assembly and alignment.

Rattling noise or warm temps? A broken evaporator fan blade disrupts air circulation. This repair takes 30-45 minutes with basic tools and our video guide.

The Lid Bumper is an OEM part for GE refrigerators. It is designed to provide cushioning and protection for the refrigerator lid, preventing damage and ensuring smooth, quiet closing.

Causes of a bad Lid Bumper can include deterioration over time due to frequent use, exposure to temperature variations, or damage from accidental impacts. A worn or damaged bumper may no longer provide adequate cushioning, leading to potential damage to the lid or the refrigerator itself.

Symptoms of a bad Lid Bumper include:

• The refrigerator lid closing too hard
• Unusual noises when closing the lid
• Visible wear or cracks on the bumper

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Rubber grommet that mounts and cushions the evaporator or condenser fan motor. Replace if cracked, worn, or missing to prevent vibration and noise.

Rubber grommet that seals and cushions where the evaporator fan motor shaft mounts. Replace if cracked, worn, or missing to eliminate noise and vibration.

Secures and seals water line connections in your refrigerator's dispensing system. Replace if leaking or loose to prevent water damage. Confirm fit.

This evaporator fan motor dust cap is an authentic OEM replacement part found on refrigerator and freezer fan motors. This dust cap prevents the fan motor bearing and housing from being damaged by dirt and debris. If the dust cap is cracked or broken, the fan may make loud squealing noises. If the dust cap is not removed and replaced, the fan could stop working and ultimately cause the refrigerator's temperature to be affected. To start, disconnect the power and water to the refrigerator. Remove food from the freezer so that the back panel of the freezer can be accessed to reach the fan. Remove the ice maker and set it outside the freezer. Disconnect the fan and take it out of the freezer to expose the fan's shaft and the dust cover. Pry the dust cover off and install the new one. Replace the fan and cover. Reconnect the wires and reinstall the icemaker. Put the food back in the freezer. Reconnect the power and water.The evaporator fan motor dust cap is a white plastic part that is sold individually. This dust cover is made for use in refrigerators manufactured by General Electric, Hotpoint, and Kenmore.

Shoulder-style bolt that secures moving parts in refrigerator mechanisms. Replace if worn, damaged, or missing to restore proper alignment and smooth operation.

This top fan bracket secures the refrigerator's top/condenser fan assembly to the cabinet, helping keep the fan aligned for proper airflow and quiet operation. Replaces a worn or broken mounting bracket to restore stable fan mounting. What it does:

• Provides a secure mounting point for the top/condenser fan assembly
• Keeps the fan aligned to prevent rubbing, vibration, and noise
• Helps maintain proper airflow for consistent cooling performance
• Commonly replaced when bracket is cracked, bent, or broken

• Disconnect power to the appliance before beginning work
• Typical installation requires removing the top access cover and fan housing; keep track of all fasteners
• Handle sheet metal edges carefully and wear gloves to avoid cuts
• Reuse original screws if not supplied; verify fan alignment and clearance after installation

Left-hand top light assembly for freezers. Replace when interior lighting fails or flickers. Verify your model compatibility before ordering.

Interior light not turning on or staying on? This master light switch kit restores reliable lighting control in your freezer. Direct-fit assembly.

Replace your freezer's right-side top light assembly when the interior lighting fails or flickers. Restores visibility for easy access to frozen items.

Plastic plug insert that covers shelf support holes in freezer interior walls. Replaces missing, cracked, or damaged plugs for a clean finish.

Freezer not cooling or running constantly? This evaporator fan motor circulates cold air across the coil to maintain proper temperatures and efficiency.

Fix a freezer that won't cool or runs constantly. This evaporator coil absorbs heat to maintain proper temperature. Sealed system repair required.

Fix ice buildup in your freezer with this defrost heater. Solves frozen evaporator coils and drainage issues. Direct fit replacement part.

Replacement edge trim that covers and protects exposed edges on refrigerator doors or cabinets. Needed when original trim is cracked, broken, or missing.

This Evaporator trough (catch) collects defrost water from the evaporator and channels it to the refrigerator drain pan, helping prevent water buildup and freezing around the evaporator assembly. What it does:

• Catches melt water produced during automatic defrost cycles and directs it to the drain path
• Helps prevent water pooling or ice buildup inside the freezer/evaporator area
• Supports proper drainage to the condenser/drip pan to avoid leaks under the appliance
• Fits behind the evaporator cover to maintain correct water flow and containment

• One evaporator trough (catch) as shown

• Disconnect power to the appliance before starting any repair
• Remove evaporator cover/panels carefully to access the trough; avoid bending evaporator fins
• Verify correct orientation and secure with existing screws/clips; ensure drain outlet aligns with the drain tube

Replaces the stud spring on refrigerator and freezer doors. Needed when the original spring is broken, worn, or missing, affecting door alignment.

Fix a refrigerator that won't cool properly with this bottom-mounted condenser. Restores proper heat dissipation for consistent temperature control.

Collects defrost water under your refrigerator. Replace if cracked, leaking, or missing to prevent water damage and moisture buildup on your floor.

The Actuator Arm Ff Door is an OEM part for GE refrigerators responsible for activating the opening and closing mechanism of the refrigerator's fresh food compartment door.

A bad actuator arm can be caused by regular wear and tear over time or damage due to mishandling or impact. If you notice that your refrigerator door is not opening or closing properly, or if it feels loose or unresponsive, it may indicate a problem with the actuator arm.

Symptoms of a bad actuator arm include:

• Difficulty in opening or closing the fresh food compartment door
• Door not staying securely closed
• Door misalignment or sagging
• Unusual noises when operating the door mechanism

Replace your faulty actuator arm with this genuine OEM part to restore your refrigerator.

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


Spring should have GOLD color.

This 3/8-inch washer is used in refrigerators to secure components and prevent loosening. Replace if washer is missing, cracked, or worn out.

A small spring-style cotter clip that secures shafts and pins to keep moving parts in place. Restores a secure fit to linkage, rods, and pivot points so components stay aligned and don't slip free during operation. What it does:

• Holds shafts, pins and rods in position to prevent components from sliding off
• Provides a spring tension lock around a grooved pin or hole for reliable retention
• Commonly used on linkage, pivots and fastener pins where a compact retaining clip is needed
• Helps stop rattling, loose connections or parts that drop out of place

• Disconnect power before servicing any electrical appliance and work with the appliance in a stable position
• Use needle-nose pliers to spread and install the clip over the pin groove; ensure it seats fully
• Inspect mating pin/hole for wear or damage and replace if deformed
• Replace with an identical clip size and style to maintain secure retention

Fix refrigerator lights that won't turn on when you open the door. This light door switch activates interior lighting. DIY repair in under 30 minutes.

Bottom hinge bushing guides the refrigerator door hinge pin for smooth pivoting. Replace if worn, cracked, or missing to restore proper alignment.

A drain fan bracket assembly that secures the drain/fan motor and mounting hardware to the appliance, helping keep the fan stable and aligned for reliable operation. What it does:

• Holds the drain fan or motor in the correct position to maintain airflow and drainage
• Reduces vibration and noise caused by a loose or damaged bracket
• Prevents the fan from rubbing or binding, which can cause motor wear or failure
• Can be replaced when cracked, bent, or otherwise broken to restore proper fan operation

• Disconnect power to the appliance before servicing to avoid electrical shock.
• Remove surrounding panels and fasteners to access the bracket; retain mounting screws for re-use if not replaced.
• Inspect adjacent components (fan blade, motor mounts, wiring) and replace any damaged parts.

Replaces the lower front trim panel that covers the gap beneath your refrigerator. Restores a finished look when the original is cracked or missing.

Left hand base channel provides lower cabinet support for your freezer. Replace if cracked, bent, or damaged to restore proper alignment and stability.

Mounting screw for freezer interior components and panels. Replace if stripped, corroded, or missing to secure shelves, racks, or trim properly.

Size: 8-16 x 2 inch ss.

Size: 10-32 GXTT FLP.595 S

Size: 10-32 GXTT FLP.595 S

Fixes uneven cooling or warm spots in fresh food section. This compartment fan motor circulates air to maintain consistent temperatures throughout refrigerator.
