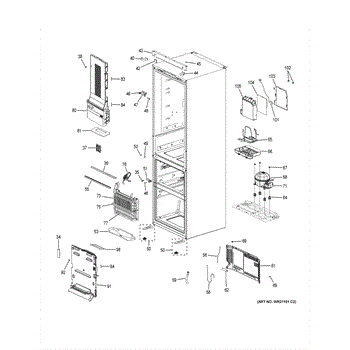

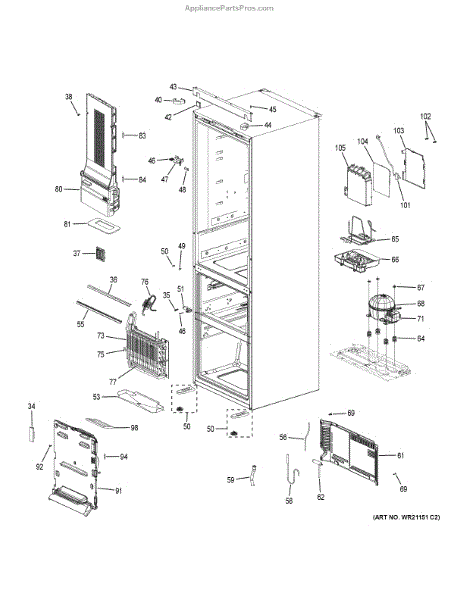

Parts for Ge GLE12HSLARSS: Cabinet Parts

This harness cover is a molded protective shroud that shields and organizes the appliance wiring harness, helping prevent abrasion and accidental contact for safer, more reliable appliance operation. What it does:

• Protects wiring harness from rubbing, pinching, and physical damage
• Keeps wires neatly routed to reduce strain and accidental disconnection
• Helps reduce risk of shorting or arcing from exposed wiring
• Resolve symptoms like intermittent electrical issues or visible wire wear when the original cover is broken or missing

• Disconnect power to the appliance before starting any work.
• Remove access panels as needed to reach the wiring harness; replace the cover so clips or tabs fully engage.
• Do not alter or cut the cover; inspect wiring for damage and repair any frayed wires before reinstalling.

This upper freezer mullion gasket seals the gap between freezer doors and the cabinet to help maintain cold temperatures and reduce frost. It replaces a worn or damaged upper door mullion seal to improve door contact and energy efficiency. What it does:

• Forms a weather-resistant seal along the upper door mullion to limit cold air loss
• Helps reduce frost build-up and cycling caused by a poor door seal
• Improves freezer temperature stability and can reduce run time from air leakage
• Common symptom: visible gaps, torn or flattened gasket, or frost forming between doors

• One upper freezer mullion gasket

• High-level swap: remove the old mullion gasket, clean mounting surface, and press the new gasket into place
• Use gentle heat (manufacturer guidance) only if needed to make the gasket pliable; avoid open flames
• Unplug or disconnect power to the appliance before working on door parts for safety
• If adhesive or clips are present, replace only with manufacturer-recommended materials

This fresh food air return duct cover directs cold air back into the refrigerator compartment and helps maintain proper airflow and temperature distribution. It replaces damaged or missing covers to restore consistent cooling and reduce cold-spot issues. What it does

• Channels return airflow from the fresh food section to the evaporator/fan area for balanced cooling.
• Prevents items from blocking the air intake and helps maintain even temperature distribution.
• Reduces abnormal fan noise caused by loose or broken ducting.
• Commonly replaced when cracked, broken, missing, or warped causing poor cooling or uneven temperatures.

• One fresh food air return duct cover

• Disconnect power before servicing the refrigerator to avoid electrical hazards.
• Usually installs with snap tabs or a few screws; shelf removal may be required for access.
• Handle plastic parts carefully to avoid cracking during installation.

This screw secures the refrigerator air tower/air duct components, keeping the airflow assembly and covers properly fastened for consistent cooling performance. Durable metal construction designed for a direct replacement. What it does:

• Fastens the air tower/air duct to the cabinet or evaporator housing
• Keeps air-guiding components aligned to maintain proper airflow
• Prevents covers or ducts from vibrating or coming loose
• Resolves rattling noises or loose ducting near the evaporator area

• One screw

• Use the correct screw size and thread to avoid stripping the mounting hole
• Tighten until snug; do not overtighten to prevent damage to plastic parts
• Disconnect power to the appliance before working near the evaporator or fan area

This left hinge cover protects and conceals the refrigerator door hinge, keeping dust and debris out while restoring the appliance's finished appearance. Durable plastic matches the original trim and helps prevent exposed hardware. What it does:

• Covers the left door hinge to protect hinge components from dirt and damage
• Hides hinge hardware for a cleaner, finished look
• Helps prevent contact with moving hinge parts
• Common replacement when the cover is cracked, broken, or missing

• One left hinge cover

• Disconnect power to the appliance before starting any repair for safety
• Support or remove the door as required by your model before removing the old hinge cover
• Typically secures with snaps or screws; use basic hand tools and avoid forcing parts
• Inspect hinge hardware while installing and replace any worn components as needed

This molded hinge cover replaces the damaged or missing right-side top hinge trim on compatible refrigerators, restoring a finished appearance and protecting the hinge from dust and debris. Fits the top right hinge area. What it does:

• Covers and protects the top right door hinge from dirt and damage.
• Restores the cabinet's finished look when the original cover is cracked or missing.
• Prevents debris from interfering with hinge movement that can cause noise or uneven door alignment.
• Helps keep the hinge area safer to touch by covering sharp edges.

• One right hand top hinge cover

• Unplug the refrigerator and remove food from the door area before starting.
• Support the door while removing the top hinge to prevent it from dropping.
• Install with basic hand tools; avoid over-tightening fasteners to prevent cracking the cover.
• Wear gloves and eye protection and follow the appliance manufacturer's service instructions.

This is a self-tapping ST3.5 x 9.5 screw used to secure panels, trim and small appliance components. It replaces missing or damaged screws to restore proper fit and prevent rattling or loose parts. What it does:

• Fastens control panels, brackets, trim pieces and light assemblies
• Replaces stripped, corroded or missing screws that allow parts to shift
• Restores secure mounting and helps eliminate vibration noise
• Small size for low-profile applications where a compact fastener is required

• Use the correct sized Phillips or Pozidriv driver to avoid cam-out
• Start screws straight and drive until snug; avoid overtightening to prevent stripping
• Disconnect power and remove any sharp panels before working to stay safe
• Keep a small parts tray to avoid losing tiny screws during repair

This top hinge and pin assembly secures the refrigerator door to the cabinet and provides a smooth pivot for opening and closing. Replacing a worn hinge helps restore proper door alignment and sealing. What it does:

• Holds the top of the refrigerator door in place and provides the pivot point for door movement.
• Restores correct door alignment when hinge wear causes sagging or uneven gaps.
• Helps the door close fully to maintain an effective seal and consistent internal temperature.
• Reduces binding or sticking when the door no longer pivots smoothly.

• One top hinge and pin assembly.

• Unplug the appliance or turn off power to any connected components before starting.
• Support the door while removing/installing the hinge to prevent damage or dropping.
• Installation typically requires removing the door or partially unmounting it — keep screws and hardware organized.
• After installation, check door alignment and gasket seating; adjust as needed for an even gap.

This right middle hinge secures and guides the refrigerator door hinge assembly, restoring proper door alignment and smooth opening. It replaces a bent, worn or damaged middle hinge to help reduce door sag and improve sealing. What it does:

• Provides the pivot point for the refrigerator's right middle door section
• Restores proper door alignment and consistent door movement
• Helps reestablish a tight door seal to reduce cold air loss
• Addresses symptoms such as door sagging, rubbing, noisy hinge movement, or difficulty closing

• Disconnect power to the appliance and empty the door before starting
• Support the door while removing/installing hinges to prevent sudden drops
• Use the correct tools and keep track of screws and spacers; follow OEM alignment recommendations

This freezer mullion lower gasket seals the bottom of the freezer door mullion to help keep cold air inside and reduce frost buildup. It restores a tight door seal for better temperature control and energy efficiency. What it does:

• Replaces a worn or torn lower mullion gasket that lets warm air enter the freezer
• Helps stop frost and ice buildup between the freezer doors and mullion
• Reduces air leakage that can cause the freezer to run more often
• Restores proper door sealing for consistent freezer temperatures

• One lower mullion gasket

• Disconnect power or unplug the appliance before beginning work
• Remove old gasket and clean mounting surface of debris and adhesive residue
• Press new gasket into place, ensuring it seats evenly along the mullion
• After installation, check door closure and trim or reseat gasket where needed for a uniform seal

The R134 Drier is an OEM part for GE refrigerators. This component plays a critical role in the refrigeration system by removing moisture and contaminants from the refrigerant, ensuring efficient cooling and preventing damage to other parts of the system. It helps maintain the purity and effectiveness of the refrigerant as it cycles through the system.

You should replace the R134 drier if it becomes clogged or damaged. Common causes of a bad drier include wear and tear over time, exposure to moisture, or contamination from other failing components in the refrigeration system.

Symptoms of a bad R134 drier include:

• Reduced cooling efficiency
• Frost buildup on the evaporator coils
• Unusual noises from the refrigeration system
• Increased energy consumption
• Refrigerator not maintaining the set temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This rubber compressor grommet cushions and isolates the compressor to reduce vibration and noise while protecting mounting points from wear. It fits between the compressor and the chassis for quieter, more reliable operation. What it does

• Absorbs vibration from the compressor to help reduce humming and rattling noises
• Cushions the compressor to prevent metal-to-metal contact and wear on mounting points
• Helps maintain proper compressor alignment for consistent performance
• Commonly replaced when mounts are cracked, compressed, or missing

• One compressor grommet

• Disconnect power to the appliance before performing any service
• Access may require tilting or raising the appliance and removing the lower access panel
• Replace any additional worn mounts for balanced support; inspect nearby hardware and mounts

This compressor clip secures the refrigerator compressor to its mounting bracket, helping reduce vibration and movement for quieter, more reliable operation. A simple replacement that restores proper compressor seating and alignment. What it does:

• Secures the compressor to its mount to prevent excess movement and vibration
• Helps reduce rattling or buzzing noises caused by a loose compressor
• Keeps compressor aligned to avoid strain on refrigerant lines and wiring
• Supports stable operation after compressor service or during reassembly

• Disconnect power to the appliance before beginning any work
• Support the compressor or mounting bracket while removing and installing the clip
• Use basic hand tools; avoid bending refrigerant lines or tugging wiring

This sealed refrigerator compressor circulates refrigerant to cool the appliance, restoring proper temperature control when the cooling system fails. Replace a worn compressor to stop warm temperatures and intermittent cooling problems. What it does:

• Compresses and circulates refrigerant through the sealed refrigeration circuit to enable heat exchange.
• Restores consistent cooling when the compressor motor has failed or seized.
• Addresses symptoms such as warm interior temperatures, frequent defrosting, or a refrigerator that runs but does not cool.
• Works as the core sealed unit in refrigeration systems—requires system evacuation and recharge after replacement.

• One sealed refrigerator compressor

• Replacement requires certified HVAC/R service: recover refrigerant, evacuate, and recharge to OEM specifications.
• Disconnect power and follow lockout/tagout procedures before servicing.
• Inspect and replace dryer/receiver and filter-drier as recommended; use proper refrigerant oil and charge amounts per manufacturer.
• Verify electrical connections and test for proper compressor operation after system service.

This M4 x 8 mm machine screw secures small panels and components on compatible appliances, restoring proper fit and preventing rattles or loose parts. Compact, corrosion-resistant fastener for routine repairs. What it does

• Fastens trim, control panels, brackets, or small assemblies where an M4 x 8 screw is specified
• Restores secure mounting to stop vibrations, rattling, or misaligned panels
• Replaces missing or stripped screws that prevent proper part installation
• Small size for confined spaces and precision fastening

• One M4 x 8 mm machine screw

• Use the correctly sized Phillips or hex driver to avoid cam-out or head damage
• Turn off and unplug the appliance before accessing internal parts
• Hand-start the screw to avoid cross-threading; do not overtighten to prevent stripping

This Fresh Food Air Tower directs cooled air from the freezer/evaporator into the refrigerator compartment to help maintain even temperatures and proper airflow. It replaces a cracked, broken or missing air duct to restore normal circulation. What it does:

• Channels cold air into the fresh food section so the refrigerator can cool evenly
• Replaces damaged or missing air ductwork that can cause warm spots or uneven cooling
• Helps prevent frost or ice buildup by maintaining proper airflow pathways
• Fits into the cabinet trim and works with existing evaporator and vent components

• Disconnect power to the appliance before any service to avoid shock
• Install from inside the fresh food compartment; some shelves or bins may need removal for access
• Handle plastic parts gently to avoid cracking; align tabs and press into place until seated

This Fresh Food Air Tower Gasket seals the fresh-food compartment air tower to help direct airflow and maintain even temperatures inside the refrigerator. It replaces a worn or damaged seal to reduce air leaks and improve cooling consistency. What it does:

• Creates an air-tight seal around the fresh-food air tower to help control airflow between compartments
• Helps prevent cold air loss that can cause uneven cooling or frost build-up
• Restores proper air circulation after gasket damage, tears, or deformation
• Fits into the air tower/baffle area and works with the refrigerator's existing airflow components

• One fresh food air tower gasket

• Inspect the air tower and surrounding area; remove old gasket and clean mating surfaces before installing new gasket
• Press the gasket into the channel evenly; avoid stretching or twisting the seal during install
• Use basic hand tools; no special calibration required after replacement
• Unplug the appliance or turn off power before servicing to reduce shock risk

The Fresh Food Thermistor is an OEM part for GE refrigerators. It monitors and helps regulate the fresh food compartment temperature through precise measurements. Proper cooling and food preservation rely on an accurate thermistor reading.

Causes of failure can be microfractures in the glass bulb from sudden temperature changes, loose wiring connections preventing digital communication over time, or fluid intrusion corroding circuit pathways.

Symptoms of a defective fresh food thermistor include:

• Inability to maintain a consistent temperature setting
• Strange odors or icing up inside the fridge
• Temperature display showing an inaccurate readout

Replacing with this genuine GE thermistor restores dependable thermal regulation. Compatible with Hotpoint, RCA, and Kenmore brands, it supports consistent fridge performance.


This thermistor is the freezer compartment temperature sensor that monitors cold-air temperature and helps the control board maintain proper cooling. Replace a faulty sensor to restore correct temperature readings and more consistent freezer performance. What it does:

• Detects freezer air temperature and sends a signal to the control board
• Helps regulate compressor and fan cycles for steady cooling
• Commonly linked to symptoms like freezer running too warm, inconsistent temperatures, or incorrect temperature readouts
• Can cause frequent on/off cycling or frost buildup when it fails

• One freezer thermistor sensor (1 pack)

• Disconnect power to the appliance before starting any repair
• Handle the sensor and wiring harness gently to avoid damage to the probe or connector
• The sensor typically mounts inside the freezer near the evaporator; follow OEM service instructions for exact location and routing
• Test the sensor with a multimeter per OEM resistance-to-temperature specifications

This freezer transition gasket replaces the worn or torn seal that closes the gap between freezer sections to help maintain proper temperature and reduce frost buildup. Restores a tighter door seal for more efficient cooling. What it does:

• Replaces a damaged transition gasket to reduce air leaks and help prevent frost accumulation
• Helps maintain consistent freezer temperatures by sealing the joint between freezer sections
• Can improve energy efficiency when the original seal is cracked, split, or misshapen
• Common symptom: visible gaps, drafts, or frost forming along the freezer transition area

• Remove the old gasket and clean the mounting surface before installing the new gasket
• Installation typically requires basic hand tools; follow your model's service instructions
• Do not force the gasket into place; ensure correct orientation and a snug fit around the transition area

This replacement power cord restores electrical connection for compatible GE home appliances, letting the unit receive safe, reliable power. Use it when the original cord is damaged, worn, or no longer providing power. What it does:

• Replaces a damaged or frayed appliance power cord to restore power delivery
• Provides a secure connection between the appliance and the wall outlet
• Helps eliminate intermittent power loss, burning smell from cord damage, or visible wiring damage
• Prevents unsafe operation caused by exposed or broken conductors

• One replacement power cord

• Always unplug the appliance or disconnect power at the breaker before servicing
• Route the cord and secure any strain reliefs or clamps exactly as the original to prevent wear

A Y-head screw replacement fastener for securing appliance components where a Y-shaped drive is required. Restores proper fastening when original screws are stripped, missing, or damaged. What it does:

• Replaces a damaged or missing Y-head screw used to secure panels, brackets, or components.
• Provides correct Y-shaped drive engagement for tamper-resistant or OEM-specific fasteners.
• Helps stop rattling, loose parts, or misaligned panels caused by missing or stripped screws.
• Use when original screw drive prevents standard screwdriver engagement.

• Use the matching Y-head driver bit; do not force with incorrect tools to avoid damage.
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic parts.
• Disconnect power and follow appliance safety instructions before servicing any electrical components.
• Replace all matching screws to maintain even fit and alignment.

This electronic main control board manages the appliance's user interface and system functions, restoring responsive controls and proper system coordination when the original board fails. What it does:

• Serves as the appliance's central logic board, sending and receiving signals to compressors, fans, sensors, and user controls
• Regulates timed cycles and feature commands so functions run in the correct sequence
• Faulty boards can cause non-responsive controls, error codes or display issues, and intermittent or incorrect operation
• Replacing the board often resolves control, display, or communication-related failures

• Disconnect power at the wall before beginning any service to avoid shock or damage
• Observe ESD (static) precautions when handling the circuit board and connectors
• Transfer any mounting hardware or wire harnesses from the old board unless replacements are supplied
