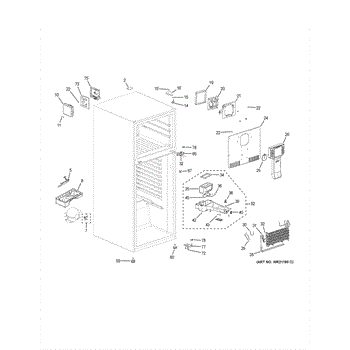

Parts for HA10TG31SB: Cabinet Parts

The Compressor Electricals & Drain Pan is an OEM replacement part for GE refrigerators. This kit consists of the compressor overload, start relay, and drain pan. The overload and start relay work together to provide the necessary electrical current and start-up sequence for the compressor, while the drain pan collects and directs any condensation or water that may accumulate from the defrost cycle.

A bad compressor overload, start relay, or drain pan can occur due to electrical issues, component failure, or damage over time. If you notice symptoms such as the compressor not starting, excessive noise coming from the refrigerator, or water leakage around the unit, it may indicate a need to replace these components.

Symptoms of a bad compressor overload, start relay, or drain pan include:

• Compressor not starting
• Excessive noise from the refrigerator
• Water leakage around the unit

Restore your refrigerator by replacing the faulty compressor overload, start relay, and drain pan with this genuine OEM part.

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


The Compressor Electricals & Drain Pan is an OEM replacement part for GE refrigerators. This kit consists of the compressor overload, start relay, and drain pan. The overload and start relay work together to provide the necessary electrical current and start-up sequence for the compressor, while the drain pan collects and directs any condensation or water that may accumulate from the defrost cycle.

A bad compressor overload, start relay, or drain pan can occur due to electrical issues, component failure, or damage over time. If you notice symptoms such as the compressor not starting, excessive noise coming from the refrigerator, or water leakage around the unit, it may indicate a need to replace these components.

Symptoms of a bad compressor overload, start relay, or drain pan include:

• Compressor not starting
• Excessive noise from the refrigerator
• Water leakage around the unit

Restore your refrigerator by replacing the faulty compressor overload, start relay, and drain pan with this genuine OEM part.

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


This evaporator fan bracket secures the refrigerator's evaporator fan motor and blade assembly to the evaporator housing, keeping the fan properly positioned for reliable airflow and consistent cooling throughout the freezer and fresh-food compartments. What it does:

• Holds the evaporator fan motor and blade in the correct position to maintain steady airflow across the evaporator coil.
• Helps prevent fan wobble or contact with other components that can cause noise or premature wear.
• Supports proper defrost airflow to reduce frost buildup and improve temperature consistency.
• Can resolve symptoms such as a noisy or misaligned evaporator fan, reduced airflow, or uneven cooling when the bracket is damaged or broken.

• One evaporator fan bracket (mount)

• Disconnect power to the appliance before beginning any repair.
• Remove interior panels and the evaporator cover to access the fan assembly; handle the evaporator coil carefully to avoid damage.
• Verify fan motor and blade alignment on the bracket before reassembling; replace any damaged fasteners.

This evaporator fan assembly circulates cold air across the freezer/refrigerator evaporator to help maintain even temperatures and efficient cooling. Replacing a failing fan restores airflow for better cooling performance. What it does:

• Moves air over the evaporator coil so the appliance can remove heat efficiently
• Restores airflow when the original fan has stopped or slowed
• Can reduce warm spots and excessive frost buildup caused by poor circulation
• Stops abnormal noises associated with a worn or damaged fan motor/blades

• Disconnect power to the appliance before beginning any repair
• Handle the fan blades and motor carefully to avoid bending blades or damaging the motor
• Confirm proper orientation and secure mounting before restoring power
• Test operation after installation and reassemble panels and seals completely

This clip harness secures a refrigerator appliance wiring harness to the cabinet to keep wires routed and stable, reducing movement and contact with sharp edges. It helps maintain reliable electrical connections and a tidy interior layout. What it does

• Secures wiring harness to the appliance cabinet to prevent sagging or loose wires
• Helps reduce wire chafing and connector stress that can lead to intermittent connections
• Keeps harnesses routed away from heat sources, moving parts and sharp sheet metal
• Maintains factory routing so connectors stay seated and accessible for service

• Disconnect power before servicing to avoid shock or injury
• Remove access panels as needed to reach original clip location; replace like-for-like
• Route the harness through the clip so wires are snug but not pinched
• If any wiring or connectors are damaged, replace or repair before restoring power

This temperature sensor (thermistor) detects internal fridge/freezer temperatures and relays readings to the control board so the appliance can regulate cooling. It restores accurate temperature feedback for consistent cooling performance. What it does

• Measures cabinet/evaporator temperature and sends a resistance signal to the control board.
• Helps the control system maintain set temperatures by providing real-time readings.
• Common replacement when the appliance runs too cold/too warm, cycles frequently, or shows temperature-related error codes.
• Stops intermittent or incorrect temperature readings caused by a failing sensor.

• Disconnect power to the appliance before accessing the sensor to prevent shock or damage.
• Handle the sensor and wiring gently; avoid sharp bends or pinching the harness.
• Verify proper routing and secure mounting so the sensor contacts the intended location (evaporator or cabinet).

This electronic defrost control board cycles the refrigerator's defrost heater to prevent frost buildup and keep the evaporator clear for proper cooling. Replacing a failed control restores normal defrost timing and helps maintain efficient operation. What it does

• Monitors and controls defrost cycles to melt frost on the evaporator
• Prevents excessive frost buildup that can reduce cooling performance
• Can stop intermittent or continuous compressor runs tied to defrost failure
• Common symptom: frost-covered evaporator or reduced freezer cooling
• Common symptom: refrigerator runs constantly or cycles abnormally

• One electronic defrost control board

• Disconnect power to the appliance before attempting service to avoid shock
• Handle the board by the edges and avoid touching components to prevent static damage
• Verify wiring and mounting orientation match the original before reconnecting power

This is a self-tapping ST3.5 x 9.5 screw used to secure panels, trim and small appliance components. It replaces missing or damaged screws to restore proper fit and prevent rattling or loose parts. What it does:

• Fastens control panels, brackets, trim pieces and light assemblies
• Replaces stripped, corroded or missing screws that allow parts to shift
• Restores secure mounting and helps eliminate vibration noise
• Small size for low-profile applications where a compact fastener is required

• Use the correct sized Phillips or Pozidriv driver to avoid cam-out
• Start screws straight and drive until snug; avoid overtightening to prevent stripping
• Disconnect power and remove any sharp panels before working to stay safe
• Keep a small parts tray to avoid losing tiny screws during repair

This replacement screw fastens appliance components and restores secure mounting where the original screw is missing or damaged. It's a direct-fit hardware fastener that helps maintain proper alignment and safe operation. What it does:

• Secures panels, brackets, or assemblies to prevent rattling and movement
• Restores proper mounting after stripped or lost screws
• Helps maintain door/panel alignment and component stability
• Works as a standard hardware replacement for the specific OEM application

• One replacement screw

• Use the matching screwdriver or driver bit to avoid stripping the head
• Tighten until secure but avoid over-torquing which can damage threads or plastic parts
• Replace like-for-like: match thread size and length to the original screw
• Disconnect power and follow safety guidelines before servicing electrical components

The LIGHT LED is an OEM replacement part for GE refrigerators. It provides illumination for the fresh food and freezer compartments.

Causes of a bad LED light can include bulb burnout from extended use, moisture damage interfering with circuits, or crimped wiring preventing power delivery.

Symptoms of failure include:

• Dark or insufficient lighting inside fridge/freezer sections
• Lights that will not turn on at all or only intermittently
• Overheating or smell indicating electrical faults

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.
