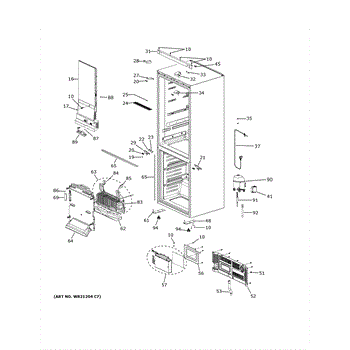

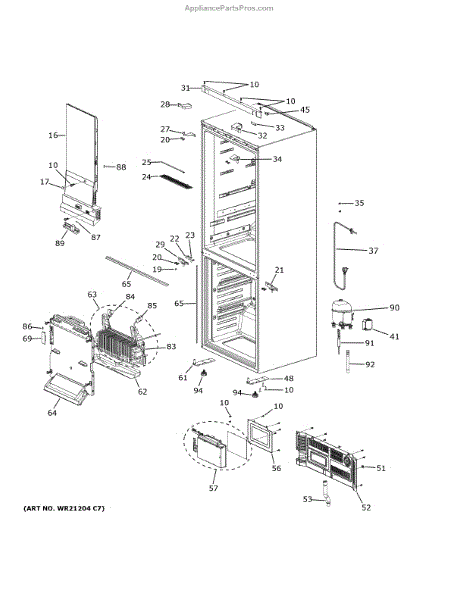

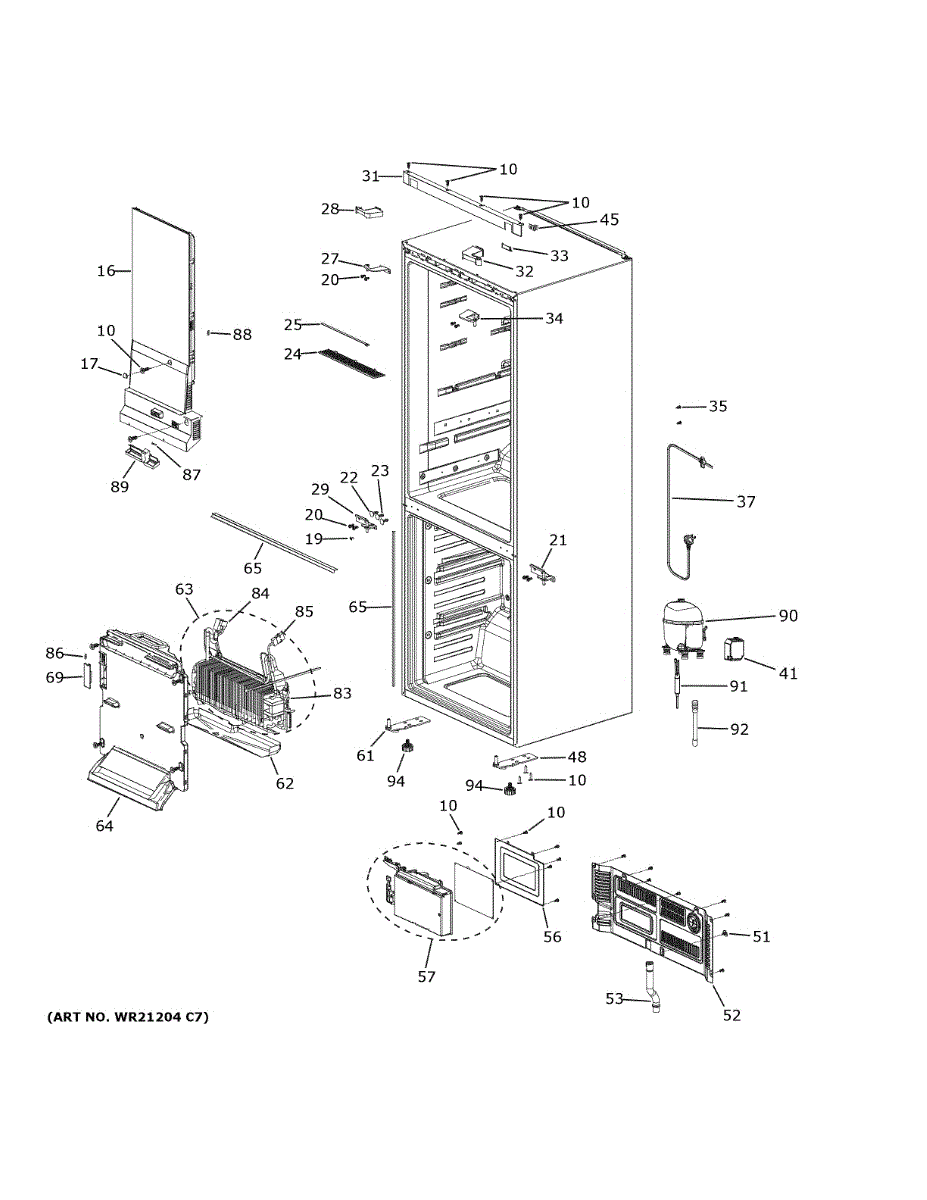

Parts for HRB15N3BBGS: Cabinet Parts

This is a single ST3.9 x 16 appliance screw used to secure panels, trim and small components. It replaces a lost or damaged fastener so parts stay aligned and appliances operate quietly and safely. What it does

• Fastens small sheet-metal and plastic appliance components.
• Holds control panels, trim, brackets or insulation in place.
• Prevents rattling, misalignment or loose panels caused by missing or worn screws.
• Matches OEM thread size and length for correct fit where specified.

• Use the correct driver and match thread engagement to avoid stripping.
• Start threads carefully and do not overtighten; stop when snug.
• Disconnect power before working on electrical components or panels where wiring is present.
• If replacing multiple fasteners, use the same thread type and length for consistent fit.

This LED cover is the replaceable clear lens that protects and diffuses the refrigerator's LED light assembly, restoring proper lighting and a finished look inside the compartment. What it does:

• Protects the LED light from spills, debris, and impact
• Diffuses and directs light for even interior illumination
• Helps maintain a sealed, finished appearance on the liner
• Can be replaced if cracked, cloudy, or missing

• Disconnect power to the appliance before servicing to avoid shock hazard
• Typically snaps or screws into the light housing; use care to avoid breaking plastic tabs
• Inspect mounting tabs and retaining hardware; replace hardware if damaged

The LED Board is an OEM part for GE refrigerators. It contains light-emitting diodes that provide important illumination inside refrigerator and freezer compartments. Proper lighting allows for easily identifying expiration dates and selecting foods stored within.

Symptoms of a faulty LED board include:

• Dim or unlit interior shelves
• Strange buzzing or flickering from LED zones
• Inability to clearly see items shelved inside

Causes can involve failing solder joints from temperature fluctuations, micro-cracks in circuitry pathways inhibiting current, or fluid exposure corroding connections over time.

Replacing with this genuine GE LED board ensures consistently bright visibility. It is suited for Hotpoint, RCA, and Kenmore fridge models seeking prolonged LED functionality.


This right-side top hinge secures and pivots the refrigerator door for smooth opening and reliable alignment. Replaces a worn or damaged hinge to restore proper door fit and help prevent gaps that affect cooling performance. What it does:

• Provides the pivot point that lets the refrigerator door open and close
• Restores correct door alignment to stop sagging or uneven sealing
• Reduces rubbing, catching, or scraping during door movement
• Helps maintain an even door-to-gasket contact to support proper cooling

• One right-side top hinge

• Disconnect power to the appliance and remove food from the door area before starting
• Support the door while removing and installing the hinge to prevent injury or additional damage
• Retain original fasteners unless replacement hardware is supplied; follow torque recommendations from the manufacturer

A Y-head screw replacement fastener for securing appliance components where a Y-shaped drive is required. Restores proper fastening when original screws are stripped, missing, or damaged. What it does:

• Replaces a damaged or missing Y-head screw used to secure panels, brackets, or components.
• Provides correct Y-shaped drive engagement for tamper-resistant or OEM-specific fasteners.
• Helps stop rattling, loose parts, or misaligned panels caused by missing or stripped screws.
• Use when original screw drive prevents standard screwdriver engagement.

• Use the matching Y-head driver bit; do not force with incorrect tools to avoid damage.
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic parts.
• Disconnect power and follow appliance safety instructions before servicing any electrical components.
• Replace all matching screws to maintain even fit and alignment.

This replacement power cord restores electrical connection for compatible GE home appliances, letting the unit receive safe, reliable power. Use it when the original cord is damaged, worn, or no longer providing power. What it does:

• Replaces a damaged or frayed appliance power cord to restore power delivery
• Provides a secure connection between the appliance and the wall outlet
• Helps eliminate intermittent power loss, burning smell from cord damage, or visible wiring damage
• Prevents unsafe operation caused by exposed or broken conductors

• One replacement power cord

• Always unplug the appliance or disconnect power at the breaker before servicing
• Route the cord and secure any strain reliefs or clamps exactly as the original to prevent wear

This inverter is the compressor drive module that controls variable-speed compressor operation to regulate refrigerator cooling. Replacing a failed inverter restores proper compressor control and helps the refrigerator maintain stable temperatures. What it does:

• Converts and regulates power to the compressor motor for variable-speed operation
• Helps the fridge adjust cooling output to maintain consistent temperatures
• Can cause cooling loss or compressor failure symptoms when faulty
• Common symptoms: refrigerator not cooling, compressor not starting or intermittently stopping, or error codes related to inverter/drive

• One inverter

• Disconnect power before servicing to avoid shock or component damage
• Handle the module and connectors carefully—avoid static discharge and contact with circuit traces
• Installation typically requires access to the compressor area/power board and secure mounting of the inverter

A direct-replacement screw used to secure appliance panels and components so parts sit correctly and stay fixed during operation. Restores secure mounting and helps stop rattles, gaps, and loose trim or panels. What it does

• Fastens panels, brackets, or trim so parts remain aligned and stable.
• Prevents vibrating or rattling caused by loose or missing fasteners.
• Restores proper fit where a stripped, damaged, or missing screw caused gaps or movement.
• Keeps internal components properly secured to maintain safe operation.

• One replacement screw

• Disconnect power to the appliance before servicing to reduce shock risk.
• Use the correct screwdriver or bit to avoid stripping the head.
• Thread carefully and do not overtighten — stop when snug to avoid damaging threads or plastic parts.
• If threads are damaged, replace the mating fastener or insert as needed rather than forcing the screw.

This drain tube routes defrost and condensation water away from the refrigerator compartment to the drain pan, helping prevent water pooling and freezer or fresh-food section leaks. It replaces a cracked, pinched, or deteriorated factory drain hose. What it does:

• Channels defrost and condensation water from the evaporator area to the drain pan
• Prevents water from pooling inside the freezer or refrigerator cabinet
• Restores proper drainage when the original tube is cracked, split, or clogged
• Helps reduce odors and ice buildup caused by standing water

• Disconnect power to the appliance before starting any work.
• Remove access panels or shelving as needed to reach the evaporator/drain area.
• Inspect and clear the drain path and drain pan of debris before installing the new tube.
• Reassemble panels and restore power; run a short defrost or pour warm water to confirm proper flow.

This electronic main control board replaces the refrigerator's central circuit board to restore control of compressor, fans and user interface. It helps resolve control failures so the refrigerator can respond correctly to user settings and sensors. What it does:

• Manages compressor, evaporator/condenser fans and sealed-system run commands
• Controls user interface, display and key inputs when installed
• Processes temperature-sensor signals and initiates defrost cycles as needed
• Can address symptoms like unresponsive controls, erratic cooling, or blank/erratic displays

• One main control board

• Disconnect power at the breaker or unplug the appliance before starting
• Handle board by edges and avoid touching circuit traces or connector pins
• Transfer any mounting brackets, shields or jumper harnesses from the old board if required

This harness cover is a molded protective shroud that shields and organizes the appliance wiring harness, helping prevent abrasion and accidental contact for safer, more reliable appliance operation. What it does:

• Protects wiring harness from rubbing, pinching, and physical damage
• Keeps wires neatly routed to reduce strain and accidental disconnection
• Helps reduce risk of shorting or arcing from exposed wiring
• Resolve symptoms like intermittent electrical issues or visible wire wear when the original cover is broken or missing

• Disconnect power to the appliance before starting any work.
• Remove access panels as needed to reach the wiring harness; replace the cover so clips or tabs fully engage.
• Do not alter or cut the cover; inspect wiring for damage and repair any frayed wires before reinstalling.

The Fresh Food Thermistor is an OEM part for GE refrigerators. It monitors and helps regulate the fresh food compartment temperature through precise measurements. Proper cooling and food preservation rely on an accurate thermistor reading.

Causes of failure can be microfractures in the glass bulb from sudden temperature changes, loose wiring connections preventing digital communication over time, or fluid intrusion corroding circuit pathways.

Symptoms of a defective fresh food thermistor include:

• Inability to maintain a consistent temperature setting
• Strange odors or icing up inside the fridge
• Temperature display showing an inaccurate readout

Replacing with this genuine GE thermistor restores dependable thermal regulation. Compatible with Hotpoint, RCA, and Kenmore brands, it supports consistent fridge performance.


The Drier is an OEM component specifically designed for GE combination refrigerator-freezers. Absorbing moisture, its treated silica particles buffer humidity within refrigerant lines. Proper drying sustains energy-efficient performance while preventing corrosion.

Causes of a faulty drier commonly relate to saturation reducing capacity. As desiccant degrades, water passes into closed system compressors requiring change.

Symptoms of a bad drier involve:

• Frost and ice buildup impairing cooling
• Puddling around evaporator evidencing leaks
• Higher operating costs from impaired efficiency

Causes of a bad drier involve typical saturation shortening drying cycles. Cracks release desiccant particles risking blockages necessitating timely replacement.

This OEM GE part is also compatible with some Hotpoint, RCA, and Frigidaire combination units. Replace to retain steady humidity management protecting components and maximizing freshness years of operation.


The R600 Process Valve with Red Cap is an OEM part for GE refrigerators. It regulates the flow of refrigerant within the cooling system, ensuring proper cooling and temperature control.

A bad process valve can occur due to wear and tear, refrigerant leaks, or mechanical failure. If you notice symptoms such as inadequate cooling, excessive frost buildup, or unusual noises coming from the refrigerator, it may indicate a faulty or malfunctioning process valve.

Symptoms of a bad process valve include:

• Inadequate cooling or inconsistent temperature control
• Excessive frost buildup in the freezer
• Unusual noises coming from the refrigerator

Restore your refrigerator by replacing the faulty process valve with this genuine OEM part.

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.
