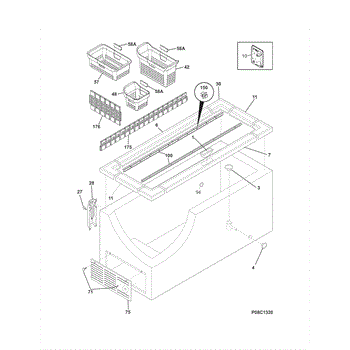

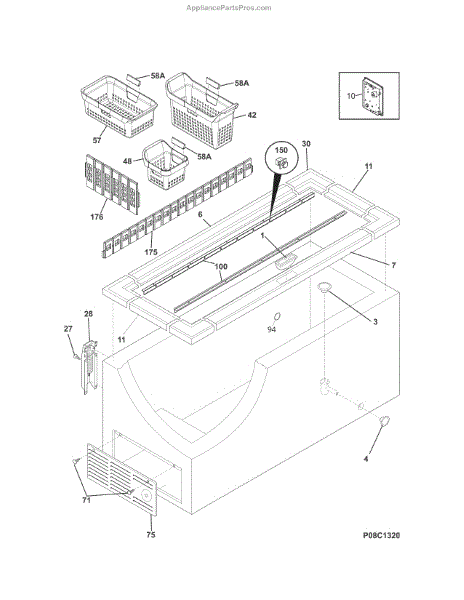

Parts for Kenmore 253.17202411 (25317202411, 253 17202411): Cabinet Parts

This board-switch is the user interface/control board assembly that receives button or selector input and signals the appliance's control system so your unit responds correctly. It restores unresponsive controls and selector feedback. What it does:

• Accepts button or selector input and transmits commands to the main control
• Helps restore touch/press responsiveness when panel inputs stop working
• Can stop erratic or missing control signals that prevent functions from starting
• Commonly linked to symptoms like non-responsive buttons, no display/activity, or inconsistent selection changes

• One board-switch assembly

• Disconnect power to the appliance before starting any repair
• Replace with the exact part number and secure all connectors firmly to avoid loose contacts
• Handle the board by edges and avoid touching components to prevent static damage

This genuine appliance screw secures panels and components to keep your refrigerator parts aligned and stable. A small but essential fastener, it restores proper fit and stops rattling or loose trim for reliable operation. What it does:

• Fastens panels, trim, or internal components to the appliance frame
• Restores secure fit when factory screws are missing or stripped
• Stops vibration- or temperature-related rattling caused by loose hardware
• Helps maintain proper spacing and alignment of serviceable parts

• Turn off and unplug the appliance before servicing electrical or internal areas
• Use the matching screw hole and thread engagement; start by hand to avoid cross-threading
• Tighten until snug—do not overtighten to prevent stripping or cracking surrounding material

This door hinge supports the appliance door and provides a smooth pivot for opening and closing. Replacing a bent or worn hinge restores door alignment and helps the gasket seal correctly to maintain proper performance.

• Supports door weight and provides the pivot point for movement
• Maintains alignment for even gasket contact and reliable closing
• Common symptoms: door sags or rubs, pops open, won't close smoothly, squeaks/grinds, visible bend or wear
• Direct replacement for a damaged hinge to restore proper door operation

• Unplug the appliance and remove items from the door before starting
• Support the door; mark hinge position, then remove mounting screws and swap the hinge
• Save and reuse the original mounting hardware
• After installation, check door alignment and gasket contact; adjust as needed

This full-width upper storage basket sits at the top of the freezer compartment. It hangs on the upper rails to keep smaller items organized and easy to reach, restoring usable space when the original basket is damaged or missing.

• Provides full-width storage at the top of the freezer for frequently used items
• Hangs from the upper rails for quick access and improved organization
• Replace if the original basket is bent, broken, rusted, or the coating is flaking
• Helps prevent small packages from falling to the bottom of the compartment

• Always disconnect power before servicing
• Open the door/lid, lift out the old basket, and set the new basket onto the upper rails
• Ensure both hooks are fully seated on the rails and the door/lid closes without interference
• No tools typically required

This corner trim kit replaces damaged or worn decorative corner pieces on the refrigerator door to restore a clean, finished appearance and help protect the door edge. Simple cosmetic repair for chipped, cracked, or loose corner trim. What it does:

• Replaces cracked, broken, or missing door corner trim to improve appearance
• Covers and protects exposed door edge from everyday wear
• Helps restore proper trim alignment and fit around the door corner
• Works with existing door shell and mounting points for a straightforward swap

• Turn off or unplug the appliance and empty the area near the door before starting
• Remove the old trim carefully to avoid scratching the cabinet or door finish
• Align new trim pieces to factory mounting points; secure using original clips or screws
• If any mounting hardware is missing or damaged, replace with OEM-specified hardware

This printed service data sheet provides the manufacturer's technical and wiring information used during diagnosis and repair. Keep it with the appliance or service records to quickly reference wiring diagrams, service notes, and setup details. What it does:

• Supplies official wiring diagrams, component locations, and service notes
• Helps troubleshoot common symptoms like control errors, intermittent operation, or electrical faults
• Clarifies connections and test points for safer, more accurate diagnosis
• Serves as a reference for proper setup, adjustments, and verifying factory configurations

• Not a replaceable operational component; use as a service reference only
• Store with appliance documentation or service records for future repairs
• Always disconnect power to the appliance before performing any electrical testing or repairs

This adhesive-backed plastic mounting clip secures wires, small hoses, or components inside appliances to reduce movement and rattling. Its low-profile design helps keep internal parts organized for quieter, safer operation. What it does:

• Holds wiring harnesses, sensor leads, or small tubing in place to prevent chafing and noise
• Reduces vibration-related contact that can cause intermittent electrical or sensor issues
• Provides a simple, non-invasive mounting point without drilling or fasteners
• Adhesive backing allows quick placement in tight or hard-to-reach areas

• Clean and dry mounting surface; remove backing and press clip firmly for full adhesion
• Allow adhesive to set per ambient temperature (avoid stress on clip during initial cure)
• Disconnect power before installing
• Replace any brittle or damaged surrounding insulation or wire loom as needed

This replacement screw secures appliance components so brackets, shelves, trim, or panels stay firmly in place. Install a new screw when the original is missing, stripped, or corroded to restore a tight, rattle-free fit.

• Fastens brackets, panels, trim, or covers to the cabinet or liner
• Helps maintain alignment and reduce vibration and noise
• Direct replacement for a missing, rusted, or stripped fastener
• Use wherever your model's parts diagram specifies this screw

• Disconnect power before servicing; shut off water if working near water lines
• Match thread and length to the original location as shown in your model's parts diagram
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening (especially into plastic)
• Retain and transfer any original spacers or clips used with this fastener

The Frigidaire Touch-Up Paint is white in color in a .6 fl oz bottle. For almond order 5303321320. For black order 5303321321.

The Touch Up Paint is an OEM part for Frigidaire appliances. Whether you're dealing with scratches, chips, or other minor cosmetic damage, this touch-up paint provides an easy and effective solution for maintaining the appearance of your appliance. It's designed to adhere well to metal surfaces, offering durability and resistance to further wear and tear.

Over time, appliances can accumulate minor surface damage from regular use, cleaning, and accidental impacts. Using the Touch Up Paint not only improves the aesthetic appeal of your appliance but also helps protect exposed areas from rust and corrosion, which can extend the life of the appliance.

Symptoms of needing Touch Up Paint include:

• Visible scratches or chips on the appliance's surface.
• Areas of rust or corrosion that need to be covered after treating the rust.
• The desire to maintain or improve the appliance's appearance for aesthetic reasons or to maintain its value.
