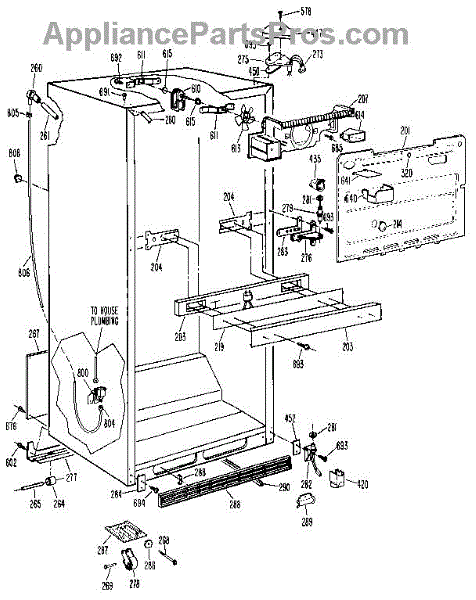

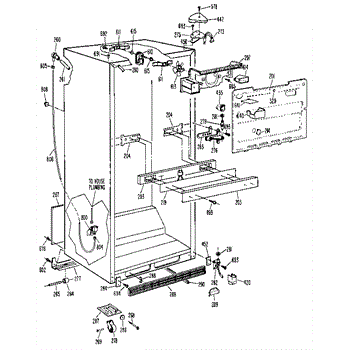

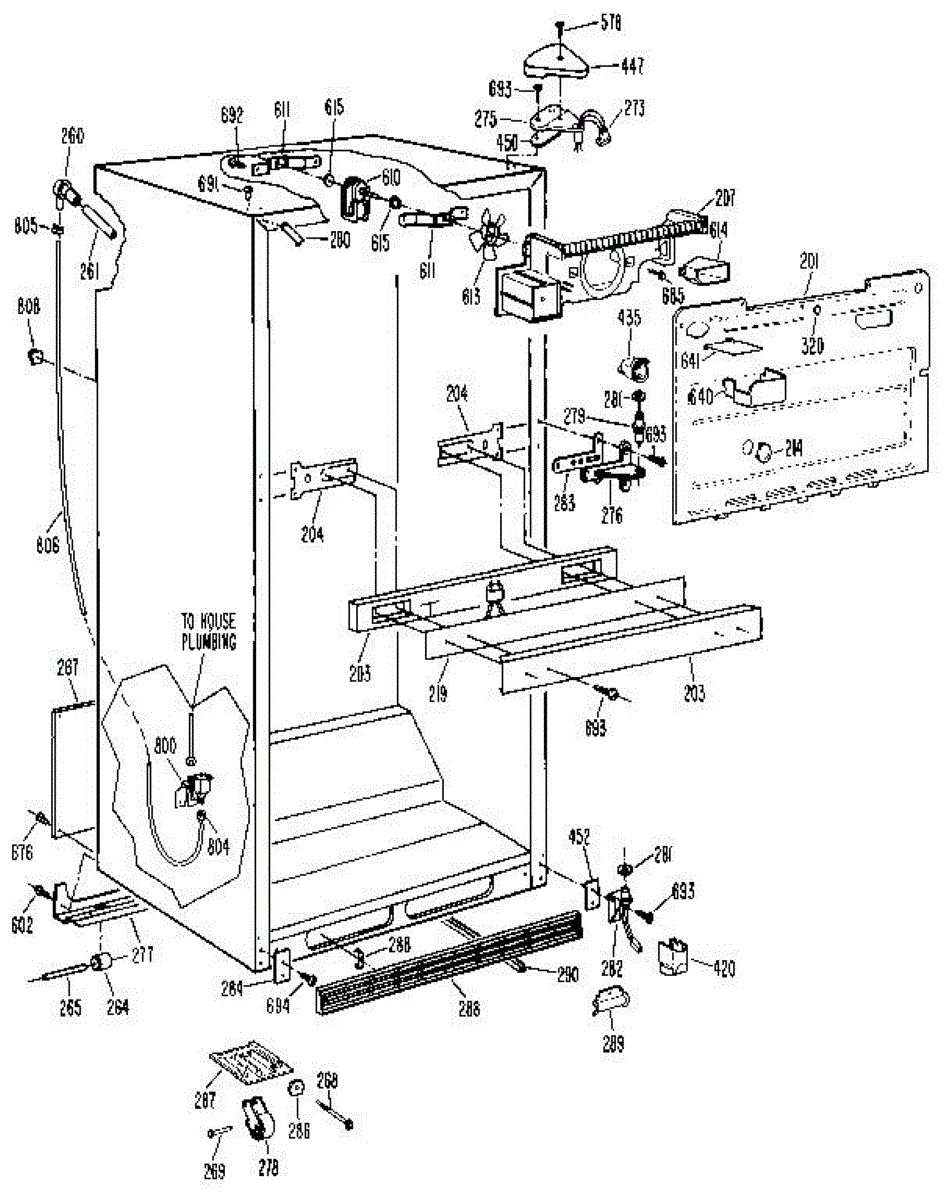

Parts for Kenmore 363.9725983 (3639725983, 363 9725983): Cabinet Parts

This rear wheel roller replaces a worn or damaged drawer/glide wheel to restore smooth movement and reduce sticking or noise. Durable molded construction fits the rear guide position to help support and steady the sliding drawer or bin. What it does

• Supports and guides the appliance drawer or bin for smooth in-and-out motion
• Replaces cracked, chipped, or worn rear wheel that causes binding or catching
• Helps reduce squeaks and uneven movement from a damaged roller
• Restores proper alignment and load support at the rear glide point

• One rear wheel (roller)

• Disconnect power and remove the drawer/bin per your owner's manual before replacing the wheel
• Typically installs by snapping or sliding into the rear glide bracket; basic hand tools may be needed
• Inspect mating tracks or brackets for damage and clean debris before installing the new wheel

The Light Socket is an OEM part for GE refrigerators. It is responsible for holding the refrigerator's light bulb and ensuring it receives power to illuminate the interior when the door is opened.

You should replace the light socket if it becomes faulty. Causes of a bad light socket can include wear and tear from regular use, electrical issues such as short circuits or power surges, and corrosion from moisture exposure.

Symptoms of a bad light socket include:

• The refrigerator light not turning on when the door is opened
• Flickering or intermittent light operation
• Visible damage or corrosion on the socket
• The light bulb not fitting securely or falling out

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This evaporator fan blade mounts on the freezer fan motor and circulates air across the evaporator coils. Replacing a cracked or warped blade restores proper airflow for even cooling and more consistent temperatures throughout the refrigerator.

• Moves chilled air from the evaporator through the ducts to both compartments
• Helps maintain uniform temperatures and overall cooling performance
• Common symptoms of a faulty blade: weak airflow, poor cooling or warm spots, rattling/scraping noises from the freezer, longer run times
• Visual signs include a cracked hub, loose fit on the shaft, or broken/missing vanes

• Disconnect power before servicing
• Remove freezer shelves/ice bin and the rear panel to access the fan assembly
• Pull the old blade straight off the motor shaft; align the hub and press the new blade on until fully seated
• Verify blade orientation and free rotation inside the shroud before reassembly

8-18 CA HX 1/2 S

The Water Inlet Valve is an OEM part for GE refrigerators. It is responsible for controlling the flow of water into the refrigerator’s ice maker and water dispenser. The valve opens and closes to allow the right amount of water to fill the ice maker tray or to dispense water from the refrigerator door.

Over time, the water inlet valve can wear out or become damaged due to mineral deposits, corrosion, or electrical issues. A faulty valve can lead to problems with the water supply, affecting the refrigerator’s ability to produce ice or dispense water properly.

Symptoms of a bad water inlet valve include:

• No water or ice production
• Water dispenser not working
• Leaks or drips around the valve or inside the refrigeratorStrange noises coming from the valve area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Nut for 1/4 inch tubing.

This cable clamp secures refrigerator wiring to the cabinet, keeping harnesses organized and protected. Replacing a missing or damaged clamp helps prevent chafing and vibration noise while maintaining proper clearance from fans and other moving components.

• Anchors wire harnesses in their designed routing
• Helps prevent insulation wear from rubbing or vibration
• Keeps wires clear of sharp edges and moving parts
• Common signs it's needed: missing/broken clamp, loose or dangling wires, or new rattling/buzzing noises

• Disconnect power before servicing
• Access the clamp location and note original wire routing
• Position the clamp and secure with the existing fastener; do not overtighten
• Ensure wires aren't pinched and have clearance from the fan/compressor before restoring power

This refrigerator water line is the plastic tubing that routes pressurized water through the appliance's water system. Replacing a cracked, brittle, or kinked line helps restore proper water flow and prevents leaks inside or around the unit.

• Carries water between the inlet valve and the refrigerator's water system components
• Helps maintain a sealed path for reliable flow to the dispenser and/or ice maker
• Replace if tubing is cracked, kinked, brittle, or leaking
• Common symptoms include puddling, dripping, reduced/No water at the dispenser, or ice maker not filling

• Disconnect power and shut off the water supply before servicing
• Note the original routing and clip locations; avoid sharp bends and kinks during installation
• Fully seat tubing into existing connectors/fittings on your model
• Turn water back on, check all connections for leaks, and purge air by dispensing water

This small hardware clamp is used on select refrigerators to secure tubing or wiring to the cabinet or frame. Replaces a missing or damaged clamp to keep lines stable, reduce vibration, and help prevent rubbing or leaks.

• Secures small water tubing or electrical harnesses along the cabinet/frame
• Helps prevent vibration, rattling, and abrasion of lines
• Maintains correct routing to keep lines clear of moving or hot components
• Common clues: loose or noisy lines, chafing marks, or moisture near tubing connections

• Unplug the appliance and shut off the water supply before servicing
• Note the original location and routing; take a photo for reference
• Reuse the existing mounting screw/fastener if required; tighten only enough to hold without crushing tubing
• Restore power and water, then run and inspect for vibration and leaks
