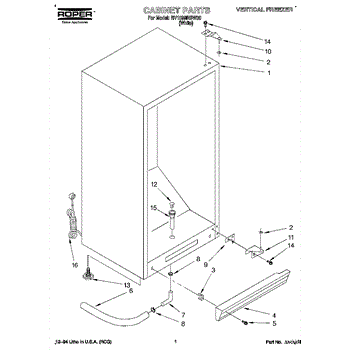

Parts for Roper RV1599RBW00: 01 - Cabinet Parts

This small clip secures a component, panel, or cover so it stays firmly in place during appliance operation. Replacing a bent or missing clip restores a tight fit and helps eliminate unwanted movement or vibration.

• Retains a panel, cover, bracket, or harness at its mounting point
• Helps prevent shifting, rattling, or parts coming loose
• Direct replacement for a broken, bent, or missing clip
• Common symptoms: loose or sagging panel/cover, buzzing or rattling noises, part that will not stay attached

• Disconnect power and, if applicable, shut off gas/water supplies before servicing
• Note the original clip's orientation; take a photo for reference
• Use needle-nose pliers for removal/installation; avoid over-bending the clip
• After installation, ensure the clip is fully seated and clears any moving parts

Size: 8 x 1/2 ab.

An adjustable leveler that supports and raises or lowers the appliance to help stabilize it on uneven floors. Restores proper alignment to reduce rocking, vibration, and door misalignment for improved performance and safety. What it does:

• Provides height adjustment to level the cabinet and prevent rocking
• Helps doors close and seal correctly by correcting leaning or unevenness
• Reduces vibration and movement that can cause noise or wear
• Simple turn-to-adjust design for fine tuning appliance position

• Unplug the appliance (and shut off water supply for units with plumbing) before working nearby
• Support the appliance when adjusting so it does not tip; use a helper or appliance dolly as needed
• Turn the leveler by hand or with a wrench; adjust both front/back or left/right sides evenly and re-check with a level

Replacement stringer bolt that secures the appliance's stringer or support rail to the cabinet frame, restoring panel alignment and preventing movement. Use when the original bolt is missing, loose, or damaged. What it does:

• Secures the stringer/support rail to the appliance frame so panels and assemblies stay aligned.
• Helps prevent cabinet or panel movement that can cause rattling or vibration during operation.
• Restores proper alignment when a loose or missing bolt causes misaligned panels or binding doors.
• Simple, direct replacement for a corroded, stripped, or lost fastener.

• Disconnect power before working on the appliance and remove any panels.
• Use the correct-size socket or wrench; hand-tighten, then snug—do not overtighten to avoid stripping threads.
• Inspect mating threads and replace the bolt if heads or threads are damaged; for the correct fastener location.
