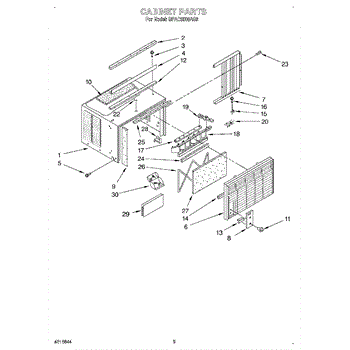

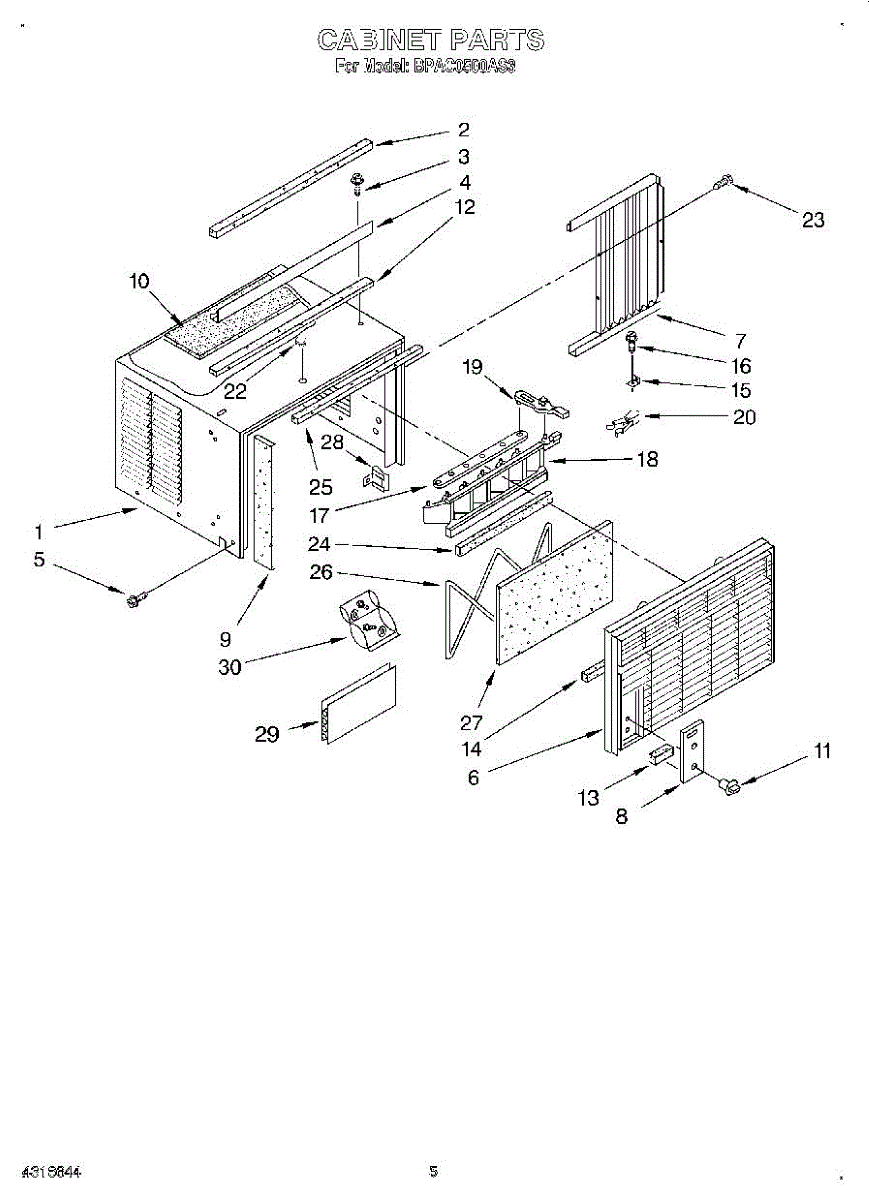

Parts for Whirlpool BPAC0500AS3: 03 - Cabinet Parts

This cover screw secures appliance panels and covers, keeping components protected and aligned. Replace missing, stripped, or corroded screws to restore a tight fit and help eliminate rattles, gaps, or panels that won't stay in place.

• Attaches an access cover or panel to the appliance frame
• Helps maintain proper alignment to protect internal components
• Replaces missing, stripped, or rusted hardware
• Typical signs: loose or rattling panel, cover won't stay secure, damaged or rounded screw head

• Disconnect power before servicing
• Support the panel while removing and installing screws to prevent misalignment
• Start threads by hand to avoid cross-threading; do not overtighten
• Use a matching driver bit to avoid damaging the screw head

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

This is the left side, side curtain. For right side use WP8011308.

This is the right side, side curtain. For left side use 8011311.

Replacement control knob that restores a clear position indicator and reliable grip for range and cooktop controls. Replaces a cracked, worn or missing knob so you can adjust heat and settings with confidence. What it does:

• Replaces damaged or missing control knobs to restore user control and visible setting indication.
• Shows the selected setting with a silver indicator for easy alignment.
• Helps stop slipping or loose control feel that can cause inaccurate settings.
• Commonly used when the original knob is cracked, melted, faded, or the indicator is worn.

• Disconnect power (and gas if applicable) before servicing controls.
• Remove the old knob by pulling straight off the control shaft; align the new knob's indicator with the control shaft and press firmly until seated.
• Do not force a knob onto a shaft if it does not fit—verify shaft type before installing.

This seal strip replaces a worn or damaged door gasket edge to restore a proper seal and help the appliance maintain temperature and operate quietly. It's a direct-fit service part used where a continuous seal is required. What it does:

• Provides a flexible barrier along the door/frame to reduce air leaks and heat/cold loss
• Helps prevent moisture buildup and improves energy efficiency when sealing is restored
• Reduces rattling and vibration caused by a compressed or torn seal edge
• Commonly replaced when the strip is torn, missing, or no longer adheres properly

• One seal strip

• Disconnect power to the appliance before servicing to avoid electrical or burn hazards
• Clean and dry the mounting surface; remove old adhesive or residue for best adhesion
• Align the strip carefully and press firmly; allow any adhesive to cure per manufacturer instructions

Sealer for refrigerant line insulation.
