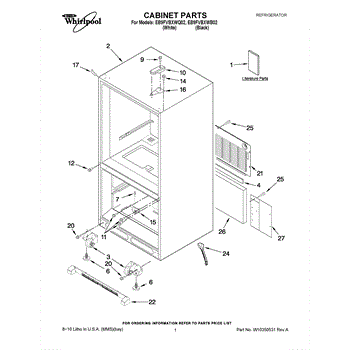

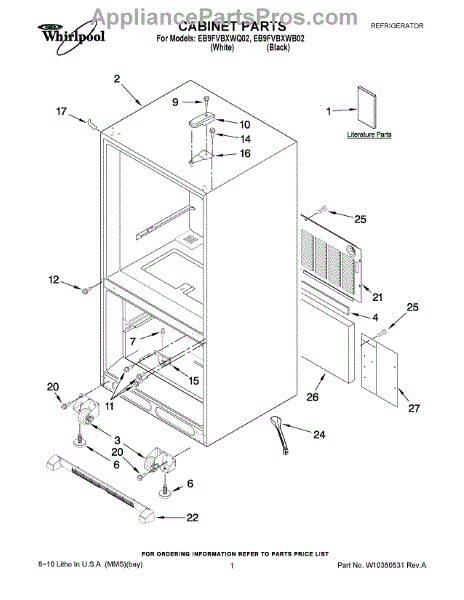

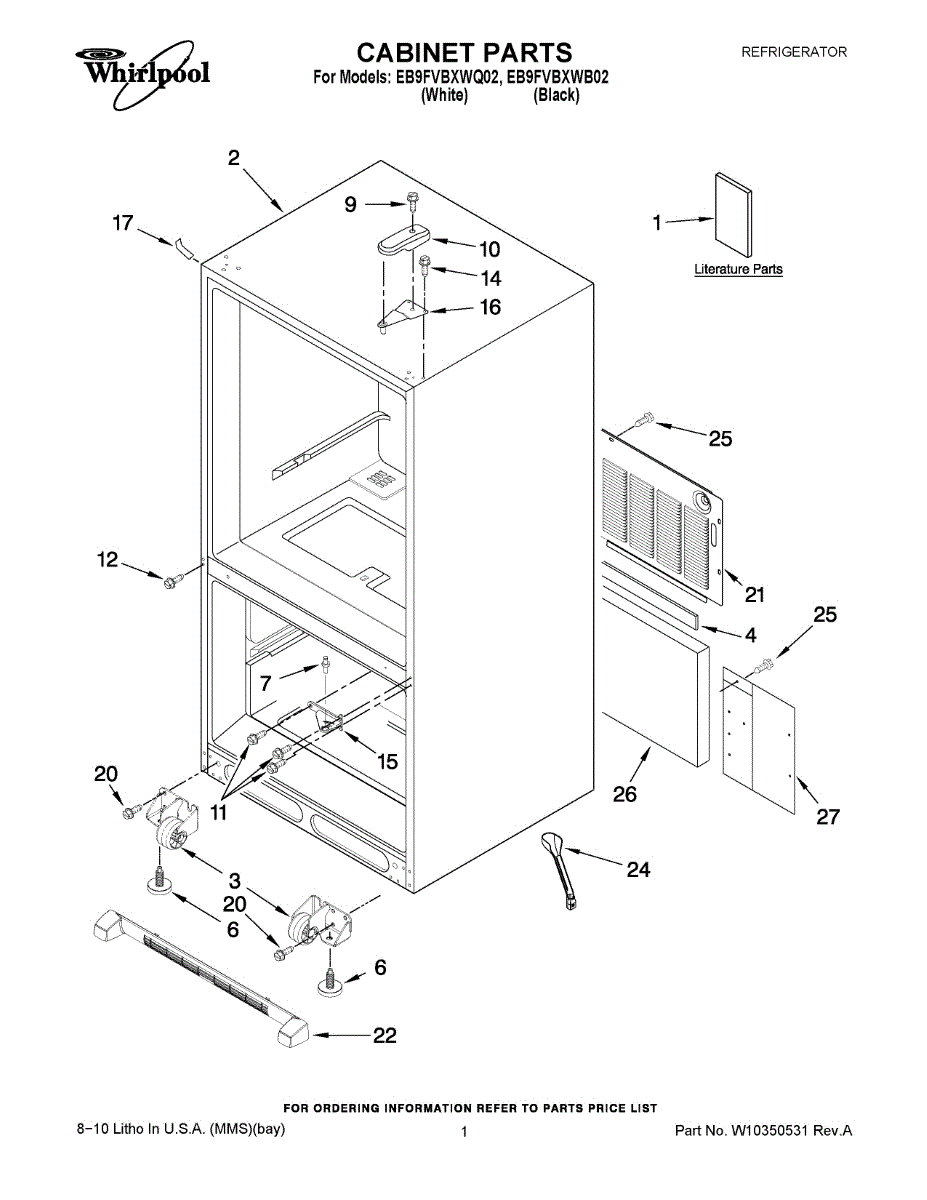

Parts for Whirlpool EB9FVBXWB02: 01 - Cabinet Parts

The Front Left Roller Assembly is an OEM part for Whirlpool refrigerators. This roller assembly supports the refrigerator, allowing it to be easily moved for cleaning or maintenance.

Causes of a bad roller assembly can include wear and tear over time, damage from moving the refrigerator frequently, or exposure to heavy loads that can cause the roller to crack or break.

Symptoms of a bad front left roller assembly include:

• Difficulty moving the refrigerator
• The refrigerator not staying level
•  Unusual noises when attempting to move the appliance
• Visible damage or wear on the roller

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Roller Assembly is an OEM part for Whirlpool refrigerators. It contains heavy-duty ball bearing rollers located along the bottom front-right cabinet. Repeatedly maneuvering fully-loaded refrigerators can cause cabinet rollers to crack or bearing races to deteriorate over extended use.

Potential failure causes include structural cracks from strong impacts or bearing lubrication washing away from repeated wet cleaning.

Symptoms of faulty cabinet rollers include:

• Resistance or grinding noises when tilting the refrigerator
• Visible bearing marks wearing into roller housing
• Potential for cabinet walls or flooring damage without smooth motion

This is a genuine Whirlpool OEM replacement, this part is also compatible with Maytag, Jenn-Air and some KitchenAid models.

The Leveling Leg is an OEM replacement part for Whirlpool refrigerators. It is one of four legs situated internally at the base corners for proper tilt positioning. It raises or lowers each leg independently to stabilize units on uneven kitchen floors.

Causes of replacement consist of wear from continual torque required during positioning processes. Thread damage or corrosion buildup attributable to floor locations over extended use necessitates periodic renewal as well.

Symptoms involve:

• Doors that fail to align or seal completely during open-close cycles
• Noisy imbalances traced to feet contacting floor surfaces
• Appliance rocking is unable to be remedied through existing leg corrections

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air, and some Kenmore models

A replacement center hinge pin that secures the refrigerator door at the center hinge assembly to restore proper pivoting and alignment. Use this pin to correct door sag or uneven closing caused by a worn or bent hinge pin. What it does

• Secures the door to the center hinge so the door can pivot smoothly.
• Restores proper door alignment and helps the door seat evenly against the cabinet.
• Commonly used to address door sag, rubbing, uneven gaps, or difficulty closing.
• Works as a direct replacement for the center hinge pivot in the hinge assembly.

• Always disconnect power to the appliance before servicing to avoid electrical hazards.
• Support the door and follow the appliance manufacturer's hinge removal steps before removing or installing the pin.
• Inspect surrounding hinge components (bushings, brackets) for wear while replacing the pin; replace as needed.

The Screw is an OEM part for Whirlpool refrigerators. This screw secures the refrigerator door hinge in place, allowing the door operates smoothly and seals properly.

Over time, screws can become loose or go missing during repairs or adjustments, which can lead to a misaligned door, compromised sealing, and increased energy consumption.

Symptoms of a bad screw include:

• The refrigerator door seems misaligned or does not close properly.
• Increased effort needed to open or close the door.
• Unusual gaps around the door seal when closed.
• The door might squeak or make other noises during operation.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This top hinge cover protects and conceals the refrigerator's upper hinge assembly for a finished appearance and to keep dirt and debris out of moving parts. It restores a clean look and helps prevent contact with sharp edges. What it does:

• Covers the top door hinge to improve appearance and hide hardware
• Shields the hinge area from dust, crumbs and spills that can affect movement
• Helps prevent accidental contact with the hinge and sharp edges
• Matches the original color and fit for a seamless repair

• One top hinge cover

• Typically snaps or screws into place over the upper hinge; retain original fasteners if present
• Two-person support recommended when removing or reattaching the door to avoid damage or injury
• Disconnect power only if required by your appliance model and inspect the model-specific service instructions
• Inspect hinge and surrounding parts for wear while cover is off; replace damaged components as needed

This top hinge cover protects and conceals the refrigerator/washer hinge area for a clean, finished look while preventing dirt buildup and reducing contact with sharp edges. It restores appearance and keeps the hinge area shielded. What it does:

• Covers the top hinge assembly to protect the hinge and surrounding cabinet
• Helps prevent debris and moisture from contacting hinge components
• Improves appliance appearance by concealing mechanical parts
• Reduces the risk of accidental scrapes on exposed hinge edges

• Disconnect power and empty/secure any nearby doors or panels before beginning.
• Typically snaps or screws into place over the hinge; align carefully to avoid damage.
• Use recommended fasteners and avoid over-tightening to prevent cracking.

This hex washer-head screw secures panels, brackets, and other components inside your appliance. Replacing a worn, stripped, or missing screw restores a tight fit, reduces vibration and rattles, and helps keep assemblies properly aligned.

• Fastens panels, brackets, covers, and internal hardware to the cabinet or frame
• Helps prevent loosening, rattling, or misalignment during appliance operation
• Replace if the head is rounded, threads are stripped, or the screw is missing
• Useful after service when an original fastener is lost or damaged

• Disconnect power and shut off gas/water before starting
• Use the correct nut driver or socket for the hex head to avoid rounding
• Start threads by hand to prevent cross-threading; tighten snugly without overtightening

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

This hex washer-head screw secures panels, brackets, and other components inside your appliance. Replacing a worn, stripped, or missing screw restores a tight fit, reduces vibration and rattles, and helps keep assemblies properly aligned.

• Fastens panels, brackets, covers, and internal hardware to the cabinet or frame
• Helps prevent loosening, rattling, or misalignment during appliance operation
• Replace if the head is rounded, threads are stripped, or the screw is missing
• Useful after service when an original fastener is lost or damaged

• Disconnect power and shut off gas/water before starting
• Use the correct nut driver or socket for the hex head to avoid rounding
• Start threads by hand to prevent cross-threading; tighten snugly without overtightening

This center hinge assembly secures and supports a refrigerator door, helping it pivot smoothly and stay aligned for a tight seal. Replaces a worn or damaged hinge to restore proper door movement and closure. What it does:

• Provides the pivot point that lets the door open and close smoothly
• Restores proper door alignment to prevent gaps that let cool air escape
• Stops door sagging or uneven operation caused by a worn hinge
• Reduces scraping, binding, or unusual noises at the door pivot

• One center hinge assembly

• Disconnect power to the appliance before beginning any repair
• Support or remove the door to avoid injury or damage
• Use the original mounting hardware or OEM-specified fasteners for secure installation
• Check door alignment and gasket seal after installation; adjust as needed

This top hinge assembly mounts at the upper corner of the cabinet to support the refrigerator door and allow smooth pivoting. Replacing a worn hinge restores proper door alignment and helps the gasket seal reliably.

• Supports the door's weight at the top and provides the pivot point
• Helps maintain correct door alignment and closing action
• Aids in consistent gasket contact to minimize warm-air leaks
• Common symptoms of a failing hinge: door sagging or rubbing, uneven gaps, poor sealing, squeaks or popping noises

• Unplug the refrigerator and, if applicable, turn off the water supply
• Have a helper support the door; remove the hinge cover, then the hinge screws
• Note/mark hinge position and transfer any shims or spacers from the original hinge
• Reinstall and adjust for even gaps; verify the door swings freely and the gasket seals all around

This black plastic corner cover replaces a damaged or missing exterior trim piece to restore the appliance's finished appearance and protect internal edges from dirt and wear. Fits the factory location and matches original styling. What it does:

• Covers and protects the appliance corner or trim area from chips, scuffs, and debris.
• Restores a clean, finished look where the original corner piece is cracked, broken, or missing.
• Helps keep moisture and grime from reaching internal seams at the corner.
• Matches the original color and shape to maintain the appliance's aesthetic.

• Install with the appliance powered off and unplugged for safety if cover removal exposes wiring.
• Remove any broken fragments and clean the mounting area before installing the new cover.
• May snap or screw into place depending on model; keep fasteners from the original cover for re-use.

This hex-head sheet metal screw secures refrigerator panels, brackets, and other internal components. Replacing a missing, corroded, or stripped screw helps keep parts tight, reduces vibration noise, and maintains proper alignment of covers and assemblies.

• Fastens sheet-metal panels, ducts, brackets, and trim inside the cabinet
• Helps maintain a secure fit and reduce rattles or buzzing
• Restores alignment when an original fastener is missing or damaged
• Common signs include loose or vibrating panels, a stripped screw head, or a screw that won't tighten

• Unplug the refrigerator and shut off water supply if working near ice/water components
• Use the correct nut driver or socket for the hex head
• Start threads by hand to avoid cross-threading; tighten until snug—do not overtighten
• Replace screws one at a time to help keep parts aligned

This 30-inch toe grille covers the lower front of the refrigerator, completing the built-in look while allowing proper ventilation to the condenser area. Replace a cracked or missing kickplate to protect components and refresh the appliance's appearance. What it does:

• Covers the base/kick area at the front of the refrigerator
• Provides venting to help air flow through the condenser compartment
• Shields internal components from bumps and debris
• Restores a clean, finished exterior when the original is damaged or lost

• 1 toe grille (30 in)

• Disconnect power and wear cut-resistant gloves before starting
• Remove existing mounting screws or release retaining tabs; save hardware for reuse
• Align tabs/clips with cabinet slots and press or fasten the grille until fully seated
• Ensure vents are unobstructed and doors open/close without interference after installation

This replacement toe grille installs at the bottom front of the refrigerator. The 30-inch black kickplate finishes the look and helps protect and ventilate the condenser area. Replace a cracked or missing grille to restore appearance and airflow.

• Covers the lower front opening and directs air through the condenser vents
• Shields base components from bumps and debris during everyday use
• Provides a clean, finished look along the floor line
• Common signs of failure: cracked or warped grille, broken mounting tabs, won't stay attached, or missing piece

• Disconnect power before servicing
• Remove the old grille by releasing retaining clips or removing screws; save any reusable hardware
• Align the new grille and snap into place or reinstall screws—do not overtighten
• Keep ventilation slots clear after installation

The Refrigerator Drain Tube is an OEM replacement part for Whirlpool refrigerators. It is the tube responsible for draining condensation and any other moisture that collects at the back of the refrigerator compartment. The drain tube guides liquid to the evaporation pan located below the refrigerator to be evaporated.

Symptoms of a bad drain tube include:

• Water collecting in the back of the refrigerator
• Musty odors emanating from the refrigerator
• Water leakage from the bottom of the refrigerator

Causes of a bad drain tube can be blockages from food particles or debris, cracks or leaks that prevent proper drainage, or damage due to impact or kinking of the tube over time.

This OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles
