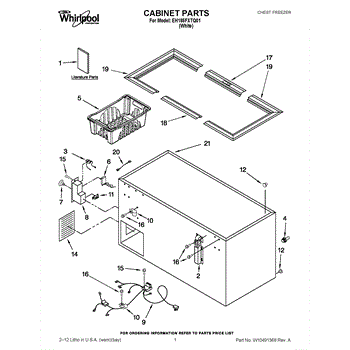

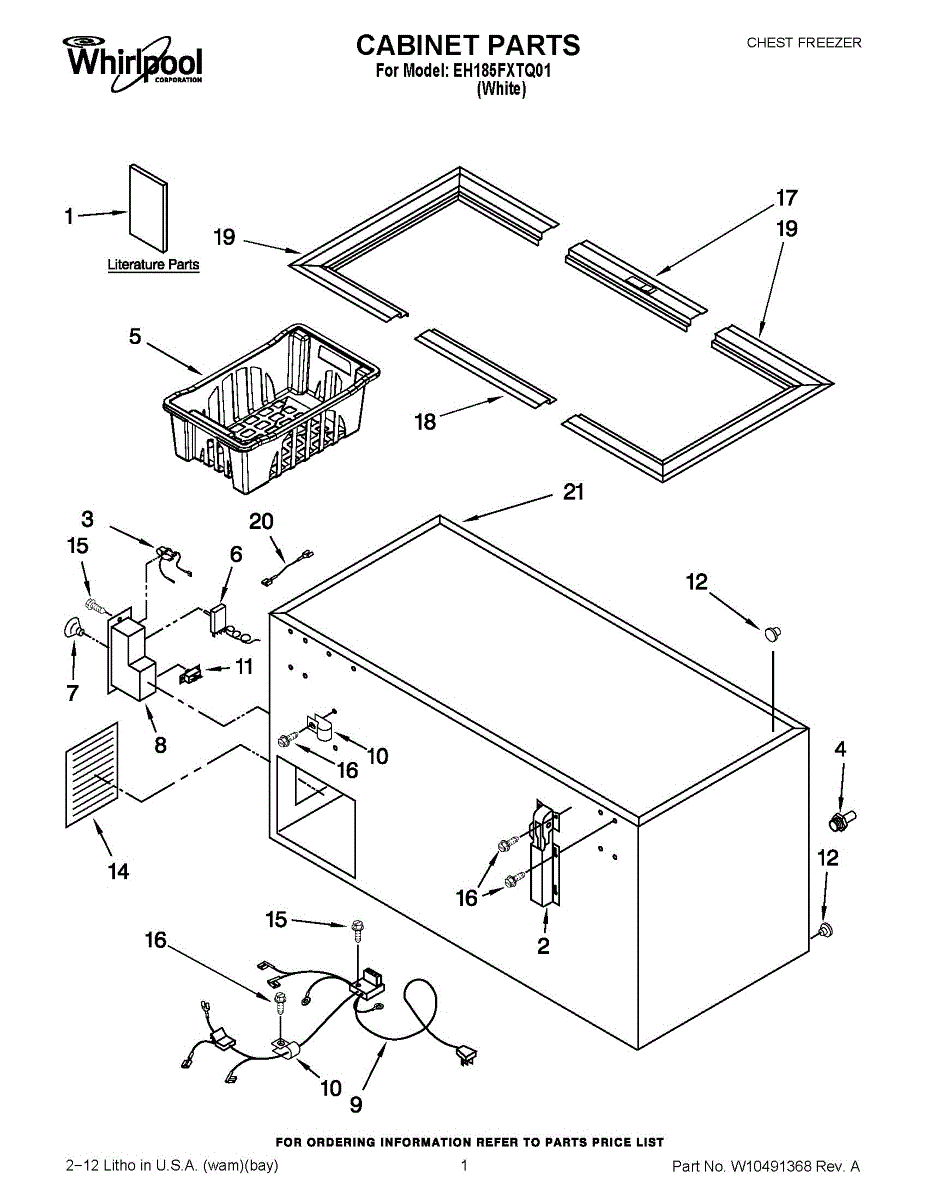

Parts for Whirlpool EH185FXTQ01: 01 - Cabinet Parts

This defrost drain adapter funnels melted defrost water from the evaporator area into the refrigerator's drain channel, helping prevent water pooling and evaporator-area leaks. A simple replacement to restore proper drain flow. What it does:

• Directs defrost meltwater into the cabinet drain to prevent pooling under the evaporator.
• Helps stop water from leaking into the refrigerator or freezer compartment.
• Can reduce odor and residue caused by standing water in the drain area.
• Fits the drain/chest drain opening and mates to the cabinet drain tubing.

• Disconnect power to the appliance before starting any repair.
• Access typically requires removing interior panels or the evaporator cover—keep screws and fasteners organized.
• Clean the drain channel and line of any ice or debris before installing the adapter to ensure proper flow.
• Reconnect power and test by pouring a small amount of warm water into the evaporator area to ensure the drain is routing properly.

This is a replacement machine screw used to secure interior and exterior appliance panels and components. It restores proper fastening to reduce vibration and keep parts aligned for reliable operation. What it does:

• Secures panels, brackets, or small components to the appliance frame
• Stops rattling or movement caused by a missing or stripped screw
• Helps maintain correct alignment of control panels and trim pieces
• Works as a direct replacement when the original screw is lost or damaged

• One screw

• Use the matching screwdriver or bit to avoid stripping the head
• Tighten to firm hand pressure; do not overtighten to prevent thread or part damage
• Disconnect power to the appliance before accessing internal components
• If fasteners or mounting holes are damaged, replace with the appropriate hardware.

This factory fastener secures appliance panels, brackets, and internal components. Replacing a missing, stripped, or corroded screw restores proper fit and stability, helping reduce vibration, rattling, and wear during everyday operation.

• Secures covers, brackets, and assemblies to the cabinet or frame
• Restores alignment to reduce gaps, looseness, and vibration
• Replaces lost, damaged, corroded, or stripped hardware
• Matches the original fastener for correct fit and retention

• Disconnect power and shut off water or gas before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent thread or plastic damage
• Inspect receiving threads or clips; repair/replace if stripped or broken
