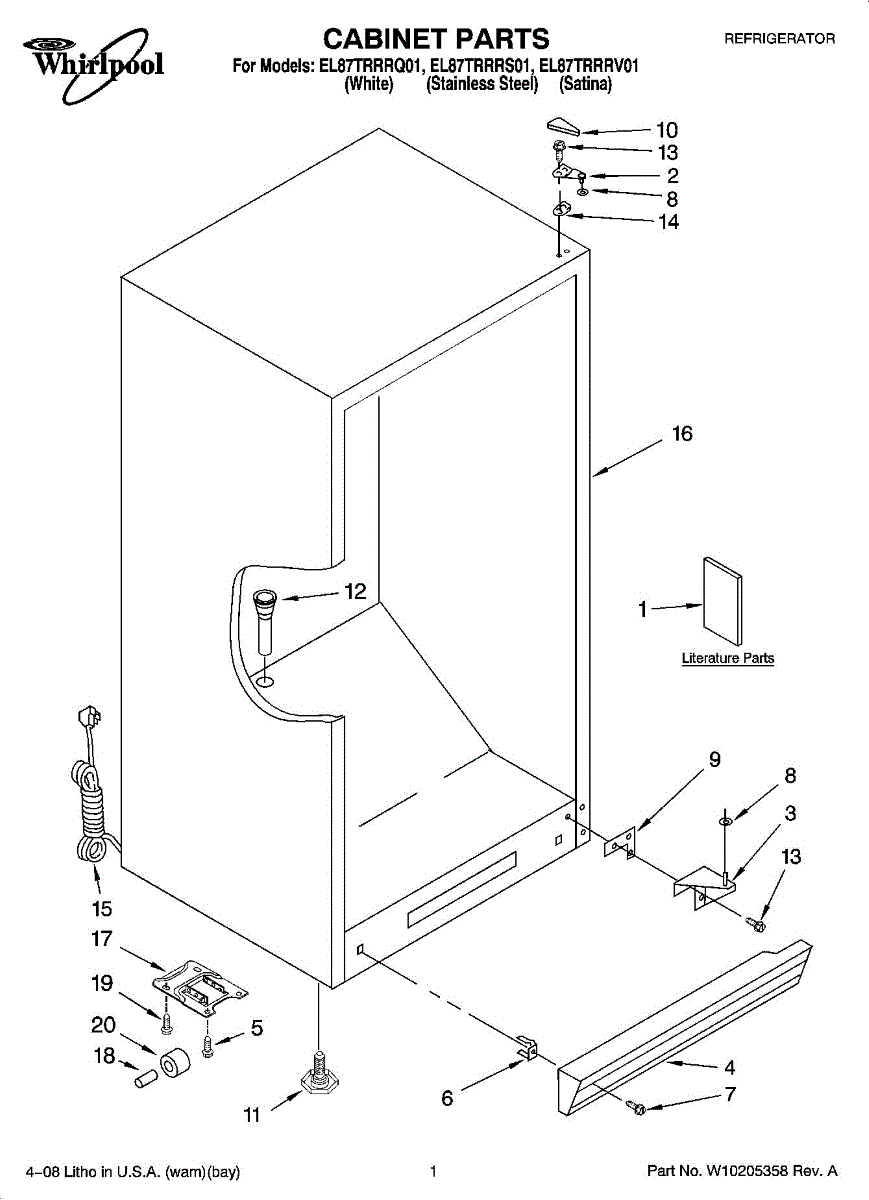

Parts for Whirlpool EL87TRRRV01: 01 - Cabinet Parts

This door hinge is the replacement pivot that supports and guides a refrigerator or freezer door for smooth opening and reliable alignment. It restores proper door movement and helps maintain an even seal. What it does

• Provides the pivot point so the appliance door opens and closes smoothly
• Keeps the door aligned to prevent sagging or rubbing
• Helps maintain a proper door seal to reduce temperature loss
• Commonly used when a door drops, drags, or doesn't close evenly

• One (1) door hinge

• Disconnect power to the appliance before starting any repair
• Support the door while removing/installing the hinge to prevent damage or injury
• Use appropriate hand tools; tighten fasteners securely but avoid over-tightening

This bottom hinge secures and guides the refrigerator/freezer door at the lower pivot, restoring proper door alignment and smooth opening/closing. Durable molded construction matches the original white finish for a clean factory look. What it does:

• Supports the door's lower pivot point to keep the door aligned and balanced
• Allows the door to swing smoothly without binding or dragging
• Helps maintain a proper seal by keeping the door level
• Common replacement when door sags, rubs on the cabinet, or won't close fully

• One bottom hinge (white)

• Unplug the appliance or disconnect power before starting work
• Support the door while removing or installing the hinge to prevent injury or damage
• Typical installation uses basic hand tools; tighten fasteners securely but avoid overtightening
• Check upper hinge adjustment and door leveling

This part is White.

This small clip secures a component, panel, or cover so it stays firmly in place during appliance operation. Replacing a bent or missing clip restores a tight fit and helps eliminate unwanted movement or vibration.

• Retains a panel, cover, bracket, or harness at its mounting point
• Helps prevent shifting, rattling, or parts coming loose
• Direct replacement for a broken, bent, or missing clip
• Common symptoms: loose or sagging panel/cover, buzzing or rattling noises, part that will not stay attached

• Disconnect power and, if applicable, shut off gas/water supplies before servicing
• Note the original clip's orientation; take a photo for reference
• Use needle-nose pliers for removal/installation; avoid over-bending the clip
• After installation, ensure the clip is fully seated and clears any moving parts

Size: 8 x 1/2 ab.

A thin replacement hinge shim that helps align and level the appliance door for a proper seal and smooth operation. Restores correct door spacing to reduce rubbing, uneven gaps, or misalignment. What it does:

• Centers and spaces the door at the hinge to correct misalignment and uneven gaps
• Helps doors close evenly and maintain a consistent seal
• Prevents rubbing or catching caused by out-of-position hinges
• Works with the hinge assembly to restore smooth opening and closing

• Disconnect power to the appliance before starting any repairs
• Remove the door or open/secure it to access hinge area
• Slide or position shim between hinge surfaces as shown in OEM instructions; do not force or bend excessively
• Tighten fasteners to secure alignment, then verify door operation and seal

An adjustable leveler that supports and raises or lowers the appliance to help stabilize it on uneven floors. Restores proper alignment to reduce rocking, vibration, and door misalignment for improved performance and safety. What it does:

• Provides height adjustment to level the cabinet and prevent rocking
• Helps doors close and seal correctly by correcting leaning or unevenness
• Reduces vibration and movement that can cause noise or wear
• Simple turn-to-adjust design for fine tuning appliance position

• Unplug the appliance (and shut off water supply for units with plumbing) before working nearby
• Support the appliance when adjusting so it does not tip; use a helper or appliance dolly as needed
• Turn the leveler by hand or with a wrench; adjust both front/back or left/right sides evenly and re-check with a level

Replacement stringer bolt that secures the appliance's stringer or support rail to the cabinet frame, restoring panel alignment and preventing movement. Use when the original bolt is missing, loose, or damaged. What it does:

• Secures the stringer/support rail to the appliance frame so panels and assemblies stay aligned.
• Helps prevent cabinet or panel movement that can cause rattling or vibration during operation.
• Restores proper alignment when a loose or missing bolt causes misaligned panels or binding doors.
• Simple, direct replacement for a corroded, stripped, or lost fastener.

• Disconnect power before working on the appliance and remove any panels.
• Use the correct-size socket or wrench; hand-tighten, then snug—do not overtighten to avoid stripping threads.
• Inspect mating threads and replace the bolt if heads or threads are damaged; for the correct fastener location.

A thin replacement hinge shim that helps align and level the appliance door for a proper seal and smooth operation. Restores correct door spacing to reduce rubbing, uneven gaps, or misalignment. What it does:

• Centers and spaces the door at the hinge to correct misalignment and uneven gaps
• Helps doors close evenly and maintain a consistent seal
• Prevents rubbing or catching caused by out-of-position hinges
• Works with the hinge assembly to restore smooth opening and closing

• Disconnect power to the appliance before starting any repairs
• Remove the door or open/secure it to access hinge area
• Slide or position shim between hinge surfaces as shown in OEM instructions; do not force or bend excessively
• Tighten fasteners to secure alignment, then verify door operation and seal
