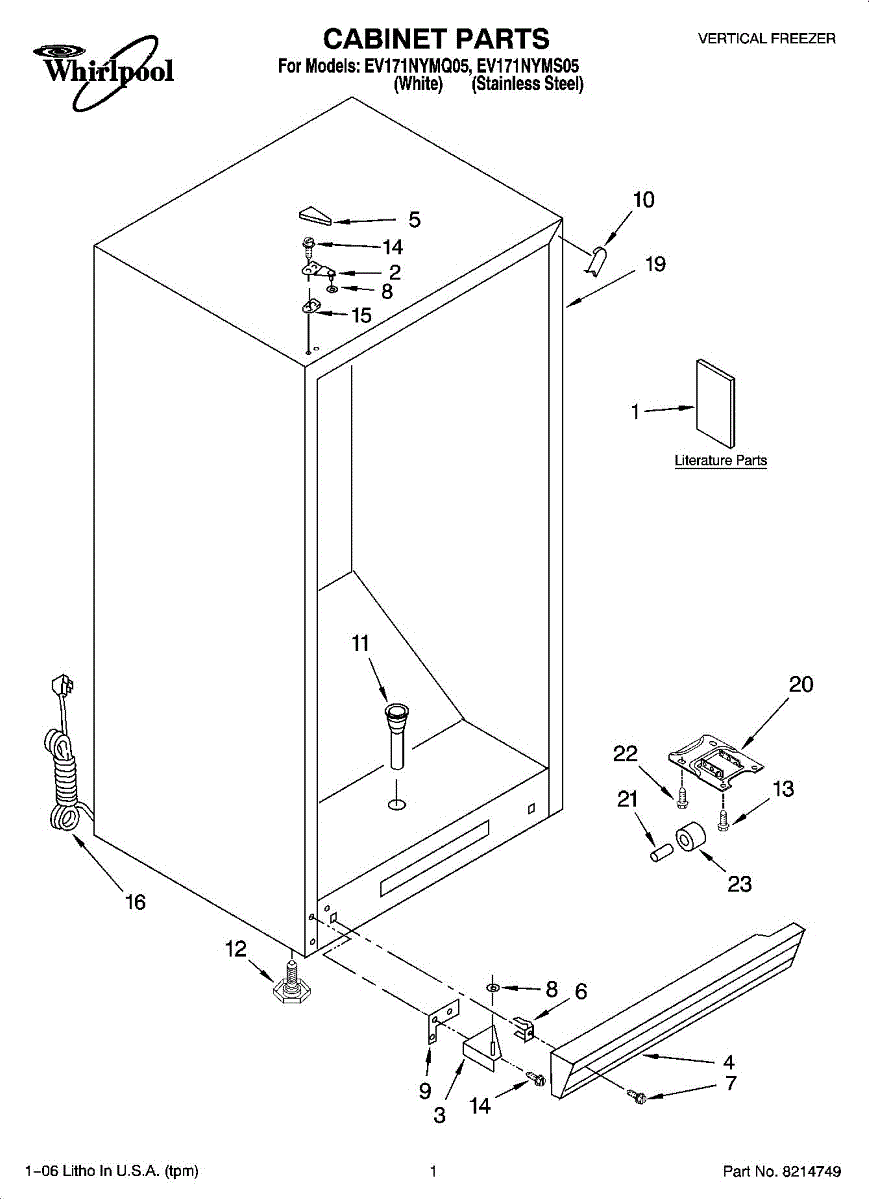

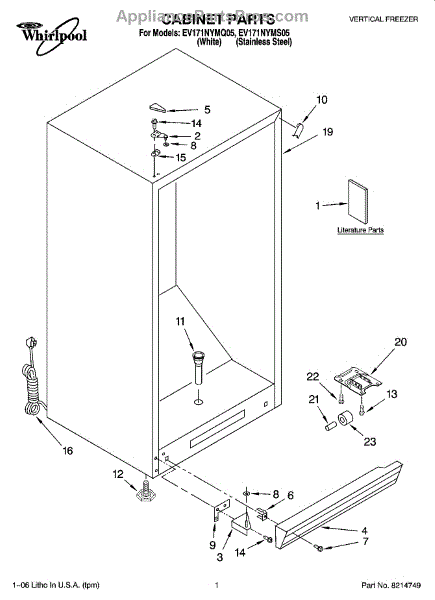

Parts for Whirlpool EV171NYMS05: 01 - Cabinet Parts

Black top door hinge for refrigerators. Mounts at the upper corner to support and pivot the door. Replace when cracked, bent, or stripped threads.

This part is White.

Secures panels, covers, or harnesses in place during operation. Replace if bent, broken, or missing to restore a tight fit and eliminate rattling.

Replacement fastener screw for appliances. Secures panels, trim, clips, and components. Needed when original screws are stripped, missing, or damaged.

Thin shim that aligns and levels your freezer door at the hinge point. Replace when worn, damaged, or missing to eliminate rubbing and uneven gaps.

An adjustable leveler that supports and raises or lowers the appliance to help stabilize it on uneven floors. Restores proper alignment to reduce rocking, vibration, and door misalignment for improved performance and safety. What it does:

• Provides height adjustment to level the cabinet and prevent rocking
• Helps doors close and seal correctly by correcting leaning or unevenness
• Reduces vibration and movement that can cause noise or wear
• Simple turn-to-adjust design for fine tuning appliance position

• Unplug the appliance (and shut off water supply for units with plumbing) before working nearby
• Support the appliance when adjusting so it does not tip; use a helper or appliance dolly as needed
• Turn the leveler by hand or with a wrench; adjust both front/back or left/right sides evenly and re-check with a level

Replacement mounting screw for freezers and refrigerators. Secures internal components and panels. Order a new screw if original is stripped or missing.

Replacement stringer bolt that secures the appliance's stringer or support rail to the cabinet frame, restoring panel alignment and preventing movement. Use when the original bolt is missing, loose, or damaged. What it does:

• Secures the stringer/support rail to the appliance frame so panels and assemblies stay aligned.
• Helps prevent cabinet or panel movement that can cause rattling or vibration during operation.
• Restores proper alignment when a loose or missing bolt causes misaligned panels or binding doors.
• Simple, direct replacement for a corroded, stripped, or lost fastener.

• Disconnect power before working on the appliance and remove any panels.
• Use the correct-size socket or wrench; hand-tighten, then snug—do not overtighten to avoid stripping threads.
• Inspect mating threads and replace the bolt if heads or threads are damaged; for the correct fastener location.

Thin shim that aligns and levels your freezer door at the hinge point. Replace when worn, damaged, or missing to eliminate rubbing and uneven gaps.
