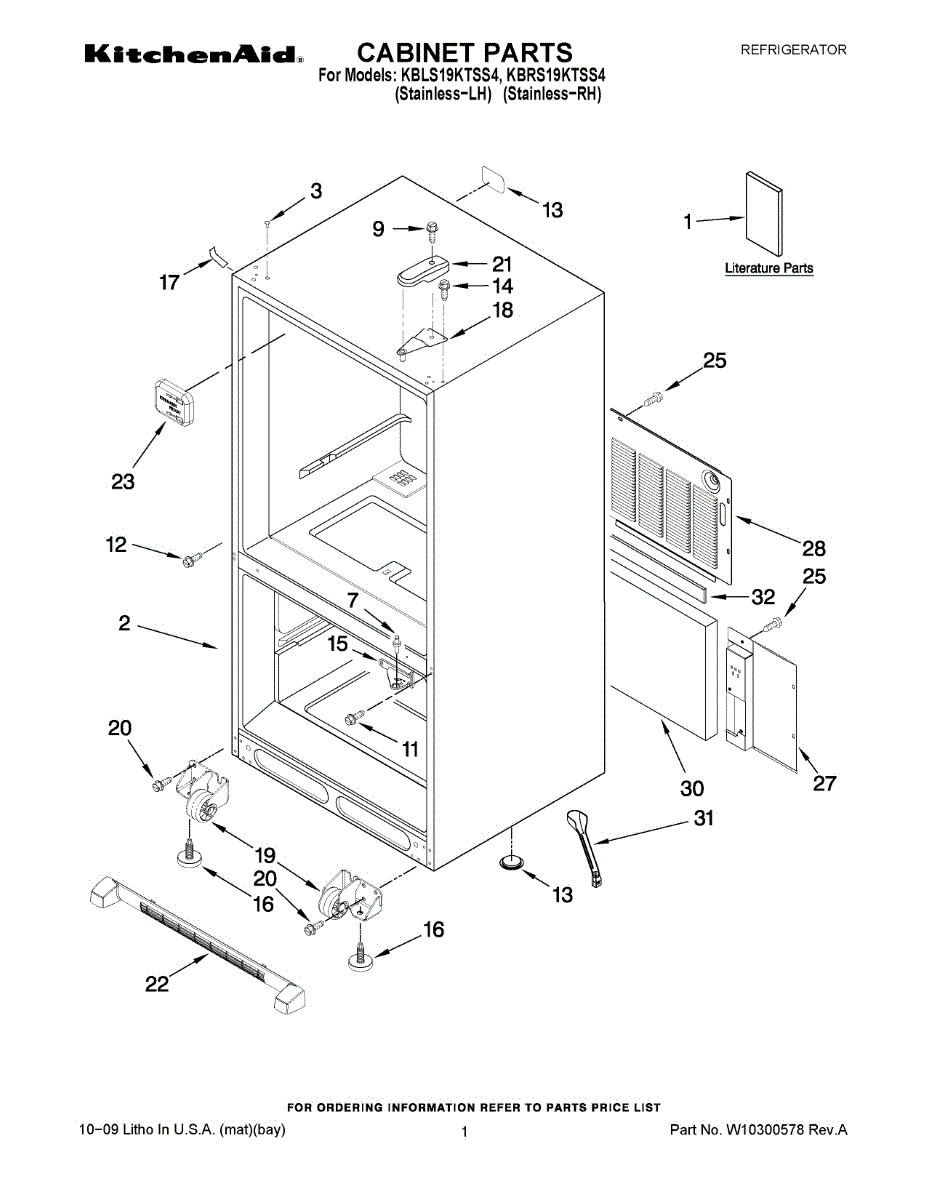

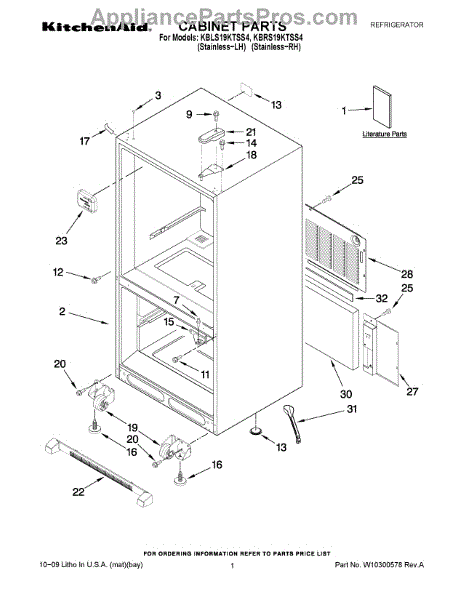

Parts for Kitchenaid KBLS19KTSS4: 01 - Cabinet Parts

White plastic button plug for refrigerator control panels. Covers unused holes or replaces missing, cracked, or broken plugs to restore a clean appearance.

Metal pivot pin for the center hinge on refrigerator doors. Restores smooth door swing and proper alignment when original pin is worn or broken.

The Screw is an OEM part for Whirlpool refrigerators. This screw secures the refrigerator door hinge in place, allowing the door operates smoothly and seals properly.

Over time, screws can become loose or go missing during repairs or adjustments, which can lead to a misaligned door, compromised sealing, and increased energy consumption.

Symptoms of a bad screw include:

• The refrigerator door seems misaligned or does not close properly.
• Increased effort needed to open or close the door.
• Unusual gaps around the door seal when closed.
• The door might squeak or make other noises during operation.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Mounting screw for refrigerator assembly. Secures components and panels in place. Replace if screw is stripped, missing, or no longer holding tight.

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

This hex washer-head screw secures panels, brackets, and other components inside your appliance. Replacing a worn, stripped, or missing screw restores a tight fit, reduces vibration and rattles, and helps keep assemblies properly aligned.

• Fastens panels, brackets, covers, and internal hardware to the cabinet or frame
• Helps prevent loosening, rattling, or misalignment during appliance operation
• Replace if the head is rounded, threads are stripped, or the screw is missing
• Useful after service when an original fastener is lost or damaged

• Disconnect power and shut off gas/water before starting
• Use the correct nut driver or socket for the hex head to avoid rounding
• Start threads by hand to prevent cross-threading; tighten snugly without overtightening

Secures and supports your refrigerator door for smooth pivoting and proper alignment. Replace if door sags, won't close fully, or hinge is damaged.

Adjustable leveling leg for refrigerators and freezers. Installs at base corner to stabilize appliance on uneven floors. Replace if broken or stripped.

Black plastic corner cover replaces damaged or missing exterior trim on your refrigerator. Restores finished appearance and protects edges from wear.

Mounts at the upper corner of the cabinet to support and pivot the refrigerator door. Replace if bent, cracked, or missing to restore door alignment.

Front left roller assembly supports your refrigerator and enables smooth movement for cleaning. Replace when damaged or worn from moving. Verify fit with your model.

The Roller Assembly is an OEM part for Whirlpool refrigerators. It contains heavy-duty ball bearing rollers located along the bottom front-right cabinet. Repeatedly maneuvering fully-loaded refrigerators can cause cabinet rollers to crack or bearing races to deteriorate over extended use.

Potential failure causes include structural cracks from strong impacts or bearing lubrication washing away from repeated wet cleaning.

Symptoms of faulty cabinet rollers include:

• Resistance or grinding noises when tilting the refrigerator
• Visible bearing marks wearing into roller housing
• Potential for cabinet walls or flooring damage without smooth motion

This is a genuine Whirlpool OEM replacement, this part is also compatible with Maytag, Jenn-Air and some KitchenAid models.

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

Plastic cover that conceals the top hinge assembly on your refrigerator door. Replace if cracked, broken, or missing to restore a clean appearance.

Black toe grille installs at the bottom front of your refrigerator. Replace a cracked, broken, or missing kickplate to restore appearance.

Plastic cover that protects the fill tube connection in your refrigerator. Replace if cracked, broken, or missing to restore proper coverage.

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

Back cover cap for bottom-mount refrigerators. Replaces cracked, broken, or missing covers on the rear panel. Restores appearance and protection.

Guides condensation from the defrost cycle to the evaporation pan. Replace if cracked, clogged, or causing water leaks and ice buildup in the freezer.
