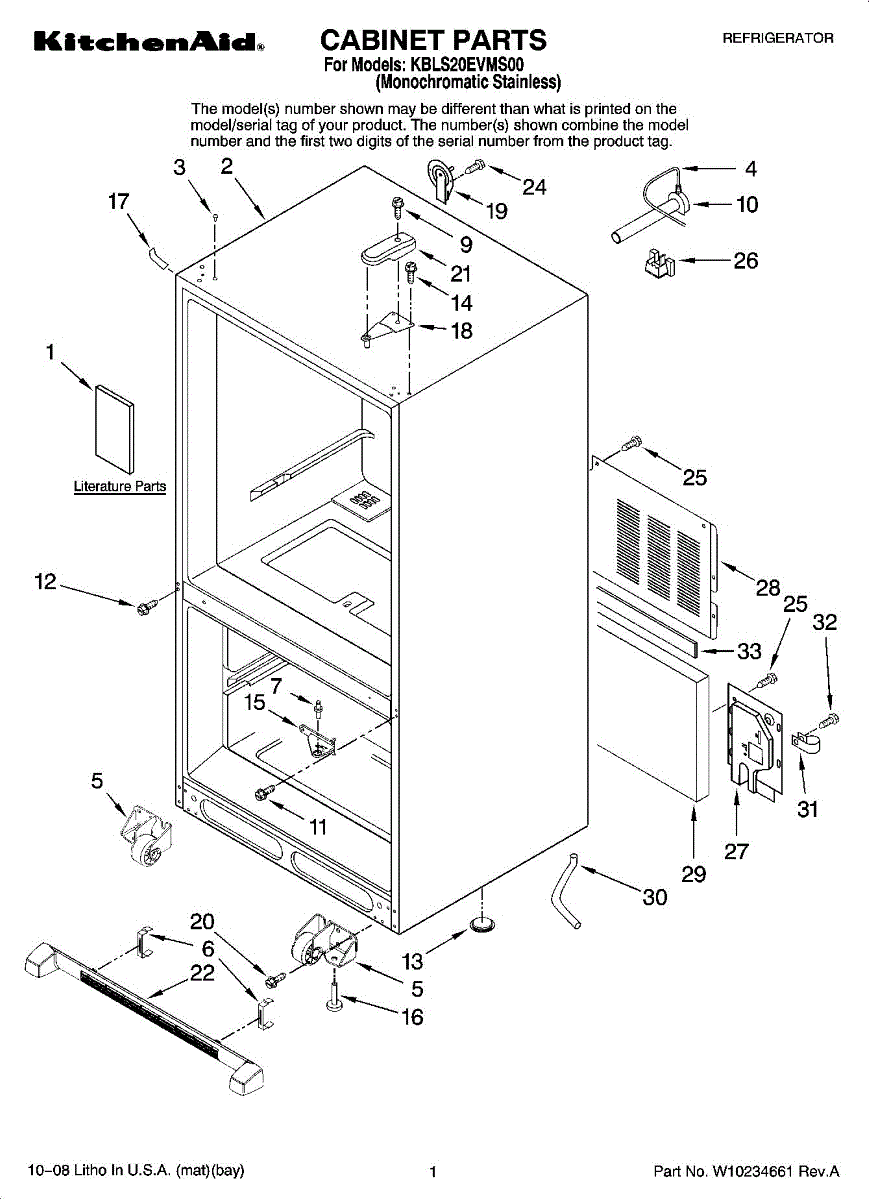

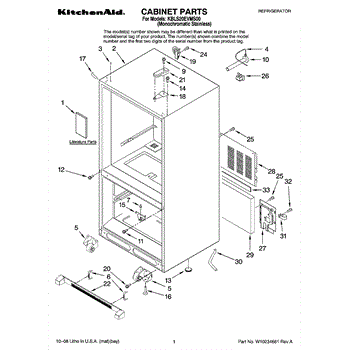

Parts for Kitchenaid KBLS20EVMS00: 01 - Cabinet Parts

The Water Filter is an OEM part for Whirlpool refrigerators. It is designed to filter and purify the water for your refrigerator, ensuring clean and fresh drinking water and ice.

A bad refrigerator water filter can be caused by regular use and the buildup of contaminants over time. It may also become less effective if not replaced according to the manufacturer's recommended schedule.

Symptoms of a bad refrigerator water filter include:

• A decrease in water flow or water pressure.
• An unpleasant taste or odor in the water.
• The presence of particles or sediment in the water.
• Cloudy or discolored ice cubes.

If you notice any of these signs or if it has been more than six months since your last filter replacement, it's time to replace the refrigerator water filter with this genuine OEM part. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


A direct-replacement Plug B push button for the appliance control panel that restores tactile operation for the associated function. Ideal for replacing cracked, worn, or missing buttons so controls respond and look right again. What it does:

• Replaces the Plug B push button on the appliance control/interface so the linked control works properly.
• Provides the tactile surface users press to select a setting, cycle, or function.
• Common symptoms this part can fix: button is cracked, sticking, missing, or no longer actuating the switch.
• Cosmetic refresh when a button is faded or damaged.

• Always disconnect power to the appliance before servicing to avoid shock or injury.
• Replacement typically requires removing the control panel or trim; keep screws and small parts organized.
• Handle the button and panel clips gently to avoid breaking plastic retainers.

Ice maker water line: 1/4x 8ft.

The Front Left Roller Assembly is an OEM part for Whirlpool refrigerators. This roller assembly supports the refrigerator, allowing it to be easily moved for cleaning or maintenance.

Causes of a bad roller assembly can include wear and tear over time, damage from moving the refrigerator frequently, or exposure to heavy loads that can cause the roller to crack or break.

Symptoms of a bad front left roller assembly include:

• Difficulty moving the refrigerator
• The refrigerator not staying level
•  Unusual noises when attempting to move the appliance
• Visible damage or wear on the roller

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Roller Assembly is an OEM part for Whirlpool refrigerators. It contains heavy-duty ball bearing rollers located along the bottom front-right cabinet. Repeatedly maneuvering fully-loaded refrigerators can cause cabinet rollers to crack or bearing races to deteriorate over extended use.

Potential failure causes include structural cracks from strong impacts or bearing lubrication washing away from repeated wet cleaning.

Symptoms of faulty cabinet rollers include:

• Resistance or grinding noises when tilting the refrigerator
• Visible bearing marks wearing into roller housing
• Potential for cabinet walls or flooring damage without smooth motion

This is a genuine Whirlpool OEM replacement, this part is also compatible with Maytag, Jenn-Air and some KitchenAid models.

This center hinge pin is the pivot stud for the refrigerator door's middle hinge. Replacing a worn pin restores stable door movement and alignment so the door opens smoothly and seals reliably.

• Provides the pivot point for the door on the center hinge bracket
• Helps maintain proper door alignment for smooth opening/closing
• Wear or damage may show as door sagging, rubbing, or wobbling at the hinge
• Misalignment from a worn pin can contribute to poor sealing or a door that won't stay closed

• Disconnect power; wear cut-resistant gloves
• Remove items from the door and support the door before loosening hinge fasteners
• Lift the door off the hinge, swap in the new pin, and transfer any spacers/shims in the same order
• Reassemble, align the door, and confirm the gasket makes full contact all around

The Screw is an OEM part for Whirlpool refrigerators. This screw secures the refrigerator door hinge in place, allowing the door operates smoothly and seals properly.

Over time, screws can become loose or go missing during repairs or adjustments, which can lead to a misaligned door, compromised sealing, and increased energy consumption.

Symptoms of a bad screw include:

• The refrigerator door seems misaligned or does not close properly.
• Increased effort needed to open or close the door.
• Unusual gaps around the door seal when closed.
• The door might squeak or make other noises during operation.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Icemaker Fill Tube is an OEM replacement part for Whirlpool refrigerators. It delivers water to the icemaker, allowing it to produce ice cubes. It is responsible for directing water from the water inlet valve to the icemaker tray, where it freezes into ice cubes.

A bad fill tube can occur due to wear and tear, blockages, or damage. If you notice symptoms such as no ice production, leaking water, or ice cubes with an unusual shape or size, it may be time to replace the fill tube.

Symptoms of a bad fill tube include:

• No ice production or limited ice output
• Leaking water around the icemaker area
• Irregularly shaped or oversized ice cubes

Repair your refrigerator by replacing the faulty or damaged fill tube with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This replacement screw secures appliance panels and components to restore proper fit and reduce vibration. A straightforward fastener that helps keep parts aligned and prevents noise or loose trim from worsening. What it does:

• Fastens panels, brackets, or trim pieces to the appliance frame
• Helps stop rattling or vibration caused by loose or missing hardware
• Restores proper alignment where original screw has been lost or damaged
• Works wherever the OEM screw specification is required for secure mounting

• Turn power off and unplug the appliance before working on it
• Use the correct screwdriver or bit to avoid stripping the head
• Thread carefully and avoid overtightening to prevent damage to threads or plastic parts
• Keep removed fasteners organized so you reinstall the correct pieces

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

This hex washer-head screw secures panels, brackets, and other components inside your appliance. Replacing a worn, stripped, or missing screw restores a tight fit, reduces vibration and rattles, and helps keep assemblies properly aligned.

• Fastens panels, brackets, covers, and internal hardware to the cabinet or frame
• Helps prevent loosening, rattling, or misalignment during appliance operation
• Replace if the head is rounded, threads are stripped, or the screw is missing
• Useful after service when an original fastener is lost or damaged

• Disconnect power and shut off gas/water before starting
• Use the correct nut driver or socket for the hex head to avoid rounding
• Start threads by hand to prevent cross-threading; tighten snugly without overtightening

This center hinge assembly secures and supports a refrigerator door, helping it pivot smoothly and stay aligned for a tight seal. Replaces a worn or damaged hinge to restore proper door movement and closure. What it does:

• Provides the pivot point that lets the door open and close smoothly
• Restores proper door alignment to prevent gaps that let cool air escape
• Stops door sagging or uneven operation caused by a worn hinge
• Reduces scraping, binding, or unusual noises at the door pivot

• One center hinge assembly

• Disconnect power to the appliance before beginning any repair
• Support or remove the door to avoid injury or damage
• Use the original mounting hardware or OEM-specified fasteners for secure installation
• Check door alignment and gasket seal after installation; adjust as needed

The Leveling Leg is an OEM replacement part for Whirlpool refrigerators. It is one of four legs situated internally at the base corners for proper tilt positioning. It raises or lowers each leg independently to stabilize units on uneven kitchen floors.

Causes of replacement consist of wear from continual torque required during positioning processes. Thread damage or corrosion buildup attributable to floor locations over extended use necessitates periodic renewal as well.

Symptoms involve:

• Doors that fail to align or seal completely during open-close cycles
• Noisy imbalances traced to feet contacting floor surfaces
• Appliance rocking is unable to be remedied through existing leg corrections

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air, and some Kenmore models

This cover corner replaces a missing or damaged corner trim piece to restore the refrigerator's interior/exterior finish and help keep shelves and bins seated properly. It provides a clean, finished look and protects edges from wear. What it does:

• Replaces the corner trim/filler that covers panel edges or joins interior liners
• Helps keep adjoining panels, shelves or bins aligned and reduces gaps
• Restores appearance after chipping, cracks or impact damage

• Designed for drop-in or snap-on installation; verify fit against the appliance before final assembly
• Use basic hand tools; avoid excessive force which can crack plastic parts
• Disconnect power if removing interior panels or working near electrical components

This top hinge assembly mounts at the upper corner of the cabinet to support the refrigerator door and allow smooth pivoting. Replacing a worn hinge restores proper door alignment and helps the gasket seal reliably.

• Supports the door's weight at the top and provides the pivot point
• Helps maintain correct door alignment and closing action
• Aids in consistent gasket contact to minimize warm-air leaks
• Common symptoms of a failing hinge: door sagging or rubbing, uneven gaps, poor sealing, squeaks or popping noises

• Unplug the refrigerator and, if applicable, turn off the water supply
• Have a helper support the door; remove the hinge cover, then the hinge screws
• Note/mark hinge position and transfer any shims or spacers from the original hinge
• Reinstall and adjust for even gaps; verify the door swings freely and the gasket seals all around

This replacement cover protects water-related components on select Whirlpool washers, helping keep valves and hoses shielded from debris and incidental contact for reliable water flow management. What it does

• Protects water valves, inlet hoses, and nearby fittings from dirt and accidental contact
• Helps maintain proper water routing by keeping components covered and positioned
• Commonly replaced if cracked, broken, warped, or missing after impact or wear
• Can prevent debris buildup that interferes with valve operation or connections

• One replacement cover as pictured

• Disconnect power and shut off the water supply before starting any repair
• Secure with existing screws or clips
• Do not force the cover into place; inspect surrounding fittings and hoses for damage while installing
• If you see leaks after installation, recheck hose connections and valve seating; replace defective parts as needed

This hex-head sheet metal screw secures refrigerator panels, brackets, and other internal components. Replacing a missing, corroded, or stripped screw helps keep parts tight, reduces vibration noise, and maintains proper alignment of covers and assemblies.

• Fastens sheet-metal panels, ducts, brackets, and trim inside the cabinet
• Helps maintain a secure fit and reduce rattles or buzzing
• Restores alignment when an original fastener is missing or damaged
• Common signs include loose or vibrating panels, a stripped screw head, or a screw that won't tighten

• Unplug the refrigerator and shut off water supply if working near ice/water components
• Use the correct nut driver or socket for the hex head
• Start threads by hand to avoid cross-threading; tighten until snug—do not overtighten
• Replace screws one at a time to help keep parts aligned

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

This foam filter block fits into its designated cavity to help screen debris and cushion adjoining components. Replacing a worn or missing block helps maintain proper airflow paths and can reduce vibration-related noise.

• Serves as a foam filter/seal inside the unit's air path or compartment
• Helps keep dust and debris out of internal passages
• Provides cushioning to minimize vibration and rattling
• Replace if the foam is crumbling, torn, misshapen, or won't stay seated

• Disconnect power before servicing
• Access location per your model's parts diagram; remove any cover or grille as needed
• Note the orientation of the old block and press the new block fully into place without over-compressing
• Reinstall panels and restore power

This acoustic fiber is the sound-absorbing insulation used in a refrigerator's machine compartment. Replacing a missing or damaged pad reduces operating noise from the compressor area and helps maintain the unit's intended sound levels.

• Absorbs and dampens compressor and condenser fan noise from the rear machine compartment
• Helps reduce vibration resonance transmitted through the cabinet
• Restores sound control when original insulation is torn, saturated, or missing
• Common symptoms: increased humming, buzzing, or rattling from the back or bottom of the refrigerator

• Disconnect power and pull the refrigerator forward for rear access
• Remove the lower rear access panel and note the insulation's placement/orientation
• Position the new pad in the same location; keep clear of coils, wiring, airflow paths, and moving parts
• Reinstall the access panel and restore power; verify no contact or obstruction

This replacement drain tube directs discharged water from the appliance to the household drain, helping restore proper drainage and reduce the risk of leaks. Designed to match OEM fit and routing for straightforward replacement. What it does:

• Channels drained water away from the appliance to prevent pooling and leaks
• Replaces cracked, split, or collapsed tubing that causes slow or no drainage
• Restores proper flow when water backs up or drains intermittently
• Works with factory clamps and fittings to maintain a secure seal

• Disconnect power and shut off water supply before beginning service
• Inspect surrounding fittings and clamps; replace any damaged hardware for a reliable seal
• Follow the appliance service manual for correct routing and clamp locations
• If you smell gas or detect significant water damage, stop.

This self-drilling screw secures appliance panels and components where a fastener must cut its own pilot hole. It provides a quick, reliable hold for repair or reassembly of trim, brackets, and internal fixtures. What it does:

• Fastens panels, brackets, and small components without pre-drilling
• Helps stop loose or rattling trim and parts caused by missing or worn screws
• Restores proper alignment and secure mounting after repairs
• Works where sheet metal or thin substrates require self-tapping engagement

• One self-drilling screw

• Disconnect power and follow appliance safety procedures before starting repairs
• Use the correct size driver and steady pressure to avoid stripping the head
• Start straight and apply firm, even torque; avoid overtightening which can damage mounting surfaces
• Wear eye protection and handle small fasteners carefully to avoid loss or ingestion hazards
