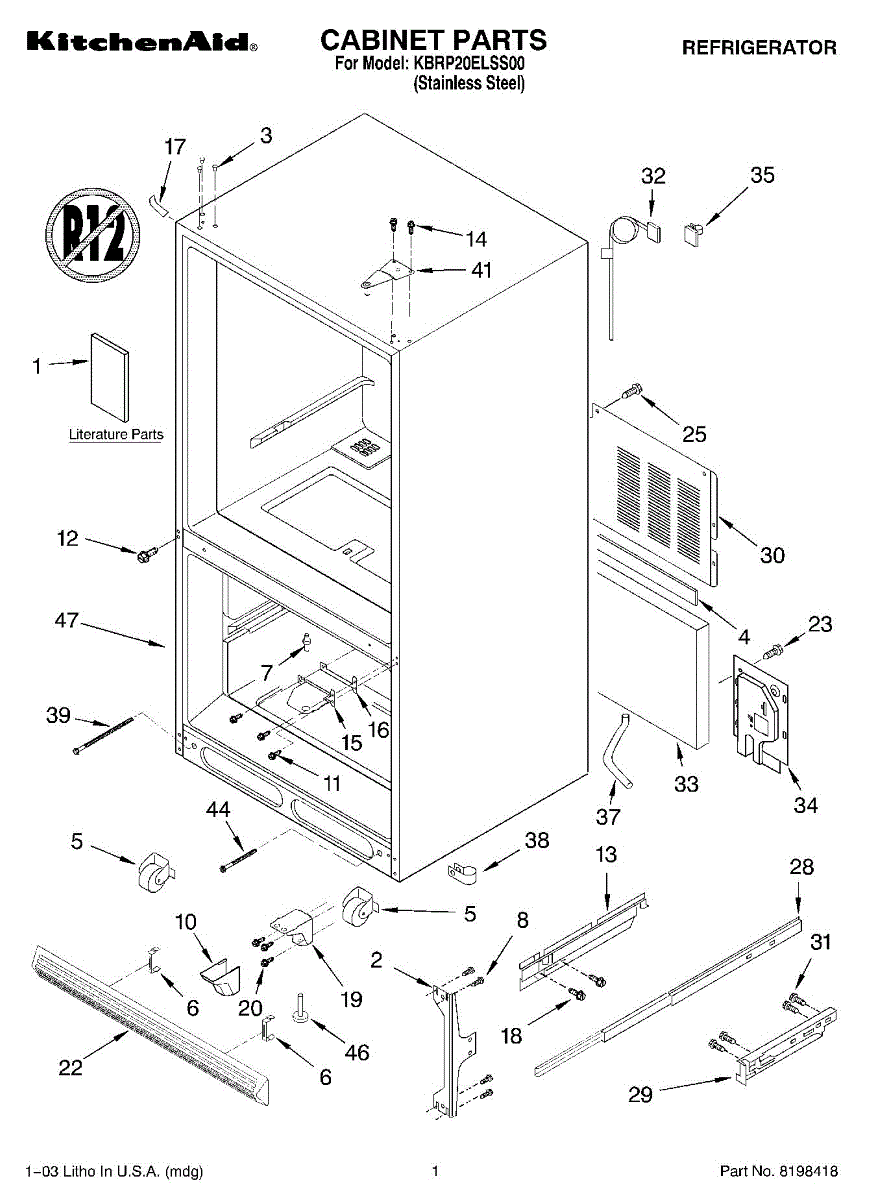

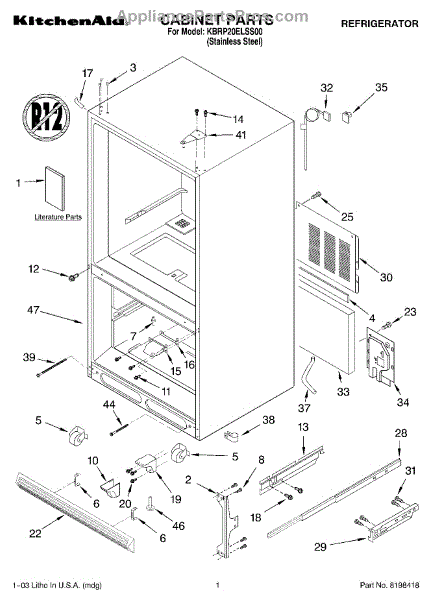

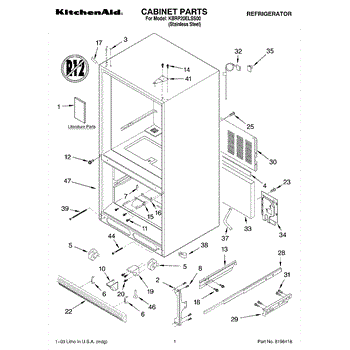

Parts for Kitchenaid KBRP20ELSS00: 01 - Cabinet Parts

The Water Filter is an OEM part for Whirlpool refrigerators. It is designed to filter and purify the water for your refrigerator, ensuring clean and fresh drinking water and ice.

A bad refrigerator water filter can be caused by regular use and the buildup of contaminants over time. It may also become less effective if not replaced according to the manufacturer's recommended schedule.

Symptoms of a bad refrigerator water filter include:

• A decrease in water flow or water pressure.
• An unpleasant taste or odor in the water.
• The presence of particles or sediment in the water.
• Cloudy or discolored ice cubes.

If you notice any of these signs or if it has been more than six months since your last filter replacement, it's time to replace the refrigerator water filter with this genuine OEM part. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This black handle hole plug fills and covers the exposed mounting hole on appliance handles for a finished, factory appearance and to help keep debris and moisture out. Snap-in design provides a clean cosmetic repair without replacing the whole handle. What it does:

• Covers an unused or damaged handle mounting hole to restore appearance
• Helps prevent dirt, moisture, and pests from entering through the handle opening
• Snaps into the handle recess for a secure, low-profile fit
• Commonly used when a missing or worn plug leaves a visible hole on the handle

• One black handle hole plug

• Repair is typically a simple snap-in replacement; plug aligns with handle recess before seating
• Use a flat plastic tool to remove the old plug to avoid scratching surrounding finish
• Disconnect power and follow appliance manufacturer's safety guidance when accessing handles near electrical components
• Do not force the plug; if fit is tight, handle style to avoid damage

This center hinge pin kit secures the middle hinge on compatible refrigerators so the door stays aligned and operates smoothly. It restores proper door pivoting and reduces sagging or uneven closing. What it does:

• Replaces worn or bent center hinge pin to restore correct door alignment
• Helps stop door sag, rubbing, or gaps that affect sealing
• Reduces noise and sticking when opening or closing the door
• Works with the center/middle hinge assembly to maintain smooth pivot action

• Follow the refrigerator's service manual for disassembly; some models require removing the door or shelves
• Support the door during removal/installation to prevent damage or personal injury
• Use proper tools and avoid over-tightening hinge fasteners

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

This replacement screw secures appliance panels and components to restore proper fit and reduce vibration. A straightforward fastener that helps keep parts aligned and prevents noise or loose trim from worsening. What it does:

• Fastens panels, brackets, or trim pieces to the appliance frame
• Helps stop rattling or vibration caused by loose or missing hardware
• Restores proper alignment where original screw has been lost or damaged
• Works wherever the OEM screw specification is required for secure mounting

• Turn power off and unplug the appliance before working on it
• Use the correct screwdriver or bit to avoid stripping the head
• Thread carefully and avoid overtightening to prevent damage to threads or plastic parts
• Keep removed fasteners organized so you reinstall the correct pieces

This hex washer-head screw secures panels, brackets, and other components inside your appliance. Replacing a worn, stripped, or missing screw restores a tight fit, reduces vibration and rattles, and helps keep assemblies properly aligned.

• Fastens panels, brackets, covers, and internal hardware to the cabinet or frame
• Helps prevent loosening, rattling, or misalignment during appliance operation
• Replace if the head is rounded, threads are stripped, or the screw is missing
• Useful after service when an original fastener is lost or damaged

• Disconnect power and shut off gas/water before starting
• Use the correct nut driver or socket for the hex head to avoid rounding
• Start threads by hand to prevent cross-threading; tighten snugly without overtightening

This hex washer-head screw secures panels, brackets, and other components inside your appliance. Replacing a worn, stripped, or missing screw restores a tight fit, reduces vibration and rattles, and helps keep assemblies properly aligned.

• Fastens panels, brackets, covers, and internal hardware to the cabinet or frame
• Helps prevent loosening, rattling, or misalignment during appliance operation
• Replace if the head is rounded, threads are stripped, or the screw is missing
• Useful after service when an original fastener is lost or damaged

• Disconnect power and shut off gas/water before starting
• Use the correct nut driver or socket for the hex head to avoid rounding
• Start threads by hand to prevent cross-threading; tighten snugly without overtightening

This nonmetal shim spaces and cushions appliance components to improve alignment and reduce rubbing or vibration. Use it to replace a missing or worn shim and help restore quieter, smoother operation. What it does:

• Provides a thin, durable spacer to correct component alignment and clearances
• Cushions parts to reduce rubbing, squeaks, and vibration during operation
• Helps stabilize panels, housings, or assemblies that sit unevenly
• Can prevent premature wear where metal parts contact one another

• Disconnect power (and water, if applicable) before accessing internal components.
• Verify exact shim location against the appliance diagram; position shim between mating surfaces as shown.
• Use basic hand tools as needed; ensure parts are reassembled and fasteners are secure before testing.

This black plastic corner cover replaces a damaged or missing exterior trim piece to restore the appliance's finished appearance and protect internal edges from dirt and wear. Fits the factory location and matches original styling. What it does:

• Covers and protects the appliance corner or trim area from chips, scuffs, and debris.
• Restores a clean, finished look where the original corner piece is cracked, broken, or missing.
• Helps keep moisture and grime from reaching internal seams at the corner.
• Matches the original color and shape to maintain the appliance's aesthetic.

• Install with the appliance powered off and unplugged for safety if cover removal exposes wiring.
• Remove any broken fragments and clean the mounting area before installing the new cover.
• May snap or screw into place depending on model; keep fasteners from the original cover for re-use.

Size: 8-18 x 3/8 inch.

A single replacement screw used to fasten appliance panels and components, restoring secure fit and reducing vibration or noise. Simple, low-cost part for repairs that need a missing or stripped fastener. What it does:

• Secures panels, trim, or small component housings to the appliance frame
• Helps stop rattling, vibration, and misalignment caused by loose or missing screws
• Keeps internal components properly seated to maintain normal operation
• Used wherever the OEM specifies this exact fastener

• One replacement screw

• Disconnect power before servicing the appliance to avoid shock or injury
• Use the correct screwdriver or driver bit to avoid stripping the head
• Thread by hand first, then tighten snugly—do not overtighten
• Keep small parts away from children and pets

This toe grille assembly installs across the bottom front of your refrigerator—often called the toe kick or kickplate—to protect internal components while allowing proper airflow. Replace a cracked or missing grille to restore a clean, finished look and correct base ventilation.

• Covers the lower access opening and helps direct air through the condenser area
• Provides a finished appearance at floor level
• Helps keep debris out of the machine compartment
• Common signs of damage: cracked slats, broken tabs, loose or rattling grille, or a missing panel

• Disconnect power and protect the floor before starting
• Open the doors; remove the old grille by releasing spring clips or removing mounting screws (varies by model)
• Align the new grille with the tabs/slots; snap into place or secure with the original screws
• Verify vents are unobstructed and doors open/close without interference

This genuine replacement screw secures panels and components so your appliance stays stable and trim pieces fit properly. It's a simple, exact-fit fastener intended to replace a missing or damaged mounting screw. What it does:

• Fastens panels, trim, control housings or brackets to the appliance frame
• Restores secure fit when a screw is missing, stripped, or corroded
• Helps eliminate rattling or loose panels caused by a missing fastener
• Matches OEM thread and head style for correct seating and torque

• Use the correct screwdriver or bit to avoid stripping the head
• Do not overtighten; snug until parts are firmly seated
• Disconnect power and follow appliance safety guidelines before servicing

Size: 8 x 1-1/4 inch.

Replacement power cord that restores the electrical connection so your appliance receives safe, consistent power. Use this cord to replace frayed, damaged, or non-functioning cords and help return reliable operation to the appliance. What it does:

• Restores the appliance's main power connection so it can turn on and operate.
• Commonly used when a cord shows frayed insulation, exposed wires, scorch marks, or intermittent power.
• Can address issues where the appliance does not power on due to a broken or damaged cord.
• Replaces cords with loose or damaged plug/terminal connections that may cause sparking or overheating.

• Always disconnect power at the breaker or unplug the appliance before inspecting or replacing the cord.
• Verify the cord configuration (3-prong vs. 4-prong) and terminal type match your appliance and local electrical code before installation.
• Use proper strain relief and routing to prevent pinching; secure all connections and replace any damaged terminal hardware.

This acoustic fiber is the sound-absorbing insulation used in a refrigerator's machine compartment. Replacing a missing or damaged pad reduces operating noise from the compressor area and helps maintain the unit's intended sound levels.

• Absorbs and dampens compressor and condenser fan noise from the rear machine compartment
• Helps reduce vibration resonance transmitted through the cabinet
• Restores sound control when original insulation is torn, saturated, or missing
• Common symptoms: increased humming, buzzing, or rattling from the back or bottom of the refrigerator

• Disconnect power and pull the refrigerator forward for rear access
• Remove the lower rear access panel and note the insulation's placement/orientation
• Position the new pad in the same location; keep clear of coils, wiring, airflow paths, and moving parts
• Reinstall the access panel and restore power; verify no contact or obstruction

This door hinge is a direct-fit replacement that helps the appliance door open and close smoothly and stay properly aligned to prevent rubbing or gaps. Durable construction restores reliable door movement and seal engagement. What it does:

• Supports and pivots the appliance door so it opens and closes correctly
• Maintains correct door alignment to help the gasket seal fully
• Reduces sagging, sticking, or uneven door gaps that can affect performance
• Works with the existing hinge mount points and hardware

• One door hinge

• Disconnect power and empty the door before starting to avoid injury or damage
• Use the OEM mounting screws and follow turning sequence to re-align the door
• Tighten fasteners securely, then cycle the door and check for proper seal and operation

This factory screw secures appliance panels, brackets, or trim. Replace a missing, stripped, or rusted fastener to restore a tight, rattle-free fit and keep components properly aligned in the intended OEM locations. What it does

• Fastens brackets, trim, or sheet-metal panels to the chassis
• Replaces worn, rusted, or missing hardware
• Helps eliminate loose panels, vibration, and misalignment
• Restores proper fit and support for affected assemblies

• Includes 1 screw

• Disconnect power and shut off gas/water before servicing
• Match this screw to the original location; lengths and thread types can vary by position
• Use the correct driver; start by hand and do not overtighten to avoid stripping threads
• If the receiving threads are damaged, repair/replace the mating clip or insert before installing

This leveling foot adjusts the height and balance of your appliance so it sits stable and operates correctly. Replacing a worn or missing foot helps reduce vibration, noise, and unwanted movement during use.

• Supports and stabilizes the appliance by adjusting height at the base
• Helps correct rocking, excessive vibration, or walking during operation
• Can resolve rattling noises caused by uneven footing
• Aids proper door alignment and smooth operation when leveled

• Unplug power and shut off water (if applicable) before servicing
• Tilt or carefully raise the appliance to access the foot
• Thread the new foot in by hand; adjust to level with a bubble level
• Tighten any jam nut or lock mechanism if present; recheck level after placement
