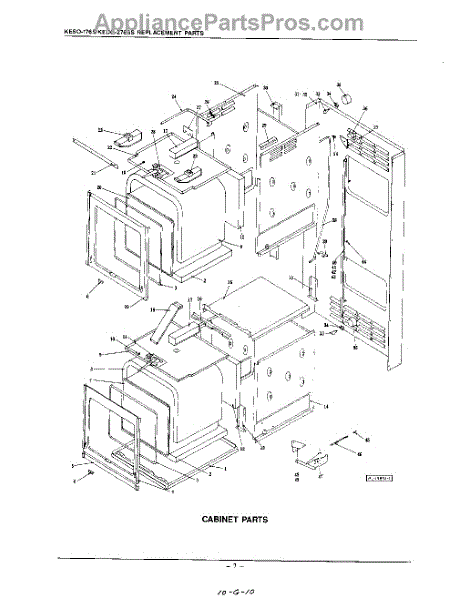

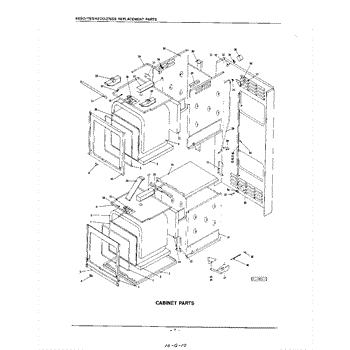

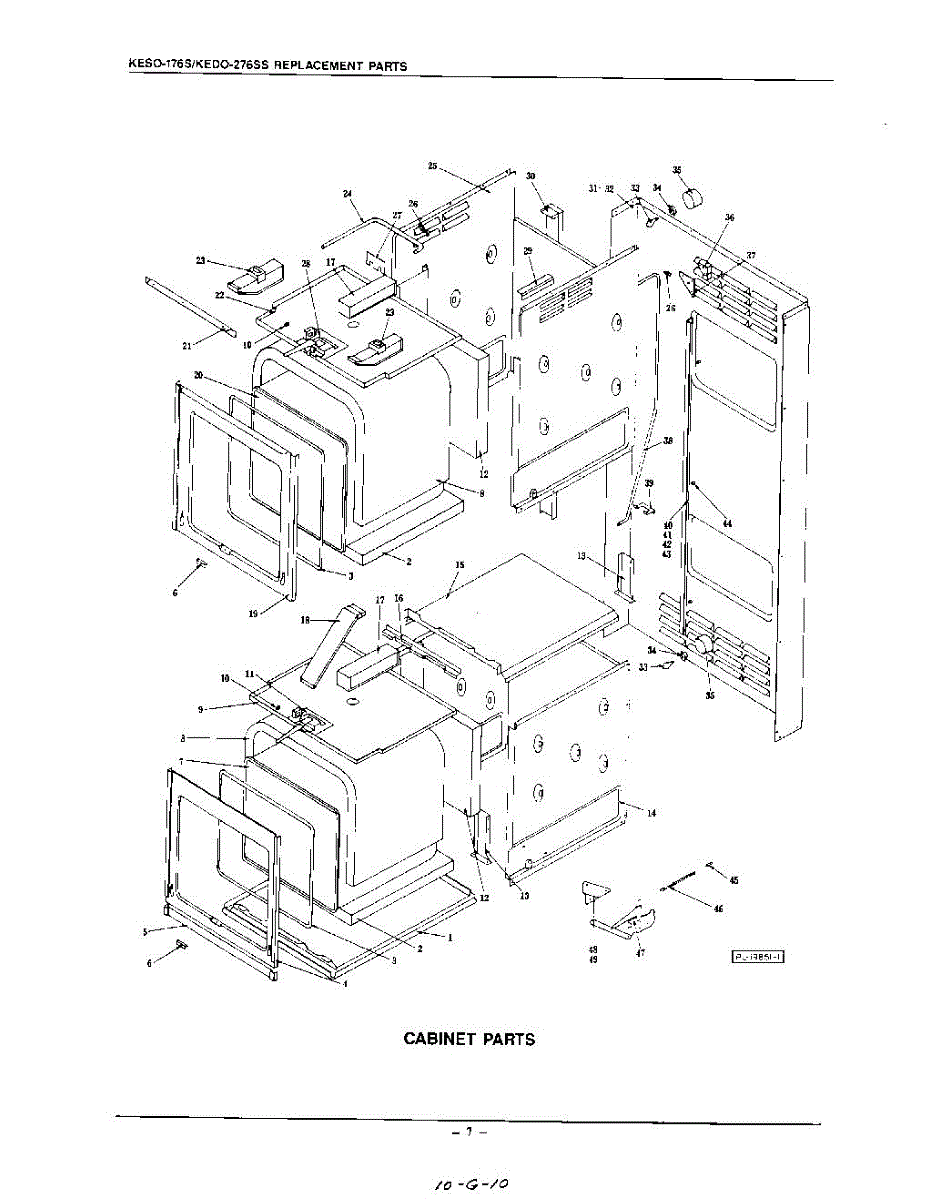

Parts for Kitchenaid KEDO276SS: 06 - Cabinet Parts

1

Main Bottom

By: Whirlpool

Part Number: 305251-2

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

2

Insulation, Bottom

By: Whirlpool

Part Number: 305584-2

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

3

Door Gasket

By: Whirlpool

Part Number: CC-590061

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

4

Front Frame, Lower Oven (Kedo - 276)

By: Whirlpool

Part Number: 305594-1

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

5

Bottom Trim

By: Whirlpool

Part Number: 305591-1

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

6

Cover - Seal End

By: Whirlpool

Part Number: CC-22036

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

8

Insulation, Top & Sides

By: Whirlpool

Part Number: 305584-3

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

9

Compartment Top - Upper Oven (Kedo-276)

By: Whirlpool

Part Number: 305600-3

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

10

Knob, Latch Handle

By: Whirlpool

Part Number: 305091

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

12

Insulation, Rear

By: Whirlpool

Part Number: 305584-5

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

13

Rear Anchor

By: Whirlpool

Part Number: CC-20019

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

14

Cabinet Side - Lower Oven (Kedo-276)

By: Whirlpool

Part Number: 305248-6

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

15

Upper Oven Support (Kedo - 276)

By: Whirlpool

Part Number: CC-20050

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

16

Front Frame Support

By: Whirlpool

Part Number: CC-32307

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

17

Collector Box

By: Whirlpool

Part Number: CC-71633

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

18

Compartment Vent Duct

By: Whirlpool

Part Number: CC-32424

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

19

Front Frame - Upper Oven (Kedo-276)

By: Whirlpool

Part Number: 305595-1

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

21

Control Frame Support

By: Whirlpool

Part Number: CC-31734

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

22

Compartment Top - Upper Oven (Kedo-276)

By: Whirlpool

Part Number: 305600-3

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

23

Vent Box

By: Whirlpool

Part Number: 305225

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

24

Vent Tube, Single Or Upper Oven

By: Whirlpool

Part Number: CC-70863

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

25

Cabinet Side, Single Or Upper Oven

By: Whirlpool

Part Number: 305248-4

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

26

Conduit Clamp

By: Whirlpool

Part Number: CC-22045

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

27

Vent Tube Mounting Bracket

By: Whirlpool

Part Number: CC-32220

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

29

Cabinet Side Extension

By: Whirlpool

Part Number: 305351-1

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

30

Vertical Air Duct (Kedo - 276)

By: Whirlpool

Part Number: CC-32284

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

31

Cabinet Back (Keso - 176)

By: Whirlpool

Part Number: 305597-2

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

32

Cabinet Back

By: Whirlpool

Part Number: CC-22143

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

33

Lamp, 40 Watt Appliance

By: Whirlpool

Part Number: BL-2-7

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

34

Light Socket

By: Whirlpool

Part Number: CC-566083

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

35

Oven Light Shield

By: Whirlpool

Part Number: CC-22022

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

36

No Longer Available

By: Whirlpool

Part Number: 4163836

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

37

Rotisserie Motor Mounting Plate

By: Whirlpool

Part Number: CC-19760

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

38

Vent Tube, Lower Oven (Kedo - 276)

By: Whirlpool

Part Number: CC-71196

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

39

Vent Tube Retainer

By: Whirlpool

Part Number: CC-31876

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

40

Cabinet Support - Right, Single Oven (Keso-176)

By: Whirlpool

Part Number: 305028-1

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

41

Cabinet Support, Right

By: Whirlpool

Part Number: 305029-1

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

42

Xcabinet Support - Right, Single Oven Keso-140/145, Keso-170/175

By: Whirlpool

Part Number: 305028-2

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

43

Xcabinet Support, Left

By: Whirlpool

Part Number: 305029-2

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

44

Spacer

By: Whirlpool

Part Number: CC-71194

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

45

Spring Anchor

By: Whirlpool

Part Number: CC-22058

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

46

Door Spring, Self - Cleaning Oven

By: Whirlpool

Part Number: CC-606517

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

47

Hinge Assembly

By: Whirlpool

Part Number: CC-22049

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

48

Cam Plate, Right

By: Whirlpool

Part Number: CC-22054

More

Not available

This part is discontinued by the manufacturer and is no longer available for purchase.
