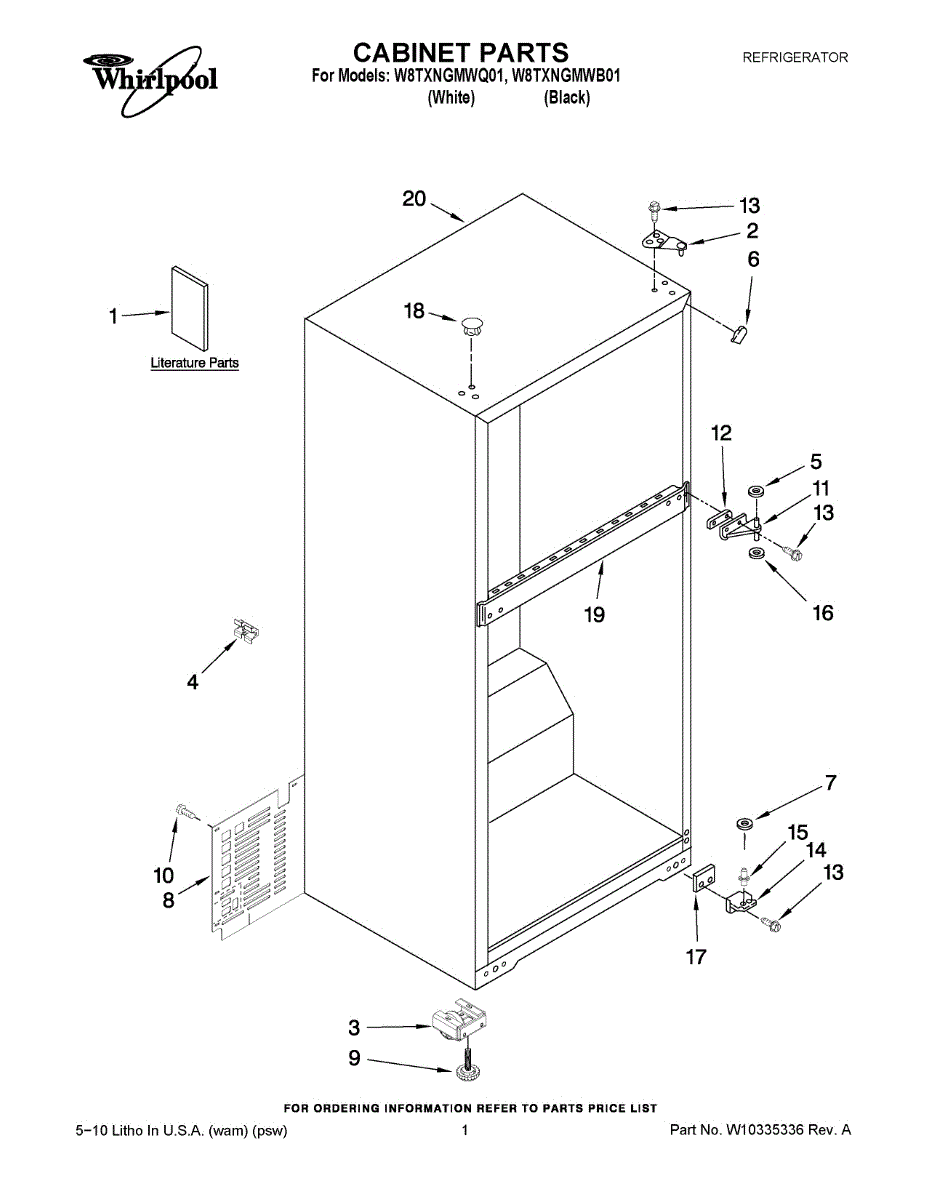

Parts for Whirlpool W8TXNGMWB01: 01 - Cabinet Parts

Repair manual for refrigerators and freezers made by Whirlpool. Covered brands include Whirlpool, Sears, Kenmore, Kitchen Aid, Roper, and Estate. Easy to follow photographs and step-by-step repair procedures.

Replaces the upper butt hinge assembly that mounts to the cabinet and supports your freezer or refrigerator door. Needed when hinge is cracked or worn.

This is a small roller wheel that mounts to the front underside of the refrigerator cabinet, allowing it to roll smoothly when repositioning the unit. It supports the weight of the refrigerator and enables easy movement for cleaning or installation. Replace this roller if it is cracked, worn flat, or if the refrigerator wobbles, sits unevenly, or is difficult to slide in and out of its alcove.

Plastic spacer for refrigerator door alignment and support. Replaces worn, cracked, or missing spacers that affect door fit and seal integrity.

Small plastic washer that supports the refrigerator door hinge assembly. Replace if worn, cracked, or missing to restore proper door alignment.

Black filler cap for refrigerator side panels. Replaces cracked, broken, or missing caps. Installs on top-mount refrigerator exterior trim for a clean finish.

White plastic filler cap for refrigerator door panels. Replaces broken, cracked, or missing caps. Installs into door trim to complete appearance.

Plastic washer that fits between the door hinge and cabinet body. Replace if cracked, worn, or missing to restore smooth door operation and alignment.

Replacement screw for refrigerators. Secures panels, brackets, and internal components. Install when original is missing, stripped, or corroded.

Size: 8-18 x 1/2 inch.

Replacement center hinge for refrigerator doors. Mounts between upper and lower doors to provide support and alignment. Replace if cracked or worn.

Factory screw secures panels, brackets, and internal components in refrigerators and freezers. Replace missing, rusted, or stripped screws for secure fit.

Door hinge butt for top-mount refrigerators. Mounts between cabinet and door to support hinge pin assembly. Replace if cracked, broken, or worn out.

Refrigerator door hinge pin that creates the pivot point for smooth door opening and closing. Replace if worn, damaged, or missing due to door stress.

Plastic washer that fits between the door hinge and cabinet body. Replace if cracked, worn, or missing to restore smooth door operation and alignment.

Door hinge shim adjusts refrigerator door height and alignment at the lower hinge. Replace when worn to restore smooth closing and proper gasket seal.

Color: white.

Black plastic hole plug endcap for refrigerator interior panels. Covers mounting holes and openings for a finished look. Replaces missing or broken caps.
