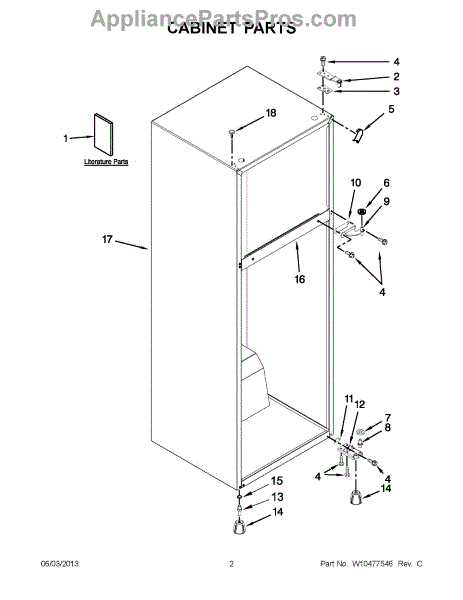

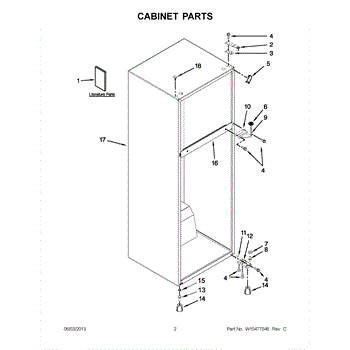

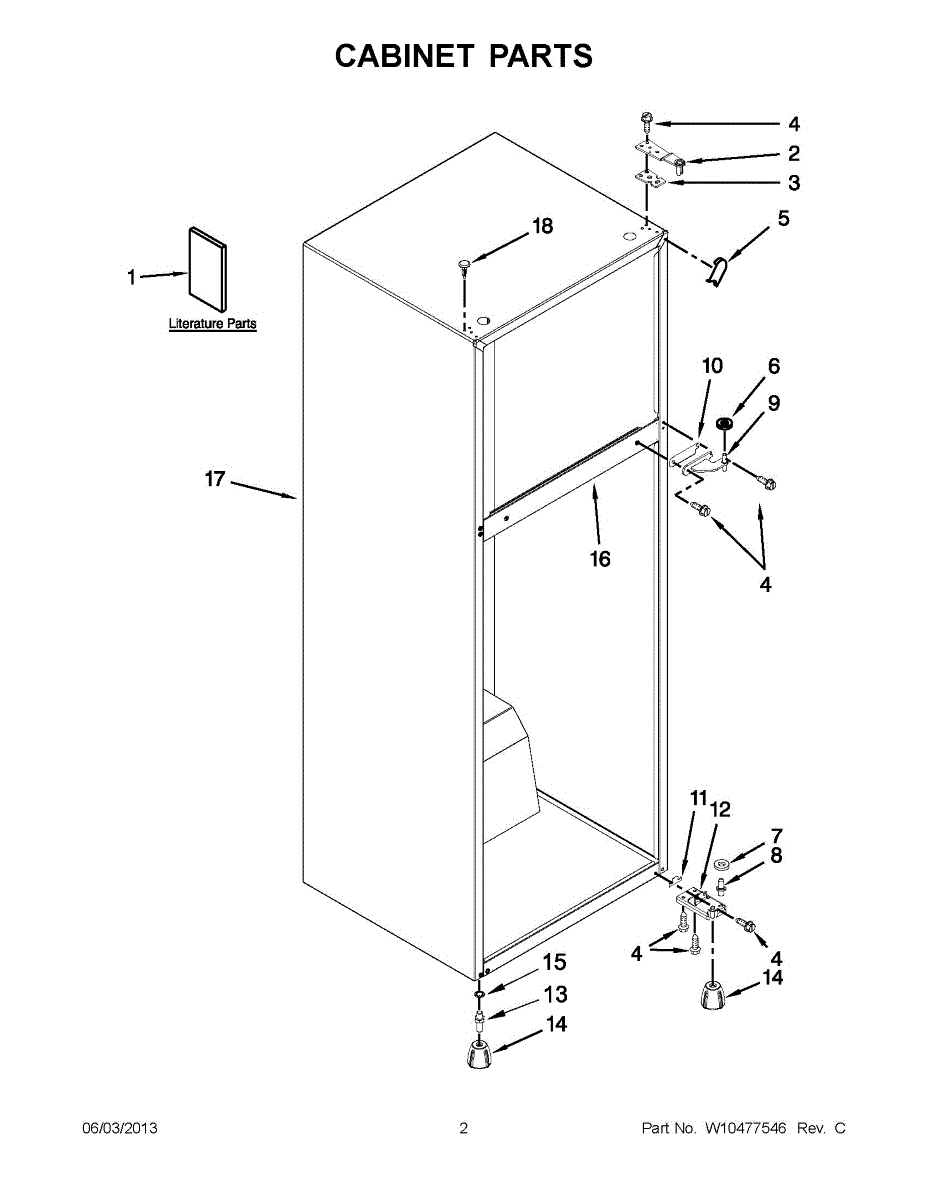

Parts for Whirlpool WRT111SFAB00: 01 - Cabinet Parts

Repair manual for refrigerators and freezers made by Whirlpool. Covered brands include Whirlpool, Sears, Kenmore, Kitchen Aid, Roper, and Estate. Easy to follow photographs and step-by-step repair procedures.

A factory fastener used to secure appliance components and panels. Replacing a missing, rusted, or stripped screw restores a solid, rattle-free fit and helps keep brackets, housings, and covers properly aligned for reliable operation.

• Fastens and holds panels, brackets, or internal components in place
• Helps maintain alignment and reduce vibration or rattling noises
• Direct replacement for a lost, corroded, stripped, or damaged fastener
• Restores proper fit when a component has loosened over time

• Unplug the appliance; also shut off gas and/or water supplies before servicing
• Match to the original screw and start threading by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• If multiple screws secure a part, start all screws before fully tightening to ensure even seating

The Hinge Washer is an OEM part for Whirlpool refrigerators. This part ensures smooth opening and closing by reducing friction between the door hinge and the refrigerator body.

Causes of a bad hinge washer can include normal wear and tear from frequent use, accumulation of dirt or debris, and exposure to moisture, which can lead to rust and corrosion.

Symptoms of a bad hinge washer include:

• Difficulty in opening or closing the refrigerator door
• A door that does not stay in place
• Squeaking or grinding noises when the door is moved
• Visible wear or deformation on the washer

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Hinge Washer is an OEM replacement part for Whirlpool refrigerators. This small washer plays a supports the refrigerator door hinge assembly. Center hinge plastic washer.

Causes of a bad hinge washer are generally normal wear and tear from extensive use. As the washer absorbs pressure each time the door is opened or closed, it can gradually deteriorate or crack. Physical damage is also possible if the door is accidentally struck or slammed.

Symptoms of a worn or damaged hinge washer include:

• sagging doors
• uneven gaps around the door seal
• doors that do not stay securely closed on their own
• Over time and repeated opening/closing stress, the hinge washer compresss which affects door alignment.

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The Hinge Pin is an OEM part for Whirlpool refrigerators. This part allows the door to open and close smoothly, providing a durable pivot point for the door's movement.

Over time, hinge pins can wear down or become damaged due to the constant stress of door movement, improper alignment, or accidental force applied to the door. A compromised hinge pin can lead to issues such as difficulty in opening or closing the door, a door that hangs unevenly or doesn't seal properly, and increased wear on other door components.

Symptoms of a bad Hinge Pin include:

• Squeaking or resistance when opening or closing the door
• The door not closing fully or sealing properly
• Visible wear or damage to the pin
• The refrigerator or freezer door hanging unevenly

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This shim-hinge is a small replacement hinge spacer used to align and level a refrigerator or freezer door for smooth operation and a proper seal. Restores correct door fit and helps prevent rubbing or uneven closing. What it does

• Positions and spaces the door hinge to correct alignment
• Helps stop door binding, rubbing, or uneven gaps
• Restores proper door sealing to help maintain internal temperature
• Used when hinge wear or misalignment causes sagging or uneven closing

• Disconnect power and empty door of heavy items before starting
• Handle sharp edges and support the door during adjustment to avoid injury or damage
• If alignment issues persist, check hinge pins and mounting surfaces for wear before replacing shims

This leveling screw threads into the appliance base to raise or lower a corner for accurate leveling. Replacing a worn or stripped screw helps restore a solid stance and reduces rocking, vibration, and related noise. What it does:

• Provides height adjustment to properly level the appliance on uneven floors
• Helps minimize rocking, excessive vibration, and rattling noises
• Supports correct door/closure alignment and smooth operation
• Typical symptoms of a failed screw include stripped threads, difficulty adjusting, or the unit not holding level

• Leveling screw

• Disconnect power and, if applicable, shut off water before servicing
• Protect flooring and have a helper steady the appliance to prevent tipping
• Remove the old screw and thread in the new one; adjust height as needed
• Use a bubble level and recheck all corners for a stable, even stance

This leveling leg threads into the base to steady and properly level your appliance. Correct leveling helps doors align and seal and reduces rocking and vibration for quieter operation and better overall performance.

• Supports and levels the cabinet on uneven floors
• Helps doors align and close/seal correctly
• Reduces rocking, vibration, and rattling noises
• Restores stability when a foot is cracked, stripped, or missing

• Disconnect power before servicing; turn off water supply if moving a refrigerator
• Protect floors and get assistance to carefully tilt or reposition the unit if needed
• Thread the new leg by hand, then fine-tune height with a wrench while checking level front-to-back and side-to-side
• Adjust both sides gradually; do not overtighten or force if threads feel cross-bound

This small metallic flat washer provides a secure bearing surface between fasteners and appliance components to help distribute load and resist loosening. Ideal when replacing worn or missing washers on laundry appliance assemblies. What it does:

• Distributes clamping force from a bolt or nut to prevent damage to softer components
• Helps keep fasteners tight and reduces the chance of loosening from vibration
• Restores proper spacing where a washer has corroded or been lost
• Commonly replaced when you see loose panels, rattles, or misaligned parts near fastener locations

• Verify washer size and thickness match the original before installation
• Use appropriate fastener and torque specifications for your model
• Replace any corroded or damaged fasteners at the same time for best results
• Disconnect power and follow basic safety procedures when working on the appliance

Color: White

Color: Black
