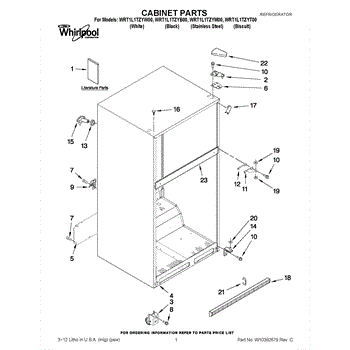

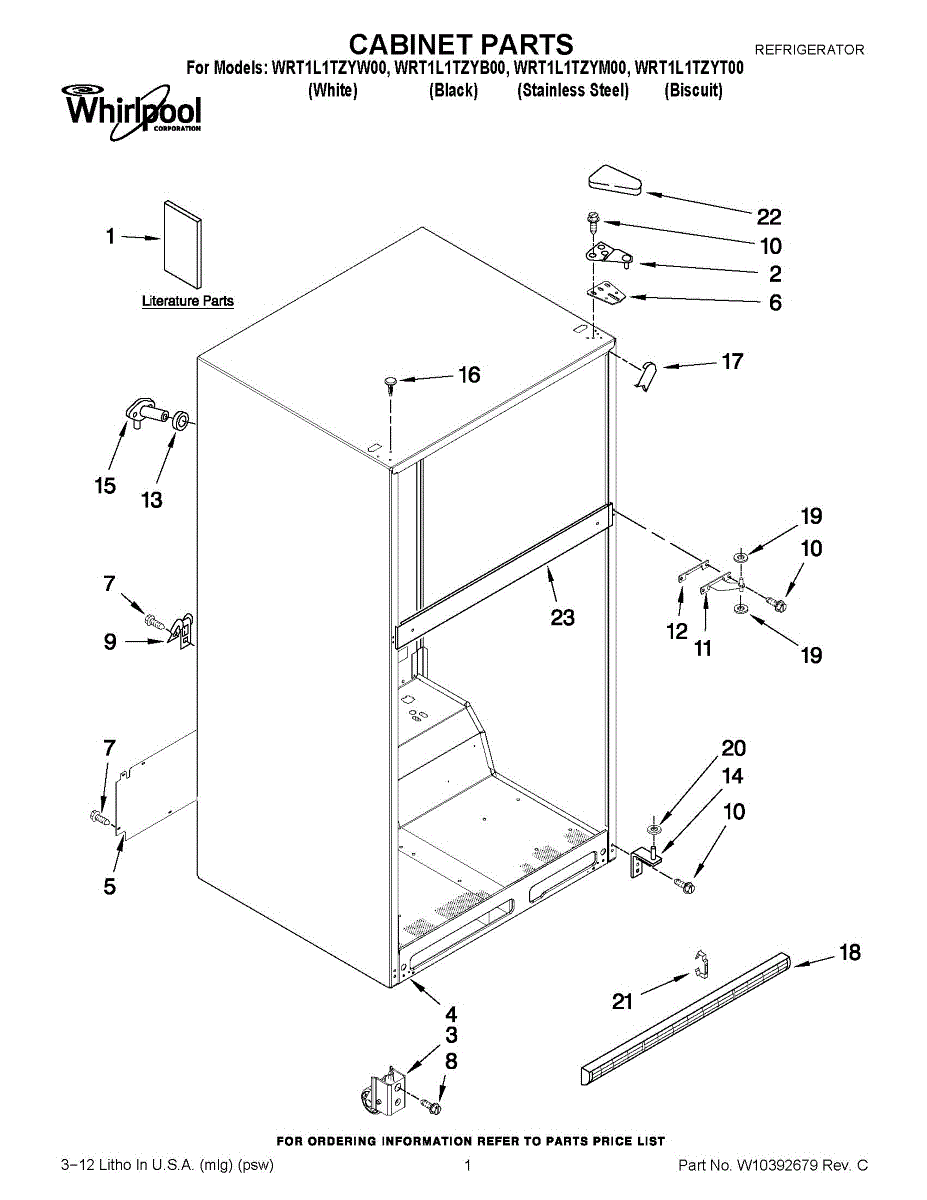

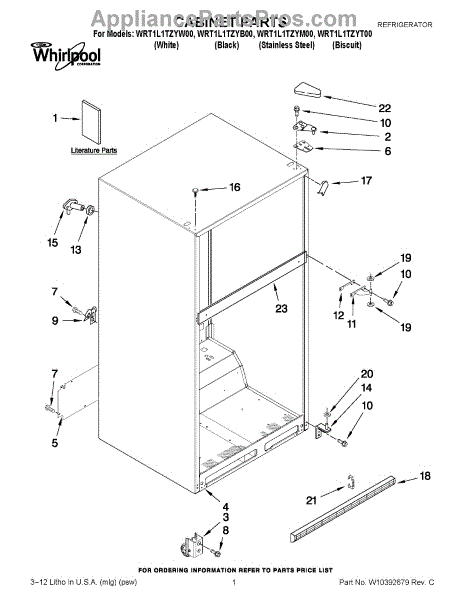

Parts for Whirlpool WRT1L1TZYM00: 01 - Cabinet Parts

This top door hinge is the butt hinge assembly that mounts to the cabinet at the top of the refrigerator door, supporting the door and allowing smooth swing. Replacing a worn hinge restores alignment and a reliable seal.

• Provides the upper pivot point for the door
• Keeps the door aligned so the gasket seals correctly
• Wear or damage can cause sagging, rubbing, squeaks, or a door that won't close fully
• Helps reduce air leaks and temperature swings near the door

• Disconnect power and remove items from the door to reduce weight
• Support the door from below; remove the hinge cover and mounting screws
• Note the position of any shims/spacers and transfer them to the new hinge
• Reinstall, align the door, tighten screws, and ensure proper gasket contact

This cabinet roller helps a door or pull-out drawer roll smoothly along its track for consistent, quieter operation. It replaces a worn or damaged roller to restore even movement and reduce scraping or sticking. What it does:

• Supports and guides a door or drawer along its track for proper alignment and motion
• Reduces noise and friction from worn or damaged rollers
• Helps eliminate sticking, scraping, or uneven travel during opening/closing
• Restores consistent operation when the original roller is cracked, broken, or missing

• One cabinet roller

• Disconnect power to the appliance before beginning any repair
• Inspect the track and surrounding components for wear or debris; clean as needed
• Many rollers snap or screw into place; use appropriate tools and avoid forcing parts

This replacement cover-unit restores the appliance's exterior housing and protects internal components from dust and damage. It helps maintain proper fit and appearance while keeping electrical and mechanical parts enclosed for safe operation. What it does:

• Replaces a cracked, warped, or missing housing cover to restore the cabinet's fit and finish
• Shields internal components from dust, lint, and accidental contact
• Helps reduce vibration-related rattles caused by loose or damaged panels
• Restores a secure mounting surface for adjacent panels and controls

• Disconnect power to the appliance before beginning any repair
• Basic hand tools typically required; follow model-specific disassembly steps
• Handle edges carefully to avoid scratches or cuts and to protect painted surfaces

This shim is a thin flat spacer used to align or space appliance components for proper fit and stable operation. It restores correct spacing to reduce rubbing, vibration, or misalignment during repairs and maintenance. What it does:

• Provides a precise gap or alignment between panels, housings, or assemblies
• Helps stop rubbing or scraping noises caused by misaligned parts
• Reduces vibration by stabilizing mating surfaces
• Used when replacing worn or missing shims during panel, bracket, or trim repairs

• Disconnect power (and gas, if applicable) before starting any repair
• Position shim between mating surfaces, then secure fasteners snugly—do not over-tighten
• Inspect surrounding parts and fasteners; replace any that are damaged

This is a replacement screw designed to work with a wide range of household appliances. It is used for many purposes in these appliances, from holding body panels together to securing electronics into control boards. However, screws are subject to damage through corrosion, impact, and improper installation/removal. In most cases, the primary damage to this screw is through corrosion – it may become rusted or corroded in place, depending on the appliance and the maintenance provided during its lifespan. The screw may also be stripped or rounded due to improper removal or installation. If the screw is damaged, lost, or corroded in place, it will need to be replaced. In most cases, removal will require nothing more than a Phillips head screwdriver or the appropriately sized socket with a ratchet. However, if the screw is damaged, it may require a tap set to remove it from its mounting location. Note that this is a genuine OEM replacement screw made from durable, high-quality metal, and is sold individually. It fits Whirlpool, Maytag, Roper, Estate, Amana, Crosley, and Thermador appliances. It is used in over 150 machines, ranging from washers and dryers to air conditioners.

This genuine replacement screw secures appliance panels and components for reliable operation. Use it to replace stripped, missing, or corroded fasteners and restore proper fit and alignment for safe appliance use. What it does

• Secures panels, brackets, and small components to restore proper alignment and reduce vibration
• Replaces stripped or missing fasteners that can cause loose parts or rattling
• Helps maintain safe electrical and mechanical connections by holding components in place
• Works wherever the original matching screw was used on the appliance

• Disconnect power and water before beginning any repair
• Use the correct driver bit to avoid cam-out and head damage
• Tighten securely but avoid overtightening to prevent stripping threads or cracking plastic
• If threads are damaged, replace mating hardware or use appropriate repair inserts rather than forcing the screw

A factory fastener used to secure appliance components and panels. Replacing a missing, rusted, or stripped screw restores a solid, rattle-free fit and helps keep brackets, housings, and covers properly aligned for reliable operation.

• Fastens and holds panels, brackets, or internal components in place
• Helps maintain alignment and reduce vibration or rattling noises
• Direct replacement for a lost, corroded, stripped, or damaged fastener
• Restores proper fit when a component has loosened over time

• Unplug the appliance; also shut off gas and/or water supplies before servicing
• Match to the original screw and start threading by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• If multiple screws secure a part, start all screws before fully tightening to ensure even seating

The Center Door Hinge is an OEM replacement part for Whirlpool refrigerators. As one of several hinges supporting each refrigerator door panel, it works to guide opening and closing movements.

Causes of a faulty center hinge tend to be wear from years of continuous operation with near-daily door cycles. Complete failure could also occur in the event of physical damage sustained during a repair or installation issue.

Symptoms include:

• Looseness, wobbling, or misalignment of the associated door
• Increased effort required to open or close doors
• Potential for doors to fall off alignment, cease opening fully
• Risk of door detachment altogether without hinge support

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

This small shim installs on the refrigerator's center hinge pin to set door height and reduce excess play. Replacing a worn spacer can help restore smooth door movement and a reliable gasket seal. What it does:

• Maintains proper spacing at the center hinge to support door alignment
• Reduces door wobble, sagging, or rubbing against the cabinet
• Helps doors open and close smoothly with consistent gasket contact
• Can lessen clicking or squeaking from a worn hinge interface

• Includes the center hinge spacer only

• Unplug the refrigerator or switch off power at the breaker
• Remove items from the door; support the door before loosening center hinge screws
• Lift the door off; place the new spacer on the center hinge pin in the same orientation as the original
• Reinstall the hinge and door; tighten fasteners and verify door alignment and gasket seal

This gasket/seal creates a tight barrier between two mating parts in your appliance to prevent leaks and performance loss. Replacing a worn gasket restores proper sealing and helps stop seepage at the joint. What it does

• Forms a reliable seal between components to prevent fluid or air leaks
• Maintains proper operation by keeping the sealed area contained
• Replaces gaskets that are brittle, cracked, flattened, or swollen
• Common signs include residue or moisture around the joint, visible wear on the old gasket, or a loose/poor seal

• 1 gasket/seal

• Disconnect power and any water or gas supply before servicing
• Note the gasket's orientation; compare old and new parts before installation
• Clean and dry mating surfaces; remove old adhesive and debris
• Seat the gasket evenly; do not overtighten fasteners; test for leaks after reassembly

This lower door hinge supports the refrigerator door at the bottom pivot so it opens smoothly and stays properly aligned. Replacing a worn hinge can restore reliable door closure and help maintain an effective gasket seal.

• Provides the bottom pivot point and supports the door's weight
• Helps keep the door aligned for proper gasket contact
• Allows smooth opening and closing without binding
• Common symptoms of a failing hinge: door sagging, rubbing/scraping, squeaking, or not closing fully

• Disconnect power and, if applicable, shut off the water supply; remove items from the door.
• Support the door, remove the top hinge hardware, and lift the door off the bottom hinge.
• Remove the old bottom hinge from the cabinet/frame and install the new hinge in the same orientation, reusing original screws/shims.
• Reinstall the door and top hinge, then check alignment and gasket seal before restoring power.

The Icemaker Fill Tube Fitting is an OEM part for Whirlpool refrigerators. This part connects the water supply line to the icemaker, ensuring a seamless and leak-free delivery of water into the icemaker mold.

Causes of a bad Icemaker Fill Tube Fitting can include wear and tear over time, mineral buildup from hard water, which can block the water flow or damage the fitting, and improper installation that may lead to leaks or restricted water flow.

Symptoms of a bad Icemaker Fill Tube Fitting include:

• Water leakage at the connection points, leading to potential water damage or ice buildup in the freezer
• Insufficient ice production if the fitting is partially blocked or not properly connected, restricting water flow to the icemaker
• Unusual noise during the icemaker fill cycle, indicating a potential issue with the fitting

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This hole plug covers and protects unused mounting or access holes on the appliance cabinet or trim, giving a finished appearance and preventing dirt or moisture from entering. It's a simple cosmetic and protective replacement. What it does:

• Covers exposed holes in panels, trim, or end caps to improve appearance
• Helps keep out dirt, moisture and small debris from unused openings
• Restores a clean, finished edge after part removal or repair
• Commonly used where a small plastic plug is pressed into a hole for a flush fit

• One hole plug

• Press into the opening until flush; no tools required for most installations
• Ensure the hole is clean and dry before installing for best fit
• Replace only with the correct size plug to avoid loose fit or damage
• Disconnect power and follow appliance safety guidelines if working near electrical components

Color: white.

This filler is a trim piece that fills the gap between the appliance and surrounding cabinetry for a finished look and to keep debris out of tight spaces. It restores proper fit and appearance after removal or damage. What it does:

• Covers the gap between the appliance and cabinets to improve appearance
• Prevents small items and debris from getting trapped in the gap
• Restores proper alignment and sealing where trim has been lost or damaged
• Useful when replacing panels or re-installing the appliance

• One filler trim piece as shown

• Designed for simple, non-technical replacement; typically snaps or screws into place
• Turn off and disconnect the appliance power before accessing mounting areas
• Keep fasteners from original installation; replace only with matching hardware if needed

This filler wrapper corner is a small trim piece that restores the finished edge and alignment where two panels meet, helping keep the appliance looking finished and reducing gaps or rubbing between surfaces. What it does

• Covers and finishes the outer corner where filler/trim panels meet for a clean appearance
• Helps maintain panel alignment and keeps adjacent parts from rubbing or catching
• Reduces visible gaps that can collect dirt or moisture
• Commonly replaced when corner trim is cracked, broken, or missing

• One filler wrapper corner

• Disconnect power to the appliance before beginning any repair
• Handle trim pieces gently to avoid cracking; pry or loosen adjacent trim panels as needed
• May require removing outer panels or adjacent trim fasteners for access
• Work slowly and use non-marring tools to avoid damaging surrounding finishes

The Hinge Washer is an OEM replacement part for Whirlpool refrigerators. This small washer plays a supports the refrigerator door hinge assembly. Center hinge plastic washer.

Causes of a bad hinge washer are generally normal wear and tear from extensive use. As the washer absorbs pressure each time the door is opened or closed, it can gradually deteriorate or crack. Physical damage is also possible if the door is accidentally struck or slammed.

Symptoms of a worn or damaged hinge washer include:

• sagging doors
• uneven gaps around the door seal
• doors that do not stay securely closed on their own
• Over time and repeated opening/closing stress, the hinge washer compresss which affects door alignment.

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The Hinge Washer is an OEM part for Whirlpool refrigerators. This part ensures smooth opening and closing by reducing friction between the door hinge and the refrigerator body.

Causes of a bad hinge washer can include normal wear and tear from frequent use, accumulation of dirt or debris, and exposure to moisture, which can lead to rust and corrosion.

Symptoms of a bad hinge washer include:

• Difficulty in opening or closing the refrigerator door
• A door that does not stay in place
• Squeaking or grinding noises when the door is moved
• Visible wear or deformation on the washer

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This small hinge cover caps and secures the appliance lid/cover hinge, restoring proper alignment and preventing wear on the hinge joint for smoother opening and closing. What it does:

• Protects the hinge pivot and keeps the cover seated correctly
• Helps prevent looseness, wobble, or misalignment of the lid/cover
• Reduces metal-on-metal wear and guards against rubbing or rattling noises
• Restores normal lid movement when the original hinge cover is cracked, missing, or worn

• Disconnect power to the appliance before starting any work
• Remove any screws or trim panels that block access to the hinge; keep fasteners for reassembly
• Handle plastic components carefully to avoid cracking; align before tightening
• If other hinge hardware is damaged or loose, inspect and replace as needed for a complete repair

This hinge cover conceals and protects the door hinge area, providing a clean, finished look while helping keep dust and debris out. The black finish matches compatible appliances for a seamless appearance.

• Covers the door hinge to protect hardware and improve appearance
• Helps prevent dust and debris from entering the hinge area
• Common fix when the original cover is cracked, broken, loose, or missing
• Cosmetic part; does not correct door alignment issues caused by hinge wear

• Unplug the appliance before beginning any repair
• Open the door and remove any visible screws or clips securing the cover
• Lift off the old cover and align the new cover over the hinge
• Reinstall screws/clips and verify the cover is seated securely

This hinge cover replaces a damaged or missing hinge trim to protect and conceal the hinge assembly and restore the appliance's finished appearance. It fits over the hinge area and helps reduce dirt buildup and exposed hardware. What it does:

• Covers and protects hinge hardware, hiding screws and sharp edges
• Helps keep dirt, lint, and moisture out of the hinge area
• Restores the appliance's original, finished look
• Common symptoms: cracked, broken, or missing cover; exposed hinge hardware; cosmetic damage or debris buildup

• Refer to your model diagram for correct orientation and fastener locations
• Basic hand tools may be required; some models need the hinge loosened or partially removed
• Disconnect power and/or unplug the appliance before starting work when applicable
• Handle edges carefully to avoid cuts; follow OEM instructions for reassembly
