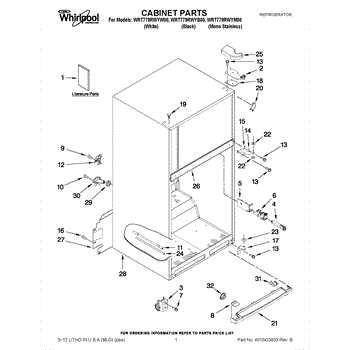

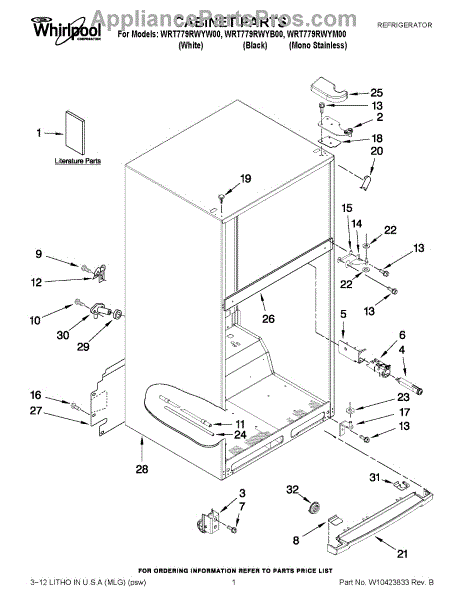

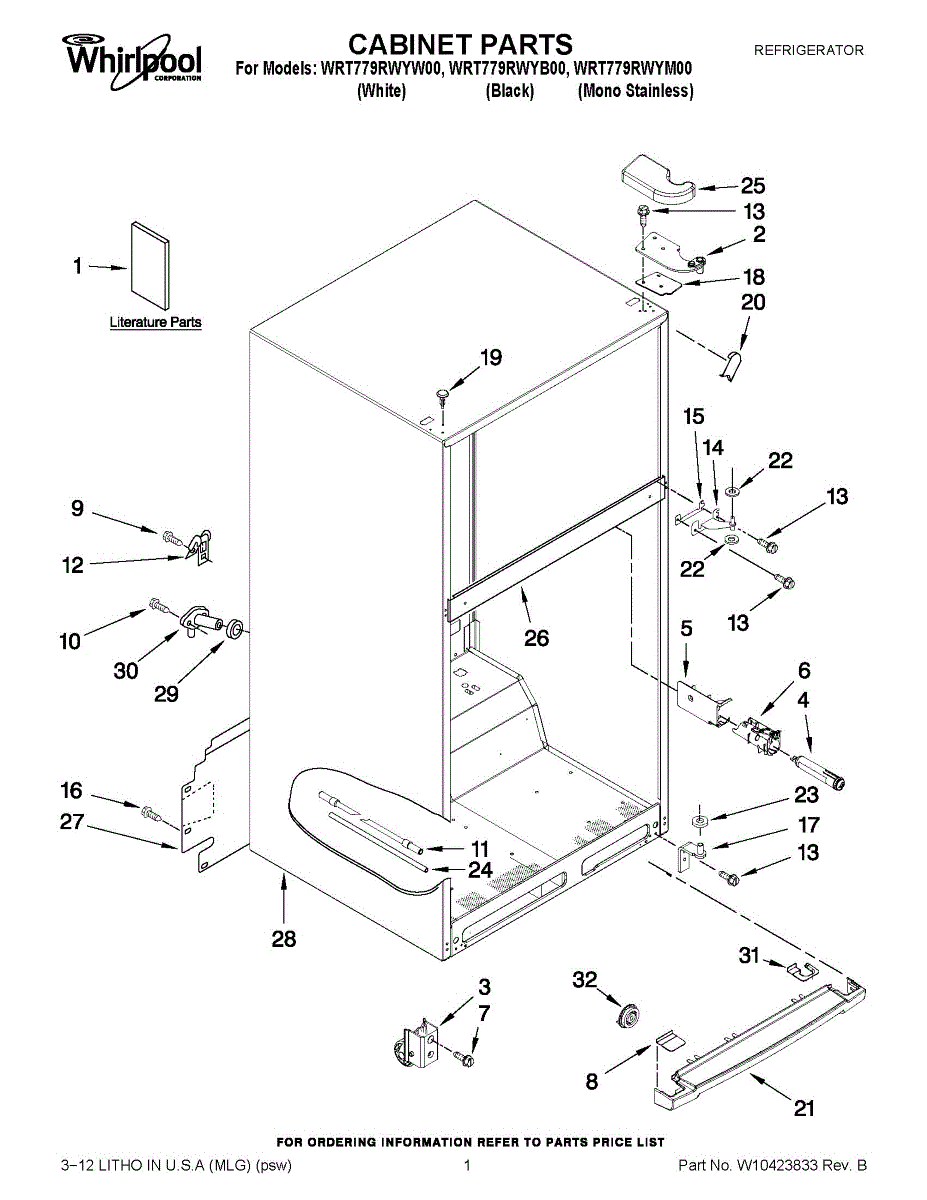

Parts for Whirlpool WRT779RWYM00: 01 - Cabinet Parts

Purifies circulating air in your refrigerator to reduce odors. Replace every 6 months for optimal freshness. Verify fit with your model number.

Repair manual for refrigerators and freezers made by Whirlpool. Covered brands include Whirlpool, Sears, Kenmore, Kitchen Aid, Roper, and Estate. Easy to follow photographs and step-by-step repair procedures.

Top door hinge assembly mounts at the upper corner of your refrigerator door to support and pivot the door. Replace if cracked, worn, or causing misalignment.

This cabinet roller helps a door or pull-out drawer roll smoothly along its track for consistent, quieter operation. It replaces a worn or damaged roller to restore even movement and reduce scraping or sticking. What it does:

• Supports and guides a door or drawer along its track for proper alignment and motion
• Reduces noise and friction from worn or damaged rollers
• Helps eliminate sticking, scraping, or uneven travel during opening/closing
• Restores consistent operation when the original roller is cracked, broken, or missing

• One cabinet roller

• Disconnect power to the appliance before beginning any repair
• Inspect the track and surrounding components for wear or debris; clean as needed
• Many rollers snap or screw into place; use appropriate tools and avoid forcing parts

If your refrigerator's water filter is loose or leaking, this filter cover secures the filter element and maintains proper water flow. Simple install.

Secures and seals your refrigerator's water filter. Replace if cracked, leaking, or filter won't seat properly. Confirm fit with your model number.

Replace stripped, missing, or corroded mounting screws in your refrigerator or freezer. Secures panels, brackets, and components for proper fit.

Decorative end cap that covers the edge of the refrigerator's front grille. Replace if cracked, broken, or missing for a clean, finished look.

This black plastic grille covers the toe kick area at the bottom front of your refrigerator, providing a finished appearance while allowing airflow to the condenser. It replaces a damaged, cracked, or missing lower front cover that may cause poor cooling performance or an unsightly gap.

Replace a cracked, broken, or missing grill end cap on your refrigerator. This trim piece installs at the end of the base grille for a finished look.

Size: 8-18 x 1/2 inch.

Replacement fastener screw for appliances. Secures panels, trim, clips, and components. Needed when original screws are stripped, missing, or damaged.

Factory screw secures panels, brackets, and internal components in refrigerators and freezers. Replace missing, rusted, or stripped screws for secure fit.

Center door hinge connects and supports refrigerator doors. Replace if bent, broken, or lost during moving. Guides smooth door operation and alignment.

Center hinge spacer maintains proper door alignment and spacing. Replace if your refrigerator door sags or seal fails. Confirm fit with your model.

This is a replacement screw designed to work with a wide range of household appliances. It is used for many purposes in these appliances, from holding body panels together to securing electronics into control boards. However, screws are subject to damage through corrosion, impact, and improper installation/removal. In most cases, the primary damage to this screw is through corrosion – it may become rusted or corroded in place, depending on the appliance and the maintenance provided during its lifespan. The screw may also be stripped or rounded due to improper removal or installation. If the screw is damaged, lost, or corroded in place, it will need to be replaced. In most cases, removal will require nothing more than a Phillips head screwdriver or the appropriately sized socket with a ratchet. However, if the screw is damaged, it may require a tap set to remove it from its mounting location. Note that this is a genuine OEM replacement screw made from durable, high-quality metal, and is sold individually. It fits Whirlpool, Maytag, Roper, Estate, Amana, Crosley, and Thermador appliances. It is used in over 150 machines, ranging from washers and dryers to air conditioners.

Supports the refrigerator door at the bottom pivot point. Replace if your hinge is rusted, bent, cracked, or broken to restore proper door alignment.

Corrects hinge spacing to realign refrigerator doors and eliminate rubbing or uneven gaps. Replace when doors lean, don't close squarely, or show poor seal contact. Verify fit by model number before ordering.

Color: white.

Black plastic hole plug endcap for refrigerator interior panels. Covers mounting holes and openings for a finished look. Replaces missing or broken caps.

Grey button plug cap for refrigerators and freezers. Covers screw holes or mounting points on interior or exterior panels. Replace if cracked or missing.

Covers seam gaps near door hinges on refrigerator cabinets. Replace if missing, peeling, or damaged to prevent air leaks and maintain appearance.

Cabinet filler trim closes the gap between your refrigerator and surrounding cabinetry. Replace if cracked, broken, or missing to restore appearance.

Trim piece that covers and finishes the outer corner where filler panels meet on your refrigerator. Replace if cracked, broken, or missing.

Front grille for bottom-mount refrigerators. Replaces cracked, broken, or missing grilles. Covers and protects the lower front section.

Replace a cracked or missing toe grille to restore your refrigerator's finished appearance and maintain proper airflow to the condenser compartment below.

Black toe grille panel for bottom-mount refrigerators. Covers the base opening and leveling feet. Replace if cracked, broken, or clips are damaged.

Small plastic washer that supports the refrigerator door hinge assembly. Replace if worn, cracked, or missing to restore proper door alignment.

Plastic washer that fits between the door hinge and cabinet body. Replace if cracked, worn, or missing to restore smooth door operation and alignment.

Water tube for refrigerators. Connects water supply lines within the door or cabinet. Replace if tube is cracked, kinked, leaking, or damaged.

Replacement hinge cover cap for refrigerator door. Restores finished appearance after door reversal or replaces cracked, broken, or missing covers.

Replacement access panel cover for refrigerators. Installs on exterior to protect internal wiring and components. Needed when original is cracked or missing.

Replace your refrigerator's damaged or missing cover cap. This protective cover installs over internal components to restore a finished appearance.

Outer housing cover that encloses internal components on your refrigerator. Replace if cracked, broken, or missing to restore protection and appearance.

Seals refrigerator door to prevent air leaks and temperature loss. Replace when worn, cracked, or no longer forming a tight seal. Verify fit by model.

The Icemaker Fill Tube Fitting is an OEM part for Whirlpool refrigerators. This part connects the water supply line to the icemaker, ensuring a seamless and leak-free delivery of water into the icemaker mold.

Causes of a bad Icemaker Fill Tube Fitting can include wear and tear over time, mineral buildup from hard water, which can block the water flow or damage the fitting, and improper installation that may lead to leaks or restricted water flow.

Symptoms of a bad Icemaker Fill Tube Fitting include:

• Water leakage at the connection points, leading to potential water damage or ice buildup in the freezer
• Insufficient ice production if the fitting is partially blocked or not properly connected, restricting water flow to the icemaker
• Unusual noise during the icemaker fill cycle, indicating a potential issue with the fitting

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Plastic end cap that attaches to the side of the refrigerator's front grille. Replace if cracked, broken, or missing for a complete finished look.

Mounting clip for refrigerators. Secures components in place. Replace if broken, cracked, or missing to restore proper fit and function.
