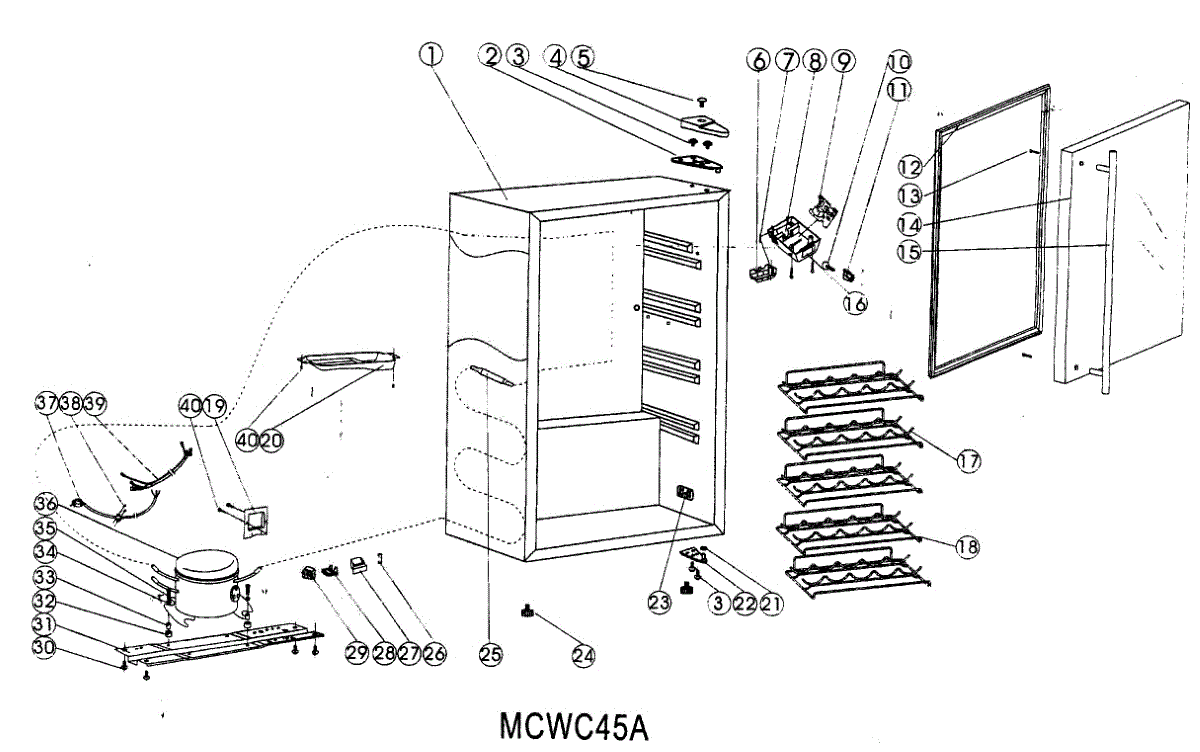

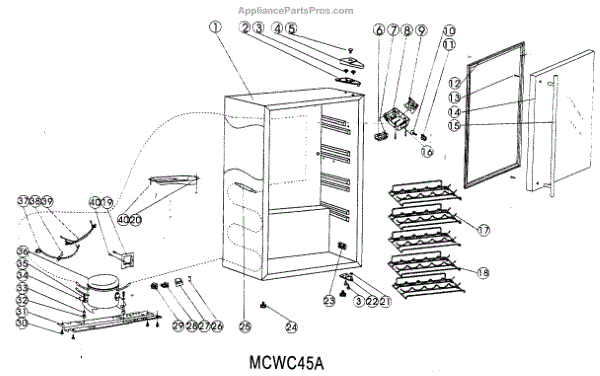

Parts for Magic Chef MCWC45A: Cabinet Parts

This thermostat is a temperature-control switch used to regulate cooling cycles in refrigeration units, restoring consistent temperature regulation and helping prevent food spoilage. It replaces a failed or intermittent temperature switch to return reliable operation. What it does:

• Senses cabinet temperature and opens/closes the circuit to start or stop the compressor.
• Stops excessive run time when the set temperature is reached, improving cooling consistency.
• Common symptom: refrigerator or freezer not maintaining proper temperature or running constantly.
• Common symptom: unit cycles on and off irregularly or fails to start.

• One thermostat (312180100024 / AP5986622).

• Disconnect power before servicing to avoid shock or injury.
• Replace the thermostat with the same type and mounting orientation; note wire locations before disconnecting.
• Handle capillary tube carefully; kinks or damage can prevent proper operation.
