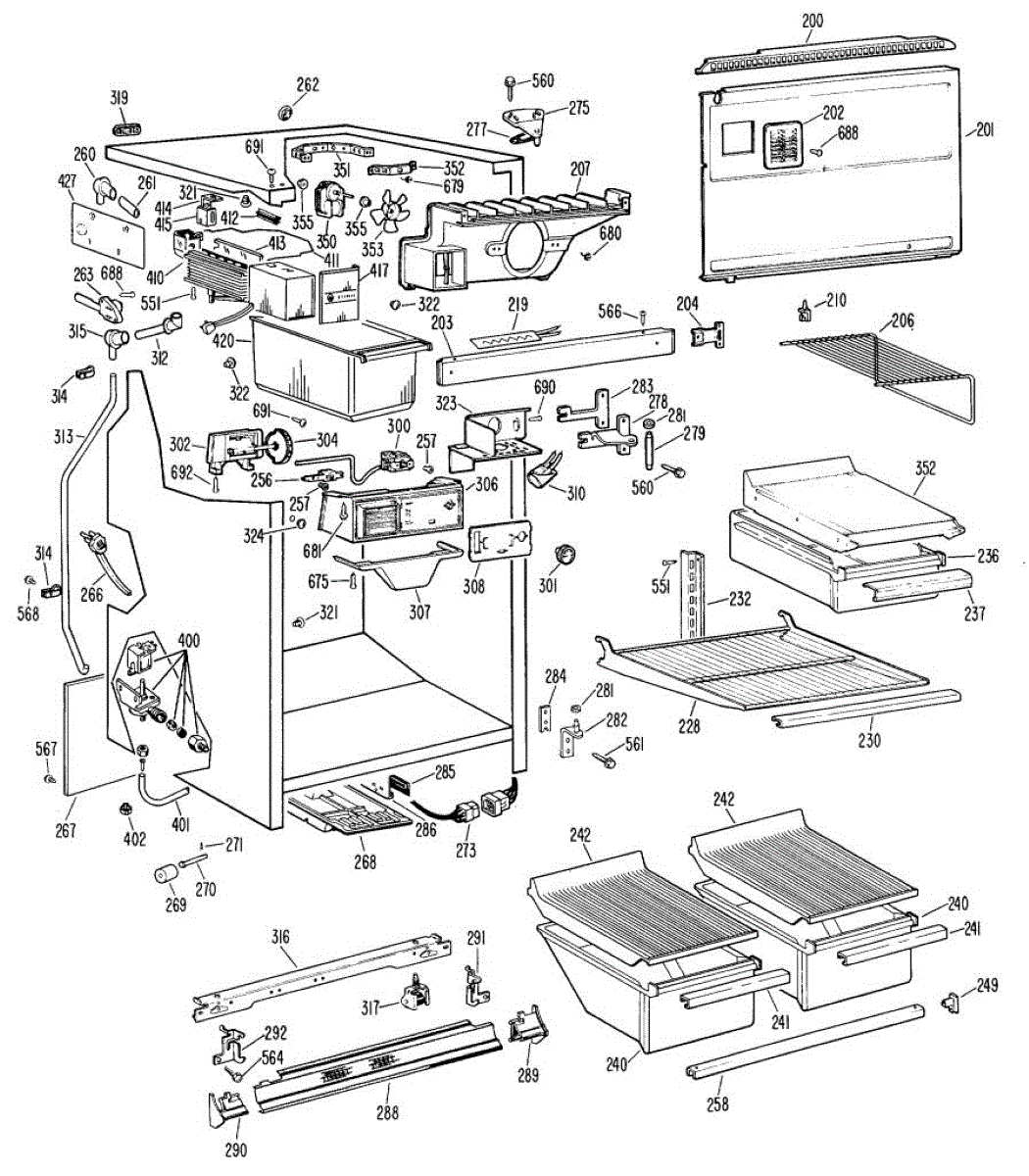

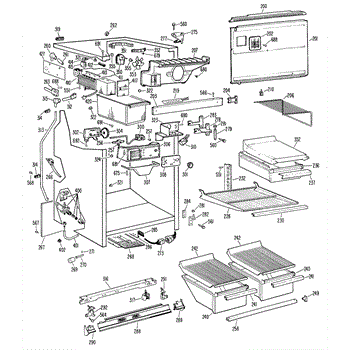

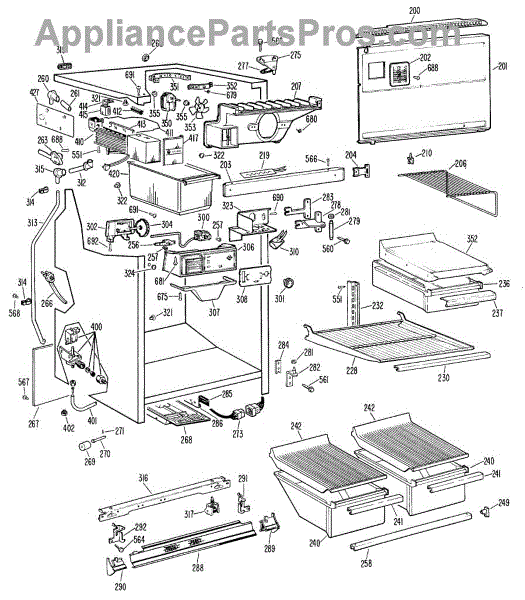

Parts for Ge TBFM17VAB: 02 - Section2 Parts

The Cover, Crisper Drawer is an OEM part for GE refrigerators. This cover sits on top of the crisper drawer, providing a sturdy surface for items stored in the refrigerator while also helping to maintain optimal humidity levels within the drawer. It is designed to fit securely and support the items placed on top of it, ensuring efficient use of storage space.

Causes of a bad cover can include wear and tear from regular use, accidental impact from heavy items, or stress fractures from overloading the drawer.

Symptoms of a bad crisper drawer cover include:

• Visible cracks or breaks in the cover
• Difficulty sliding the crisper drawer in and out
• Items not sitting level on top of the cover

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This cable clamp secures refrigerator wiring to the cabinet, keeping harnesses organized and protected. Replacing a missing or damaged clamp helps prevent chafing and vibration noise while maintaining proper clearance from fans and other moving components.

• Anchors wire harnesses in their designed routing
• Helps prevent insulation wear from rubbing or vibration
• Keeps wires clear of sharp edges and moving parts
• Common signs it's needed: missing/broken clamp, loose or dangling wires, or new rattling/buzzing noises

• Disconnect power before servicing
• Access the clamp location and note original wire routing
• Position the clamp and secure with the existing fastener; do not overtighten
• Ensure wires aren't pinched and have clearance from the fan/compressor before restoring power

This power cord assembly supplies electrical power from the wall outlet to your refrigerator. Replace a cut, frayed, or overheated cord to restore safe, reliable operation and eliminate intermittent power loss caused by a damaged cord. What it does:

• Provides the electrical connection between the household outlet and the refrigerator's wiring
• Helps resolve no-power or intermittent power when the cord is moved
• Addresses visible damage such as cuts, cracks, fraying, or a melted/discolored plug
• Mitigates arcing, sparking, or a burning odor originating from the cord or plug area

• One power cord assembly

• Disconnect power by unplugging the unit or switching off the circuit breaker before servicing
• Pull the refrigerator forward for access; note the original cord routing and connections
• Install the new cord along the same path and secure any built-in strain relief; ensure the ground connection is properly seated
• Restore power and verify operation

This rear wheel roller replaces a worn or damaged drawer/glide wheel to restore smooth movement and reduce sticking or noise. Durable molded construction fits the rear guide position to help support and steady the sliding drawer or bin. What it does

• Supports and guides the appliance drawer or bin for smooth in-and-out motion
• Replaces cracked, chipped, or worn rear wheel that causes binding or catching
• Helps reduce squeaks and uneven movement from a damaged roller
• Restores proper alignment and load support at the rear glide point

• One rear wheel (roller)

• Disconnect power and remove the drawer/bin per your owner's manual before replacing the wheel
• Typically installs by snapping or sliding into the rear glide bracket; basic hand tools may be needed
• Inspect mating tracks or brackets for damage and clean debris before installing the new wheel

This part has been discontinued and is no longer available.

Temperature control

The Evaporator Fan Motor Kit is an OEM part compatible with GE refrigerators. It is a critical component responsible for circulating air and maintaining proper airflow within the refrigerator's evaporator system, ensuring efficient cooling and temperature regulation. It features a shaft that measures 3/8 of an inch and two right-side terminals. Notably, the motor no longer comes with harness wires, which must be obtained separately for installation.

Symptoms of a faulty evaporator fan motor include:

• Inconsistent or inadequate cooling in the refrigerator or freezer compartments
• Warm spots or temperature fluctuations within the refrigerator
• Excessive frost buildup or ice accumulation in the freezer

Causes of a bad evaporator fan motor can include wear and tear over time, electrical issues or short circuits, or physical damage from foreign objects or improper maintenance.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

This evaporator fan blade mounts on the freezer fan motor and circulates air across the evaporator coils. Replacing a cracked or warped blade restores proper airflow for even cooling and more consistent temperatures throughout the refrigerator.

• Moves chilled air from the evaporator through the ducts to both compartments
• Helps maintain uniform temperatures and overall cooling performance
• Common symptoms of a faulty blade: weak airflow, poor cooling or warm spots, rattling/scraping noises from the freezer, longer run times
• Visual signs include a cracked hub, loose fit on the shaft, or broken/missing vanes

• Disconnect power before servicing
• Remove freezer shelves/ice bin and the rear panel to access the fan assembly
• Pull the old blade straight off the motor shaft; align the hub and press the new blade on until fully seated
• Verify blade orientation and free rotation inside the shroud before reassembly

Single fill valve (round ice cube)

This refrigerator water line is the plastic tubing that routes pressurized water through the appliance's water system. Replacing a cracked, brittle, or kinked line helps restore proper water flow and prevents leaks inside or around the unit.

• Carries water between the inlet valve and the refrigerator's water system components
• Helps maintain a sealed path for reliable flow to the dispenser and/or ice maker
• Replace if tubing is cracked, kinked, brittle, or leaking
• Common symptoms include puddling, dripping, reduced/No water at the dispenser, or ice maker not filling

• Disconnect power and shut off the water supply before servicing
• Note the original routing and clip locations; avoid sharp bends and kinks during installation
• Fully seat tubing into existing connectors/fittings on your model
• Turn water back on, check all connections for leaks, and purge air by dispensing water

This small hardware clamp is used on select refrigerators to secure tubing or wiring to the cabinet or frame. Replaces a missing or damaged clamp to keep lines stable, reduce vibration, and help prevent rubbing or leaks.

• Secures small water tubing or electrical harnesses along the cabinet/frame
• Helps prevent vibration, rattling, and abrasion of lines
• Maintains correct routing to keep lines clear of moving or hot components
• Common clues: loose or noisy lines, chafing marks, or moisture near tubing connections

• Unplug the appliance and shut off the water supply before servicing
• Note the original location and routing; take a photo for reference
• Reuse the existing mounting screw/fastener if required; tighten only enough to hold without crushing tubing
• Restore power and water, then run and inspect for vibration and leaks

This clamp secures small hoses or tubing and nearby wiring inside the appliance to keep lines held in place and reduce rubbing, leaks, or vibration noise. It's a direct-fit replacement designed to restore proper hose routing and stability. What it does:

• Holds water, drain or vent tubing securely to prevent sagging and rubbing that can cause leaks or wear
• Keeps hoses and wires aligned to reduce vibration and rattling during operation
• Helps maintain proper connections at fittings so seals stay seated and drip risk is minimized
• Simple mechanical clip action — no special tools or adhesives required

• Disconnect power and shut off the water supply before starting any repair
• Remove the old clamp and install this clamp in the same orientation; tubing sits fully in the fitting
• Use standard pliers (or the OEM-recommended tool) to compress/seat the clamp; avoid twisting or pinching the tubing
• Inspect surrounding tubing and fittings for wear; replace damaged hoses or seals if found

By GE. Round cube style replacement icemaker assembly. Fits older GE, HotPoint and Sears Kenmore (model prefix 363) refrigerators. Does not include the metal feeler arm, must re-use one from the old icemaker. This part has been discontinued and is no longer available.

Package of 12

Size: 10-16 ab.

Size: 8-32 t. Includes 12 screws.

Replacement screw that secures panels, trim and internal brackets to keep appliance components stable and rattle-free. Use when originals are missing, stripped, or broken to restore proper fit and safe operation. What it does:

• Secures panels, control housings, trim and small brackets so parts stay aligned and stable.
• Replaces missing or damaged fasteners that cause rattling, vibration, or loose assemblies.
• Keeps electrical and mechanical components properly positioned for reliable operation.
• Intended as a direct replacement where the OEM screw specified for the application is required.

• Disconnect power and unplug the appliance before starting any repair.
• Use the correct screwdriver or bit and seat the screw squarely to avoid stripping the head or threads.
• Do not overtighten—stop when snug to prevent damage to panels or plastic components.
• Keep removed screws organized; replace only with the identical OEM screw for proper fit.
