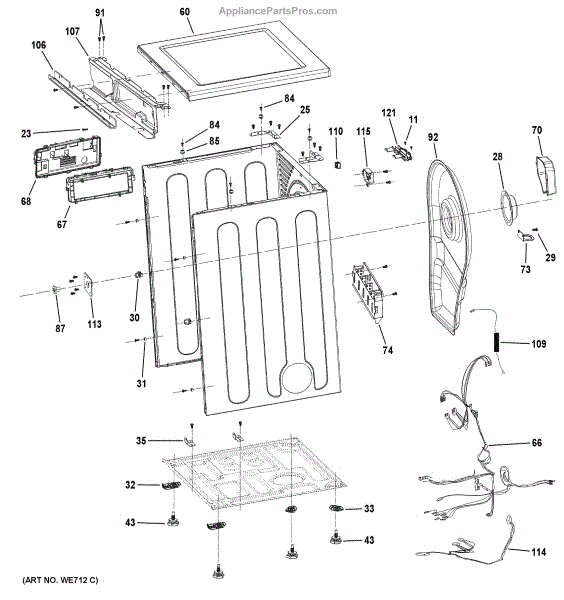

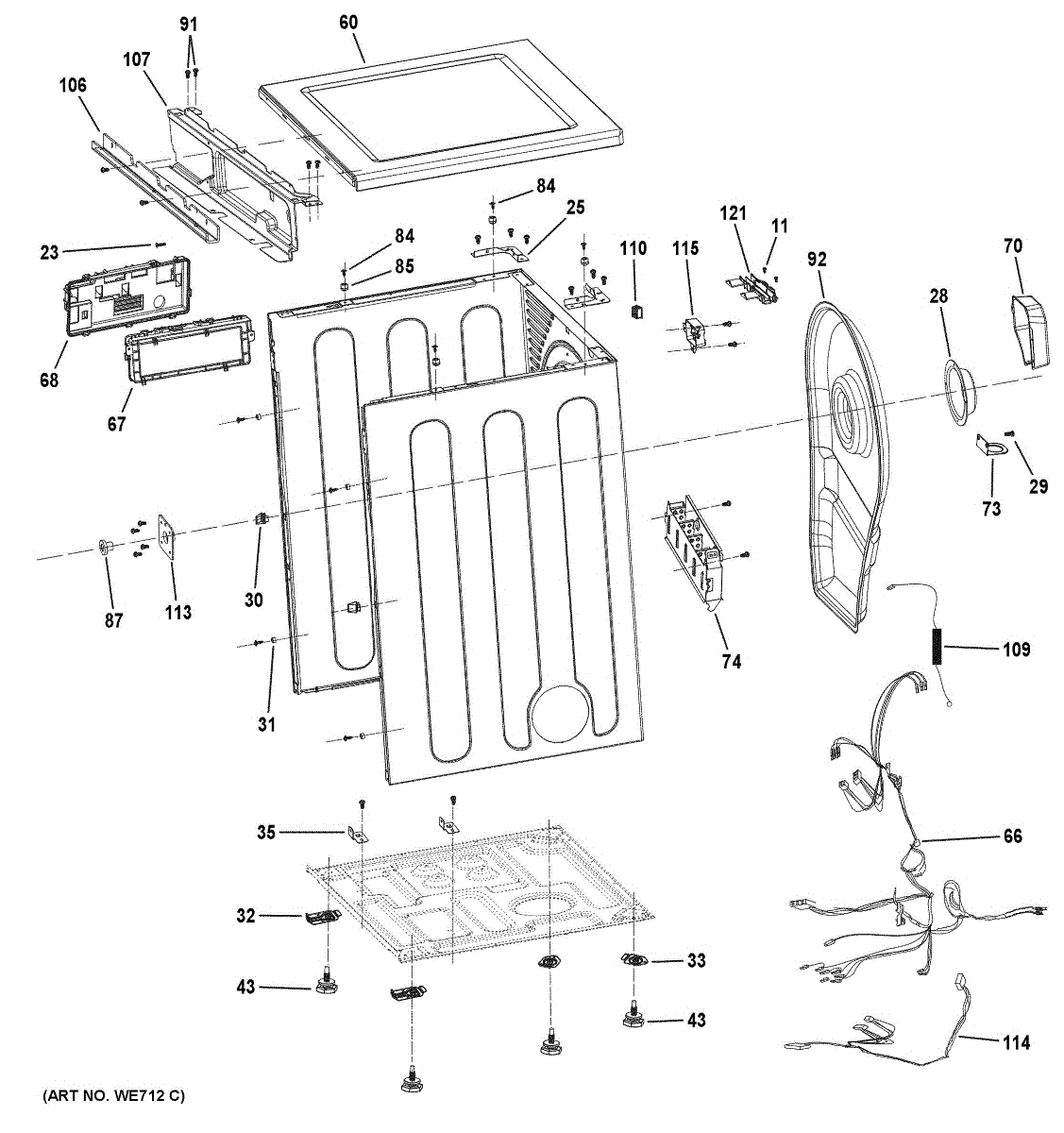

Parts for Ge GFD14ESSN2WW: Cabinet & Top Panel Parts

This guide post screw secures a guide post or mounting bracket inside the appliance, keeping moving parts aligned and stable. Replacing a missing or damaged screw restores secure attachment and reduces unwanted movement or noise. What it does:

• Fastens a guide post or bracket to hold trim, drawer, or moving components in place.
• Keeps parts aligned so doors, drawers or internal assemblies track smoothly.
• Replacing a stripped or missing screw can stop rattling, looseness or parts shifting during operation.
• Small hardware solution for restoring secure mounting where the original screw is damaged or lost.

• Disconnect power before accessing internal components to avoid shock or injury.
• Use the correct screwdriver and size to avoid stripping the head.
• Thread into place carefully and tighten snugly; avoid over-tightening which can strip threads or crack plastic.
• Replace the guide post or mating hardware as well if threads or the mating post are damaged.

This is a genuine control panel position screw used to secure the range or oven control panel so it stays aligned during normal use. Replaces missing or stripped mounting hardware to restore proper panel fit. What it does:

• Secures the control panel to the appliance frame so buttons and displays remain stable
• Helps prevent panel movement that can cause loose connections or misalignment
• Suitable when original screw is lost, rusted, or damaged
• Fits the OEM screw location and threading specified for the panel mount

• One control panel position screw (M4 x 8)

• Use correct screwdriver and magnetic tray to avoid dropping the screw behind the appliance
• Tighten until snug; do not overtighten to prevent stripping the threaded insert
• Disconnect power before working near electrical components or control boards
• Inspect and replace as needed if other mounting hardware is corroded or damaged

This ground screw secures a chassis or component grounding conductor to the appliance frame, restoring a reliable earth connection for safety. It's a direct-fit fastener commonly used where the cabinet ground or wire terminal needs reattachment. What it does:

• Provides a secure point to attach the appliance ground wire to the cabinet or chassis.
• Restores or maintains electrical grounding to help prevent shock hazards.
• Used when original screw is missing, damaged, or corroded and ground continuity is compromised.
• Compatible with typical appliance sheet-metal grounding points.

• Turn off and disconnect power before inspecting or working on appliance wiring or grounding connections.
• Use appropriate screwdriver and tighten until snug; avoid over-torquing which can strip threads or damage sheet metal.
• Verify ground continuity with a multimeter after installation and restore any protective panels before powering appliance.

This replacement front panel clip secures the appliance's outer front panel to the cabinet, restoring a flush fit and preventing rattles or sagging. Designed to match the OEM mounting location and attachment style for a clean finish. What it does:

• Secures the front exterior panel to the appliance cabinet so the panel stays aligned and stable
• Prevents panel movement, vibration noise, and visible gaps around the door or console
• Restores proper panel fit after broken, worn, or missing clips
• Matches OEM attachment points and holds the panel in the correct position

• High-level replacement: remove any trim or screws needed to access the broken clip location before installing the new clip
• Use common hand tools; avoid forcing the clip to prevent damage to the panel or cabinet
• Disconnect power at the breaker if working near electrical components or controls
• If multiple clips are damaged, replace all affected clips for even panel alignment

This adjustable leveling leg replaces a worn or damaged refrigerator foot to stabilize and level the appliance for proper door alignment and operation. It restores firm, adjustable support at one corner of the cabinet. What it does:

• Replaces a broken, stripped, or missing leveling foot that lets the appliance wobble or sit unevenly
• Allows height adjustment to level the refrigerator so doors close and seal correctly
• Provides a secure support point to keep the cabinet steady on uneven floors
• Helps reduce vibration and rocking that can affect operation and noise

• One adjustable leveling leg

• Disconnect power and remove food from door area or support the cabinet before working under the unit
• Access and remove the old leg from the corner, then thread in the new leg and adjust height as needed
• Use a wrench or pliers on the leg while checking level with a carpenter's level; avoid forcing threads

This front leveling leg bracket secures the leveling leg to the appliance's front base, restoring stable, even positioning and preventing rocking or uneven operation. Use it when the front support is damaged, bent, or missing. What it does:

• Supports and anchors the front leveling leg to the range or oven frame
• Restores correct appliance height and balance when a bracket is broken or worn
• Reduces rocking, tipping risk, and uneven cooking caused by an unstable front foot
• Works with the existing leveling leg and rear supports to stabilize the appliance

• One front leveling leg bracket

• Turn off and unplug the appliance (or disconnect power) before starting work
• Use appropriate hand tools; tighten fasteners securely but avoid overtightening

A rear leveling leg bracket that supports and stabilizes the back of a range or oven, helping keep the appliance level for safe, even cooking. It replaces a worn or broken rear support bracket. What it does:

• Provides a mounting point for the appliance's rear leveling leg so the unit sits level
• Restores stability and reduces rocking or uneven movement
• Helps ensure proper door alignment and sealing by keeping the appliance square
• Prevents excessive vibration that can affect operation

• One rear leveling leg bracket

• Disconnect power (and gas if applicable) and pull the appliance away from the wall before starting
• Support the appliance's weight while removing or installing the bracket to prevent tipping
• Use appropriate hand tools and keep fasteners; replace any damaged mounting hardware

The Control Board is an OEM part for GE dryers. As the central electronics module, it regulates all dryer functions and operations during cycles. The control board receives input from temperature sensors and buttons to distribute power accordingly.

Causes of a bad control board can include normal wear over time, water damage, electrical faults that arise with many uses, or physical impacts. Prolonged exposure to high heat cycles can sometimes lead to component failures or short circuits that disrupt proper functioning.

Symptoms of a bad control board include:

• The dryer failing to start or operating unpredictably
• Display/button malfunctions where settings cannot be accessed
• Inability to progress fully through cycles
• Erratic stopping, hanging, or inconsistent behaviors

This OEM GE replacement control board restores full and intended operation to the dryer. This part is compatible with some Hotpoint, RCA, and select Kenmore dryer models.

This terminal block cover encloses the dryer's rear power-cord connection. Replacing a missing or damaged cover keeps wiring protected and helps prevent accidental contact with the terminals.

• Covers and shields the terminal block and cord connections at the back of the dryer
• Helps keep dust, debris, and fingers away from live electrical terminals
• Restores proper enclosure when the original cover is broken, warped, or missing
• Common symptoms: missing/broken cover, exposed connections, cover will not stay secured

• Disconnect power by unplugging the dryer or switching off the circuit breaker
• Access the rear of the unit; remove the old cover and retain hardware if reusable
• Position the new cover over the terminal block and secure with the appropriate fasteners per the product manual
• Ensure cord strain relief and connections are properly secured before restoring power

This power cord conduit bracket secures the appliance power cord where it enters the cabinet, helping keep the cord routed and protected from chafing or accidental pull. It restores the factory cord routing and strain relief. What it does

• Holds and clamps the power cord or conduit at the cabinet entry point to prevent movement
• Keeps the cord away from sharp edges and hot surfaces that can cause wear
• Reduces risk of accidental disconnection from tension or tugging during use or service
• Helps maintain proper cord routing for safe electrical connection

• One power cord conduit bracket

• Disconnect power at the breaker or unplug the appliance before servicing
• Access may require removing the appliance back panel or moving the unit out from its installation
• Secure bracket with the original screw location; route the cord through the clamp and tighten per factory alignment

The Heater is an OEM component specifically designed for GE dryers. It is responsible for providing the necessary heat to remove moisture from clothes during the drying cycle. The heater works in conjunction with the blower and venting system to circulate warm air through tumbling clothes.

Causes of a bad heater include cracked or damaged heating coils, failed heating elements, or malfunctioning temperature controls.

Symptoms of a bad heater are:

• Excessively long drying times even on low moisture loads
• Drying cycles that never seem to get clothing fully dry
• Odd smells emanating from the dryer vent during the operation
• No heat detected from the air ducts of the dryer

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This top panel guide pin screw secures the appliance top panel and keeps the panel aligned during use. It replaces a missing or damaged guide screw to reduce panel movement and rattling. What it does:

• Secures the top panel to the chassis so the panel stays aligned
• Prevents the top panel from shifting, vibrating, or rubbing during operation
• Restores proper fit after a stripped, lost, or damaged screw

• Disconnect power to the appliance before starting any repair
• Remove the top panel or access panel to reach the guide pin location
• Install by hand to align, then tighten snugly with the appropriate screwdriver; avoid over-tightening to prevent strip-out
• If threads are damaged, inspect the mounting hole and replace or repair the threaded insert as needed

The Rear Bearing is an OEM part for GE electric dryers. Located at the rear of the drum assembly, it supports rotational movement during tumbling cycles.

As a moving part subjected to prolonged spinning, normal wear affects bearing operation over time. Degraded lubrication or component damage increases friction and compromises function.

Symptoms of a faulty rear bearing include:

• Grinding or grinding noises emerging from the rear drum area
• Resistance to smooth, efficient drum rotation
• Potential damage or failure of other interconnected components

Causes are typically from standard wear and accumulation of lint/dust over extended usage periods. Impacts may also prematurely affect bearing integrity on occasion.

This genuine GE replacement bearing restores smooth, quiet operation. Compatible with some Hotpoint, RCA, and select Kenmore dryers.

This ground screw secures an appliance's chassis grounding connection to ensure a reliable electrical ground and help reduce the risk of shock or electrical faults. Simple replacement when the original screw is missing, damaged, or corroded. What it does:

• Fastens the appliance ground wire or grounding strap to the metal chassis for a secure electrical ground.
• Restores a proper grounding point when the original screw is loose, stripped, corroded, or missing.
• Helps address symptoms related to poor grounding, such as intermittent power, electrical noise, or tripped breakers (as reported).
• Provides a direct, stable connection that supports safe appliance operation.

• One ground screw

• Disconnect power to the appliance before attempting any repairs to avoid electrical shock.
• Tighten to snug contact with the chassis; avoid overtightening which can strip threads or damage the metal.
• If ground wire or chassis threads are damaged, inspect for necessary additional parts or repair.

The Fuse for Dryer is an OEM replacement part for GE electric dryers. The fuse acts as a safety shut-off mechanism, protecting the dryer's electrical components from power surges or overloading. It plays a critical role in circuit protection.

Causes of a blown fuse can include power fluctuations, overloading due to wet/heavy loads, or underlying electrical component issues in the dryer. The fuse shields expensive components like motors, heating elements, and electronic boards.

Symptoms of a blown fuse include:

• The dryer not powering on at all
• Cycles not completing or functionality issues mid-cycle
• Safety features like the timer not working properly

This GE replacement fuse helps maintain circuit integrity and safety. It prevents potential fires from damaged wiring or short circuits. Genuine OEM quality ensures form and fit compatibility with your existing fuse clips for seamless installation.

This GE replacement part is compatible with Hotpoint, RCA, and Kenmore dryer models.

This RJ45 connector is the modular network jack used to connect Ethernet-style cords to the appliance's control/communication board, restoring a secure data link for diagnostics or network features. Fits the factory wiring interface. What it does:

• Provides a secure Ethernet-style connection between an external cable and the appliance control/communication board.
• Restores reliable network or communication connectivity when the original jack is cracked, loose, or fails.
• Helps resolve symptoms such as intermittent or no network/communication link and visibly damaged or bent connector pins.
• Serves as the replacement interface for diagnostics ports or board-mounted network connections.

• One RJ45 connector (modular jack) as pictured.

• Disconnect power to the appliance before beginning any repair to avoid electric shock.
• Access the control or communication board per your appliance's service instructions; handle PC boards by the edges to avoid damage.
• Use proper tools to remove the old connector and secure the replacement; ensure mating cable seats fully and pins align.
• After installation, restore power and test the connection and any affected network/communication features.

This rear drum bearing support secures the back of the dryer drum and provides a smooth pivot point for rotation. Replacing a worn support restores steady, quiet tumbling and helps prevent further wear to the drum and motor.

• Supports the rear of the drum and houses the drum bearing
• Helps maintain smooth, centered drum rotation
• Common symptoms of failure: squeaking/squealing, grinding or scraping noises, thumping, drum wobble, or poor/slow tumbling
• Visible wear, cracks, or deformation on the support are signs it should be replaced

• Unplug dryer and disconnect gas (if applicable) before service
• Access from the rear/bulkhead; note wiring and fastener locations
• Inspect the mating bearing/ball shaft, ground strap, and hardware; replace worn components as needed
• Test run empty to confirm quiet, centered drum operation
