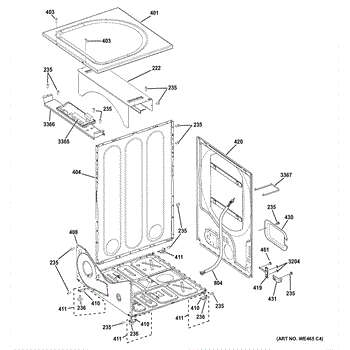

Parts for Ge GFDN120ED3WW: Cabinet & Top Panel Parts

Package of 12

Adjustable

This rear level leg bracket replaces the rear mounting bracket that secures a leveling leg to the appliance frame, restoring proper support and helping keep the appliance stable and level for safe, quiet operation. What it does:

• Secures the rear leveling leg to the appliance frame so the cabinet sits evenly
• Restores proper height and prevents the appliance from tilting backward
• Reduces rocking, wobbling, and vibration caused by a damaged or loose bracket
• Helps maintain safe, stable operation under normal load conditions

• Disconnect power (and gas supply if applicable) and move the appliance to a safe, accessible area before starting.
• Support the appliance cabinet so it cannot tip when the rear leg or bracket is removed.
• Use basic hand tools to remove and install the bracket; follow the appliance manufacturer's instructions.
• Inspect the leveling leg and front mounts while servicing; replace any worn or damaged hardware.

Rear bracket and leveling screw assembly.

The Power Terminal Block is an OEM part for GE dryers. This component serves as the connection point for the dryer's power cord, distributing electrical power to the various internal components of the dryer. It ensures that the dryer receives the proper electrical supply needed for its operation.

Causes of a bad power terminal block can include electrical overloads, corrosion from moisture exposure, and loose or frayed wiring connections. These issues can lead to improper power distribution or complete loss of power to the dryer.

Symptoms of a bad power terminal block include:

• The dryer not starting or losing power during a cycle
• Intermittent electrical issues or power surges
• Visible signs of damage such as burn marks or melted plastic
• Electrical arcing or sparking from the terminal block area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This fuse terminal cover shields and insulates the fuse connection inside your appliance, helping prevent accidental contact and shorting. Replace a cracked or missing cover to maintain safe electrical protection and dependable circuit performance.

• Covers and insulates the fuse terminals to protect the connection
• Helps prevent accidental contact, arcing, and debris intrusion at the fuse
• Common signs you need this part: missing cover, cracks, heat discoloration, or a cover that won't stay secured
• Promotes a secure, consistent fuse connection once installed

• Disconnect power at the breaker or unplug the appliance before servicing
• Access the fuse area per your service information; note wiring and cover orientation
• Remove the damaged cover; inspect terminals and wiring for heat damage or looseness
• Seat the new cover fully and verify it is secure and clear of wiring

A replacement strain relief bracket that secures the appliance power cord at the entry point, protecting wiring and the terminal connection from pull and wear. Restores proper cord routing for safer, more reliable electrical connection. What it does:

• Secures the power cord where it enters the appliance to prevent tension on terminals and wiring.
• Helps reduce intermittent power, loose connections, or arcing caused by a tugged or poorly routed cord.
• Maintains correct cord routing and support to match the original mounting location and fit.
• Useful when the original bracket is cracked, broken, or no longer holds the cord firmly in place.

• Disconnect power at the breaker or unplug the appliance before starting any repair.
• Access is typically from the rear; remove the back access panel to reach the cord entry and terminal block.
• Remove mounting screws holding the old bracket, position the cord, and secure the new bracket without over-tightening; reuse original hardware if appropriate.
• Inspect the power cord and terminals for damage—replace damaged wiring.

Includes 12 screws.

Includes 12 screws. Size: 8-18 ab.

This main power board controls and supplies power to the appliance's electronic systems, restoring proper operation of displays, relays and user-interface functions when the original board fails. Replace a faulty board to recover normal electronic control. What it does:

• Regulates and distributes power to control circuits and components
• Processes user inputs and drives display and control relays
• Can stop appliance responses when the board malfunctions
• Common symptom source for blank displays, unresponsive controls, or lost functions

• One main power board

• Disconnect all power at the breaker before beginning repair
• Handle the board carefully; avoid static discharge and physical damage
• Verify connector seating and wiring match OEM harness during reinstallation

This main power board support is the mounting bracket that secures the appliance's main control board, helping maintain stable connections and prevent board movement that can cause intermittent power or control issues. Designed for direct OEM fit. What it does:

• Provides a secure mounting point for the main power/control board
• Keeps board aligned to prevent loose connectors and intermittent electrical contact
• Reduces vibration-related stress on solder joints and components
• Helps prevent damage from board shifting during use or transport

• One main power board support bracket

• Disconnect power at the breaker or unplug the appliance before starting any work
• Handle the control board carefully and avoid contact with circuit traces or components
• Use existing screws or hardware unless replacement fasteners are specified by the manufacturer
