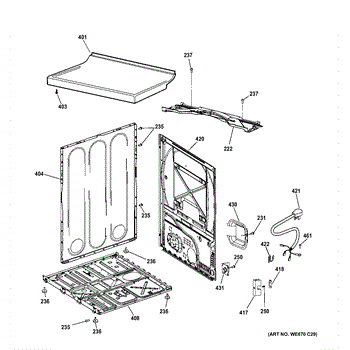

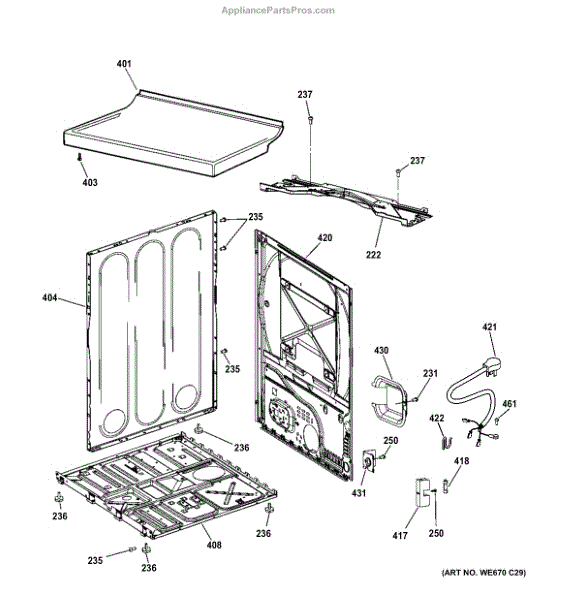

Parts for Ge GTDS560GF3WS: Cabinet & Top Panel Parts

This ground screw secures the appliance chassis ground connection to the cabinet, restoring a reliable earth path for safe operation and reducing risk of electrical faults. Simple replacement keeps electrical components properly grounded. What it does

• Secures the ground wire or grounding strap to the appliance chassis to maintain a safe earth connection.
• Restores proper grounding when the original screw is missing, loose, or corroded.
• Helps prevent intermittent power/grounding issues and reduces risk of electrical arcing at the chassis connection.
• Works wherever a dedicated grounding point is required on the cabinet or frame.

• Single ground screw

• Always disconnect power (unplug or switch off circuit breaker) before servicing electrical connections.
• Verify chassis is de-energized and wear appropriate PPE when working on electrical parts.
• Use the correct driver bit and size to avoid stripping the screw; tighten securely but avoid over-torquing.
• Replace corroded grounding hardware and ensure the ground wire/strap has clean metal-to-metal contact.

This is a 10-16 x 1/2 screw used to fasten small appliance components and panels; it restores secure attachment and helps stop rattling or loose parts for reliable operation. What it does:

• Secures panels, brackets, and small assemblies to the appliance
• Prevents movement that can cause noise, vibration or misalignment
• Restores proper fit where a worn or missing screw caused loose parts
• Matches OEM size so replacement fits original mounting points

• Disconnect power to the appliance before servicing
• Use the correct screwdriver or driver bit to avoid stripping the head
• Thread carefully and do not overtighten—stop when snug to avoid damage
• Replace like-for-like; if corrosion or stripped threads are present, repair or replace the mating part as needed

This leveling leg threads into the base of your appliance to provide a stable, adjustable footing. Replacing a worn or missing leg helps keep the cabinet level, reducing vibration and noise for smoother, safer operation.

• Adjusts height so the unit can be leveled on uneven floors
• Maintains solid floor contact to minimize rocking or walking
• Helps reduce vibration and rattling noises during operation
• Signs you need this part: appliance wobbles, sits unevenly, or a foot is missing/damaged

• Disconnect power; for gas units, also shut off the gas supply
• With assistance, carefully tilt or raise the appliance to access the leg
• Unscrew the old leg and thread in the new leg by hand; use a wrench if needed
• Level the unit front-to-back and side-to-side; ensure all legs firmly contact the floor

This hex washer-head screw secures dishwasher components like brackets, shields, and panels. Replacing a stripped or missing screw restores a tight fit and helps prevent vibration, rattling, and loose parts during operation.

• Fastens parts where a #10-16 x 1/2-inch hex washer-head screw is specified
• Secures brackets, panels, and assemblies to the tub or frame
• Helps resolve symptoms like loose panels, vibration, or rattling noises
• Restores proper hold when the original screw is stripped, missing, or damaged

• Disconnect power and shut off water to the dishwasher before servicing
• Match length and thread to the original; replace screws one at a time to maintain alignment
• Start threading by hand to avoid cross-threading; tighten snugly—do not overtighten, especially into plastic
• Verify no wires or hoses are pinched before reassembly

• Size: #10-16 x 1/2 inch
• Head: hex washer-head
• Type: AB tapping screw

This white cover replaces a cracked, loose, or missing trim/cover piece on your dryer to protect the underlying opening or component and restore a clean, finished look. It also helps keep dust and debris out of the cabinet. What it does:

• Conceals and protects the designated opening/component on the dryer
• Restores proper fit and finish to the cabinet or console
• Helps keep dust and debris out of internal areas
• Common signs you need this part: broken tabs, cracks, rattling, or a missing cover

• 1 white cover

• Disconnect power to the appliance before servicing
• Use care around sharp cabinet edges; wear cut-resistant gloves
• Note orientation, remove old cover, and transfer any reusable clips/grommets if present
• Reuse existing fasteners and avoid overtightening to prevent cracking

This replacement screw secures panels, trims, and internal components to restore a snug, rattle-free fit and reliable operation. Use it to replace missing, corroded, or stripped fasteners for safe appliance performance. What it does:

• Fastens cabinet panels, trim pieces, and internal brackets to keep parts aligned and secure
• Replaces missing or damaged screws that cause loose or vibrating panels
• Prevents movement that can lead to wear, noise, or improper sealing
• Matches the original fastener role for appliances that specify part WE2M160

• Disconnect power or unplug the appliance before attempting any repair
• Use the correct screwdriver or driver bit to avoid stripping the head
• Install until snug; avoid overtightening which can strip threads or crack plastic
• If threads are damaged or fastener holes are worn, replace damaged components.

This fuse holder secures the appliance's thermal/fuse element and provides a stable connection point for the fuse, helping maintain proper circuit protection and reliable operation. What it does:

• Holds and secures the fuse or thermal cutoff in the appliance circuit
• Provides stable electrical contact to ensure reliable current flow
• Helps prevent intermittent power from a loose or damaged fuse connection
• Commonly replaced when the fuse or its mount is cracked, melted, or otherwise damaged

• Disconnect power to the appliance before inspecting or replacing the fuse holder
• Replace only with the correct part number for your appliance; verify fit before installation
• Use basic hand tools; avoid forcing terminals to prevent damage

This CCMR 30-amp, 120-volt fuse protects the appliance's electrical circuit by opening when current exceeds safe limits. Replace a blown fuse to restore power to the affected circuit and help prevent damage to internal components.

• Provides overcurrent protection for the circuit specified by the manufacturer
• If the fuse is open, the appliance may be dead, won't start, or certain functions won't operate
• Helps prevent wiring and component damage from shorts or overloads
• Repeated fuse failures indicate an underlying electrical issue requiring diagnosis

• Disconnect power to the appliance before servicing
• Locate the fuse in its holder/block and inspect associated wiring for heat or damage
• Test the old fuse for continuity; replace only with the identical rating specified
• Never bypass or upsize a fuse; correct the root cause of the failure before returning to service

This 120V replacement power cord restores household current to gas ranges and ovens that use a corded connection for clocks, lights, igniters and controls. It provides a straightforward way to replace a damaged or worn cord and regain safe power to the appliance. What it does

• Supplies 120-volt power from the wall outlet to the range/oven's control system, clock and lights.
• Restores ignition and control functions when a frayed or broken cord prevents the appliance from receiving power.
• Replaces cords that show signs of burning, cracking, loose connections, or exposed wiring.
• Reduces risk of electrical faults caused by damaged insulation or terminals.

• One 120V power cord

• Disconnect power at the circuit breaker or unplug the appliance before starting; ensure the appliance is de-energized.
• Route and secure the cord to avoid pinching; tighten terminal screws to manufacturer torque recommendations.

This fuse terminal cover shields and insulates the fuse connection inside your appliance, helping prevent accidental contact and shorting. Replace a cracked or missing cover to maintain safe electrical protection and dependable circuit performance.

• Covers and insulates the fuse terminals to protect the connection
• Helps prevent accidental contact, arcing, and debris intrusion at the fuse
• Common signs you need this part: missing cover, cracks, heat discoloration, or a cover that won't stay secured
• Promotes a secure, consistent fuse connection once installed

• Disconnect power at the breaker or unplug the appliance before servicing
• Access the fuse area per your service information; note wiring and cover orientation
• Remove the damaged cover; inspect terminals and wiring for heat damage or looseness
• Seat the new cover fully and verify it is secure and clear of wiring

Includes 12 screws.
