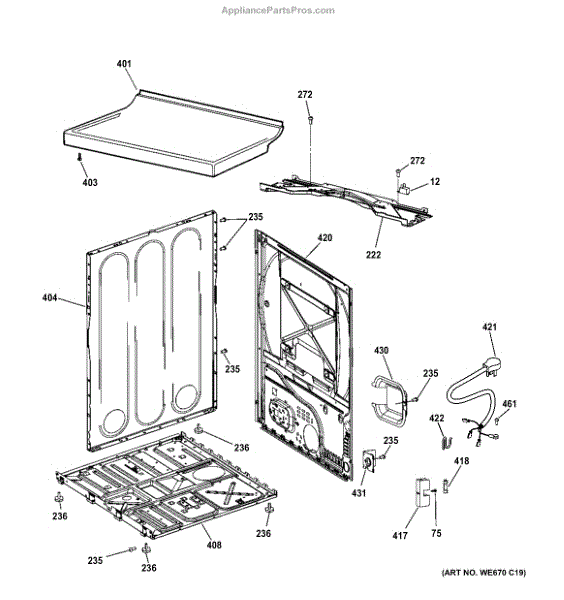

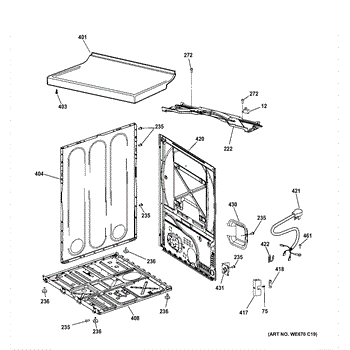

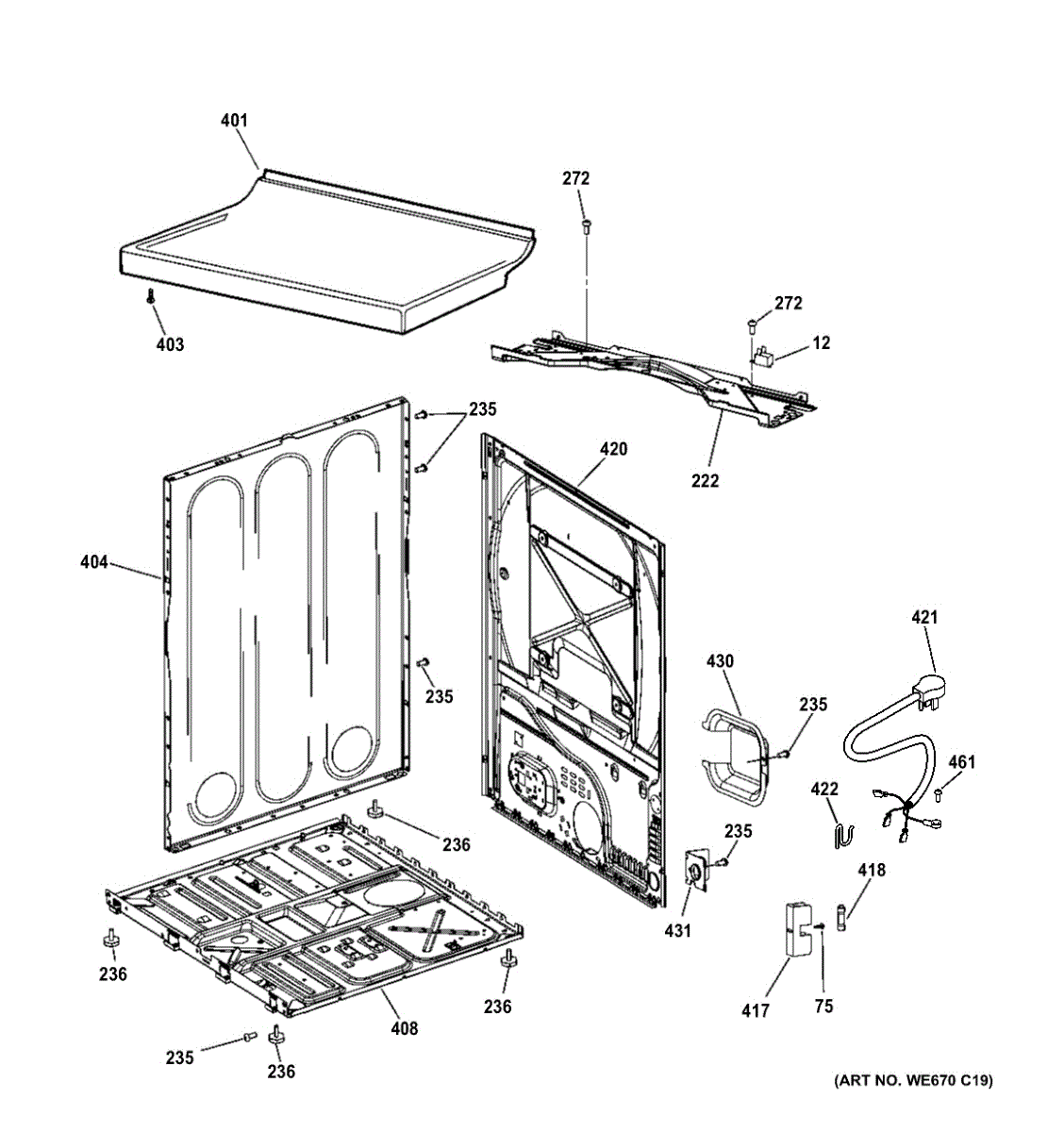

Parts for Ge GTDX185PD2CC: Cabinet & Top Panel Parts

Fixed buzzer that replaces the appliance's audible tone generator in the control panel, restoring beeps and alerts for cycle completion and fault signals. Simple swap that returns audible notifications used during normal operation. What it does:

• Produces the control panel's audible tones for end-of-cycle alerts and warnings.
• Replaces a buzzer that has stopped sounding or produces weak, intermittent, or distorted beeps.
• Helps restore audible error/fault notifications so you can respond to appliance alerts promptly.
• Works as the control panel's dedicated tone generator — pairs with the appliance's existing electronics.

• Disconnect power to the appliance before beginning any service to avoid electrical shock.
• Access the control panel per your model's service instructions and note wire/harness positions before removal.
• Disconnect the buzzer wiring or harness, remove mounting fasteners, and install the replacement in the same orientation.
• Reassemble panels, restore power, and run a test cycle to audible operation.

This replacement part is a screw, and it is intended for use in different types of appliances. This is a genuine replacement part made by General Electric. This screw is compatible with many different areas of the appliance. Screws are generally used for keeping parts of the machinery secure and in place during use. It is possible that screws can become loose over time and need to be replaced after years of normal wear and tear.A new screw might be needed if the user notices parts of the appliances are becoming loose or are even falling off. This can be due to screws becoming stripped over time or if the appliance is bumped during transport. The repair for this part is simple. Remove the old screw and replace it with a new part. The only tools needed for this repair are a screwdriver and possibly pliers if the damaged screw is stuck in place.This screw is sold individually and is a genuine OEM replacement part sourced from the manufacturer.

This is a 10-16 x 1/2 screw used to fasten small appliance components and panels; it restores secure attachment and helps stop rattling or loose parts for reliable operation. What it does:

• Secures panels, brackets, and small assemblies to the appliance
• Prevents movement that can cause noise, vibration or misalignment
• Restores proper fit where a worn or missing screw caused loose parts
• Matches OEM size so replacement fits original mounting points

• Disconnect power to the appliance before servicing
• Use the correct screwdriver or driver bit to avoid stripping the head
• Thread carefully and do not overtighten—stop when snug to avoid damage
• Replace like-for-like; if corrosion or stripped threads are present, repair or replace the mating part as needed

This leveling leg threads into the base of your appliance to provide a stable, adjustable footing. Replacing a worn or missing leg helps keep the cabinet level, reducing vibration and noise for smoother, safer operation.

• Adjusts height so the unit can be leveled on uneven floors
• Maintains solid floor contact to minimize rocking or walking
• Helps reduce vibration and rattling noises during operation
• Signs you need this part: appliance wobbles, sits unevenly, or a foot is missing/damaged

• Disconnect power; for gas units, also shut off the gas supply
• With assistance, carefully tilt or raise the appliance to access the leg
• Unscrew the old leg and thread in the new leg by hand; use a wrench if needed
• Level the unit front-to-back and side-to-side; ensure all legs firmly contact the floor

This silicon controlled rectifier (SCR) controls power flow to heating and motor circuits, restoring proper electronic regulation in appliances that use SCR-based control boards. Replaces a failed SCR to help return normal heat and motor control. What it does:

• Acts as a switch to regulate current to heating elements or motors when the control board signals it.
• Common symptom: unit fails to heat or run when the control board is commanding operation.
• Common symptom: intermittent or no power to specific circuits controlled by the SCR.
• Helps prevent erratic operation when the SCR is functioning properly.

• Disconnect power to the appliance before servicing to avoid shock or injury.
• Handle the SCR carefully; avoid bending the stud or damaging terminals.
• Mount and torque stud to specified appliance hardware; ensure good electrical contact and any required heat sink connection.

This replacement screw secures panels, trims, and internal components to restore a snug, rattle-free fit and reliable operation. Use it to replace missing, corroded, or stripped fasteners for safe appliance performance. What it does:

• Fastens cabinet panels, trim pieces, and internal brackets to keep parts aligned and secure
• Replaces missing or damaged screws that cause loose or vibrating panels
• Prevents movement that can lead to wear, noise, or improper sealing
• Matches the original fastener role for appliances that specify part WE2M160

• Disconnect power or unplug the appliance before attempting any repair
• Use the correct screwdriver or driver bit to avoid stripping the head
• Install until snug; avoid overtightening which can strip threads or crack plastic
• If threads are damaged or fastener holes are worn, replace damaged components.

This fuse holder secures the appliance's thermal/fuse element and provides a stable connection point for the fuse, helping maintain proper circuit protection and reliable operation. What it does:

• Holds and secures the fuse or thermal cutoff in the appliance circuit
• Provides stable electrical contact to ensure reliable current flow
• Helps prevent intermittent power from a loose or damaged fuse connection
• Commonly replaced when the fuse or its mount is cracked, melted, or otherwise damaged

• Disconnect power to the appliance before inspecting or replacing the fuse holder
• Replace only with the correct part number for your appliance; verify fit before installation
• Use basic hand tools; avoid forcing terminals to prevent damage

This CCMR 30-amp, 120-volt fuse protects the appliance's electrical circuit by opening when current exceeds safe limits. Replace a blown fuse to restore power to the affected circuit and help prevent damage to internal components.

• Provides overcurrent protection for the circuit specified by the manufacturer
• If the fuse is open, the appliance may be dead, won't start, or certain functions won't operate
• Helps prevent wiring and component damage from shorts or overloads
• Repeated fuse failures indicate an underlying electrical issue requiring diagnosis

• Disconnect power to the appliance before servicing
• Locate the fuse in its holder/block and inspect associated wiring for heat or damage
• Test the old fuse for continuity; replace only with the identical rating specified
• Never bypass or upsize a fuse; correct the root cause of the failure before returning to service

This terminal block cover shields the dryer's rear power connection at the terminal block. Replace a missing or damaged cover to help protect wiring from accidental contact and lint intrusion, maintaining a cleaner, safer connection area.

• Covers and helps protect the power cord terminals and wiring at the rear terminal block
• Helps prevent accidental contact and keeps lint/debris away from the connection area
• Restores a secure cover when the original is cracked, warped, or missing
• Common signs you need this part: exposed terminals at the rear panel, a loose or broken cover

• Disconnect power to the dryer before servicing
• Access the terminal block from the rear; remove the retaining fastener(s) and lift off the old cover
• Ensure the cord strain relief and wiring are properly positioned, then set the new cover in place and secure it

Size: 8-32 t. Includes 12 screws.
