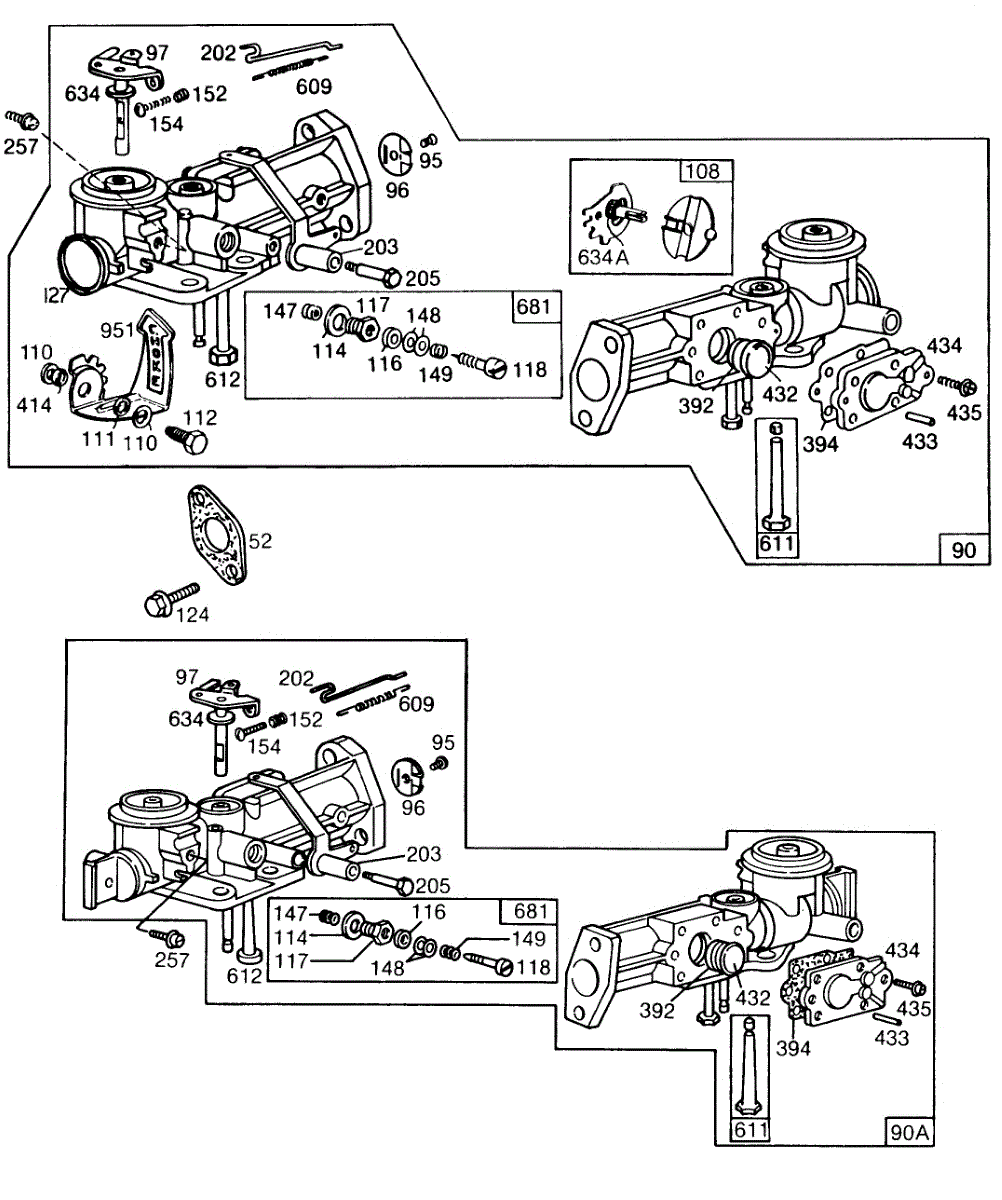

Parts for Briggs & Stratton 131232-0141-01: Carburetor Assemblies Parts

The carburetor diaphragm is part of older model engines where a secure seal is needed. This diaphragm is installed on the carburetor and will help to ensure maximum engine operation. The carburetor is responsible for creating and providing the air/fuel mixture to the engine, and there are many working parts that help to ensure that happens, including the diaphragm. In the event that the seal isn't as tight as it should be or the carburetor seems to be performing less effectively, it might be time to replace this part. Replacing the diaphragm will restore the seal and ensure maximum engine operation, as well as prevent further damage to other parts. Make sure to wear gloves when working on engine parts and always disengage the engine and allow it to cool completely before starting repairs. This genuine OEM replacement part is designed for use on Briggs & Stratton engines, including 3-5 HP horizontal engines. It specifically fits those with the pulsa jet carburetor from previous generations. This part is made to exact manufacturer standards and complies with all guidelines and emission regulations.

This tube-pick up was created for three to five horsepower horizontal and five horsepower vertical engines with a two to three-quart tank and a pulse jet carburetor. As part of the carburetor, the tube-pick up moves gas from the float bowl to the main body of the carburetor. Sometimes the tube-pick up can become clogged up with particles and dirt, which makes it harder for gasoline to flow through it. This component can also become damaged or cracked, which means it will need to be replaced to operate the lawn equipment. Replacement requires removing the carburetor from the fuel tank, removing the tube-pick up and installing the new version. Carb cleaner may also be used in the process. This tube-pick up is a genuine OEM product directly from the manufacturer. It comes as an individual part and is made out of plastic. It is used for engines on leaf blowers, generators, tillers, lawn tractors, and lawnmowers by Simplicity, Briggs & Stratton, Cub Cadet, and Toro. A set of pliers may be needed to install the tube-pick up.
