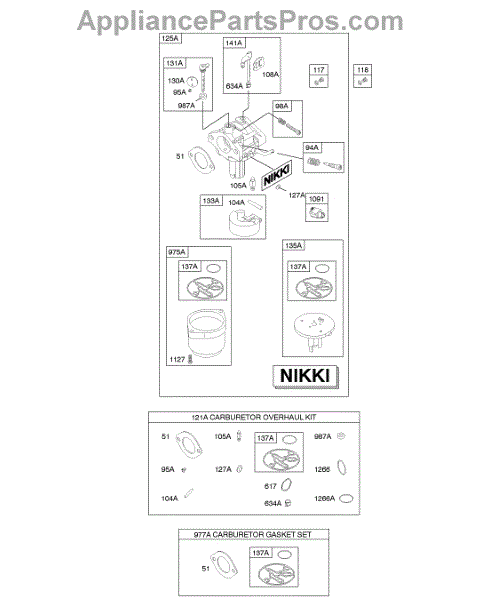

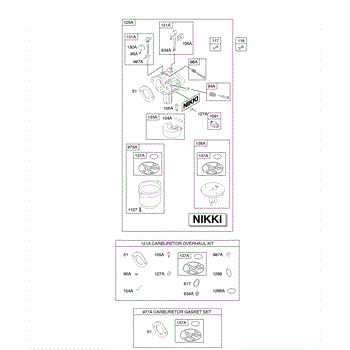

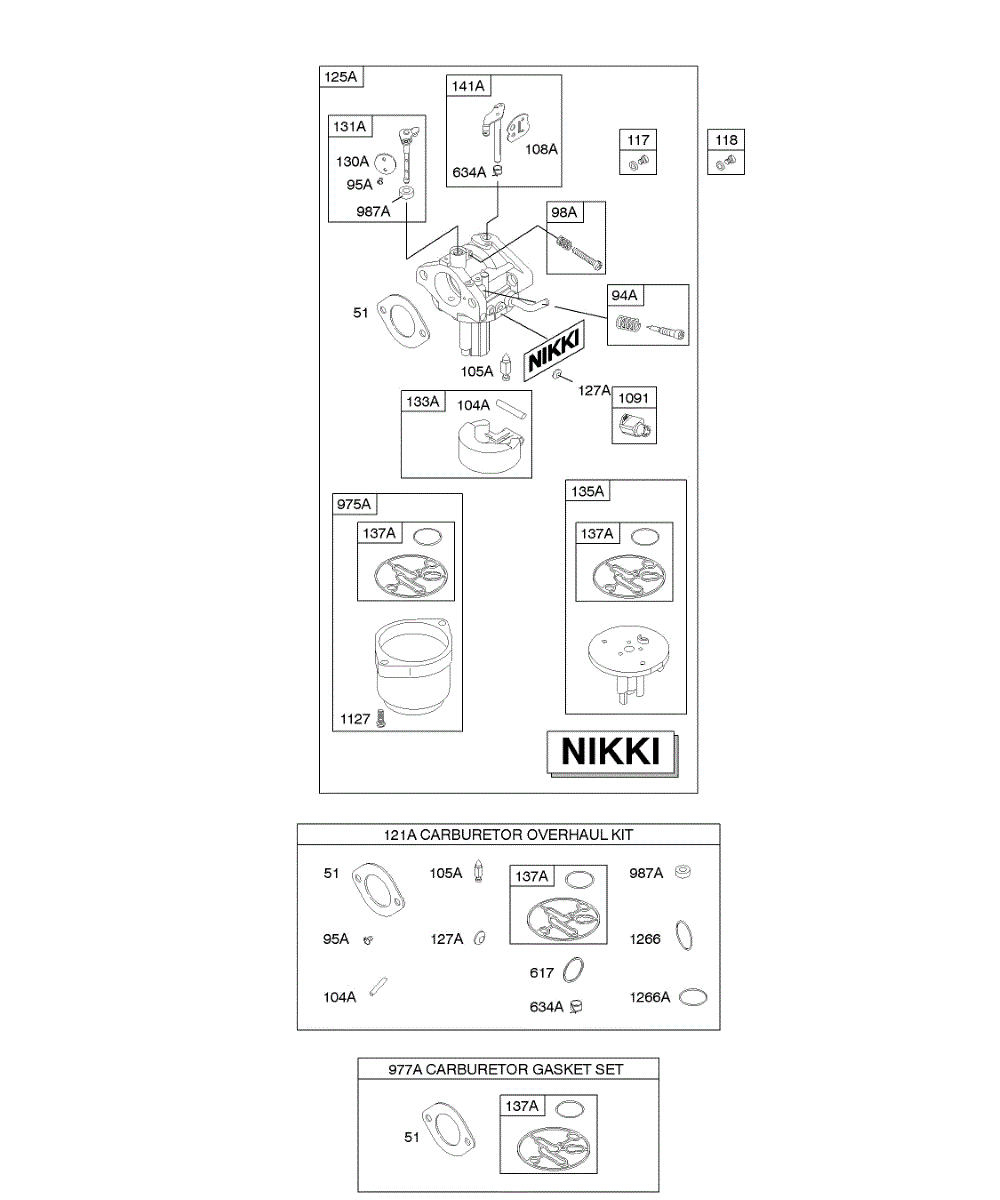

Parts for Briggs & Stratton 210807-0110-E1: Carburetor Parts

This genuine OEM replacement intake manifold gasket for a small gas-powered lawn appliance motor acts as a seal between two engine components, like any other gasket. However, the intake manifold gasket is one of the most necessary gaskets because it is responsible for sealing the engine vacuum and coolant. Intake manifold gaskets can be damaged because of their location in the engine. If the engine has been running hot for a while, the metal can expand and crush the gasket, causing it to fail. If this happens, the engine will begin overheating, as coolant can no longer reach the areas where it is needed. Replacing an intake manifold gasket will mean removing the air filter and its housing, the oil drain tube, blower housing, breather tube, and carburetor. Making this repair requires a set of socket wrenches and screwdrivers. This part is compatible with a wide range of mowers, chippers, and blowers from Briggs & Stratton, Toro, Cub Cadet, MTD, Simplicity, and Lawn Boy. It is sourced from the original manufacturer and ships individually.

This is a genuine float needle valve that is designed to be used in select small engines found in lawn tractors. The float needle is located in the carburetor and is responsible for assisting with the intake and outflow of gas through the assembly. As the fuel bowl in the carburetor fills and drains, this needle regulates how much fuel is present to ensure the proper operation of the engine. Over time, the valve can become cracked or get damaged because of repetitive motion and exposure to high heat. This could impact the flow of fuel and the engine performance, or cause the engine to fail completely. This genuine OEM float needle valve is manufactured to exact standards as an identical replacement for select Briggs & Stratton small engines found in lawn tractors. It can also be used with certain models from Toro and Vanguard. It is sold as an individual unit and made of durable plastic. Be sure to drain the fuel from the engine and allow it to cool before doing any repairs. Gloves are also recommended for safety. For those who need additional components, this valve may also be available as part of a compatible carburetor rebuild kit.

This is a carburetor float that is used in a wide variety of lawn and garden equipment. The carburetor float is used in the engine to close and open the float needle valve. The main responsibility of the carburetor float is to open up to allow fuel into the carburetor when drained and to shut off the flow of fuel if the bowl is filled. If the float isn't working properly, the engine may not idle, the carburetor can flood, and the motor may stall while the tool is in use.Before replacing the carburetor float, put on work gloves and disconnect the spark plug wire. The carburetor will need to be removed from the equipment. The carburetor float and any other malfunctioning parts can be taken out and replaced with new components. While working on the parts, the jets can also be cleaned as a maintenance process.This carburetor float is sold as an individual item. It is an authentic OEM replacement part sourced directly from the manufacturer. The float is designed to be used with lawnmowers, lawn tractors, wood chippers, and snowblowers manufactured by Cub Cadet, Briggs & Stratton, MTD, Toro, and Simplicity.

When the fuel in a small, gasoline-powered engine moves up the fuel line, it must be mixed perfectly with air and together burn in just the right mixture and amount in order for engines to function properly. Because too much gas might be coming into the carburetor or because there might be a need for more gasoline than can readily move up the fuel line, the carburetor has a small device called the float bowl. The float bowl has a ready supply of gasoline for use as needed by the carburetor. To keep the gasoline in check while all this is happening, a device called the float bowl gasket keeps all the elements separate. With use and age, sometimes these gaskets crack or grow brittle and must be replaced. This causes air to leak into the mix and the engine will not operate smoothly. Replace this gasket with a genuine OEM replacement part like this one, manufactured to be exactly like the factory original that is being replaced. This part is compatible with engines sold by Toro, Simplicity, MTD, Briggs & Stratton, and Cub Cadet. Part sold individually.

This is an O-ring seal that can be used in many types of engines for lawn and garden equipment. It is responsible for sealing the connection between the cylinder head assembly and the intake manifold. The sealing process prevents dirt and debris from moving throughout the equipment and getting into the motor. As time passes, the O-ring seal can shrink, causing oil or air leaks and decreasing engine performance.When the O-ring is damaged, clogged, worn, or broken, it will need to be cleaned or replaced before using the lawn equipment again. The damaged or broken O-ring seal can be removed using a flat head screwdriver. After it has been removed, the replacement component can be installed in the same place. Make sure that the O-ring seal is properly seated to avoid additional leaks. Reassemble the parts before using the tool. This is a genuine OEM replacement part that is sourced directly from the manufacturer. It is sold individually. It is used in lawnmowers, lawn tractors, snowblowers, and wood chippers manufactured by Simplicity, MTD, Lawn-Boy, Cub Cadet, Toro, and Briggs & Stratton.

O-rings are used in various locations and applications to seal and protect connections throughout the engine. The O-ring is typically used for rigid connections where a proper seal is required for optimal functioning. It is critical to have the right size and style of O-ring installed for proper operation. These parts tend to wear over time and that can affect their ability to seal. If O-rings are degraded or damaged in any way, they need to be replaced as soon as possible to prevent further damage. This O-ring is manufactured to exact specifications by Briggs & Stratton to provide a genuine OEM replacement. It can be used in various Toro, Briggs & Stratton, and Lawn-Boy engines. Typically found in lawn tractor engines, this part is compatible with more than 150 machines. This O-ring is made from durable materials and sold individually. Always disconnect the spark plug before beginning engine work and wear gloves for hand protection.
