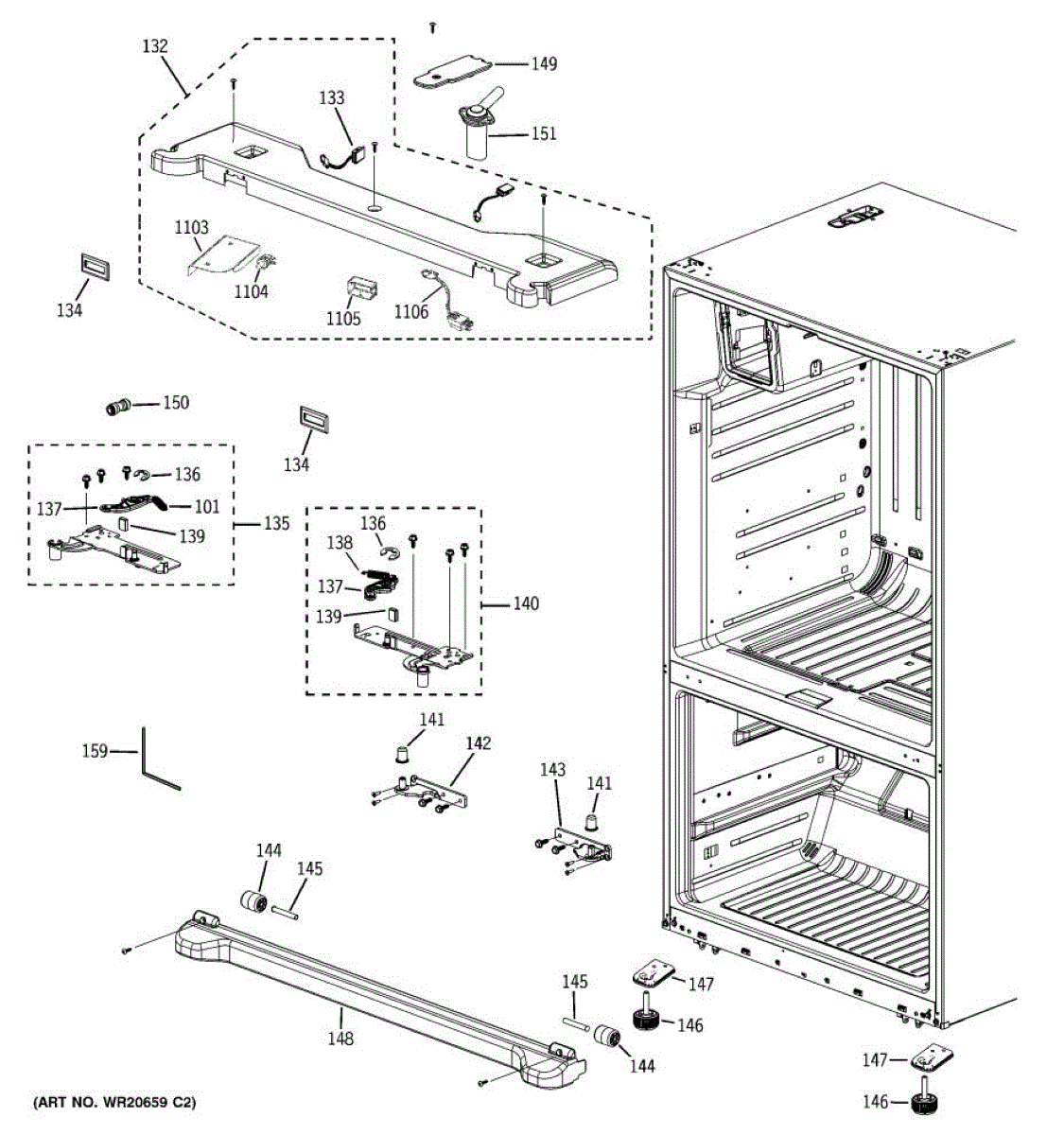

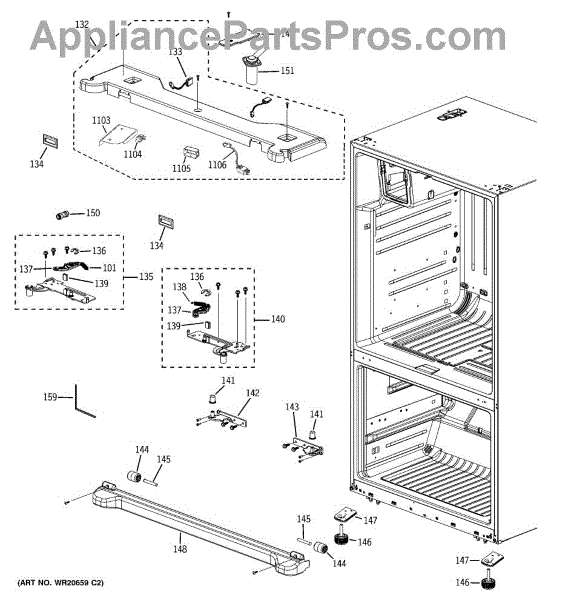

Parts for Ge DFSS9VKBASS: 08 - Case Parts

Replace your refrigerator water filter every 6 months to maintain clean water and ice. Removes contaminants for fresh taste. Easy DIY install in minutes.

This is a stainless steel top table assembly that sits on top of the refrigerator cabinet, providing a finished appearance and structural support. It helps seal the top of the unit and can also serve as a mounting surface for hinges or other hardware. Replace this part if it is dented, scratched, rusted, or damaged during installation or relocation of the refrigerator.

This top table cap is a stainless-steel trim piece that covers and protects the front edge of the cooktop/top table. It restores a clean, finished appearance and helps keep grease and debris out of seams and fasteners. What it does:

• Replaces damaged or dented top-table front cap that shows visible wear
• Protects the cooktop edge and underlying components from spills and debris
• Restores proper fit and appearance after collision, corrosion, or removal
• Helps prevent snagging on the cooktop edge while loading cookware

• One stainless-steel top-table/front cap

• Basic trim replacement; typically held by clips or screws—inspect fasteners before removal
• Use care removing old trim to avoid scratching adjacent surfaces
• Disconnect power to ranges with electronic controls before working nearby as a safety precaution
• If corrosion or underlying damage is present, address those areas before installing the new cap

A small metal C-shaped retaining clip that secures shafts, pins or components in place to prevent unwanted movement. Simple, durable hardware that restores proper fit and alignment for the part it secures. What it does:

• Holds shafts, pins or rods in position to prevent axial movement or disengagement
• Restores secure attachment where a worn or missing clip allows parts to shift or fall out
• Used in moving assemblies to maintain alignment and proper function
• Fits in a groove or slot and provides spring tension for a tight hold

• One C-clip (retaining clip)

• Inspect the mating groove/pin for burrs or damage before installing the clip
• Use appropriate snap-ring or pliers to compress/expand the clip as needed; wear eye protection
• Ensure the clip fully seats in its groove and that the retained component moves as intended

Auto close lever assembly for refrigerator doors. Installs on the hinge mechanism to ensure smooth automatic door closing. Replace if broken or worn.

Lever grommet for refrigerator door or dispenser assemblies. Replaces worn, cracked, or missing grommets that cause loose or rattling levers.

This is a small axle pin or rivet that supports a caster or roller wheel on the refrigerator. It allows components such as drawer slides or leveling wheels to roll smoothly. Replace this axle if a wheel wobbles, falls off, or no longer spins freely, causing drawers to stick or the refrigerator to be difficult to move or level.

Connects refrigerator water supply tubing to the appliance for dispenser and ice maker. Replace if cracked, loose, damaged, or leaking at the connection point.
