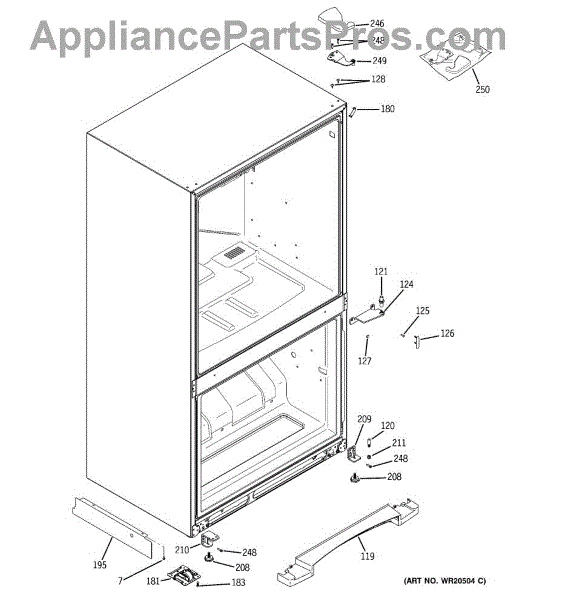

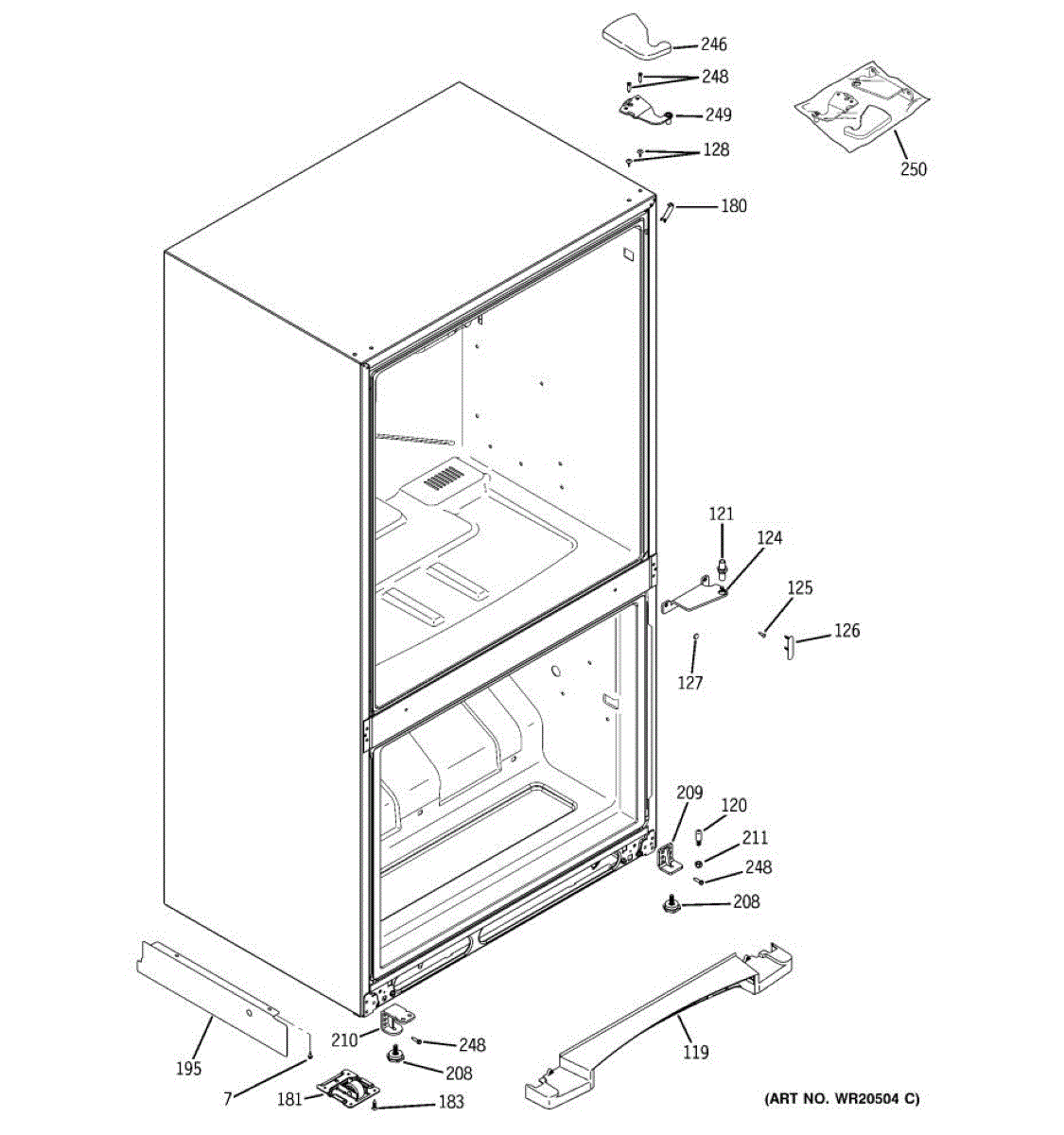

Parts for Ge GBSC0HBXARBB: 06 - Case Parts

8-18 CA HX 1/2 S

This grille base is the lower trim panel that covers the refrigerator kickplate area, restoring a finished look and protecting internal components from dust and debris. It helps keep the cabinet area tidy and improves airflow control at the base. What it does:

• Replaces a cracked, broken, or missing lower trim panel that leaves the kickplate exposed
• Protects condenser area, wiring, and components from dust, dirt, and accidental contact
• Restores proper fit and appearance to the refrigerator's lower front
• Helps maintain intended air path at the base for efficient cabinet clearance

• One grille base (lower trim panel) as shown

• Disconnect power to the appliance before attempting service
• Typically secures with clips and/or screws—align tabs and press or fasten until seated
• Inspect adjacent trim and fasteners; replace any damaged clips for a secure fit

This grille base covers and protects the lower front of the appliance while keeping the area under the unit looking finished. It restores proper airflow routing and prevents debris from getting into the base area. What it does

• Covers the lower front of the appliance to improve appearance and protect internal components.
• Helps direct airflow under the unit for proper ventilation.
• Prevents debris, dust, and small objects from entering the base area.
• Replaces a cracked, broken, loose, or missing grille that leaves gaps at the unit front.

• Disconnect power to the appliance before starting any work.
• Typically installs with fasteners and/or retention clips; save removed hardware for reassembly.
• Inspect adjacent trim and clips and replace if damaged to ensure a secure fit.

This Hinge and Pin Stop Assembly secures a refrigerator door hinge pin and helps the door stay aligned for smooth opening and closing. It restores proper door movement and reduces sagging or uneven gaps. What it does:

• Replaces a worn or damaged hinge pin stop that can allow door sag or misalignment
• Keeps the hinge pin seated to prevent excessive rotation or catching during operation
• Reduces noise or sticking caused by a loose or broken hinge stop
• Helps the door form a proper seal by maintaining correct hinge position

• One hinge and pin stop assembly

• Unplug the appliance or disconnect power before beginning work
• Support the door before removing hinge fasteners to prevent dropping or damage
• Use basic hand tools; fasteners are tightened securely after installation
• Consider replacing matching hinge parts for optimal alignment

This is a silicon controlled rectifier (SCR) used in appliance control circuits to regulate power to heaters or motors, helping the appliance deliver consistent operation and heat when needed. What it does:

• Acts as a switch in the control circuit to regulate current flow to heating elements or motors
• Can prevent or allow power to the load based on control signals from the appliance module
• Common symptom indicators: intermittent or no heat, unit won't reach operating temperature, or inconsistent operation of the controlled component
• Used where precise control of AC power is required for safe, efficient performance

• One silicon controlled rectifier (SCR) as described

• Disconnect power to the appliance before servicing to avoid shock or injury
• Handle the part carefully; avoid bending terminals and observe anti-static precautions
• Verify wiring and terminal orientation matches the original before reconnecting

This is a replacement cover mullion screw that secures the mullion/trim cover on the refrigerator door assembly, restoring a snug, rattle-free fit and keeping the trim properly aligned. What it does

• Secures the mullion or center trim cover to the refrigerator door
• Prevents the trim from vibrating or coming loose during door use
• Addresses symptoms like a loose or rattling mullion cover
• Restores proper trim alignment for a finished appearance

• One cover mullion screw

• High-level hand tools (screwdriver) are typically all that's needed
• Tighten until snug; avoid overtightening to prevent striping the hole or damaging trim
• Disconnect power only if removal of other parts requires working near electrical components; otherwise, ensure doors are stable before working

This plug cover is a small protective cap that shields an appliance's power or wiring plug/terminal area from dust and accidental contact. It helps keep connections clean and reduces the risk of debris buildup. What it does

• Covers and protects an exposed appliance plug or terminal connection
• Helps prevent dust, dirt and small debris from entering the plug area
• Reduces risk of accidental contact with terminals while appliance is serviced or idle
• Commonly used when a cord or plug is not in use or during maintenance

• No special tools required; push the cover firmly into place over the plug or terminal
• Ensure the appliance is powered off and unplugged before servicing nearby components
• Inspect the cover for damage and replace if cracked or deformed
• Not intended to alter electrical connections or provide waterproofing; use only as a protective cap

This reversible door plug covers the unused hinge or mounting hole after changing a door swing, restoring a clean appearance and helping keep out dirt and drafts. Simple, color-matched replacement for a neat finish. What it does:

• Covers exposed hinge or mounting holes on the door edge for a finished look
• Helps block dust, pests and drafts from entering through unused openings
• Matches original geometry to sit flush with the door surface
• Designed to work with reversible door installations where a hole is no longer used

• One (1) reversible door plug

• No tools are typically required; press plug into the unused hole until it seats securely
• Confirm correct orientation before installing to ensure a flush fit
• Inspect surrounding sealing surfaces and clean area before installation
• If plug is damaged or does not seat properly, replace with the exact part number

This reversible door plug fills the unused mounting hole when you switch the door swing on your refrigerator. It restores a finished appearance and helps keep air and moisture from entering through the opening.

• Covers the unused door hole created during a door swing reversal
• Helps maintain proper sealing and resists drafts/condensation at the opening
• Restores a clean, finished, factory look to the door
• Common symptoms: missing or cracked plug, exposed hole, cosmetic gap on door edge

• Disconnect power before servicing any door components
• Gently pry out the old plug with a plastic trim tool to avoid scratches
• Align the new plug with the opening and press until fully seated and flush
• Verify the door closes properly and the gasket seals evenly

This replacement corner cap restores the finished edge and protective cover on an oven door corner for a clean appearance and proper fit. It replaces a cracked, chipped, or missing corner that can catch debris or show damage. What it does:

• Covers and protects the outer corner of the oven door from chips and dents
• Helps maintain a smooth door edge so the door closes and seals properly
• Improves cosmetic appearance when the original corner is cracked or worn
• Reduces sharp or rough edges that can catch on clothing or cause minor cuts

• Turn off power to the appliance and allow the oven to cool before servicing
• Installation may require partially removing the oven door or trim; have basic hand tools ready
• Handle the door and trim carefully to avoid scratching finished surfaces

This 10-32 x 1/2 machine screw secures appliance components where a standard 10-32 fastener is required. It restores proper mounting and reduces vibration or loose panels for reliable, quiet operation. What it does:

• Secures panels, brackets, or components that use a 10-32 threaded hole
• Prevents rattling, misalignment, and intermittent contact caused by loose fasteners
• Maintains electrical or mechanical connections when used as the OEM-specified screw
• Helps restore fit and finish after repair or disassembly

• Use the correct 10-32 driver (Phillips or slotted depending on head) and hand-start the screw to avoid cross-threading
• Tighten until snug; avoid over-tightening to prevent stripping threads or cracking plastic parts
• Replace only with the same size and thread spec to ensure proper fit
• Disconnect power if working near energized components or wiring

This leveling screw threads into the refrigerator's leveling leg or adjuster bracket to raise or lower the cabinet. Replacing a stripped or missing screw restores stable footing and helps keep doors aligned for proper sealing.

• Provides threaded height adjustment of the leveling leg/roller bracket
• Helps stop rocking or wobbling that can cause vibration and rattling
• Aids in door alignment so doors close and seal properly
• Replace if threads are stripped, screw is bent, seized, or missing

• Disconnect power and turn off the water supply before servicing
• Protect flooring; with assistance, carefully tip the appliance slightly to relieve weight from the adjuster
• Remove the damaged screw; hand-start the new screw to avoid cross-threading, then adjust until level
• Verify the cabinet is stable and doors operate correctly before restoring power

This upper hinge cover protects and finishes the refrigerator door hinge area for a clean appearance and helps keep hinge components free of debris. It restores the original look and helps maintain proper door operation. What it does:

• Covers the top door hinge to protect the hinge and mounting hardware from dirt and accidental contact
• Helps maintain a finished, OEM appearance at the top of the door
• Supports proper door alignment by securing the hinge area visually and mechanically
• Common symptom: broken, cracked, or missing hinge cover that exposes hinge hardware or looks unsightly

• Disconnect power to the appliance before performing service and work with the door supported to avoid injury
• Typically installs with basic hand tools; remove or slightly lift the door per the service manual if required
• Align cover over the upper hinge and secure per OEM instructions; do not force parts into place
• If hinge hardware is damaged or worn, replace the hinge or related hardware per OEM guidance

This hex-head screw secures refrigerator components where a 12-24 x 7/8 in fastener is specified. Replacing a missing, stripped, or rusted screw restores a tight, reliable fit for brackets, panels, and assemblies and helps eliminate vibration and rattles.

• Fastens panels, brackets, and other assemblies in the refrigerator at locations calling for this size hardware
• Replaces worn, stripped, or missing screws to restore secure mounting
• Helps correct loose or misaligned components and reduce vibration noise
• OEM size: 12-24 thread, 7/8 in length; hex head

• Disconnect power and, if applicable, shut off the water supply before service
• Match the screw to the original location; replace one at a time to maintain alignment
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use an appropriate nut driver or socket that fits the hex head
