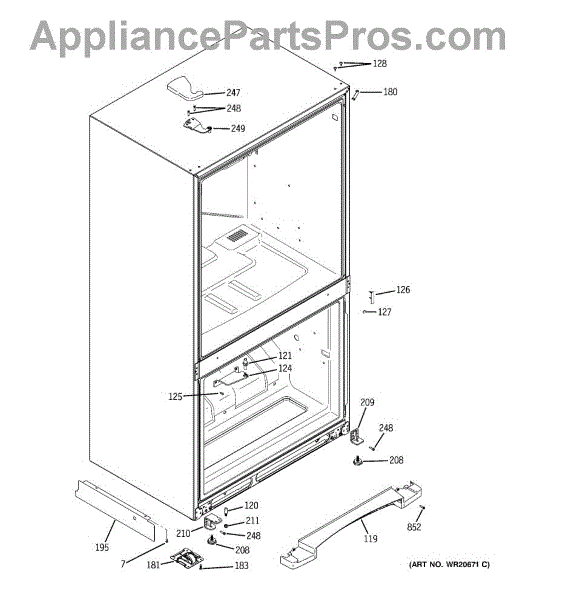

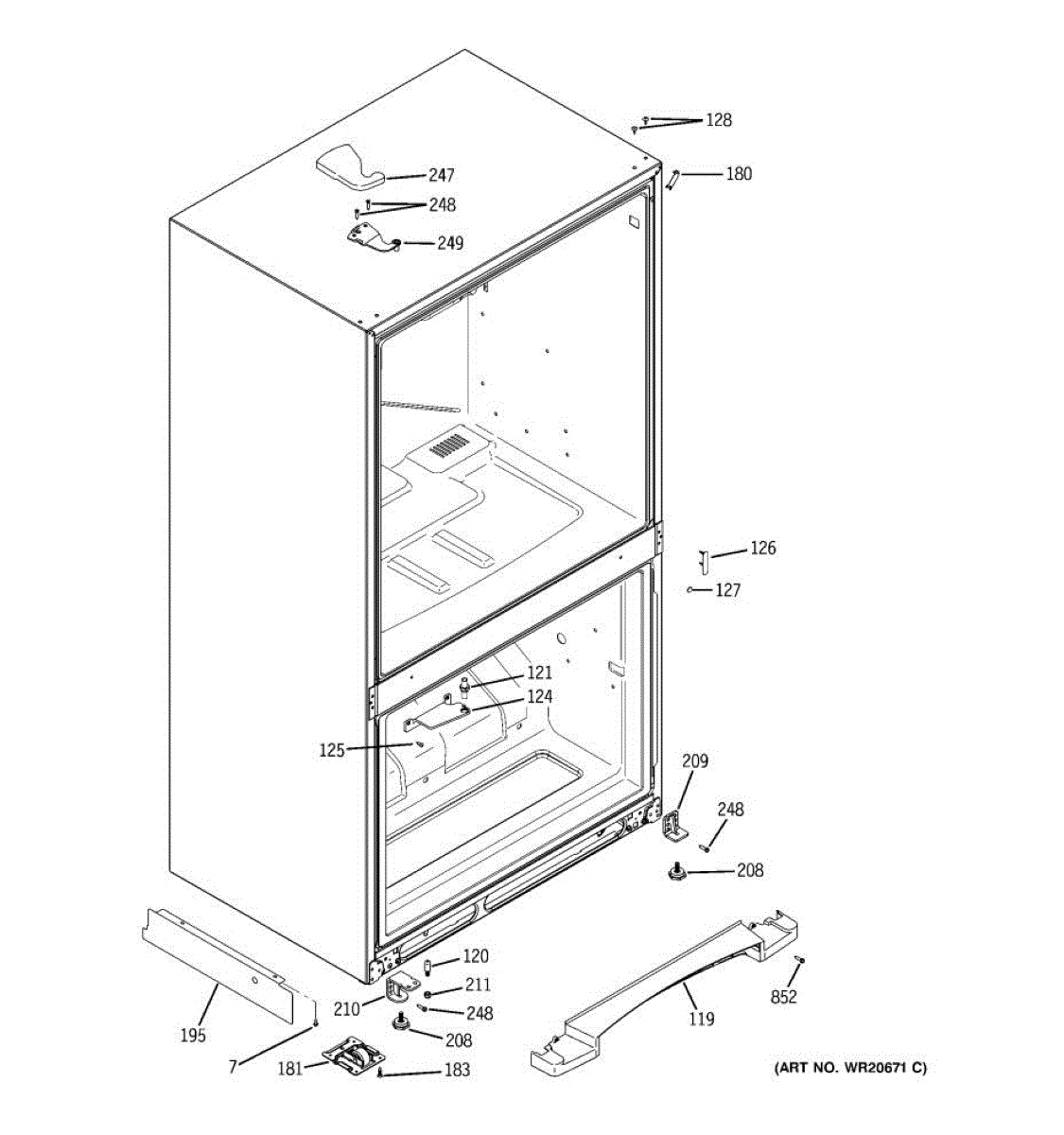

Parts for Ge GBSL0HCXCLLS: 06 - Case Parts

8-18 CA HX 1/2 S

This hinge and pin stop assembly replaces the door hinge stop to help the refrigerator door open and close smoothly and stay properly aligned. Restores correct door movement and reduces sagging or misalignment. What it does:

• Repositions and secures the hinge pin to maintain proper door alignment.
• Limits door travel to prevent over-rotation and protect the cabinet and gasket.
• Helps stop door sag that can cause gaps or uneven sealing.
• Commonly replaced when the door drags, binds, or does not latch correctly.

• One hinge and pin stop assembly

• Disconnect power to the appliance before servicing to avoid injury.
• Support the door during removal/installation to prevent dropping or damage.
• Use basic hand tools; follow the appliance manufacturer's service instructions.

This reversible door plug fills the unused mounting hole when you switch the door swing on your refrigerator. It restores a finished appearance and helps keep air and moisture from entering through the opening.

• Covers the unused door hole created during a door swing reversal
• Helps maintain proper sealing and resists drafts/condensation at the opening
• Restores a clean, finished, factory look to the door
• Common symptoms: missing or cracked plug, exposed hole, cosmetic gap on door edge

• Disconnect power before servicing any door components
• Gently pry out the old plug with a plastic trim tool to avoid scratches
• Align the new plug with the opening and press until fully seated and flush
• Verify the door closes properly and the gasket seals evenly

This 10-32 x 1/2 machine screw secures appliance components where a standard 10-32 fastener is required. It restores proper mounting and reduces vibration or loose panels for reliable, quiet operation. What it does:

• Secures panels, brackets, or components that use a 10-32 threaded hole
• Prevents rattling, misalignment, and intermittent contact caused by loose fasteners
• Maintains electrical or mechanical connections when used as the OEM-specified screw
• Helps restore fit and finish after repair or disassembly

• Use the correct 10-32 driver (Phillips or slotted depending on head) and hand-start the screw to avoid cross-threading
• Tighten until snug; avoid over-tightening to prevent stripping threads or cracking plastic parts
• Replace only with the same size and thread spec to ensure proper fit
• Disconnect power if working near energized components or wiring

This leveling screw threads into the refrigerator's leveling leg or adjuster bracket to raise or lower the cabinet. Replacing a stripped or missing screw restores stable footing and helps keep doors aligned for proper sealing.

• Provides threaded height adjustment of the leveling leg/roller bracket
• Helps stop rocking or wobbling that can cause vibration and rattling
• Aids in door alignment so doors close and seal properly
• Replace if threads are stripped, screw is bent, seized, or missing

• Disconnect power and turn off the water supply before servicing
• Protect flooring; with assistance, carefully tip the appliance slightly to relieve weight from the adjuster
• Remove the damaged screw; hand-start the new screw to avoid cross-threading, then adjust until level
• Verify the cabinet is stable and doors operate correctly before restoring power

This hex-head screw secures refrigerator components where a 12-24 x 7/8 in fastener is specified. Replacing a missing, stripped, or rusted screw restores a tight, reliable fit for brackets, panels, and assemblies and helps eliminate vibration and rattles.

• Fastens panels, brackets, and other assemblies in the refrigerator at locations calling for this size hardware
• Replaces worn, stripped, or missing screws to restore secure mounting
• Helps correct loose or misaligned components and reduce vibration noise
• OEM size: 12-24 thread, 7/8 in length; hex head

• Disconnect power and, if applicable, shut off the water supply before service
• Match the screw to the original location; replace one at a time to maintain alignment
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use an appropriate nut driver or socket that fits the hex head

This manufacturer-specified screw fastens appliance panels, brackets, and internal components in place. Replace a missing or stripped fastener to restore a tight, rattle-free fit and reliable support at the original mounting points.

• Provides the correct fastener for securing covers, brackets, and assemblies
• Replaces lost, rusted, or damaged screws
• Helps resolve loose or vibrating panels and trim
• Maintains alignment of components and hardware

• Unplug the appliance; shut off water if working near supply lines
• Match the new screw to the original location; verify length and thread
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Keep removed hardware organized for reassembly
