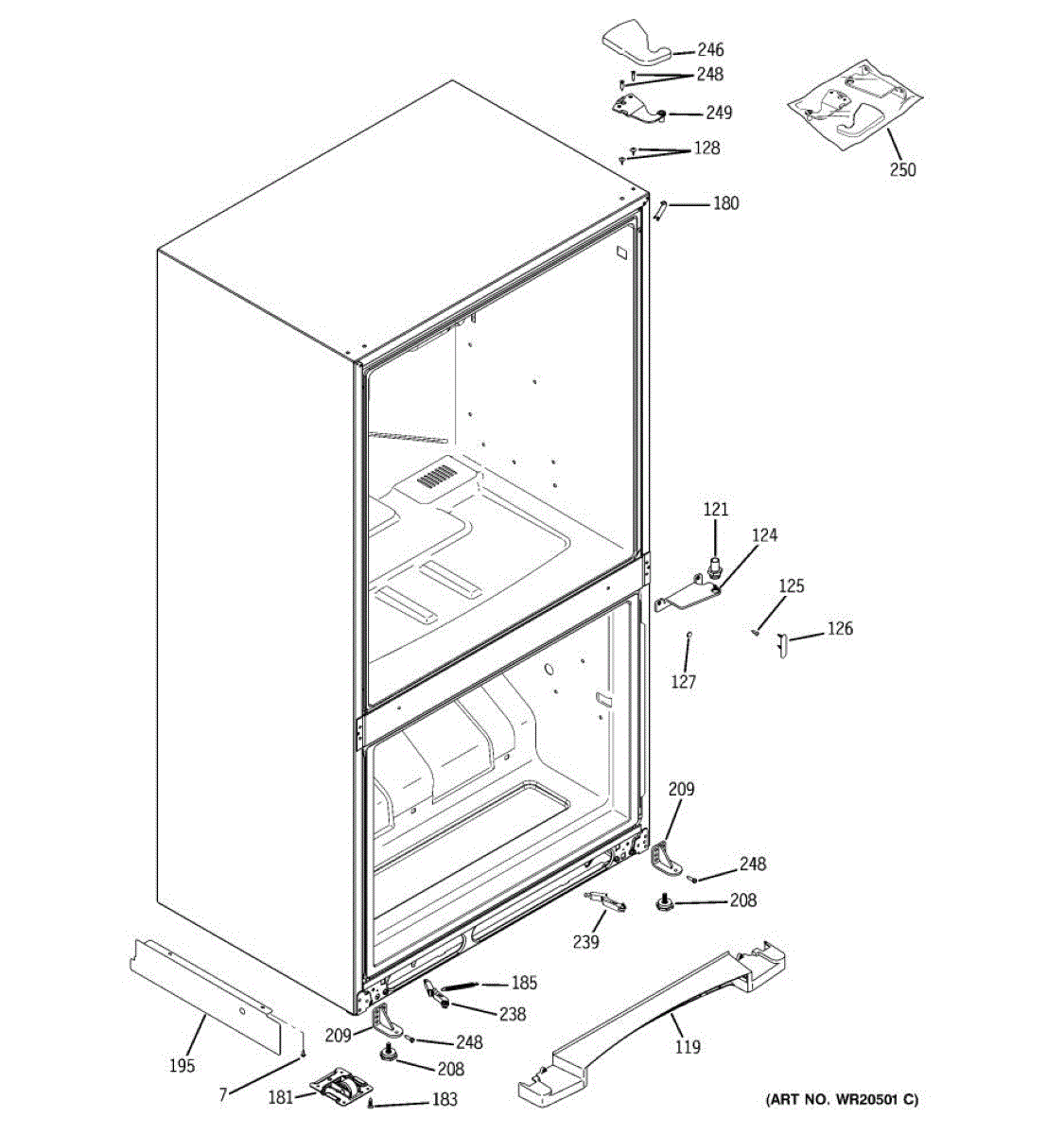

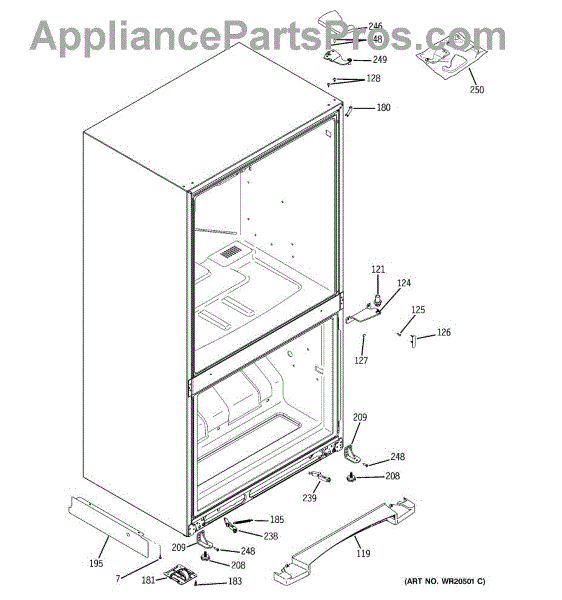

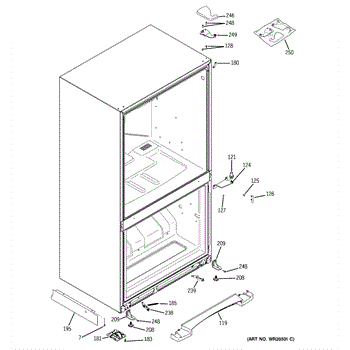

Parts for Ge GDSC0KBXARCC: 06 - Case Parts

8-18 CA HX 1/2 S

This grille base is the lower trim panel that covers the refrigerator kickplate area, restoring a finished look and protecting internal components from dust and debris. It helps keep the cabinet area tidy and improves airflow control at the base. What it does:

• Replaces a cracked, broken, or missing lower trim panel that leaves the kickplate exposed
• Protects condenser area, wiring, and components from dust, dirt, and accidental contact
• Restores proper fit and appearance to the refrigerator's lower front
• Helps maintain intended air path at the base for efficient cabinet clearance

• One grille base (lower trim panel) as shown

• Disconnect power to the appliance before attempting service
• Typically secures with clips and/or screws—align tabs and press or fasten until seated
• Inspect adjacent trim and fasteners; replace any damaged clips for a secure fit

This grille base covers and protects the lower front of the appliance while keeping the area under the unit looking finished. It restores proper airflow routing and prevents debris from getting into the base area. What it does

• Covers the lower front of the appliance to improve appearance and protect internal components.
• Helps direct airflow under the unit for proper ventilation.
• Prevents debris, dust, and small objects from entering the base area.
• Replaces a cracked, broken, loose, or missing grille that leaves gaps at the unit front.

• Disconnect power to the appliance before starting any work.
• Typically installs with fasteners and/or retention clips; save removed hardware for reassembly.
• Inspect adjacent trim and clips and replace if damaged to ensure a secure fit.

This Hinge and Pin Stop Assembly secures a refrigerator door hinge pin and helps the door stay aligned for smooth opening and closing. It restores proper door movement and reduces sagging or uneven gaps. What it does:

• Replaces a worn or damaged hinge pin stop that can allow door sag or misalignment
• Keeps the hinge pin seated to prevent excessive rotation or catching during operation
• Reduces noise or sticking caused by a loose or broken hinge stop
• Helps the door form a proper seal by maintaining correct hinge position

• One hinge and pin stop assembly

• Unplug the appliance or disconnect power before beginning work
• Support the door before removing hinge fasteners to prevent dropping or damage
• Use basic hand tools; fasteners are tightened securely after installation
• Consider replacing matching hinge parts for optimal alignment

This is a silicon controlled rectifier (SCR) used in appliance control circuits to regulate power to heaters or motors, helping the appliance deliver consistent operation and heat when needed. What it does:

• Acts as a switch in the control circuit to regulate current flow to heating elements or motors
• Can prevent or allow power to the load based on control signals from the appliance module
• Common symptom indicators: intermittent or no heat, unit won't reach operating temperature, or inconsistent operation of the controlled component
• Used where precise control of AC power is required for safe, efficient performance

• One silicon controlled rectifier (SCR) as described

• Disconnect power to the appliance before servicing to avoid shock or injury
• Handle the part carefully; avoid bending terminals and observe anti-static precautions
• Verify wiring and terminal orientation matches the original before reconnecting

This is a replacement cover mullion screw that secures the mullion/trim cover on the refrigerator door assembly, restoring a snug, rattle-free fit and keeping the trim properly aligned. What it does

• Secures the mullion or center trim cover to the refrigerator door
• Prevents the trim from vibrating or coming loose during door use
• Addresses symptoms like a loose or rattling mullion cover
• Restores proper trim alignment for a finished appearance

• One cover mullion screw

• High-level hand tools (screwdriver) are typically all that's needed
• Tighten until snug; avoid overtightening to prevent striping the hole or damaging trim
• Disconnect power only if removal of other parts requires working near electrical components; otherwise, ensure doors are stable before working

This plug cover is a small protective cap that shields an appliance's power or wiring plug/terminal area from dust and accidental contact. It helps keep connections clean and reduces the risk of debris buildup. What it does

• Covers and protects an exposed appliance plug or terminal connection
• Helps prevent dust, dirt and small debris from entering the plug area
• Reduces risk of accidental contact with terminals while appliance is serviced or idle
• Commonly used when a cord or plug is not in use or during maintenance

• No special tools required; push the cover firmly into place over the plug or terminal
• Ensure the appliance is powered off and unplugged before servicing nearby components
• Inspect the cover for damage and replace if cracked or deformed
• Not intended to alter electrical connections or provide waterproofing; use only as a protective cap

This replacement corner cap restores the finished edge and protective cover on an oven door corner for a clean appearance and proper fit. It replaces a cracked, chipped, or missing corner that can catch debris or show damage. What it does:

• Covers and protects the outer corner of the oven door from chips and dents
• Helps maintain a smooth door edge so the door closes and seals properly
• Improves cosmetic appearance when the original corner is cracked or worn
• Reduces sharp or rough edges that can catch on clothing or cause minor cuts

• Turn off power to the appliance and allow the oven to cool before servicing
• Installation may require partially removing the oven door or trim; have basic hand tools ready
• Handle the door and trim carefully to avoid scratching finished surfaces

This 10-32 x 1/2 machine screw secures appliance components where a standard 10-32 fastener is required. It restores proper mounting and reduces vibration or loose panels for reliable, quiet operation. What it does:

• Secures panels, brackets, or components that use a 10-32 threaded hole
• Prevents rattling, misalignment, and intermittent contact caused by loose fasteners
• Maintains electrical or mechanical connections when used as the OEM-specified screw
• Helps restore fit and finish after repair or disassembly

• Use the correct 10-32 driver (Phillips or slotted depending on head) and hand-start the screw to avoid cross-threading
• Tighten until snug; avoid over-tightening to prevent stripping threads or cracking plastic parts
• Replace only with the same size and thread spec to ensure proper fit
• Disconnect power if working near energized components or wiring

The Door Closure Spring is an OEM replacement part for GE refrigerators. It provides balanced tension to assist the door hinges and latch mechanism in securely closing the refrigerator door. The spring helps the door shut fully while preventing it from slamming closed abruptly.

Symptoms of a bad door closure spring include:

• The door not latching securely or remaining slightly ajar
• Difficulty closing the door fully without assistance
• Increased thermal loss as the door does not seal tightly
• Risk of food items falling out from an open door position

Causes of failure include metal fatigue from prolonged use. Springs can also weaken from mineral buildup over many years of repeated openings and closings.

This OEM GE replacement spring is also compatible with models including GE, Monogram, and select Kenmore units.

This adjustable leveling screw replaces a worn or damaged leg adjustment used to raise, lower, and level the appliance for stable operation. It restores proper fit and helps reduce rocking and uneven appliance height. What it does:

• Provides height adjustment to level the appliance on uneven floors
• Stabilizes the unit to reduce rocking and vibration
• Helps align doors and drawers that hang or bind due to uneven stance
• Works as the threaded lower leg/adjuster for proper weight support

• Disconnect power and water and move the appliance to access the leveling assembly safely.
• Support the appliance with a jack or block before removing or adjusting legs to prevent tipping.
• Turn the screw with an appropriate wrench or pliers; adjust gradually and check level frequently.
• If the leg assembly includes a mounting bracket, keep fasteners secure and replace any worn hardware.

This lever arm is the freezer door closure assembly that helps the freezer door latch and stay sealed for proper cooling. It restores reliable door movement and helps prevent cold-air loss from the freezer compartment. What it does:

• Replaces a worn or broken lever that moves the freezer door into the closed/latch position
• Helps the door latch smoothly and maintain a tight seal to preserve cooling performance
• Commonly used when the door feels loose, won't fully close, or the closure mechanism is broken
• Durable molded assembly designed to align with the freezer door closure striker

• Unplug the appliance or disconnect power before beginning any repair
• Install with basic hand tools; keep track of mounting screws and any small linkage parts
• Test door operation and proper seal after reassembly; adjust striker alignment if needed

This upper hinge cover protects and finishes the refrigerator door hinge area for a clean appearance and helps keep hinge components free of debris. It restores the original look and helps maintain proper door operation. What it does:

• Covers the top door hinge to protect the hinge and mounting hardware from dirt and accidental contact
• Helps maintain a finished, OEM appearance at the top of the door
• Supports proper door alignment by securing the hinge area visually and mechanically
• Common symptom: broken, cracked, or missing hinge cover that exposes hinge hardware or looks unsightly

• Disconnect power to the appliance before performing service and work with the door supported to avoid injury
• Typically installs with basic hand tools; remove or slightly lift the door per the service manual if required
• Align cover over the upper hinge and secure per OEM instructions; do not force parts into place
• If hinge hardware is damaged or worn, replace the hinge or related hardware per OEM guidance

This hex-head screw secures refrigerator components where a 12-24 x 7/8 in fastener is specified. Replacing a missing, stripped, or rusted screw restores a tight, reliable fit for brackets, panels, and assemblies and helps eliminate vibration and rattles.

• Fastens panels, brackets, and other assemblies in the refrigerator at locations calling for this size hardware
• Replaces worn, stripped, or missing screws to restore secure mounting
• Helps correct loose or misaligned components and reduce vibration noise
• OEM size: 12-24 thread, 7/8 in length; hex head

• Disconnect power and, if applicable, shut off the water supply before service
• Match the screw to the original location; replace one at a time to maintain alignment
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use an appropriate nut driver or socket that fits the hex head
