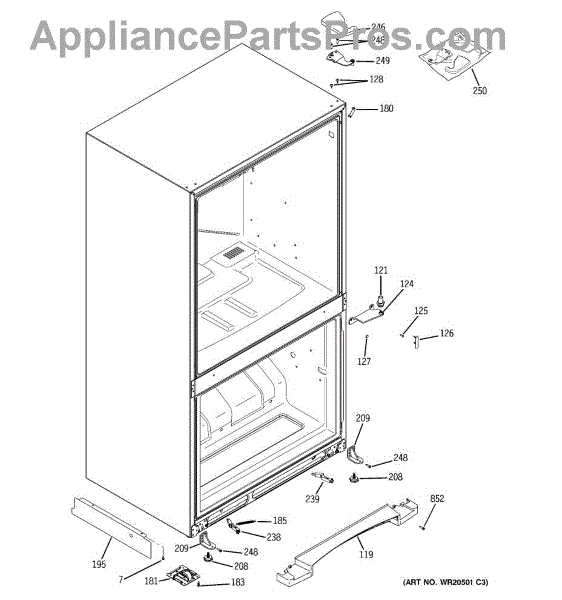

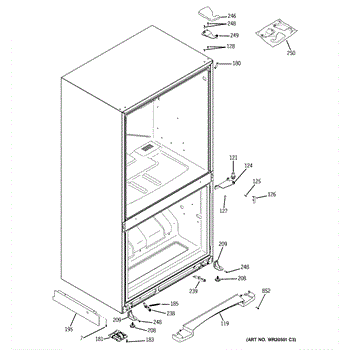

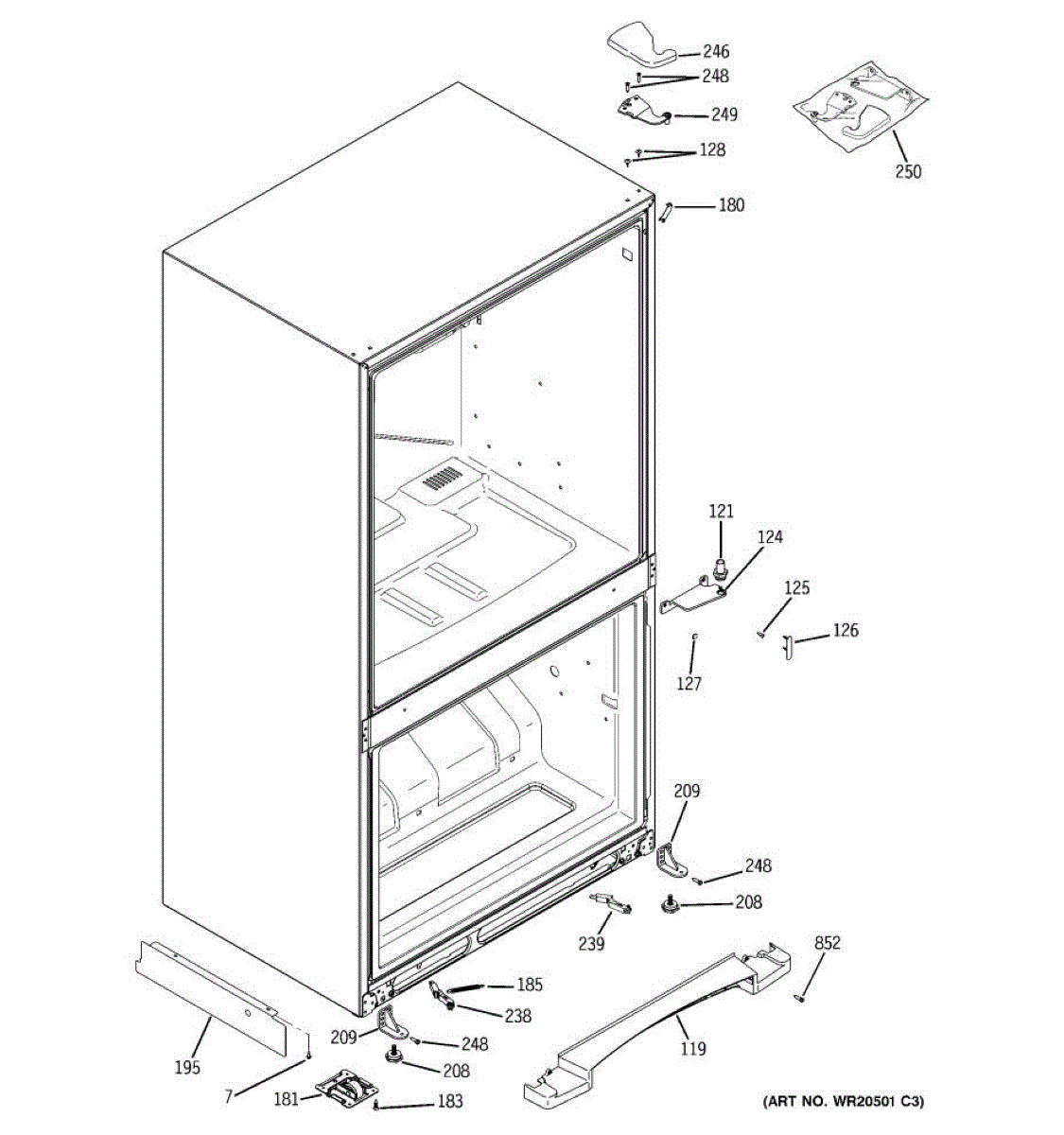

Parts for Ge GDSL0KCXERLS: 06 - Case Parts

8-18 CA HX 1/2 S

This Hinge and Pin Stop Assembly secures a refrigerator door hinge pin and helps the door stay aligned for smooth opening and closing. It restores proper door movement and reduces sagging or uneven gaps. What it does:

• Replaces a worn or damaged hinge pin stop that can allow door sag or misalignment
• Keeps the hinge pin seated to prevent excessive rotation or catching during operation
• Reduces noise or sticking caused by a loose or broken hinge stop
• Helps the door form a proper seal by maintaining correct hinge position

• One hinge and pin stop assembly

• Unplug the appliance or disconnect power before beginning work
• Support the door before removing hinge fasteners to prevent dropping or damage
• Use basic hand tools; fasteners are tightened securely after installation
• Consider replacing matching hinge parts for optimal alignment

This 10-32 x 1/2 machine screw secures appliance components where a standard 10-32 fastener is required. It restores proper mounting and reduces vibration or loose panels for reliable, quiet operation. What it does:

• Secures panels, brackets, or components that use a 10-32 threaded hole
• Prevents rattling, misalignment, and intermittent contact caused by loose fasteners
• Maintains electrical or mechanical connections when used as the OEM-specified screw
• Helps restore fit and finish after repair or disassembly

• Use the correct 10-32 driver (Phillips or slotted depending on head) and hand-start the screw to avoid cross-threading
• Tighten until snug; avoid over-tightening to prevent stripping threads or cracking plastic parts
• Replace only with the same size and thread spec to ensure proper fit
• Disconnect power if working near energized components or wiring

The Door Closure Spring is an OEM replacement part for GE refrigerators. It provides balanced tension to assist the door hinges and latch mechanism in securely closing the refrigerator door. The spring helps the door shut fully while preventing it from slamming closed abruptly.

Symptoms of a bad door closure spring include:

• The door not latching securely or remaining slightly ajar
• Difficulty closing the door fully without assistance
• Increased thermal loss as the door does not seal tightly
• Risk of food items falling out from an open door position

Causes of failure include metal fatigue from prolonged use. Springs can also weaken from mineral buildup over many years of repeated openings and closings.

This OEM GE replacement spring is also compatible with models including GE, Monogram, and select Kenmore units.

This leveling screw threads into the refrigerator's leveling leg or adjuster bracket to raise or lower the cabinet. Replacing a stripped or missing screw restores stable footing and helps keep doors aligned for proper sealing.

• Provides threaded height adjustment of the leveling leg/roller bracket
• Helps stop rocking or wobbling that can cause vibration and rattling
• Aids in door alignment so doors close and seal properly
• Replace if threads are stripped, screw is bent, seized, or missing

• Disconnect power and turn off the water supply before servicing
• Protect flooring; with assistance, carefully tip the appliance slightly to relieve weight from the adjuster
• Remove the damaged screw; hand-start the new screw to avoid cross-threading, then adjust until level
• Verify the cabinet is stable and doors operate correctly before restoring power

This cover hinge top is the upper cabinet hinge piece that supports and guides a refrigerator/freezer door or access cover, restoring proper alignment and smooth opening for reliable daily use. It's a direct-fit replacement designed to match OEM form and function. What it does

• Secures the upper edge of the door or top cover and provides a pivot point for opening and closing.
• Restores proper door alignment to prevent sagging or uneven gaps.
• Helps eliminate binding, sticking, or rough door movement.
• Reduces noise caused by a worn or damaged hinge.

• One cover hinge top.

• Disconnect power to the appliance before starting any repair.
• Support the door or cover during removal to avoid dropping or damage.
• Use basic hand tools; follow the appliance service manual for torque and alignment steps.
• Handle trim or glass pieces carefully to avoid chipping or breakage.

This hex-head screw secures refrigerator components where a 12-24 x 7/8 in fastener is specified. Replacing a missing, stripped, or rusted screw restores a tight, reliable fit for brackets, panels, and assemblies and helps eliminate vibration and rattles.

• Fastens panels, brackets, and other assemblies in the refrigerator at locations calling for this size hardware
• Replaces worn, stripped, or missing screws to restore secure mounting
• Helps correct loose or misaligned components and reduce vibration noise
• OEM size: 12-24 thread, 7/8 in length; hex head

• Disconnect power and, if applicable, shut off the water supply before service
• Match the screw to the original location; replace one at a time to maintain alignment
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use an appropriate nut driver or socket that fits the hex head

This manufacturer-specified screw fastens appliance panels, brackets, and internal components in place. Replace a missing or stripped fastener to restore a tight, rattle-free fit and reliable support at the original mounting points.

• Provides the correct fastener for securing covers, brackets, and assemblies
• Replaces lost, rusted, or damaged screws
• Helps resolve loose or vibrating panels and trim
• Maintains alignment of components and hardware

• Unplug the appliance; shut off water if working near supply lines
• Match the new screw to the original location; verify length and thread
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Keep removed hardware organized for reassembly
