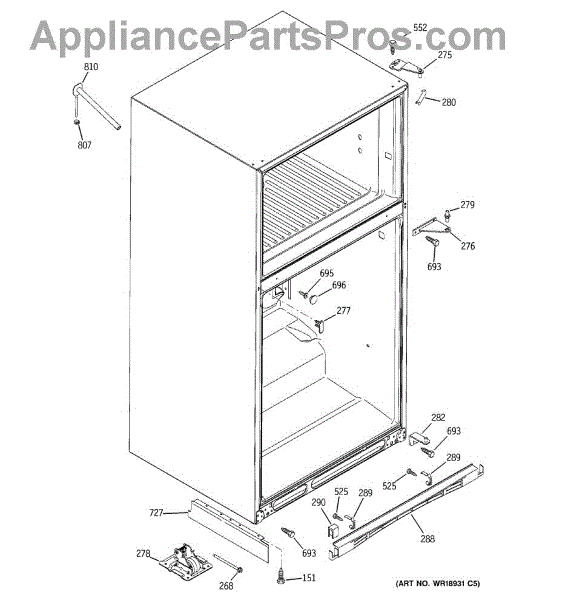

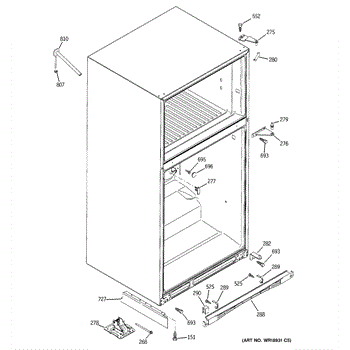

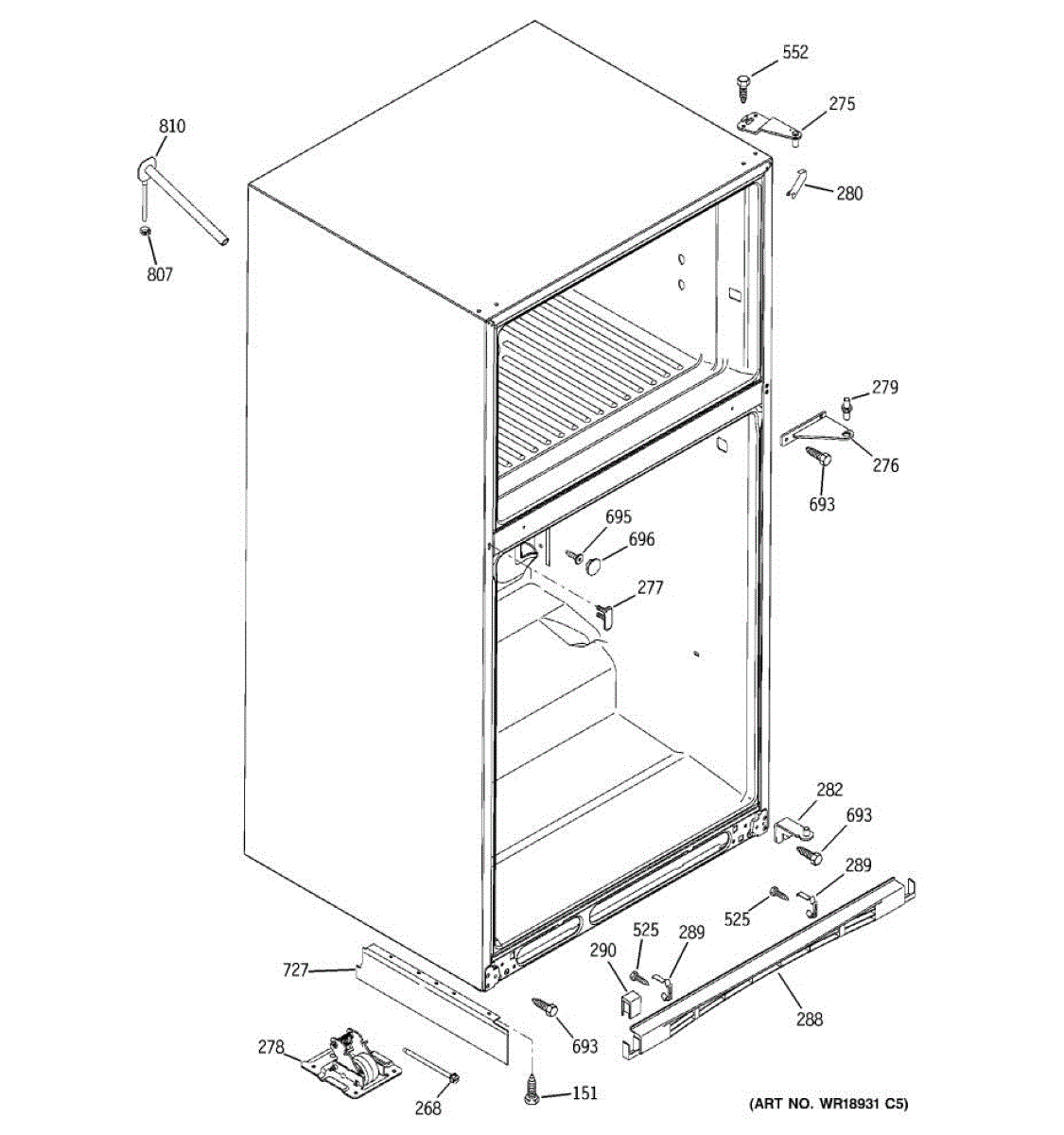

Parts for Ge GTS22KHPARCC: 08 - Case Parts

The GE refrigerator water filter is an OEM replacement part responsible for ensuring the quality of the water dispensed on GE Profile top and bottom freezer refrigerators. It is responsible for purifying the water before it reaches your glass or ice maker, providing you with clean and safe drinking water directly from your refrigerator. To maintain optimal water quality and ensure the filter's effectiveness, it is recommended to replace the filter every 6 months or when the rated capacity of 750 gallons is reached.

Over time, the water filter can become clogged with sediment, reducing its effectiveness. Regular use and the accumulation of minerals and contaminants can lead to the need for replacement.

Symptoms of a bad water filter include:

• Reduced water flow from the dispenser
• Ice cubes with an unusual taste or odor
• The filter indicator light staying on
• Visible particles in the water or ice

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models. For the best performance, it is recommended to replace the water filter every six months or as indicated by the filter change light on your refrigerator.

This is a replacement 8-18 x 9/16 machine screw used to secure internal and external appliance components. It restores proper fastening and helps stop rattling or loose panels caused by worn or missing fasteners. What it does

• Secures panels, brackets, or small assemblies to prevent movement and vibration
• Replaces stripped, corroded, or missing screws that can cause rattling or misalignment
• Helps maintain electrical and mechanical connections by holding parts in proper position
• Appropriate where an 8-18 thread size and 9/16" length are required

• Replacement screw

• Disconnect power to the appliance before accessing internal components
• Use the correct driver to avoid stripping the screw head and ensure proper torque
• Do not overtighten; snug until secure to avoid damaging threads or parts

This is a mobility screw used to secure mobility-related components in compatible appliances, providing a reliable fastener for stable operation and correct alignment. It replaces worn or missing screws to restore secure mounting. What it does

• Fastens and secures mobility/bracket components to prevent movement or misalignment.
• Helps maintain proper alignment of moving parts that can cause noise or binding when loose.
• Commonly replaced when mounting points are stripped, damaged, or missing.
• Small replacement part that supports overall appliance stability and safe operation.

• One screw as shown/packaged by the manufacturer.

• Use the correct screwdriver or bit to avoid stripping the screw head.
• Ensure the appliance is powered off and disconnected from the power source before accessing internal components.
• Do not overtighten; snug to manufacturer torque or until the part is secure.
• If mounting hardware or threaded inserts are damaged, replace or repair those components before installing this screw.

This mobility front assembly replaces the worn front caster/roller that helps a refrigerator glide when pulled out for cleaning or service. Restores smooth forward movement and stable front support for safe access. What it does:

• Provides a rolling front support so the appliance moves smoothly on the floor
• Helps stabilize the front of the refrigerator when it is pulled out or pushed in
• Reduces sticking and uneven movement caused by worn or damaged rollers
• Can help minimize scraping or surface damage during repositioning

• One mobility front assembly

• Disconnect power and, if applicable, water supply before servicing
• Empty or secure loose items and have a second person help when tilting or moving the appliance
• Remove the kickplate or access panel as required to reach and replace the front assembly
• Tighten fasteners to OEM torque and test mobility before returning the appliance to normal use

This replacement screw secures panels, brackets, and other hardware in your appliance. Installing a new fastener restores a tight, rattle-free fit when the original is missing, stripped, or corroded, helping keep components properly aligned.

• Fastens components, trim, and brackets to the cabinet or frame
• Replaces a missing, stripped, or rusted screw
• Helps reduce rattles, vibration, and loose panels or handles
• Maintains proper alignment of panels and hardware

• Disconnect power (and water/gas if applicable) before servicing.
• 12-24 thread, approximately 0.90-inch length; match to the original location.
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening.
• Replace any additional damaged fasteners to ensure even clamping and a secure fit.

This 12-24, white screw secures panels and small appliance components. Replaces missing or damaged fasteners to restore a secure fit, reduce vibration and rattling, and help maintain proper alignment. What it does:

• Secures trim, panels, brackets and other small components.
• Replaces missing or worn fasteners that cause loose or rattling parts.
• Helps restore proper alignment of covers and access panels.
• Use when the original 12-24 screw is stripped, missing, or damaged.

• Disconnect power to the appliance before beginning any repair that exposes wiring or electrical components.
• Use the correct driver for the screw head to avoid stripping.
• Tighten until snug; avoid over-tightening which can damage threads or components.

This plastic air separator directs refrigerator airflow on the high side to help maintain even temperatures and efficient circulation. Replaces a cracked or damaged separator to restore proper airflow and compartment cooling. What it does

• Guides cold air through the appropriate ducting to help balance temperatures between compartments
• Prevents air leakage that can cause uneven cooling or warm spots
• Helps reduce frosting or humidity buildup caused by disrupted airflow
• Restores intended circulation after breakage from impact or aging

• Unplug the appliance or disconnect power before beginning any repair
• Remove shelves, drawers, or trim panels as needed to access the separator
• Handle plastic tabs and clips carefully to avoid breakage; replace any damaged fasteners

This replacement clamp secures lines or components inside the refrigerator, keeping them properly routed and stable. Replacing a broken or missing clamp helps reduce vibration and prevents rubbing damage or leaks from loose tubing. What it does:

• Holds tubing or wiring harnesses securely in place inside the refrigerator
• Maintains correct routing and clearance to prevent chafing and wear
• Helps reduce vibration and rattling noises from unsecured lines
• Can help prevent drips or leaks when used to retain water tubing

• 1 clamp

• Unplug the refrigerator and, if working with water lines, shut off the water supply
• Note the original clamp orientation and routing; take a photo before removal
• Install the new clamp in the same location, securing lines without pinching or over-stressing them
• Restore power (and water if applicable) and check that lines are secure; inspect for leaks if used on water tubing
