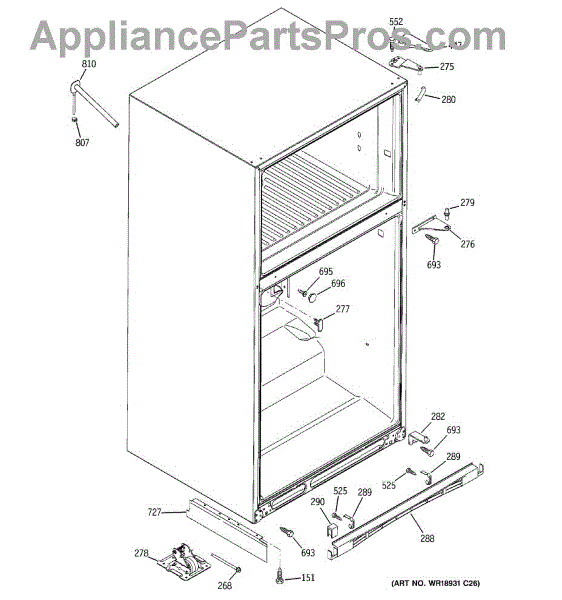

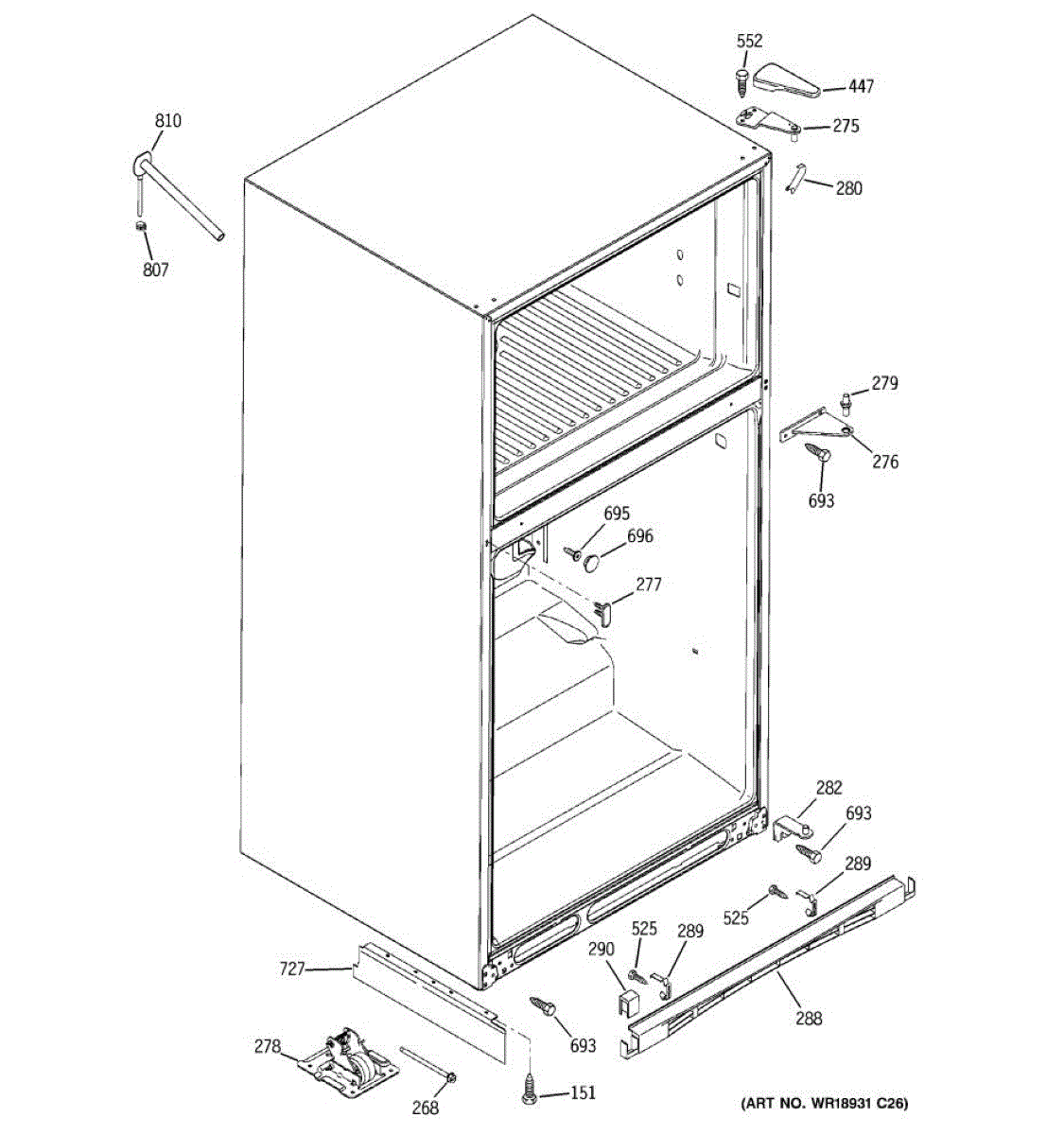

Parts for Ge PTS22LCSCRCC: 07 - Case Parts

Sheet metal screw secures refrigerator panels, trim, and brackets. Replace missing, stripped, or corroded screws to restore proper fit and assembly.

Secures mobility components and wheel brackets on side-by-side refrigerators. Replace if screw is missing, stripped, or worn to restore stable mounting.

Top door hinge and pin assembly for refrigerators. Replaces broken, cracked, or worn hinges that cause door misalignment or sagging. Structural part.

Center door hinge assembly for refrigerators. Secures and aligns the refrigerator door for smooth opening and closing. Replace if cracked or worn.

Center hinge assembly for refrigerator doors. Installs between upper and lower doors to provide pivot support. Replace if hinge is cracked, bent, or worn.

White plastic cover cap that conceals mullion screws in your refrigerator. Replaces cracked, broken, or missing screw covers for a finished appearance.

Front roller assembly for refrigerators. Mounts to the base to enable smooth movement and leveling. Replace if cracked, worn, or mobility is impaired.

White corner cap cover for side-by-side refrigerators. Replaces cracked, broken, or missing corner trim pieces. Restores clean appearance.

This black plastic corner cap fits on the exterior corner of the refrigerator door, providing a finished appearance where trim pieces meet. It snaps into place to cover the joint at the door's edge. Replace this cap if it is cracked, broken, or missing, which can leave a gap and detract from the appliance's appearance.

Corner cap cover for side-by-side refrigerators. Replaces broken, cracked, or missing corner trim caps. Restores finished appearance to cabinet edges.

White plastic end cap for refrigerator front grille assembly. Replaces missing, cracked, or broken grille caps. Snaps onto grille edge for clean finish.

This grille end cap covers the edge of your refrigerator's base grille. Replace if cracked, broken, or missing to restore a clean finished look.

Black plastic grille end cap for refrigerator base grilles. Replaces broken, cracked, or missing caps that secure grille panels at the edges.

Replace your refrigerator's door hinge cover if it's cracked, broken, or missing. This plastic cover installs over the hinge mechanism for a clean finish.

Replace your refrigerator's door hinge cover if cracked, broken, or missing. This white cover installs over the hinge to provide a finished look.

Replace missing or stripped #8-18 x 5/8-inch Torx T20 screws in your side-by-side refrigerator. Secures panels, brackets, drawer rails, and trim.

Hex head screw for refrigerator panels, brackets, and assemblies. Replaces missing, stripped, or rusted fasteners to secure components properly.

Hex head screw for securing refrigerator components and panels. Replace if screw is stripped, corroded, or missing during repairs or reassembly.

This is a silicon controlled rectifier (SCR) used in appliance control circuits to regulate power to heaters or motors, helping the appliance deliver consistent operation and heat when needed. What it does:

• Acts as a switch in the control circuit to regulate current flow to heating elements or motors
• Can prevent or allow power to the load based on control signals from the appliance module
• Common symptom indicators: intermittent or no heat, unit won't reach operating temperature, or inconsistent operation of the controlled component
• Used where precise control of AC power is required for safe, efficient performance

• One silicon controlled rectifier (SCR) as described

• Disconnect power to the appliance before servicing to avoid shock or injury
• Handle the part carefully; avoid bending terminals and observe anti-static precautions
• Verify wiring and terminal orientation matches the original before reconnecting

White plastic cover cap that conceals hinge screws on your refrigerator door. Replaces worn, cracked, or missing covers for a clean finished look.

Grommet and tube assembly for refrigerators. Installs in the water supply system. Replace if cracked, leaking, worn, or damaged to restore proper fit.
