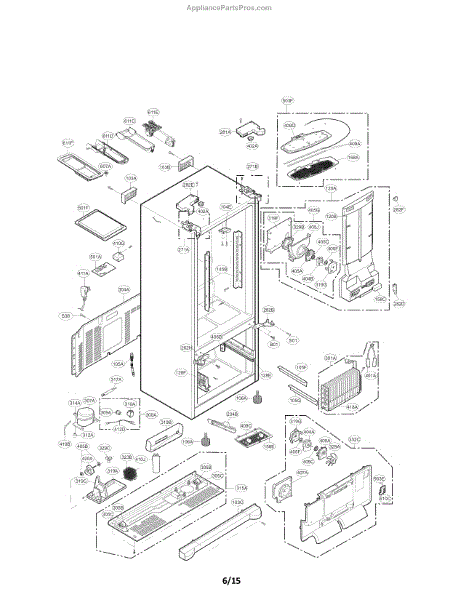

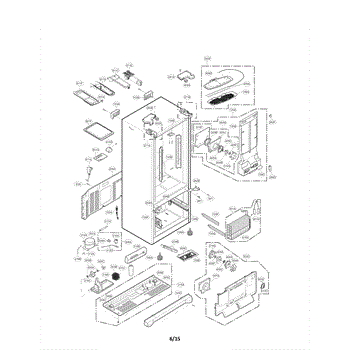

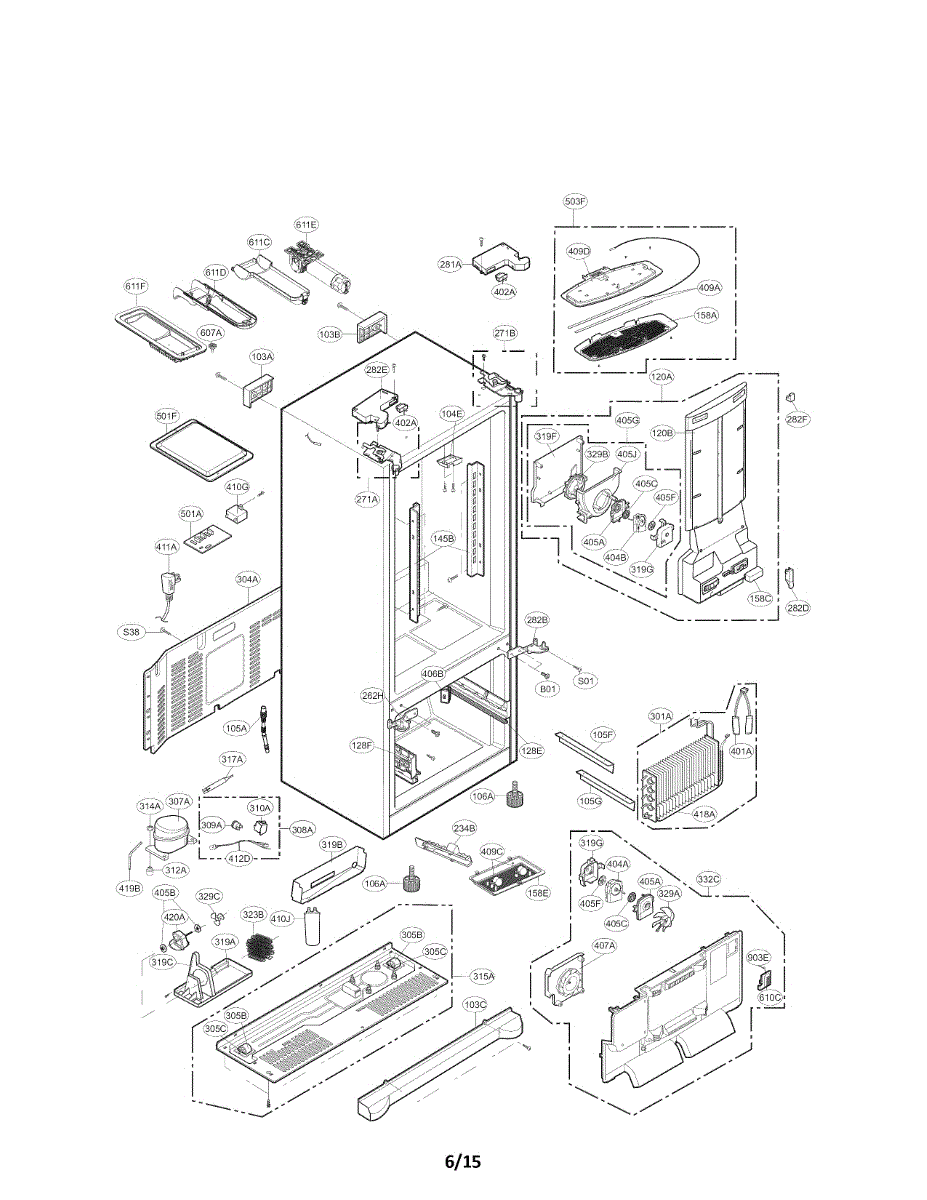

Parts for Kenmore 795.71032012 (79571032012, 795 71032012): Case Parts

The Water Filter is an OEM replacement part for LG refrigerators. It is designed to remove impurities, contaminants, and unwanted particles from the water supply, ensuring that the water dispensed and used for ice making is clean and fresh.

Symptoms of a need to replace the water filter:

• Unpleasant taste or odor in the water or ice
• Decreased water flow from the dispenser
• Discoloration or sediment visible in the dispensed water

Causes of a faulty water filter can include general usage over time, exposure to high levels of contaminants in the water supply, or physical damage or clogging of the filter media.

This OEM LG part is also compatible with some Kenmore refrigerator models.

This hinge bolt secures the hinge to the appliance cabinet or door, keeping alignment true and motion smooth. Replacing a stripped, missing, or corroded bolt helps restore proper door operation and reliable closing.

• Fastens the hinge to support and stabilize the door
• Helps maintain alignment for smooth opening and closing
• Replaces damaged, stripped, or missing hardware

• Disconnect power to the appliance; shut off water supply if applicable
• Support the door to prevent strain on remaining hardware; enlist a second person if needed
• Note the order/orientation of any shims or washers and transfer them during reassembly
• Start threads by hand to avoid cross-threading; tighten securely without overtightening

The Door Bracket is an OEM part for LG refrigerators. This bracket supports the refrigerator door by providing stability and ensuring proper alignment during opening and closing. It plays a crucial role in maintaining the door’s secure fit, which is essential for maintaining the internal temperature and efficiency of the appliance.

Common causes of a bad door bracket include wear and tear from frequent use, impact damage, or corrosion due to moisture.

Symptoms of a bad door bracket include:

• The refrigerator door not closing properly
• The door sagging or being misaligned
• Unusual noises when opening or closing the door
• Gaps in the door seal leading to temperature inconsistencies

This OEM LG part is also compatible with Sears/Kenmore.

This hinge assembly replaces a worn or damaged refrigerator door hinge to restore proper door alignment and smooth opening and closing. It helps stop sagging doors, noisy movement, and improper sealing for better cooling performance. What it does:

• Supports and pivots the refrigerator door for correct alignment and even sealing
• Replaces broken, bent, or worn hinge hardware that causes door sag or misalignment
• Reduces rubbing, grinding, or noisy hinge movement when opening or closing
• Helps restore proper door closure to prevent cold air loss and temperature issues

• Unplug the appliance and support the door before removing hinge hardware to prevent injury or damage
• Transfer any mounting screws or brackets only if specified by the OEM; replace visibly damaged fasteners
• Tighten mounting fasteners to secure the hinge but avoid over-torquing; confirm door alignment after installation

A small retaining pin used to secure moving parts and keep components aligned for smooth operation. Replacing a worn or broken common pin can stop rattling and restore proper fit between linked parts. What it does:

• Holds or aligns two parts together so they move correctly and stay in position
• Helps prevent rattling, looseness, or parts slipping out of place
• Works as a simple mechanical fastener—no electronics involved

• One common pin

• Disconnect power to the appliance before beginning any service
• Keep track of small parts; lay out components in order to aid reassembly
• May require removal of trim or a hinge/retainer to access the pin—use basic hand tools
• If the pin is difficult to seat, do not force; inspect mating parts for damage

This cabinet roller supports the refrigerator and lets the unit roll in and out of place for cleaning or service. Replace a worn or broken roller to restore smooth movement and help keep the appliance properly positioned.

• Supports the base of the refrigerator and enables rolling movement
• Helps with safe positioning and service access without dragging
• Common failure signs: appliance is hard to move, scraping or rolling noises, a flat-spotted/cracked wheel, or a wheel that won't turn
• Replace when the roller is damaged, seized, or missing

• Disconnect power and shut off water supply; protect flooring before moving the appliance
• With help, pull the refrigerator forward and safely support it to access the roller
• Remove mounting fasteners, install the new roller, and reuse original hardware
• Confirm level and smooth movement before returning the unit to its location

The Compressor Overload Protector Assembly is an OEM part for LG refrigerators. The compressor overload protector steps in if the compressor motor draws excessive current. It then interrupts the power to prevent overheating. The wire harness boosts the compressor to kick-start it, disengaging as soon as the motor reaches the desired speed.

Over time, the compressor overload protector can wear out or become damaged due to electrical issues, power surges, or constant exposure to high temperatures. A faulty protector can compromise the safety and efficiency of the refrigerator’s cooling system.

Symptoms of a bad compressor overload protector assembly include:

• The refrigerator not cooling properly
• The compressor frequently cycling on and off
• Clicking noises coming from the compressor area
• The refrigerator not turning on at all

This OEM LG part is also compatible with Sears/Kenmore models.

The Overload Compressor is an OEM part for LG refrigerators. This part protects the refrigerator's compressor from overheating and potential damage by acting as a safety device. It works by monitoring the compressor's electrical current and temperature. If the compressor operates under conditions that could lead to overheating or overcurrent, the overload protector will cut off the power to the compressor, allowing it to cool down before potentially restarting.

Causes of damage to the Overload Compressor can include power surges, electrical faults within the refrigerator, or a malfunctioning compressor that requires more current than usual to operate.

Symptoms of a bad Overload Compressor include:

• The refrigerator not cooling properly or not cooling at all
• The compressor failing to start, indicated by a clicking sound coming from the back of the refrigerator where the compressor is located.
• The refrigerator or freezer section warming up

This OEM LG part is also compatible with some Kenmore models.

This PTC cover is the protective housing that shields a PTC sensor/assembly from debris and physical damage, helping maintain reliable sensor performance and prolong component life in the appliance. What it does:

• Protects the PTC sensor or PTC assembly from dust, impact, and accidental contact
• Helps prevent shorting or intermittent sensor signals caused by contaminants
• Supports proper positioning and mounting of the PTC component
• Can help address symptoms such as visible sensor damage, exposed wiring, or intermittent operation related to a compromised sensor housing

• Disconnect power to the appliance before starting any repair
• Remove the outer panel(s) as needed to access the PTC location; handle surrounding wiring and components carefully
• Replace only with the correct OEM cover to ensure proper fit and protection

This compressor damper is a vibration-isolating mount that sits between the sealed-system compressor and the chassis. It cushions the compressor to reduce noise, limit vibration transfer, and help keep refrigerant lines from being stressed.

• Isolates the compressor from the frame to absorb start/stop shock and vibration
• Helps reduce humming, rattling, or buzzing from the back/bottom of the appliance
• Replaces a damper that's cracked, flattened, hardened, or missing
• Can help if the compressor rocks or the unit vibrates excessively

• Disconnect power and pull the unit forward for access; remove rear/service panel if present
• Support the compressor to relieve load on the mounts before removing fasteners
• Match orientation; transfer any sleeves/spacers from the old damper to the new one
• Ensure the compressor sits level and that tubing is not strained before restoring power

This small stopper installs in the refrigerator to limit the travel of a moving component and keep it securely in place. Replacing a broken or missing stopper prevents over-extension and helps maintain smooth, aligned operation.

• Limits the range of motion for a door, bin, or drawer to prevent over-opening or accidental removal
• Helps keep interior components aligned and operating smoothly
• Replace if cracked, missing, or deformed
• Common symptoms: drawer or bin slides out too far, door swings past normal range, or a broken plastic stop is found

• Disconnect power before servicing; remove or support the affected bin/drawer/door
• Note the old stopper's orientation and location before removal
• Transfer and reuse any original screws or clips if applicable
• Snap or fasten the new stopper in place and test for smooth movement

The Drier Assembly is an OEM part for LG refrigerators. This part is responsible for removing moisture and contaminants from the refrigerant. This ensures that the refrigerant circulates effectively and efficiently, preventing damage to other components and maintaining the refrigerator's cooling performance.

Causes of a bad Drier Assembly can include contamination from moisture entering the refrigerant lines, blockages from debris or particulates, and general wear and tear over time that reduces its effectiveness.

Symptoms of a bad Drier Assembly include:

• Reduced cooling efficiency or warm refrigerator temperatures
• Unusual noises from the refrigeration system
• The compressor running continuously or cycling frequently
• Frost buildup on the evaporator coils due to improper refrigerant flow

This OEM LG part is also compatible with Sears/Kenmore models.

This fan assembly circulates air through the appliance so coils and internal components operate at the proper temperature. Replacing a failed or noisy fan can restore airflow and help prevent performance issues caused by weak circulation.

• Moves air across coils and components to support designed cooling/dehumidifying performance
• Helps maintain steady airflow to reduce overheating or icing conditions
• A failing fan can cause little to no airflow even when the unit is running
• Common symptoms: fan not spinning, intermittent operation, loud rattling/grinding, vibration, or thermal shutdown

• Disconnect power before servicing to avoid electrical shock or injury
• Access the fan area per your unit's service information; remove panels/shrouds as needed
• Note wire connections and mounting order; transfer any brackets, grommets, or hardware from the old assembly
• After installation, ensure the fan spins freely and clears all shrouds, then test operation before reassembly

This replacement fan blade mounts on the fan motor to move air for proper cooling. A cracked, loose, or damaged blade can cause noise and weak airflow—replacing it restores smooth, reliable air circulation. What it does:

• Drives airflow to help maintain stable temperatures throughout the appliance
• Supports efficient cooling by circulating air across key areas
• Common symptoms include rattling or scraping near the fan, vibration, or wobbling
• Replacement is recommended if the motor runs but the blade slips, doesn't spin, or is visibly damaged

• 1 fan blade

• Disconnect power before servicing
• Access the fan area by removing covers/shelves as needed
• Note blade orientation; pull the old blade straight off the shaft and press the new blade on until fully seated
• Spin the blade by hand to confirm clearances, reassemble, and restore power

This fan grill assembly covers and directs airflow for the refrigerator fan, helping maintain proper circulation and protect the fan from debris. It restores the cabinet air channel and keeps internal components shielded for reliable cooling. What it does:

• Replaces a cracked or broken grill that lets dust or food debris reach the fan
• Restores intended airflow path to help the evaporator/condenser fan work efficiently
• Reduces noise from loose or damaged grill pieces rubbing the fan
• Helps protect internal wiring and fan blades from accidental contact

• One fan grill assembly

• Remove power to the appliance before starting any repair to avoid shock or injury
• Access may require removing interior panels or shelves; follow your model's service manual
• Handle the grill carefully to avoid cracking plastic tabs; use proper fasteners when reinstalling
• If airflow or noise issues persist after replacement, inspect the fan motor and mounting for damage

The Defrost Control Assembly is an OEM part for LG refrigerators, crucial for regulating the defrost cycle within the unit. This component plays a pivotal role in ensuring that the evaporator coils are periodically defrosted, preventing the build-up of ice that can impede airflow and cooling efficiency.

Causes of a bad Defrost Control Assembly can include electrical failures, sensor malfunctions, or damage to the assembly itself, which can disrupt the defrost cycle.

Symptoms of a bad Defrost Control Assembly include:

• The refrigerator or freezer compartment becoming too warm due to blocked airflow from ice accumulation
• A noticeable build-up of frost or ice on the evaporator coils or in the freezer compartment
• The refrigerator running continuously without cycling off
• Unusual noises coming from the refrigerator as ice builds up and interferes with the fan

This OEM LG part is also compatible with Sears/Kenmore.

The push button door switch is an OEM replacement part for LG refrigerators. It activates and deactivates certain functions when the appliance's door is opened or closed. The switch is specifically designed to respond to the movement of the appliance's door, allowing the appliance to detect when the door is opened or closed.

Causes of a bad door switch can include mechanical wear, physical damage, or electrical malfunctions over time.

This part fixes the following symptoms

• Interior light not turning on when the door is opened
• Inability to activate or deactivate certain functions when the door is opened or closed
• Unresponsive or intermittent operation of the push switch
• Door not properly closing or securely latching
• Visible damage or wear on the push switch

The LG push switch can also be used on Kenmore/Sears appliances.

The DC Motor is an OEM part for LG refrigerators. This part circulates air throughout the refrigerator to ensure uniform cooling and maintain optimal temperatures.

Causes of a bad DC motor can include electrical issues such as short circuits or burnt-out windings, physical damage from impact, or wear and tear from regular use.

Symptoms of a bad DC motor include:

• Refrigerator or freezer not cooling properly
• Unusual noises such as buzzing or humming from the motor area
• Evaporator fan not spinning or spinning intermittently
• Increased frost buildup in the freezer

This OEM LG part is also compatible with some Kenmore models.

The Fan Motor is an OEM part for LG refrigerators. It is essential for circulating air throughout the refrigerator and freezer compartments, ensuring that the temperature is evenly distributed and maintained at the set levels. This motor powers the fan that helps to cool the evaporator coils and dissipate heat, which is vital for the appliance's cooling efficiency.

Symptoms of a failing Fan Motor include:

• The refrigerator not cooling adequately
• Unusual noises coming from the refrigerator, such as humming or buzzing
• Ice buildup in the freezer compartment due to poor air circulation
• The refrigerator cycling on and off more frequently

Causes of a bad fan motor can include wear and tear over time, obstructions in the fan blades, or electrical issues such as faulty wiring or a malfunctioning capacitor.

This OEM LG part is also compatible with Sears/Kenmore.

The Rear Evaporator Motor Grommet is an OEM part for LG refrigerators. It's designed to secure and cushion the evaporator motor, ensuring it remains in place and operates quietly. This grommet plays a crucial role in minimizing vibrations and noise from the motor, which can otherwise lead to a disruptive refrigerator operation.

Causes of a bad Rear Evaporator Motor Grommet can result from deterioration due to cooling and thawing cycles in the refrigerator. Physical damage during cleaning or servicing may cause a loose motor fit.

Symptoms of a malfunctioning Rear Evaporator Motor Grommet include:

• Unusual noises or vibrations from the back of the refrigerator.
• The evaporator motor shifting out of place, which can affect cooling efficiency.
• Increased wear on the evaporator motor due to lack of proper cushioning and support.

This OEM LG part is also compatible with some Kenmore models.

The Front Evaporator Motor Grommet is an OEM part for LG refrigerators. This grommet cushions and secures the evaporator motor, reducing vibrations and noise during operation to ensure efficient cooling.

Causes of a bad grommet can include prolonged use leading to material fatigue, exposure to extreme temperatures, or physical damage from accidental impacts. A damaged grommet can result in increased noise and potential misalignment of the evaporator motor.

Symptoms of a bad evaporator motor grommet include:

• Increased noise from the refrigerator
• Vibrations or rattling sounds
• Poor cooling performance
• The evaporator motor becoming loose

This OEM LG part is also compatible with Sears/Kenmore.

The Refrigerator Door Switch is an OEM part for LG refrigerators, designed to signal the control system when the door is open or closed. This small but essential component plays a critical role in the overall operation of your refrigerator, including the activation of interior lights and the control of cooling functions.

Over time, the door switch can fail due to mechanical wear, accidental damage, or a buildup of debris that may prevent it from functioning correctly.

Symptoms of a bad Refrigerator Door Switch include:

• Interior lights not turning on or off appropriately with the door's position
• The refrigerator running longer than necessary, potentially leading to increased energy bills
• Unusual fluctuations in temperature inside the fridge, affecting food preservation

This OEM LG part can also be used on Kenmore/Sears appliances.

The Bracket Assembly is an OEM part for LG French door refrigerators housing circulation fan motors. This mounting bracket securely attaches the integral evaporator motor within the unit compartment.

Causes of a bad bracket assembly can include loosened fasteners failing to firmly support vibrations over time, impact dents flexing the steel support reducing balance, or corrosion where steel meets refrigerant lines deteriorating contact points.

Symptoms of a bad bracket assembly include:

• Abnormal noises or grinding sounds from motor
• Reduced airflow from the inlet to outlets inside the fridge
• Loose parts susceptible to movement damage
• Misalignment reducing the lifespan of bearings

Replace yours today with this genuine OEM LG bracket to restore optimized cooling performance. Rigid clamping securely isolates motor oscillations. Compatible with Samsung, Kenmore, and GE French door models, this replacement sustains proper fit and function.

This LED assembly is the backlight strip that provides panel illumination for compatible LG TVs, restoring even screen lighting and improving picture visibility. Use it to replace a damaged or failing backlight module. What it does:

• Provides uniform illumination behind the LCD panel for proper picture brightness
• Replaces worn or damaged LED strips that cause dim, uneven, or flickering backlight
• Can resolve symptoms such as dark spots, sections of the screen that are too dim, or no backlight while the TV powers on
• Works as a direct replacement for the specific LED module listed by the manufacturer

• One LED assembly

• Disconnect power and follow manufacturer service manual before starting; panel removal is typically required
• Handle the LED assembly and display panel carefully to avoid damage or fingerprints on the panel
• Observe ESD precautions and avoid bending or creasing the LED strip or its flex cable

The Run Capacitor is an OEM part for LG refrigerators. It is located near the compressor in the appliance's cooling system. It stores electrical energy and provides a boost to the motor during startup, ensuring smooth and efficient operation. The capacitor helps maintain the required power levels, stabilizes voltage, and supports the proper functioning of the compressor.

Causes of a faulty run capacitor can include electrical issues, capacitor aging or degradation, or damage due to power surges. These factors can result in issues such as the compressor not starting, the appliance not cooling properly, or unusual noises coming from the appliance.

Symptoms of a bad run capacitor may include:

• Compressor failing to start or delayed startup
• Inadequate cooling or no cooling at all
• Unusual noises, such as buzzing or clicking sounds

This OEM LG part can also be used on Kenmore/Sears appliances.

The Compressor Run Capacitor is an OEM part for LG refrigerators. It plays a critical role in the operation of the refrigerator's compressor by providing the necessary electrical boost to start and maintain the compressor's operation.

Causes of a bad compressor run capacitor can include electrical surges, overheating, or simply wear and tear over time. When the capacitor fails, it can no longer deliver the required electrical charge, which impacts the compressor's ability to start and run efficiently.

Symptoms of a bad compressor run capacitor include:

• The refrigerator not cooling properly
• The compressor not starting or running intermittently
• Unusual humming or clicking noises from the compressor area
• The refrigerator cycling on and off frequently

This OEM LG part is also compatible with Sears/Kenmore models.

The Compressor Overload Protector Assembly is an OEM part for LG refrigerators. The compressor overload protector steps in if the compressor motor draws excessive current. It then interrupts the power to prevent overheating. The wire harness boosts the compressor to kick-start it, disengaging as soon as the motor reaches the desired speed.

Over time, the compressor overload protector can wear out or become damaged due to electrical issues, power surges, or constant exposure to high temperatures. A faulty protector can compromise the safety and efficiency of the refrigerator’s cooling system.

Symptoms of a bad compressor overload protector assembly include:

• The refrigerator not cooling properly
• The compressor frequently cycling on and off
• Clicking noises coming from the compressor area
• The refrigerator not turning on at all

This OEM LG part is also compatible with Sears/Kenmore models.

This sheathed defrost heater mounts at the evaporator and melts frost during the automatic defrost cycle to restore airflow and stable temperatures. Replacing a failed heater helps prevent ice-clogged coils, warm spots, and noisy fan interference.

• Melts frost from the evaporator coil during the defrost cycle to maintain proper airflow
• Symptoms of failure: persistent ice on the back panel, weak cooling, or the evaporator fan striking ice
• A failed heater can cause long run times and temperature swings
• Replace if the element tests open/short or shows visible damage

• Disconnect power before service; allow components to warm to reduce risk of cracking brittle plastics
• Remove shelves and the evaporator cover; carefully defrost ice—do not chip or pry against the fins
• Transfer original clips/insulators if present; route wires as original and make firm electrical connections
• After reassembly, ensure the drain area is clear and the fan spins freely

This fan motor assembly circulates air across the evaporator coils to keep temperatures even inside the refrigerator. Replacing a worn or noisy motor restores proper airflow for consistent cooling performance.

• Drives the evaporator fan to move chilled air through the cabinet and vents
• Helps maintain stable temperatures and reduces frost from stagnant air
• Common symptoms: weak or no airflow, loud or intermittent fan noise, temperature fluctuations, refrigerator section warmer than expected
• Failures may result from worn bearings, moisture exposure, or an open motor winding

• Disconnect power before servicing; wear cut-resistant gloves and eye protection
• Access the fan behind the interior rear panel; remove shelves/drawers as needed and avoid bending evaporator fins
• Note wire connector orientation and mounting order; transfer any reusable hardware from the original assembly as needed
• After reassembly, verify the fan spins freely and confirm operation before reloading the compartment

This lamp cover assembly is the replacement plastic lens that protects and diffuses the interior light so the compartment stays illuminated and the bulb is shielded. Restores finished appearance and prevents direct contact with the bulb. What it does:

• Covers and protects the interior lamp from impacts, spills, and debris
• Diffuses light for more even illumination inside the compartment
• Stops rattling or movement caused by a cracked or loose lens
• Helps prevent accidental contact with the bulb or wiring

• One cover assembly

• Disconnect power or unplug the appliance before starting any work
• Remove shelves or components as needed for access and set small parts aside
• Use a soft cloth and gentle pressure to remove/install the lens to avoid cracking
• Replace the lamp bulb if the light still fails after installing the new cover

This water filter head assembly holds the water filter and connects the water lines to the filter.

This replacement filter cover is the outer housing piece that secures and protects the unit's air filter, helping keep the filter in place and preventing debris from bypassing the filtration system. It restores a proper seal and fit. What it does:

• Secures and protects the air/HEPA filter to maintain proper airflow and filtration.
• Prevents large debris and dust from bypassing the filter housing.
• Stops rattling or loose-fit noises caused by a damaged or missing cover.
• Helps ensure filter indicator and airflow sensors read correctly by restoring correct placement.

• One filter cover as shown.

• Unplug the appliance and remove power before servicing to avoid electrical shock.
• Remove the old cover and inspect mounting tabs; align new cover tabs into slots and snap gently into place.
• Handle filters carefully to avoid dislodging trapped dust; replace or clean filters per manufacturer recommendations.
• If cover does not seat easily, verify no debris or broken tabs are preventing proper installation.

This filter head assembly holds and secures the refrigerator's inline water filter cartridge, providing a sealed connection to the water lines for reliable flow and filtration. Replace a damaged head to stop leaks and restore normal dispensing. What it does:

• Secures the water filter cartridge and provides the water-line connections for the refrigerator's dispensing and ice systems
• Creates a sealed path to prevent leaks at the filter connection
• Restores proper water flow when a cracked or worn head restricts or leaks
• Helps ensure water passes through the filter media rather than bypassing it

• One filter head assembly

• Turn off the refrigerator ice/water dispenser and shut off the household water supply before replacing
• Relieve pressure by dispensing water after shutoff and carefully disconnect tubing; check and replace any worn O-rings or seals
• Hand-tighten connections, then check thoroughly for leaks when water is restored

The Temperature Sensor is an OEM part for LG refrigerators. Also known as a thermistor, is responsible for sensing the temperature changes and providing the necessary feedback to the refrigerator's control board. It helps maintain accurate and consistent temperature levels, ensuring optimal food preservation and efficient cooling.

Causes of a faulty temperature sensor can include wear and tear over time, damage due to electrical issues or exposure to extreme temperatures, or sensor calibration issues. These factors can result in temperature inconsistencies, inaccurate readings, or improper cooling performance of the refrigerator.

Symptoms of a bad temperature sensor may include:

• Incorrect temperature readings on the control panel
• Temperature fluctuations inside the refrigerator
• Overcooling or inadequate cooling of food items

This OEM LG part can also be used on Kenmore/Sears appliances.
