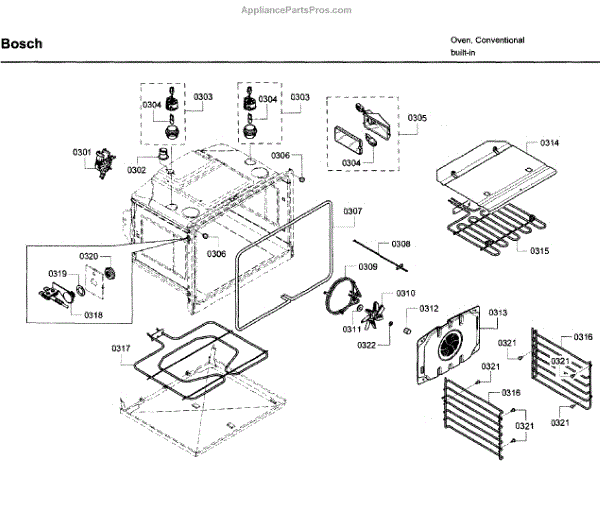

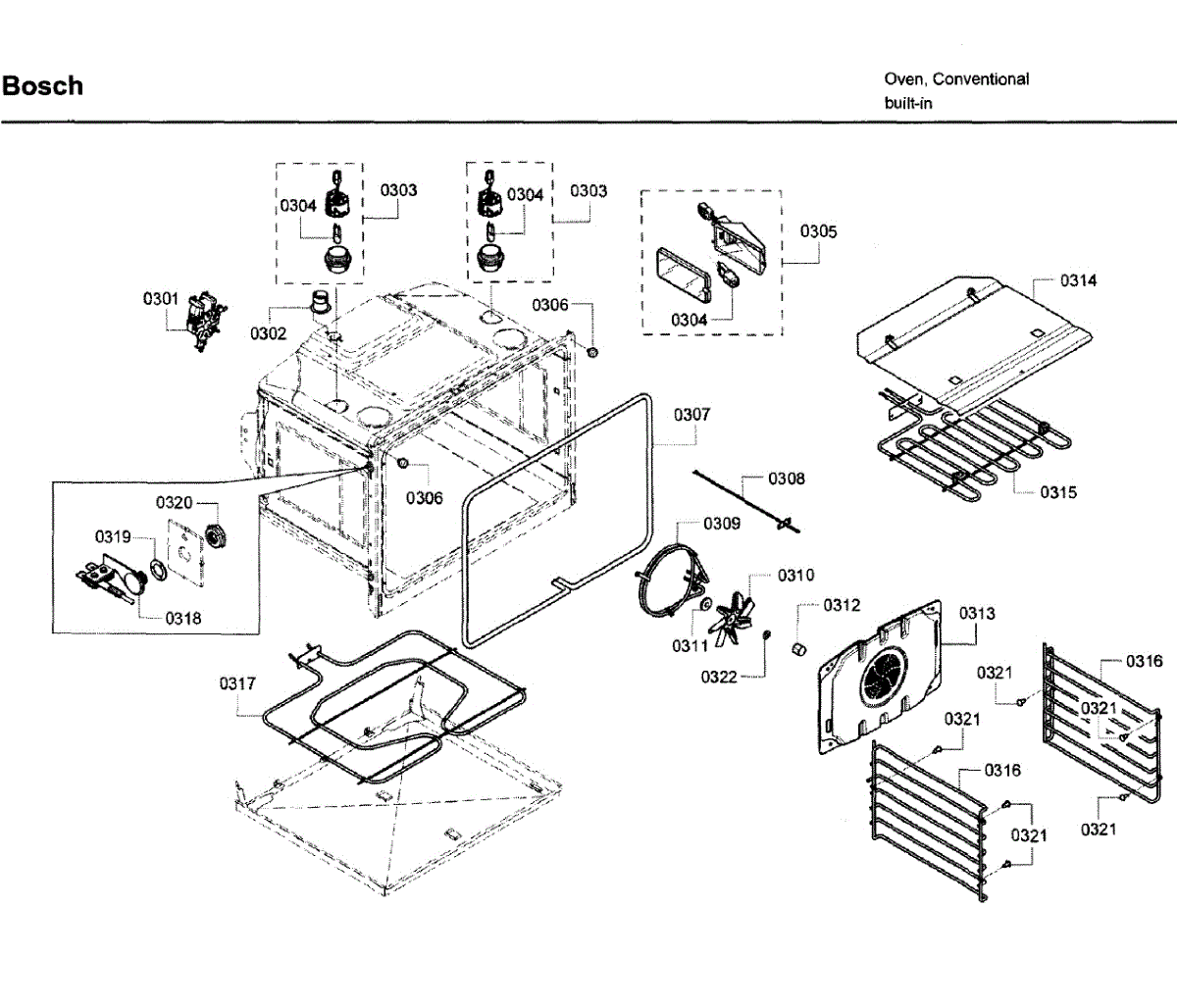

Parts for Bosch HBL8650UC/11: Cavity Parts

This convection fan motor drives the oven's internal fan to circulate hot air during convection cooking. Replacing a weak or seized motor restores proper airflow for more even heating, reliable temperatures, and consistent baking and roasting results.

• Powers the convection fan to move heated air across racks for even cooking
• Helps maintain stable cavity temperature and quicker recovery after door openings
• Common symptoms of a failing motor: fan won't turn, intermittent start/stop, loud squeal or grinding, uneven baking/roasting, or a fan-related error

• Disconnect power at the breaker before servicing
• Access from the rear of the unit or through the oven cavity (model dependent); remove the appropriate panel to reach the motor
• Note wire positions and motor orientation; transfer any brackets, grommets, or screws from the original if needed
• Ensure the fan blade spins freely and is properly seated before reassembly

This halogen oven lamp provides bright, consistent interior lighting so you can easily check cooking progress without opening the door. It replaces a burned or dim oven bulb to restore full interior visibility. What it does:

• Illuminates the oven cavity for clear viewing of food during cooking and baking
• Replaces a burned-out or flickering oven lamp
• Helps you monitor doneness without repeatedly opening the oven door
• Fits into the oven lamp socket and powers with the oven's existing lighting circuit

• Disconnect power to the appliance before servicing to avoid shock
• Allow the oven to cool completely before replacing the lamp
• Avoid touching the bulb glass with bare fingers; use gloves or a clean cloth to prevent oil deposits that can shorten bulb life

This sealing plug closes an unused port or opening to prevent leaks and keep internal components protected. It restores a watertight seal and helps prevent debris or moisture from entering appliance cavities. What it does:

• Seals an open port or service access to stop water leaks and moisture intrusion
• Helps keep debris and contaminants out of pumps, valves or internal cavities
• Restores proper sealing after maintenance or component replacement
• Can reduce risk of water damage or corrosion when installed correctly

• Disconnect power and water supply before accessing the part
• Inspect any O-rings or sealing surfaces; replace damaged seals
• Hand-tighten or press into place per manufacturer guidance; avoid over-tightening

This door seal restores a tight barrier between the oven door and cavity. Replacing a worn gasket helps your oven reach and hold temperature, reduces heat escaping at the door edges, and supports more consistent baking and roasting results.

• Creates a heat-resistant seal around the oven opening
• Helps the oven preheat and maintain set temperature
• Limits heat, steam, and odors from escaping at the door
• Typical signs it needs replacement: visible tears or flattening, heat felt around the door, longer preheat/cook times, or uneven baking

• Disconnect power at the breaker and let the oven cool completely
• Open the door, pull the old seal from its channel, and clean the groove
• Press the new seal evenly into the channel without stretching; ensure corners seat fully
• Close the door to verify uniform contact all around and adjust as needed

The Sensor is an OEM replacement part for Bosch ranges. It monitors conditions inside the oven compartment such as temperature and diagnosing faults.

Symptoms of a bad sensor include:

• The oven not heating or cooking unevenly
• Inaccurate temperature readings displayed
• Erratic or unpredictable ignition/operation
• Error codes appearing related to sensor faults

Causes of failure can be normal wear over time from high heat exposure, accidental damage compromising sensor integrity, or intrusion of liquids or debris confusing readings.

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore ranges.

This heating element restores proper water temperature and drying performance in your dishwasher. When the original fails, cycles may run long and dishes can come out wet; replacing it brings back consistent, efficient cleaning results. What it does:

• Heats wash and rinse water to help dissolve detergent and remove soils
• Raises final rinse temperature to improve drying performance
• Works with the control and sensors to maintain target temperatures
• Common symptoms include water not heating, poor drying, extended cycles, or a heating-related fault

• 1 heating element

• Disconnect power at the breaker and shut off water before servicing
• Pull the dishwasher and/or remove the toe panel as needed to access the heater wiring and mounts
• Note wire positions and make secure, clean terminal connections
• After reassembly, run a test cycle and inspect for leaks and proper heating

This is a replacement nut used to secure internal appliance components. It restores proper fastening so assemblies stay tight and reduces noise or movement caused by loose hardware. What it does:

• Secures brackets, trim or internal components to prevent parts from shifting
• Stops rattling or vibration caused by a missing or loose nut
• Restores proper fastening after maintenance or repair
• Helps maintain correct alignment of the secured component

• Disconnect power and water before accessing internal parts
• Use appropriate hand tools and a firm grip; avoid power tools that can over-torque
• Do not overtighten — snug until secure to avoid stripping threads
• Replace any corroded or damaged mating hardware for a lasting repair

This factory replacement heating element restores proper heat during operation. When the original element is burned out or damaged, installing this part brings temperatures back to spec for reliable cycle performance and effective cleaning, drying, or heating results. What it does:

• Heats water or air to the target temperature as designed by the appliance
• Common symptoms include no heat, lukewarm operation, extended cycle times, poor drying results, or heating-related error codes
• Electrical connections match the original layout on applicable models
• Built to original specifications for consistent, even heating

• 1 heating element

• Disconnect power before servicing; shut off water supply if applicable
• Allow the appliance to cool completely before handling the element
• Note wire orientation and terminal positions; transfer any reusable seals or brackets from the original
• After installation, check for leaks and run a test cycle to ensure proper heating

This support mounting bracket secures internal components to the appliance frame, restoring proper alignment and stable operation. It replaces a worn, broken, or loose support to help reduce rattling and prevent component sag. What it does:

• Provides a secure mounting point for internal parts and assemblies
• Re-establishes correct alignment when a bracket is bent or broken
• Helps reduce vibration and rattling caused by loose or damaged supports
• Commonly replaced when a component shifts, rubs, or no longer sits flush

• Disconnect power and water before starting any repair.
• Basic hand tools are typically required; follow OEM service instructions for disassembly/reassembly.
• Inspect adjacent fasteners and clips; replace any that are damaged to ensure a secure fit.

This Bake Element is an OEM part for Bosch Wall Ovens. It's responsible for generating heat for baking and cooking. Continuous exposure to high temperatures can cause wear or damage to this component.

What Causes a Bad Bake Element:
Repeated heating and cooling cycles, as well as exposure to high temperatures, can cause the bake element to deteriorate or fail.

Symptoms of a Bad Bake Element:

• Inconsistent oven heating
• Uneven cooking or baking
• The oven fails to reach set temperatures

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This socket is an electrical connector used to join wiring or plug-in components, restoring a secure connection for reliable appliance operation. It replaces a worn or damaged socket to help prevent intermittent power or component failure. What it does:

• Provides a secure electrical connection between wiring and the appliance component
• Restores proper contact when a loose, corroded, or broken socket causes intermittent operation
• Helps prevent arcing or poor connections that can lead to component failure
• Used where a plug-in or push-fit electrical connection is required

• One socket

• Disconnect power to the appliance before inspecting or replacing the socket
• Replace only with the exact socket type specified for your appliance

This flat washer secures fasteners and helps distribute load on mounting points to prevent loosening and wear. A small but essential hardware piece for reliable assembly and stable operation. What it does:

• Provides a smooth bearing surface between a fastener head or nut and the part being secured
• Helps distribute clamping force to reduce pressure on softer materials
• Reduces risk of fastener loosening from vibration or movement
• Protects mating surfaces from damage during tightening

• One flat washer

• Inspect mating fastener and surface for damage; replace parts if worn or deformed
• Slide washer onto the bolt or stud before installing the nut or fastener head
• Tighten fastener to the manufacturer's recommended torque if available
• Disconnect power and follow appliance safety procedures before accessing internal components
