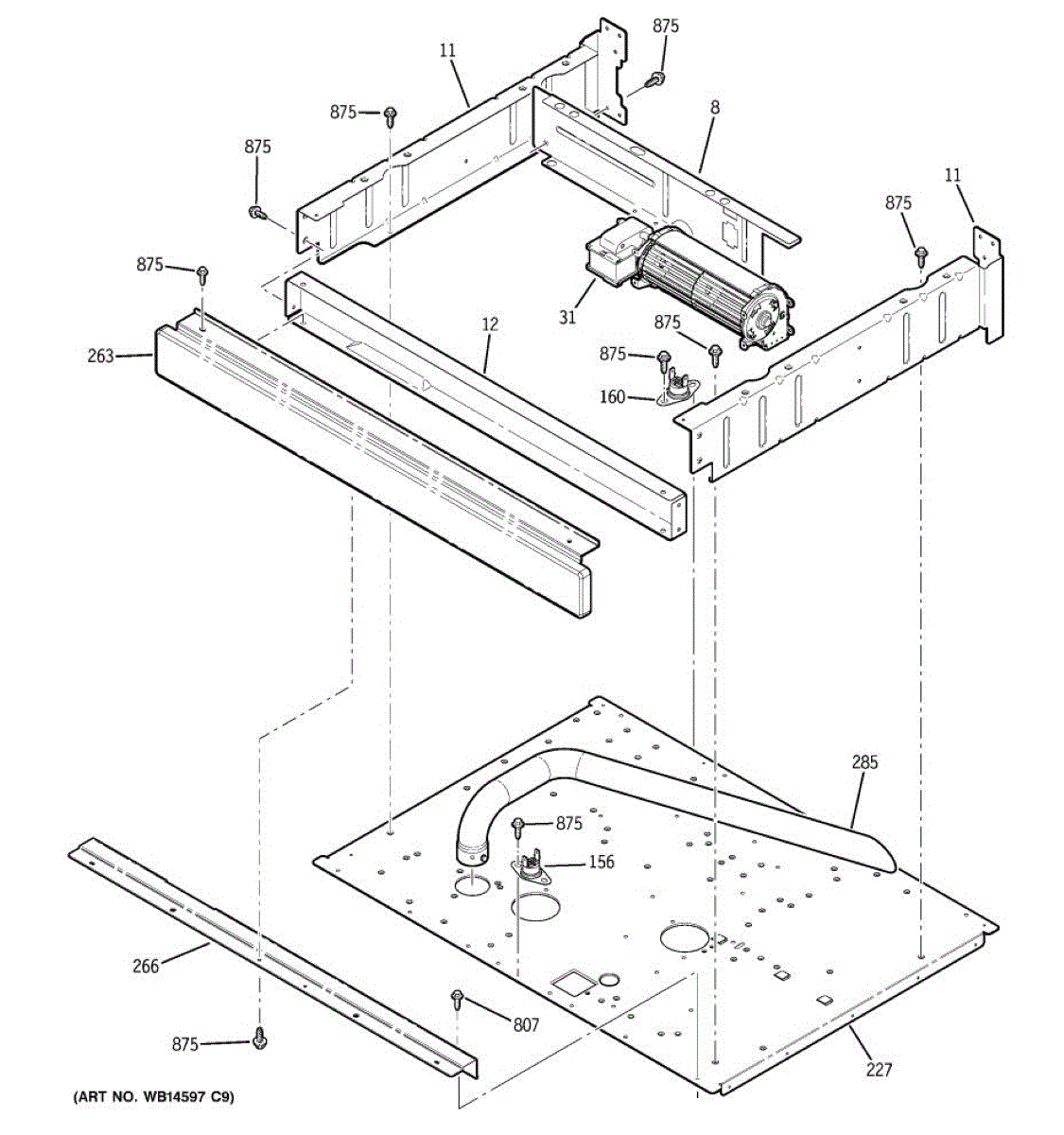

Parts for Ge JTP55SM2SS: 03 - Center Spacer Parts

This cooling fan is located inside the range and circulates air to prevent overheating of internal components. Replace when you hear unusual noises, the oven overheats, or the fan doesn't operate during cooking.

This bimetal limit switch monitors a radiant surface element's temperature and opens the circuit if it overheats, helping your cooktop maintain safe, consistent heating while protecting wiring and controls from damage. What it does:

• Senses surface element temperature via a bimetal sensor
• Opens/closes the circuit to limit element temperature and prevent overheating
• Helps the burner cycle properly for more consistent heat
• Common symptoms: no heat, low heat/cycles off too soon, overheating, or erratic cycling

• One bimetal limit switch

• Disconnect power at the breaker before servicing
• Access the element, note wire positions, and transfer leads to the new switch one at a time
• Mount firmly to the element/bracket so the sensor has correct contact
• Do not bend or adjust the sensor; replace if damaged

Oven won't heat or overheats? This thermal limit switch protects against temperature extremes. Moderate DIY repair restores safe oven operation.

Secures oven insulation behind the cooktop or control panel. Replace this retainer clip if broken, missing, or no longer holding insulation in place.

Trim assembly for ovens. Installs around the control panel or door edge to provide a finished appearance. Replace if cracked, bent, or missing.

Directs exhaust and heat away from the oven cavity to maintain proper airflow. Replace if your vent tube is cracked, damaged, or missing components.

Black-finished screw secures oven panels, trim, and brackets. Replace missing or damaged fasteners to restore solid fit and prevent rattling or gaps.

Mounting screw secures range components and panels. Replace if screw is stripped, missing, or damaged during appliance repair or maintenance work.

Black. 8-18 AB HXW 3/8
