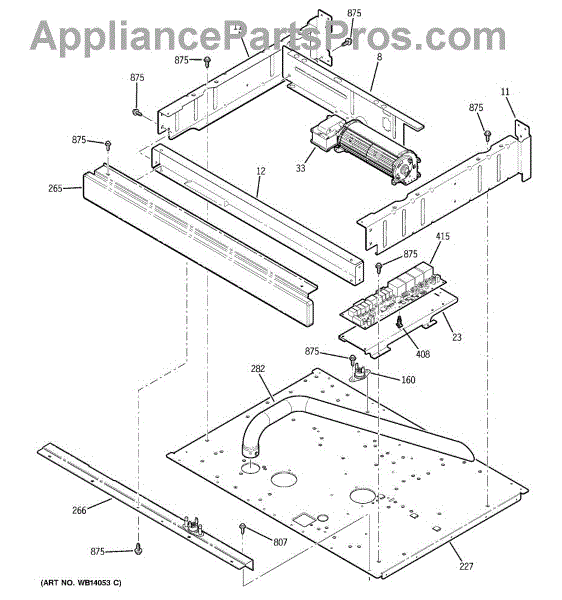

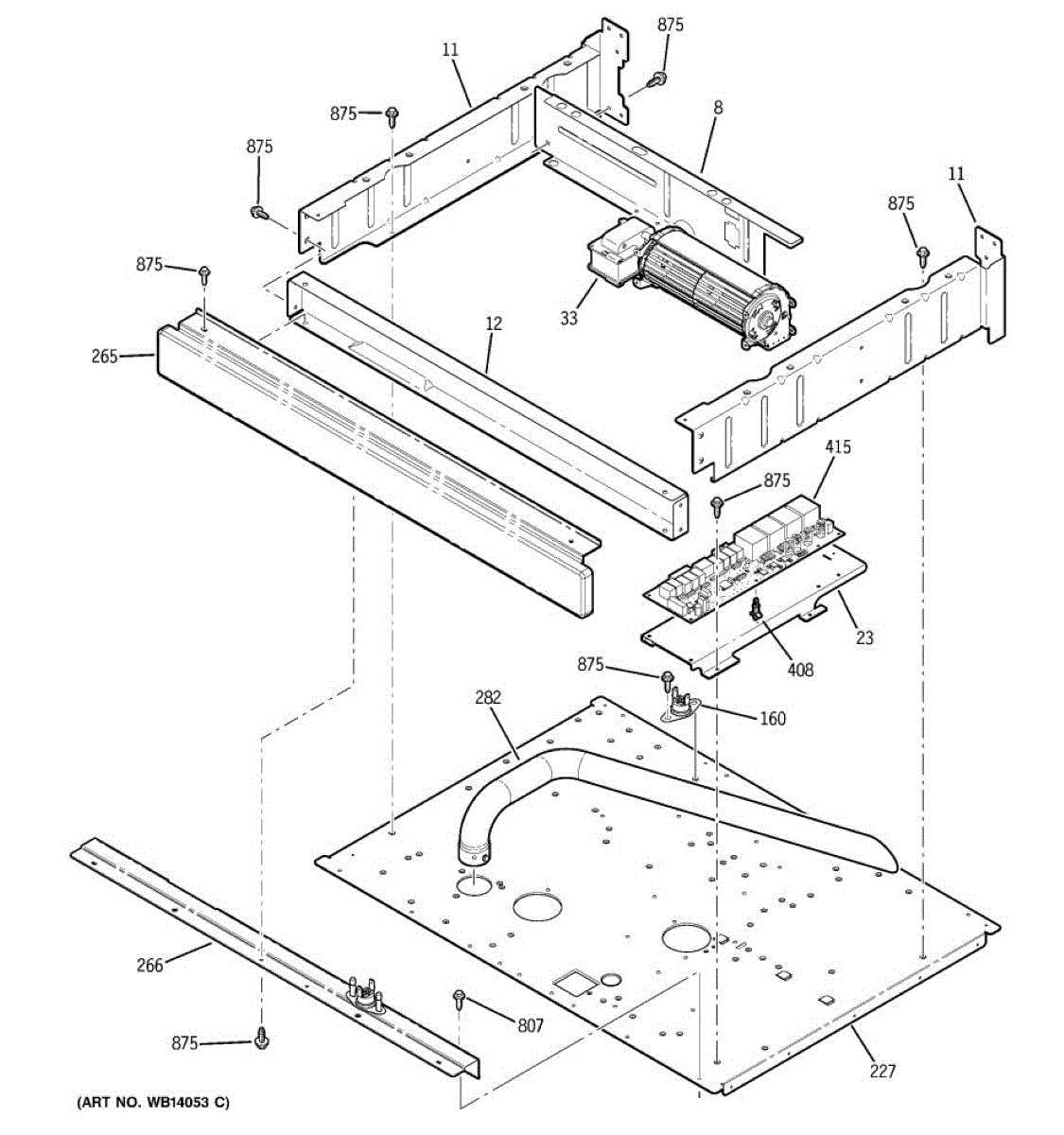

Parts for Ge ZPRASHANT: 03 - Center Spacer Parts

This tangential blower moves air across oven/microwave components to cool electronics and vent heat. Replacing a worn blower restores proper airflow to help prevent overheating and reduce fan noise. What it does:

• Circulates air across internal components to maintain safe operating temperatures
• Helps cool control electronics and magnetron assemblies in ovens/microwaves
• Can cause overheating, reduced cooling, or unusual fan noise when failing
• Restores designed airflow when the motor or fan blades are worn or damaged

• Disconnect power to the appliance before beginning any repair
• Handle sharp sheet metal and internal components with care
• Basic replacement typically requires removing access panels and unplugging the blower connector; transfer any mounting grommets or brackets as needed

Restore safe, reliable heating with this bimetal limit switch. It senses excessive temperature inside your range or cooktop and opens the circuit to prevent overheating, then automatically resets once the area cools to a safe level.

• Monitors temperature and interrupts power when a preset limit is reached
• Automatically resets after cooling to resume normal operation
• Helps protect heating components, wiring, and controls from heat damage
• Common signs of failure: little or no heat, intermittent cycling, or overheating; fails continuity testing

• Disconnect power and allow the appliance to cool completely before servicing
• Access the switch location; note wire positions and transfer them one at a time to the new switch
• Mount the new switch in the same orientation; ensure proper thermal contact as designed
• Inspect connectors for heat damage, replace if needed, then reassemble and test operation

This vent tube assembly routes exhaust air and helps direct airflow away from the appliance to maintain proper ventilation and operation. It replaces a damaged, cracked, or disconnected tube to restore correct air discharge. What it does:

• Channels exhaust airflow from the appliance to the external vent path
• Prevents air leaks that can reduce venting efficiency or cause mild odors
• Replaces tubes that are cracked, split, corroded, or otherwise damaged
• Helps maintain consistent airflow for proper appliance performance

• One vent tube assembly as shown

• Disconnect power (and gas if applicable) and unplug the appliance before beginning work
• Use appropriate tools and fasteners; do not overtighten clamps to avoid crushing the tube

This vent tube assembly directs exhaust and heat away from the appliance cavity to help maintain proper airflow and protect internal components. It replaces a worn or damaged vent tube to restore normal venting performance. What it does

• Channels exhaust from the appliance outlet to the main vent path to prevent heat buildup.
• Keeps heat and combustion gases away from console and internal wiring.
• Helps reduce hot spots and odors that can occur with a damaged or disconnected vent.
• Fits into the appliance's venting system to restore intended airflow routing.

• Disconnect power (and gas, if applicable) before starting work.
• Remove access panels per the appliance service instructions; take care around sharp sheet metal.
• Verify orientation and secure mounting so the tube routes without kinks or pinching.

This relay board assembly controls the high-voltage loads in a range or wall oven. It switches power to the heating elements and other oven circuits as directed by the main control, helping restore consistent, reliable heating performance. What it does

• Receives low-voltage commands from the electronic control and energizes bake, broil, and other high-load oven circuits
• Cycles elements on and off through onboard relays to help maintain set temperature
• Common symptoms of a failed board: no heat in bake or broil, only one mode heats, intermittent/uneven heating, or relay clicking with no element power
• Visual clues can include burnt spots on the PCB or heat-damaged terminals

• 1 relay board assembly

• Disconnect power at the breaker before servicing; this board carries line voltage
• Handle electronics by the edges and use ESD protection if available
• Label/photograph all wire positions; move connectors one at a time to the new board
• Inspect elements and wiring for shorts or heat damage before restoring power

This black-finished screw secures appliance panels, brackets, or trim in place. Replacing a missing or damaged fastener restores a solid fit and helps prevent rattling, gaps, and loose components.

• Fastens panels, trim, brackets, or covers on the appliance
• Helps maintain proper alignment and reduces vibration noise
• Common replacement when the original is lost, stripped, rusted, or broken
• Symptoms include loose or wobbly parts, rattling, or visible gaps

• Disconnect power; for gas appliances, also shut off the gas supply
• Allow hot surfaces to cool before servicing
• Start threads by hand to avoid cross-threading, then tighten snugly—do not overtighten
• Reuse any original washers or spacers in the same order and location

Package of 12

Black. 8-18 AB HXW 3/8
