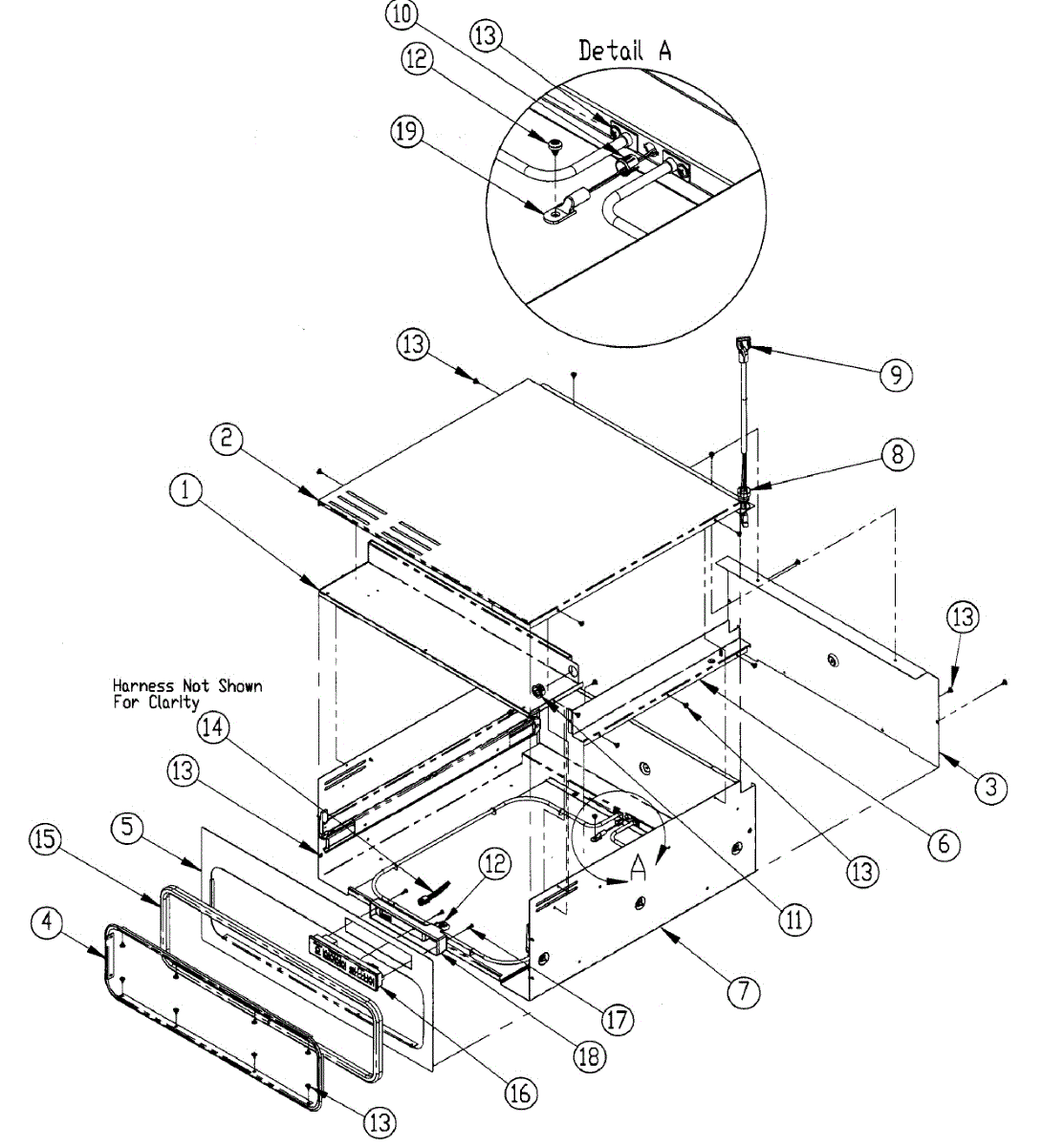

Parts for Dacor MRWD30B: Chassis Assembly Parts

This rear service cover replaces a cracked or missing back access panel to protect internal components and allow safe access during maintenance. It restores cabinet integrity and helps prevent dust and debris from reaching parts. What it does

• Covers and protects internal components, wiring and connectors at the appliance rear
• Provides an access point for service technicians to reach controls and components
• Helps reduce dust buildup and foreign-object entry into the cabinet
• Keeps loose or exposed parts from contacting surfaces or users

• Disconnect power (and water if applicable) before servicing.
• Remove rear access screws and replace with this cover; secure with original fasteners.
• Align edges and mounting holes before tightening to avoid damage.

This service bushing protects and cushions appliance wiring where it passes through metal panels, helping prevent chafing and shorts. It's a simple replacement that restores proper routing and insulation for harness wires. What it does:

• Cushions wiring at panel openings to reduce abrasion and wear
• Keeps wiring properly routed to prevent pinching or intermittent connections
• Helps stop rattling or vibration where wires contact metal edges
• Addresses symptoms like exposed or frayed insulation, burning smell, or intermittent power related to damaged panel wiring

• One service bushing

• Disconnect power before starting any repair
• Remove the access panel or trim to reach the damaged bushing location
• Press the bushing into the panel hole until fully seated; replace wiring through the bushing as routed originally
• Inspect surrounding wiring and replace any frayed or heat-damaged sections; reassemble panels securely

Factory wafer-head Phillips screw (#8 x 3/8 in) secures panels, brackets, and covers. Replace missing, stripped, or damaged screws for proper alignment.

Fix warming drawer not heating or responding to controls with this control board and overlay assembly. Moderate DIY repair for most warming drawer models.

Drawer only gets hot regardless of temperature setting? This thermistor monitors internal temperature to restore accurate heat regulation and prevent overheating.
