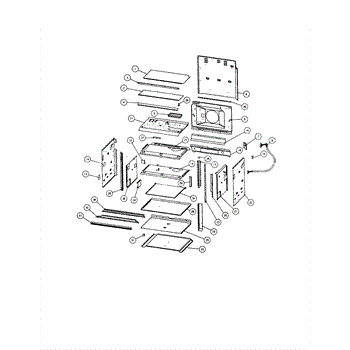

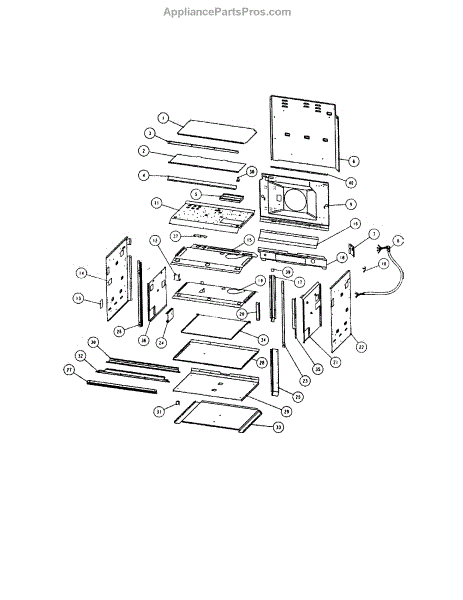

Parts for OS301: Chassis Assembly Parts

This extrusion top panel is the molded metal trim that fits along the top edge of the appliance to restore a finished appearance and help protect the cabinet edge. It replaces damaged or dented top trim for a clean, factory look. What it does:

• Covers and protects the appliance's top edge from dings, scratches and moisture exposure
• Restores the original exterior appearance for a uniform finish
• Provides a mounting/clean edge where the control or top assembly meets the cabinet
• Helps prevent debris from entering gaps along the top panel

• Disconnect power to the appliance before starting any disassembly
• Typical installation requires removal of the outer/top panel or control housing; basic hand tools are usually sufficient
• Handle edges carefully to avoid cuts and to protect the finish during installation
• Secure all fasteners; reuse any retained clips or brackets if in good condition

This panel mounting transformer provides the low-voltage power source required by a range of control panels and user interfaces, restoring display and control electronics power when the transformer fails. What it does

• Converts incoming mains voltage to the low-voltage supply used by the appliance control panel.
• Supplies stable power so displays, LEDs, and touch/keypad circuits operate correctly.
• Common symptom: dark or unresponsive control/display even though the appliance has main power.
• Common symptom: intermittent control or reset of electronic functions tied to the panel power.

• One panel mounting transformer (single unit only).

• Disconnect all power to the appliance before starting work to avoid shock or injury.
• Removal typically requires accessing the control panel—retain screws and hardware for reassembly.
• Transfer any wire connectors or mounting clips from the old transformer; match wire colors/terminals exactly.

This power cable assembly supplies mains power to a range, providing a safe, intact connection between the appliance and household wiring. Replace a damaged or worn cord to restore reliable power delivery and reduce shock/fire risk. What it does:

• Carries line voltage from the household circuit to the range's internal wiring and controls
• Replaces frayed, cut, or heat-damaged cords that cause intermittent power or no-power symptoms
• Prevents loose or corroded connections that can cause arcing, sparking, or tripped breakers
• Restores a proper strain-relieved connection at the appliance inlet

• Disconnect power at the breaker and verify no voltage before beginning work
• Follow the appliance wiring diagram and secure all terminals with correct hardware and torque
• Use appropriate strain relief and grounding practices per local electrical code

This is the official installation instructions sheet that explains correct setup steps and safety guidance to help ensure your appliance is installed per manufacturer recommendations. What it does:

• Lists required clearances, mounting points, and basic hookup steps for proper installation
• Highlights safety warnings to reduce risk of electrical shock, fire, or water damage
• Describes necessary connections (power, water, venting) in plain language for installers
• Helps prevent common installation issues that can cause poor performance or leaks

• Read the entire sheet before beginning installation and follow local codes and ordinances
• Turn off power and water supplies before making electrical or plumbing connections
• Keep the instructions with the appliance for future service and reference

This right side outer panel restores the appliance's exterior appearance and helps protect internal components from dust and damage. It's the correct replacement when the original side panel is dented, cracked, or missing. What it does:

• Replaces a damaged or dented right-side exterior panel to restore fit and finish
• Shields internal components from dust, moisture, and accidental contact
• Stops rattling or vibration caused by a loose or warped side panel
• Helps maintain proper clearance and alignment of adjacent panels

• Disconnect power to the appliance before starting any repair
• Handle with care; edges may be sharp and panels can be heavy
• Installation typically requires removing adjacent panels and fastening with existing screws or clips

A replacement panel hinge cover that hides and protects the door hinge area while restoring a finished appearance. Helps keep the hinge secure and prevents dirt buildup around the hinge and panel joint. What it does:

• Covers the door hinge area to protect the hinge mechanism and surrounding panel edge
• Restores a clean, finished look when an original cover is cracked, loose, or missing
• Helps prevent debris and moisture from collecting on the hinge assembly
• Reduces rubbing or contact between the hinge and the outer panel trim

• Disconnect power to the appliance before beginning work to avoid injury.
• Remove the door or access panel to reach the hinge area; retain fasteners for reuse.
• Install by aligning over the hinge and snapping or securing with the original screws; do not force or bend the cover.
• If any hinge hardware is damaged or loose, address that before reinstalling the cover.

A black cover duct that protects and conceals the appliance duct opening for a clean finished appearance. Replaces worn or damaged duct covers to help maintain proper airflow routing and appliance aesthetics. What it does:

• Covers and protects the duct opening to prevent debris from entering the duct path.
• Helps maintain correct airflow routing behind or beneath the appliance cabinet.
• Restores a finished, factory look to the appliance where the duct is exposed.
• Can reduce drafts and light infiltration around the duct opening when properly seated.

• One black cover duct.

• Designed to snap or screw into a dedicated duct opening—inspect mounting points before installing.
• Turn off and unplug the appliance or disconnect power at the breaker before accessing rear or lower panels.
• Use basic hand tools; avoid forcing the part into place to prevent cracking.
• If other duct or panel components are damaged, replace them to ensure a proper fit and seal.
