Parts for Ge AZ22E12D5CM3: 03 - Chassis Assembly Parts

Parts for Ge AZ22E12D5CM3: 03 - Chassis Assembly Parts

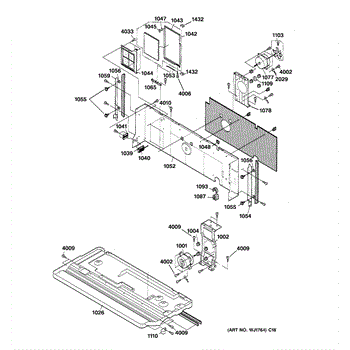

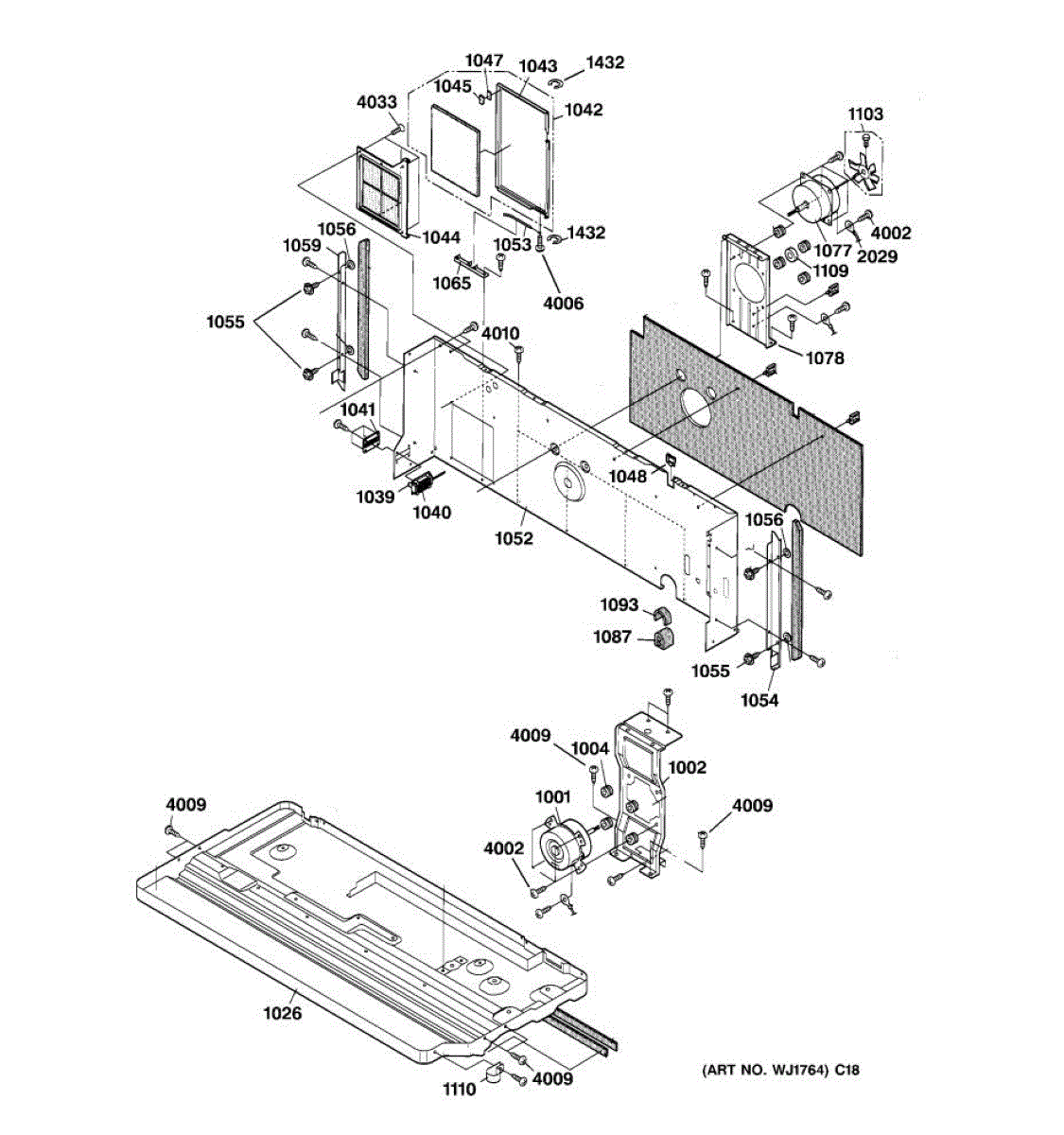

Location on Diagram
Part Description
Price & Availability
1001
By: Ge
Part Number: WP94X10236
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1002
Product photo
By: Ge
Part Number: WJ65X10005
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1004
Product photo
By: Ge
Part Number: WJ01X10034

Rubber cushion that mounts between the air conditioner motor and housing to reduce vibration and noise. Replace if cracked, compressed, or missing.

More
$16.37

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
1026
By: Ge
Part Number: WJ89X10018

This base pan assembly is the lower support pan that helps protect the appliance cabinet and catch minor leaks or debris. It restores the unit's stable mounting and helps keep internal components protected from spills. What it does:

  • Provides the lower structural support for the appliance cabinet and components
  • Channels and contains incidental water or debris away from electronics and controls
  • Helps maintain proper alignment and stability of the appliance on the floor
  • Reduces vibration transfer and helps prevent direct contact between components and the floor
What's included:
  • One base pan assembly as shown
Install notes:
  • Disconnect power and water before beginning
  • Check for secure mounting points and replace any worn fasteners or grommets during reassembly
  • Inspect surrounding seals, hoses, and mounts for damage while the appliance is open
  • Use manufacturer-recommended hardware and follow OEM disassembly/reassembly steps

More
$123.75

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
1039
By: Ge
Part Number: WJ14X10008
$7.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
1040
By: Ge
Part Number: WJ05X10014
$4.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
1041
By: Ge
Part Number: WJ80X10002
$7.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
1042
By: Ge
Part Number: WP70X10017
$26.40

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
1043
By: Ge
Part Number: WP70X10018
$11.36

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
1044
By: Ge
Part Number: WP76X10002
$30.55

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
1045
By: Ge
Part Number: WP01X10001
$8.64

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
1047
By: Ge
Part Number: WP01X10002
$7.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
1048
By: Ge
Part Number: WJ03X10007
$11.52

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
1052
By: Ge
Part Number: WP76X10019
$66.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
1053
By: Ge
Part Number: WP01X10003
$11.51

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
1054
By: Ge
Part Number: WJ82X10002
$9.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
1055
By: Ge
Part Number: WP01X10004

Special mounting screw for air conditioner assembly. Secures internal components and panels. Replace if stripped, missing, or damaged during maintenance.

More
$2.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
1056
Product photo
By: Ge
Part Number: WP01X10005

Rubber washer for air conditioner unit assembly. Installs between components to create seal and reduce vibration. Replace if cracked, worn, or missing.

More
$4.81

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
1059
By: Ge
Part Number: WJ82X10003
$10.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
1065
By: Ge
Part Number: WJ82X10005
$4.45

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
1077
Product photo
By: Ge
Part Number: WP94X10024
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1078
By: Ge
Part Number: WJ82X10012
$11.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
1087
By: Ge
Part Number: WJ40X10006
$5.34

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
1093
By: Ge
Part Number: WJ40X10007
$4.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
1103
Product photo
By: Ge
Part Number: WP73X10005

This fan circulates air within the oven cavity for even heat distribution during convection cooking, typically mounted on the rear wall. Replace it if you notice uneven baking results, unusual noise during operation, or if convection mode doesn't work properly.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1109
Product photo
By: Ge
Part Number: WJ01X10033
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1110
By: Ge
Part Number: WJ03X10006

Replacement wire holder for air conditioners. Secures and organizes internal wiring. Order a new holder if yours is cracked, broken, or missing.

More
$5.93

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
1432
By: Ge
Part Number: WP02X10002
$5.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
2029
By: Ge
Part Number: WJ37X10001
$9.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
4002
Product photo
By: Ge
Part Number: WJ01X10035
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

4006
By: Ge
Part Number: WJ01X10056
$7.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
4009
By: Ge
Part Number: WJ01X10037

Special mounting screw for air conditioner assembly. Replace if screw is stripped, missing, or damaged during maintenance or installation work.

More
$7.45

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
4010
By: Ge
Part Number: WJ01X10012
$4.45

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
4033
By: Ge
Part Number: WJ01X10109
$4.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
